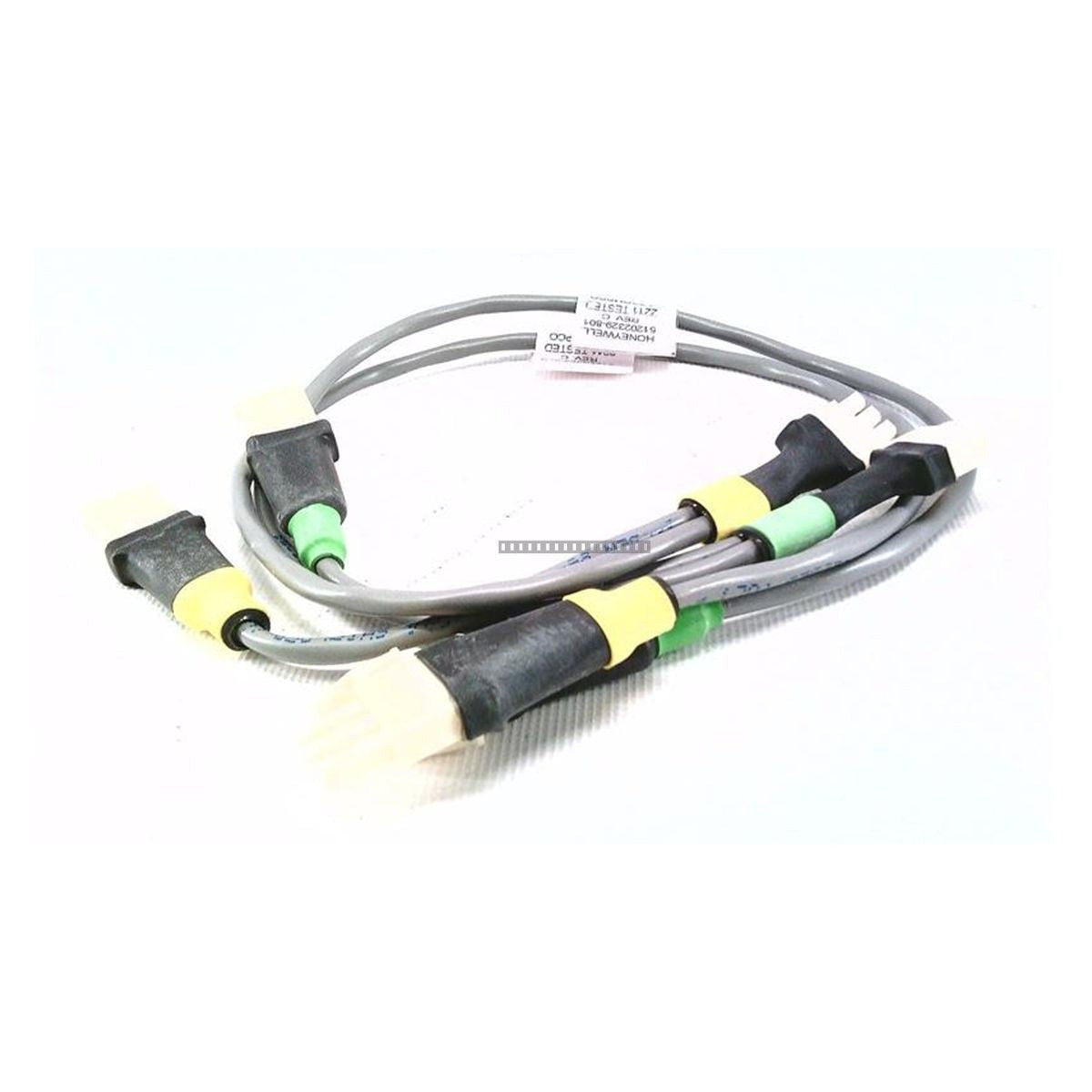

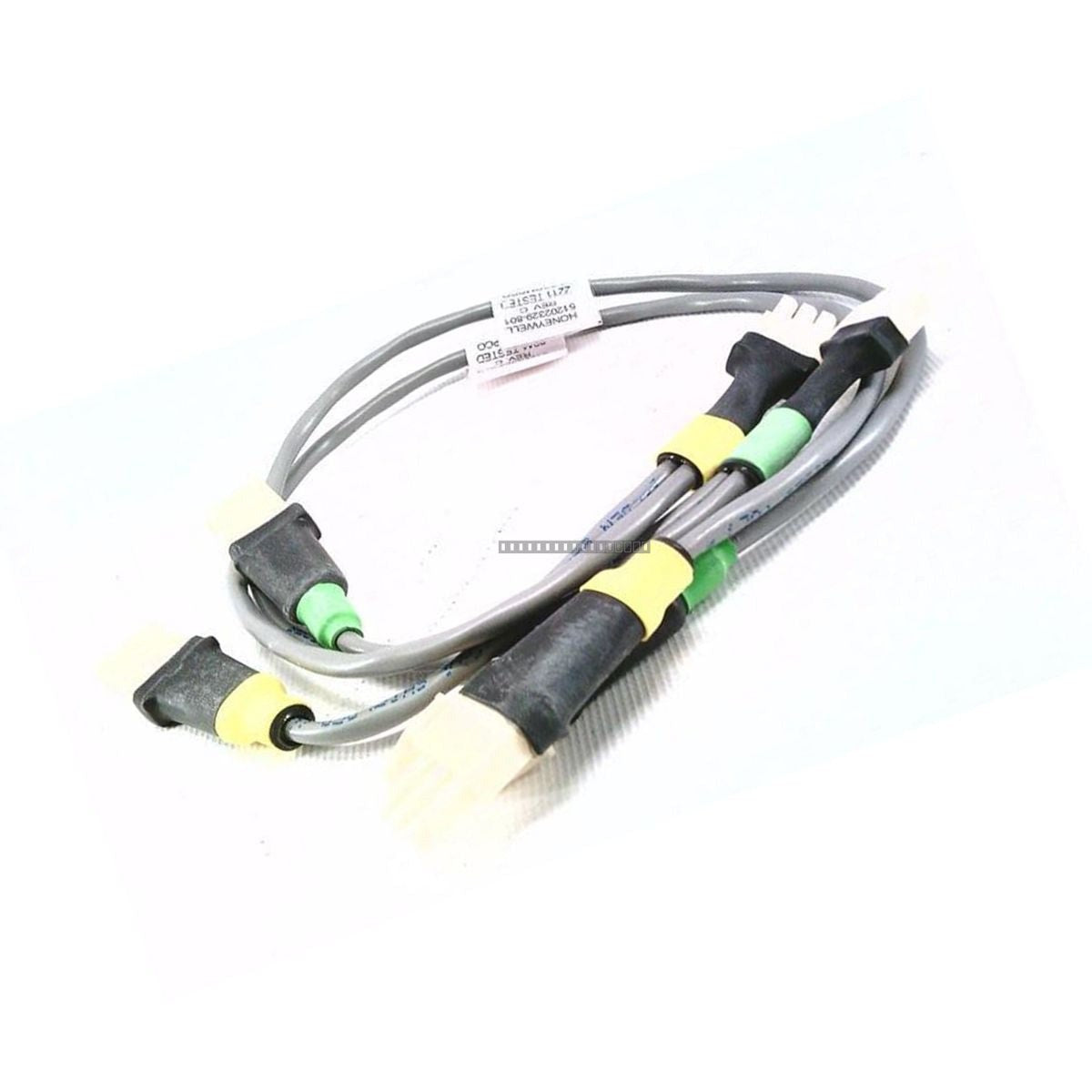

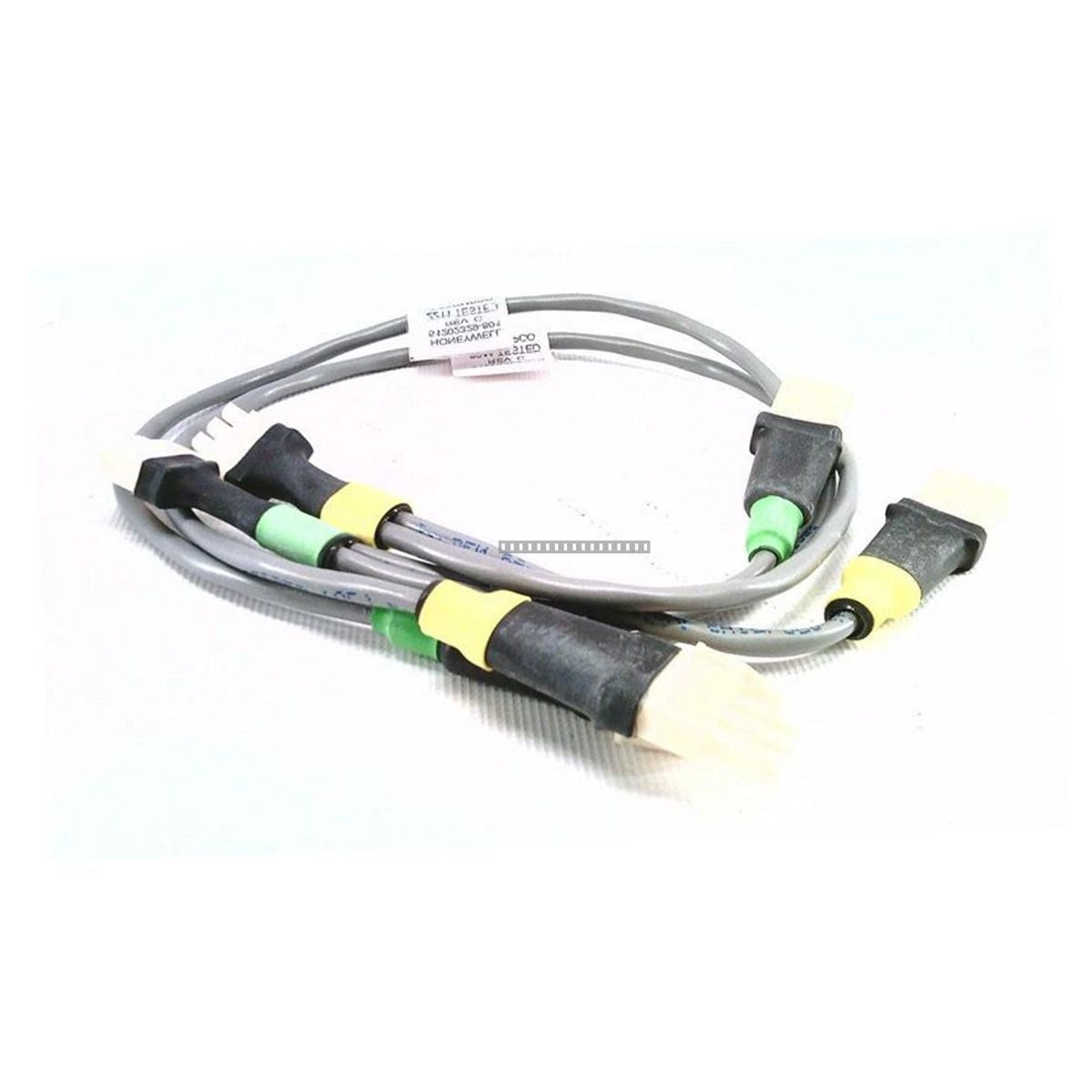

Honeywell 51202329-802 Experion LX I/O Link Cable

Honeywell 51202329-802 Experion LX I/O Link Cable

Description

The Honeywell 51202329-802 is an I/O link cable assembly designed for use within the Experion LX control system architecture. This component functions as a tap expander, providing a 1:2 expansion...

23 people are viewing this right now

Availability: Low stock: 1 left

SKU: 51202329-802
Vendor: Honeywell
Category: I/O Link Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell 51202329-802 is an I/O link cable assembly designed for use within the Experion LX control system architecture. This component functions as a tap expander, providing a 1:2 expansion capability for drop connections to enhance system connectivity and I/O distribution. The assembly includes link protection and is designed to meet the rigorous demands of industrial automation environments.

Features

  • Functionality: Acts as a 1:2 tap expander for I/O drop connections.
  • Construction: Features a durable gray jacket with integrated link protection (Revision C).
  • Shielding: Equipped with dual-layer shielding (foil and braid) to minimize electromagnetic interference (EMI) in industrial settings.
  • Flexibility: Rated for a flex life of 50,000 cycles, ensuring reliability in dynamic installations.
  • Conductor Specifications: Utilizes 26 AWG (7x34 strand) conductors for consistent signal integrity.

Technical Specifications

Product Model 51202329-802
Product Type I/O Link Cable / Tap Expander
Voltage Rating 60V DC
Current Rating 1A per conductor
Operating Temperature -40 degC to +85 degC
Conductors 26 AWG (7x34 strand)
Shielding Dual-layer (foil + braid)
Flex Life 50,000 cycles
Tariff Code 8537101190

Installation Guidelines

  • Ensure the system is powered down before connecting or disconnecting any I/O link cables to prevent electrical damage or signal disruption.
  • Route cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
  • Observe the minimum bend radius during installation to protect the internal conductors and shielding.
  • Ensure that all connections are fully seated and secured to prevent intermittent communication errors.
  • Handle with care to avoid damage to the connectors or the cable jacket, especially in high-vibration environments.

FAQ

What is the primary purpose of the 51202329-802?

This module serves as a tap expander, allowing for a 1:2 expansion of drop connections within the Honeywell Experion LX I/O link network.

Is this cable shielded?

Yes, it features dual-layer shielding consisting of both foil and braid to provide robust protection against electrical noise.

What is the operating temperature range?

The cable is rated for operation in environments ranging from -40 degC to +85 degC.
