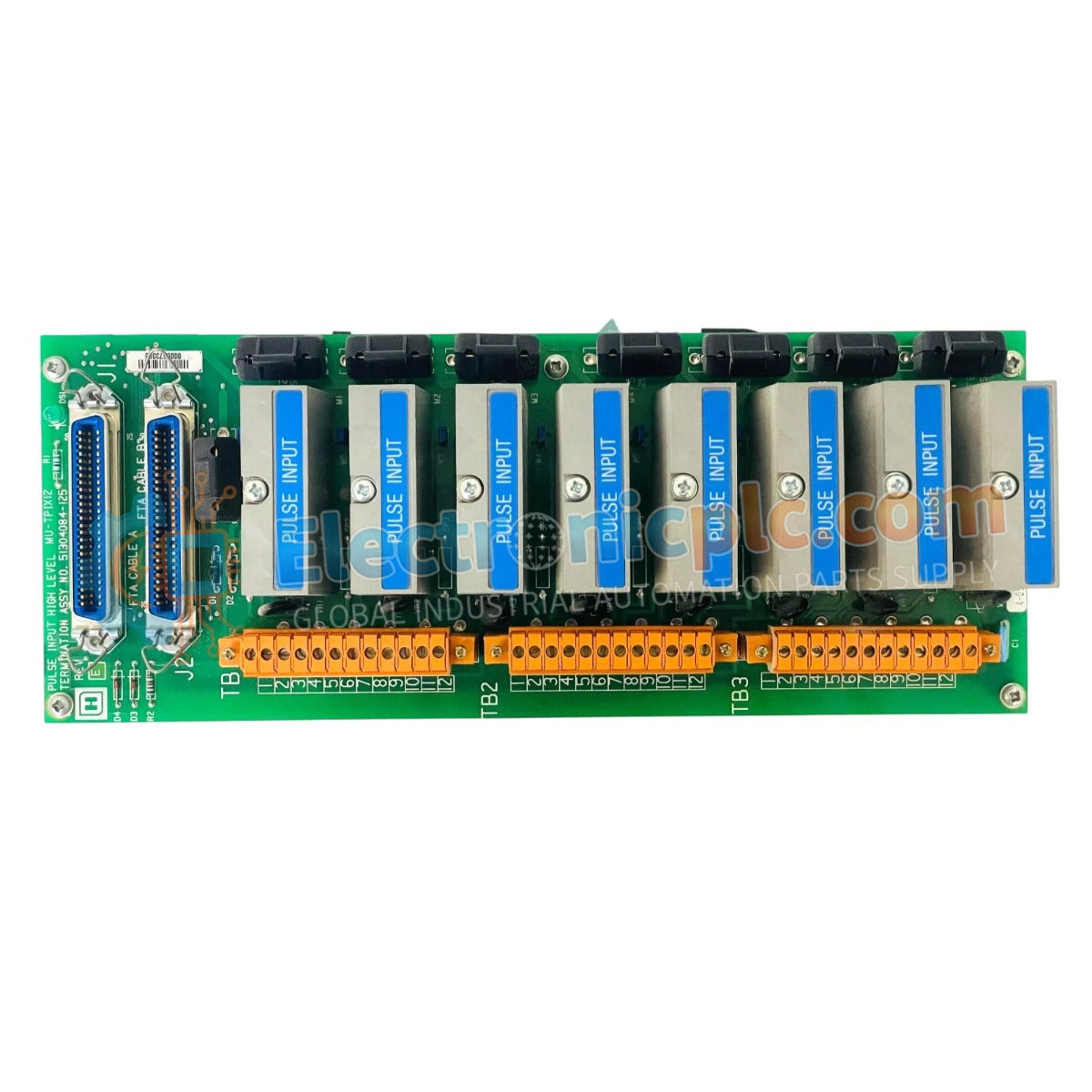

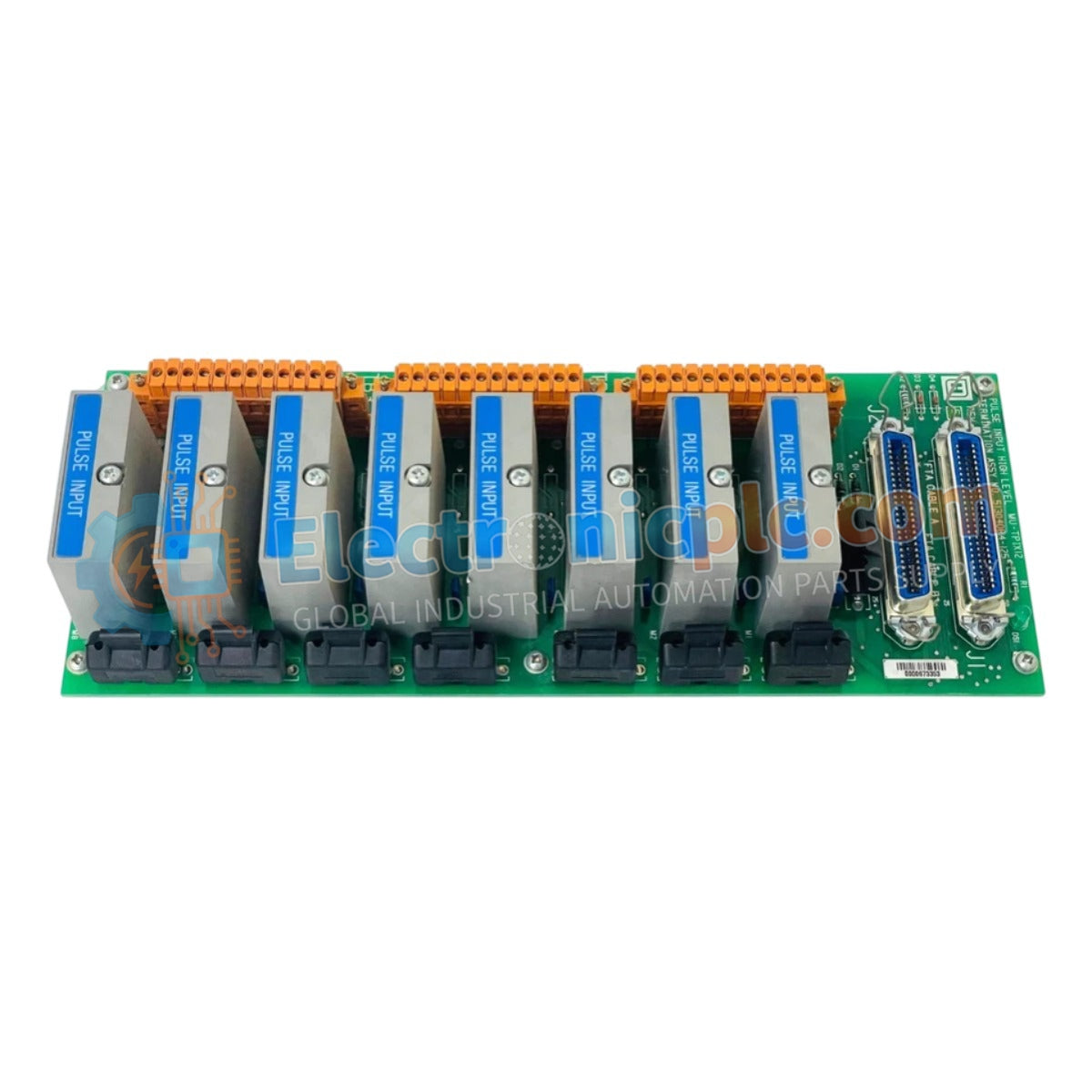

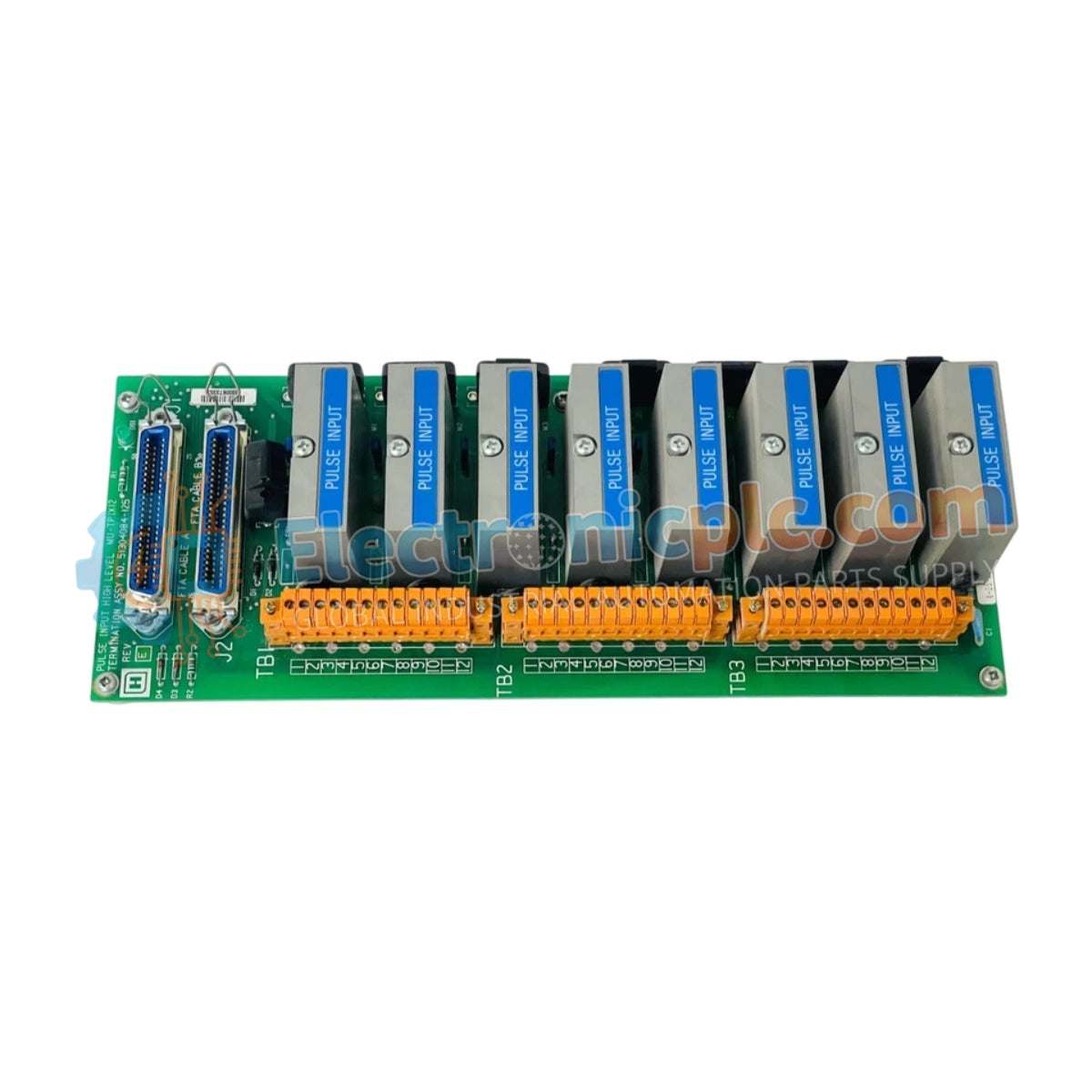

Honeywell 51304084-125 MU-TPIX12 UCN Pulse Input Module

Honeywell 51304084-125 MU-TPIX12 UCN Pulse Input Module

Product Overview

The Honeywell MU-TPIX12 (51304084-125) is a Pulse Input module for TDC 3000 / TPS systems. It captures high-speed pulse signals from devices such as turbine flow meters, PD...

29 people are viewing this right now

Availability: Low stock: 50 left

SKU: 51304084-125 MU-TPIX12
Vendor: Honeywell
Category: UCN Pulse Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell MU-TPIX12 (51304084-125) is a Pulse Input module for TDC 3000 / TPS systems. It captures high-speed pulse signals from devices such as turbine flow meters, PD meters, and tachometers, converting them into flow rate and totalization data for the UCN / APM / HPM environment.

Supplied 100% Brand New and Original for accurate high-speed measurement and process monitoring.

Technical Specifications

Parameter Details
Model MU-TPIX12
Part Number 51304084-125
Function Pulse Input Module
Channels 8 High-Speed Inputs
System UCN / APM / HPM
Pulse Frequency Up to ~10–20 kHz (config-dependent)
Dimensions 46.2 × 12 × 5 cm
Weight 0.75 kg

Engineering Advantages

  • High-accuracy totalization: Prevents pulse loss in high-speed flow applications

  • Wide signal compatibility: Supports magnetic pickups, proximity sensors, and contact inputs

  • Real-time frequency measurement: Instant flow and speed calculation

  • Strong noise immunity: Filters EMI and contact bounce for stable counting

  • Native UCN integration: Direct data flow into APM/HPM control systems

FAQs

Primary application?
Flow measurement, turbine meters, PD meters, and speed monitoring.

Backward compatible?
Yes, replaces earlier 51304084 series revisions.

Supports A/B phase encoding?
Primarily single-channel pulse input; quadrature requires specific configuration/module support.

How to verify authenticity?
Factory-sealed packaging with serial number and traceable 2026 date code.
