Product Overview

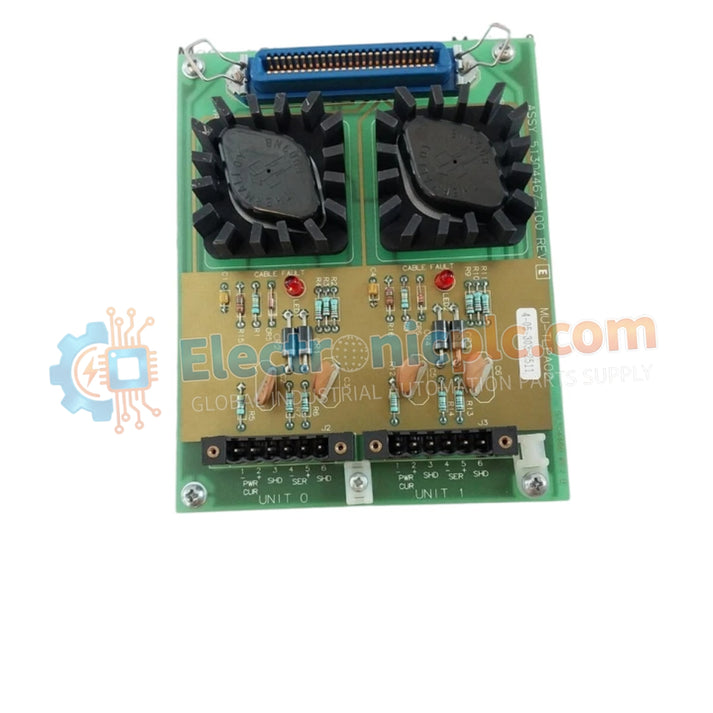

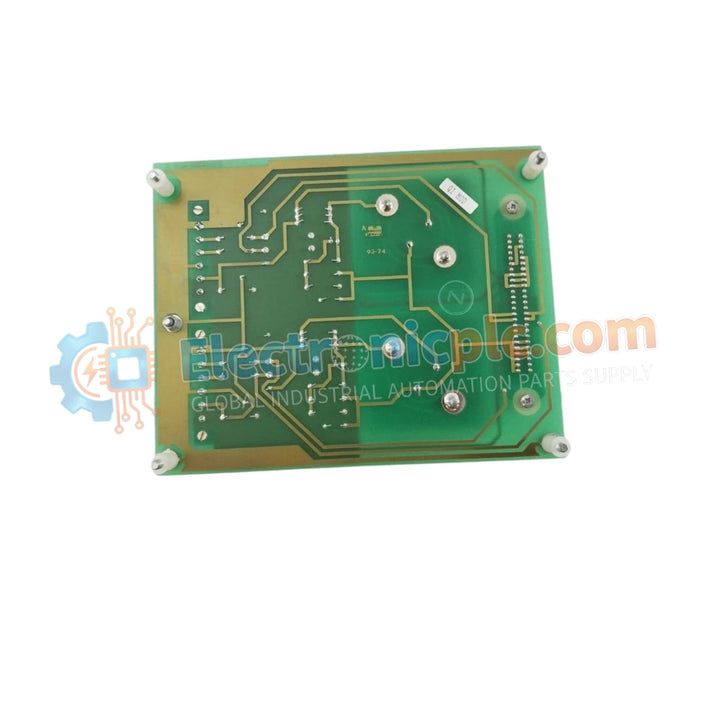

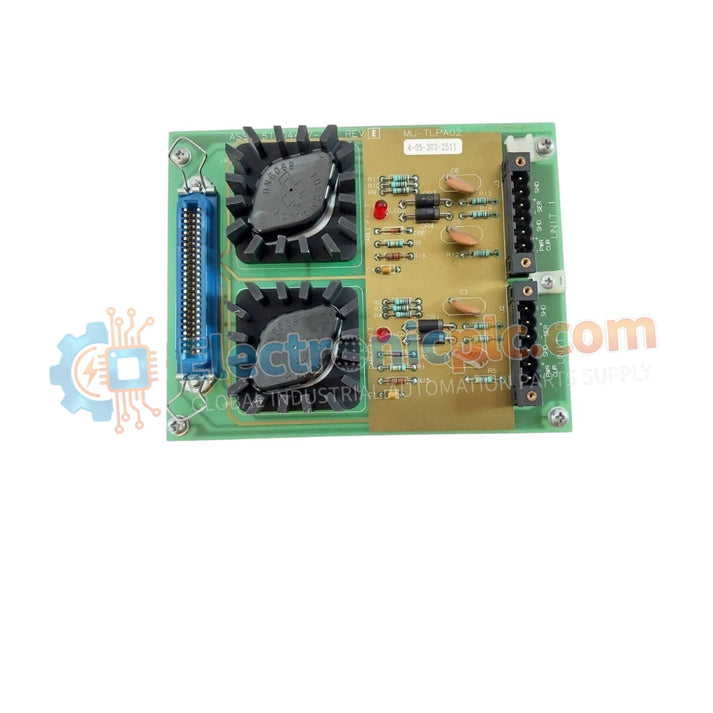

The Honeywell 51304467-100 (MU-TLPA02) is a specialized Low-Level Analog Input Multiplexer designed for the TDC 3000 control architecture. It provides a high-density interface for sensitive low-voltage signals such as thermocouples and millivolt transmitters, ensuring accurate and stable signal acquisition in demanding industrial environments.

We supply this unit in 100% brand new, original condition, guaranteeing reliability for precision monitoring and control applications.

Technical Specifications

Engineering Advantages

Enhanced Signal Isolation
Incorporates robust isolation circuitry to protect against electrical surges and common-mode noise, ensuring accurate low-level signal measurement in noisy environments.

Space-Efficient Design
Slim 5.5 cm depth enables high-density cabinet installation, maximizing I/O capacity while minimizing hardware footprint.

Direct Sensor Interfacing
Supports direct connection of low-voltage sensors without requiring external signal conditioning, reducing system complexity and cost per point.

Long-Term Thermal Stability
Engineered with low thermal drift components to maintain calibration accuracy across varying ambient temperature conditions.

FAQs

How does this differ from a high-level analog input module?
The MU-TLPA02 is designed for millivolt-level signals (e.g., thermocouples) without pre-amplification, whereas high-level modules typically handle 4–20 mA or 1–5 V signals.

Does this module support STI communication?
No. This model is dedicated to low-level analog multiplexing. For STI support, consider the MU-TAIH series or compatible I/O processors.

Can it replace older MU-TLPA02 revisions?
Yes. The 51304467-100 is a standard replacement within TDC 3000 systems. Ensure proper software configuration for channel mapping.

Is the unit factory new?
Yes. It is supplied as a 100% brand new, factory-sealed unit in original Honeywell packaging to ensure full compliance with manufacturer specifications.
