Honeywell 8C-SHEDA1 51307186-175 System Header Board

Honeywell 8C-SHEDA1 51307186-175 System Header Board

Product Description

The 8C-SHEDA1 (Part Number 51307186-175) is a specialized communication and distribution header board engineered for the Honeywell Experion PKS Series 8. It serves as a critical internal interface...

22 people are viewing this right now

Availability: Low stock: 50 left

SKU: 8C-SHEDA1 51307186-175
Vendor: Honeywell
Category: System Header Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

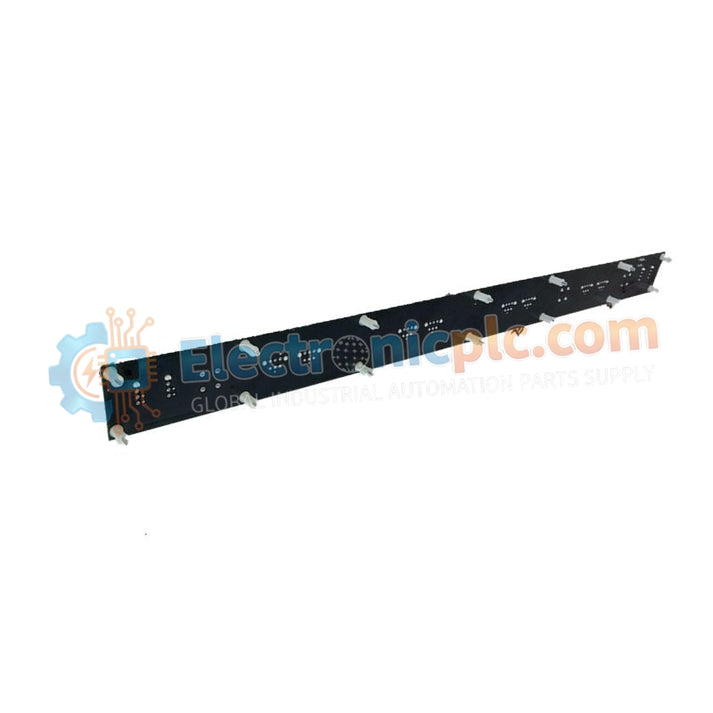

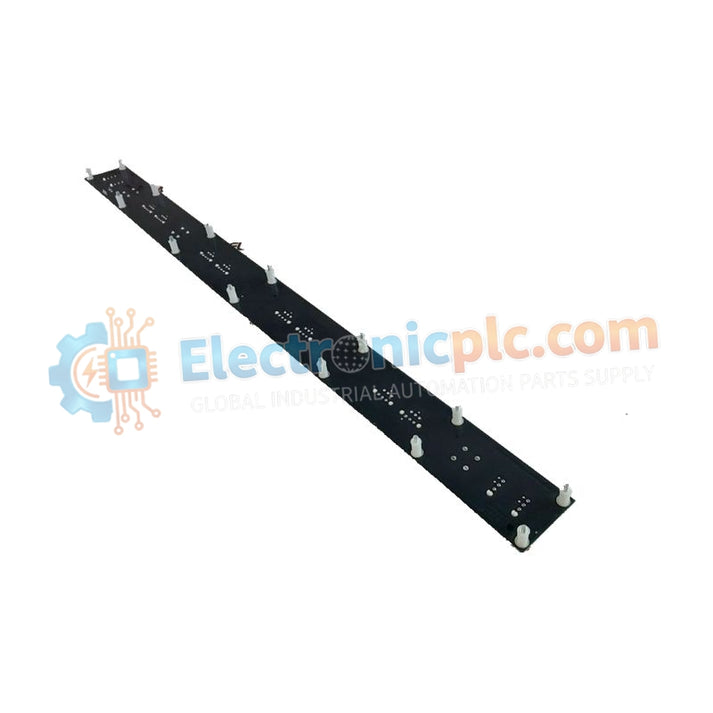

The 8C-SHEDA1 (Part Number 51307186-175) is a specialized communication and distribution header board engineered for the Honeywell Experion PKS Series 8. It serves as a critical internal interface within the I/O subsystem, enabling high-speed data routing and synchronization between modules and the backplane. Its primary role is to maintain bus integrity and provide a stable electrical interface for Ethernet-based and proprietary communication protocols used throughout the Distributed Control System (DCS).

Built with high-grade industrial materials, the 8C-SHEDA1 is designed for continuous operation in demanding environments. Its compact, low-profile design minimizes electrical footprint while maximizing data throughput. By centralizing connectivity, it reduces wiring complexity and improves the serviceability of Series 8 I/O carriers. This ensures efficient transmission of diagnostic signals and process data with minimal latency, supporting reliable and synchronized system performance.

Technical Specifications

Parameter Specification
Model Identification 8C-SHEDA1
Part Number 51307186-175
Module Type Header Board / Interface Assembly
System Family Experion PKS Series 8
Communication Ethernet / Proprietary Series 8 Bus
Power Consumption 5 Watts (Typical)
Operating Temp. -20°C to +70°C
Board Length 120 mm
Board Width 60 mm
Board Depth 15 mm
Net Weight 0.03 kg

Application Scenarios

The 8C-SHEDA1 is primarily used in cabinet-level assemblies within large-scale industrial environments such as:

  • Chemical and petrochemical refineries

  • Power generation plants

  • Oil & gas processing facilities

Typical applications include:

  • Supporting redundant I/O carrier configurations

  • Maintaining synchronization across I/O modules

  • Ensuring stable high-speed communication within the control system

It plays a key role in ensuring failover reliability and consistent data integrity in mission-critical Distributed Control Systems (DCS).

Frequently Asked Questions

Q: Is the 8C-SHEDA1 (51307186-175) compatible with Series A or C hardware?
A: No. The 8C-SHEDA1 is specifically designed and keyed for the Series 8 I/O platform within the Honeywell Experion PKS. It is not compatible with Series A or Series C hardware families.
