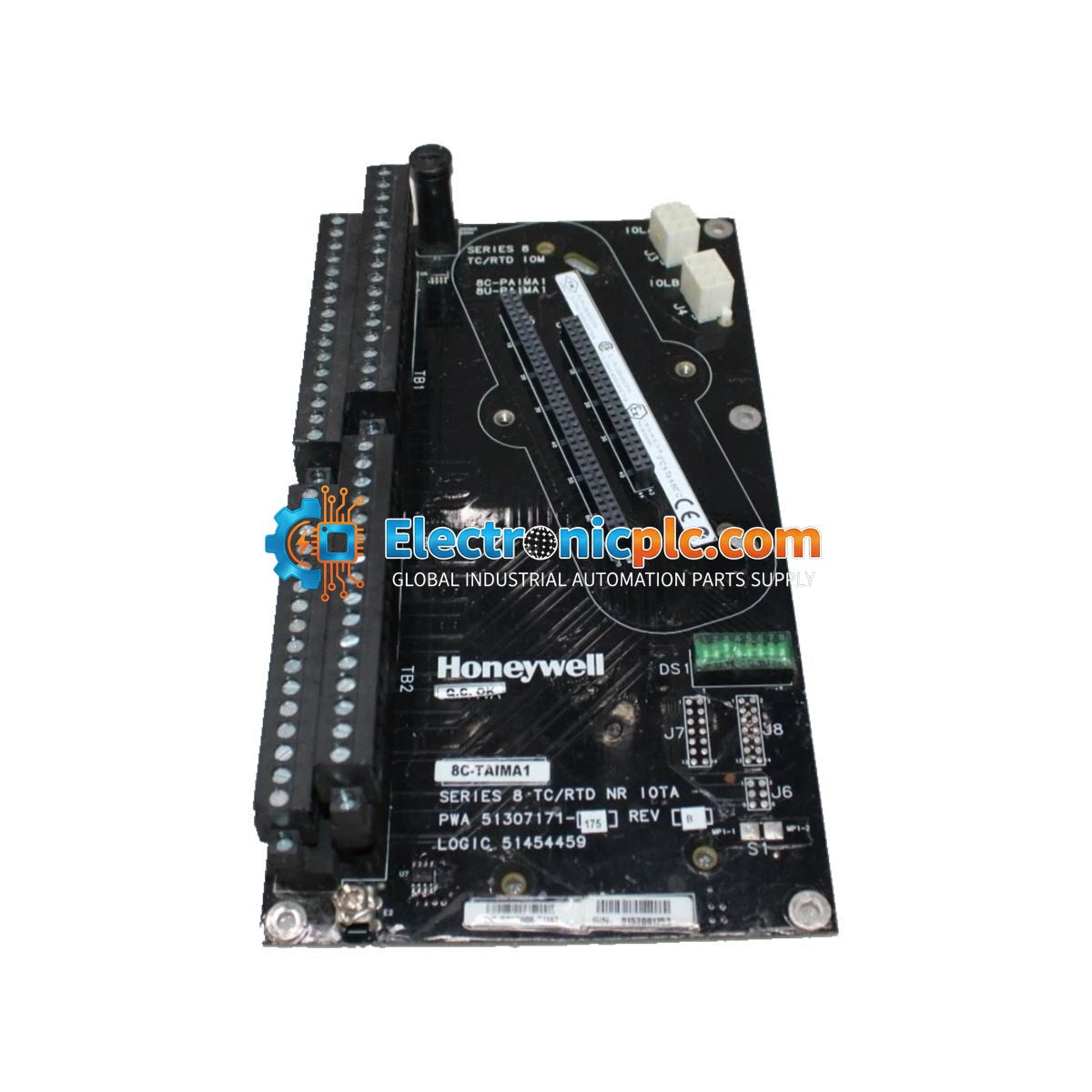

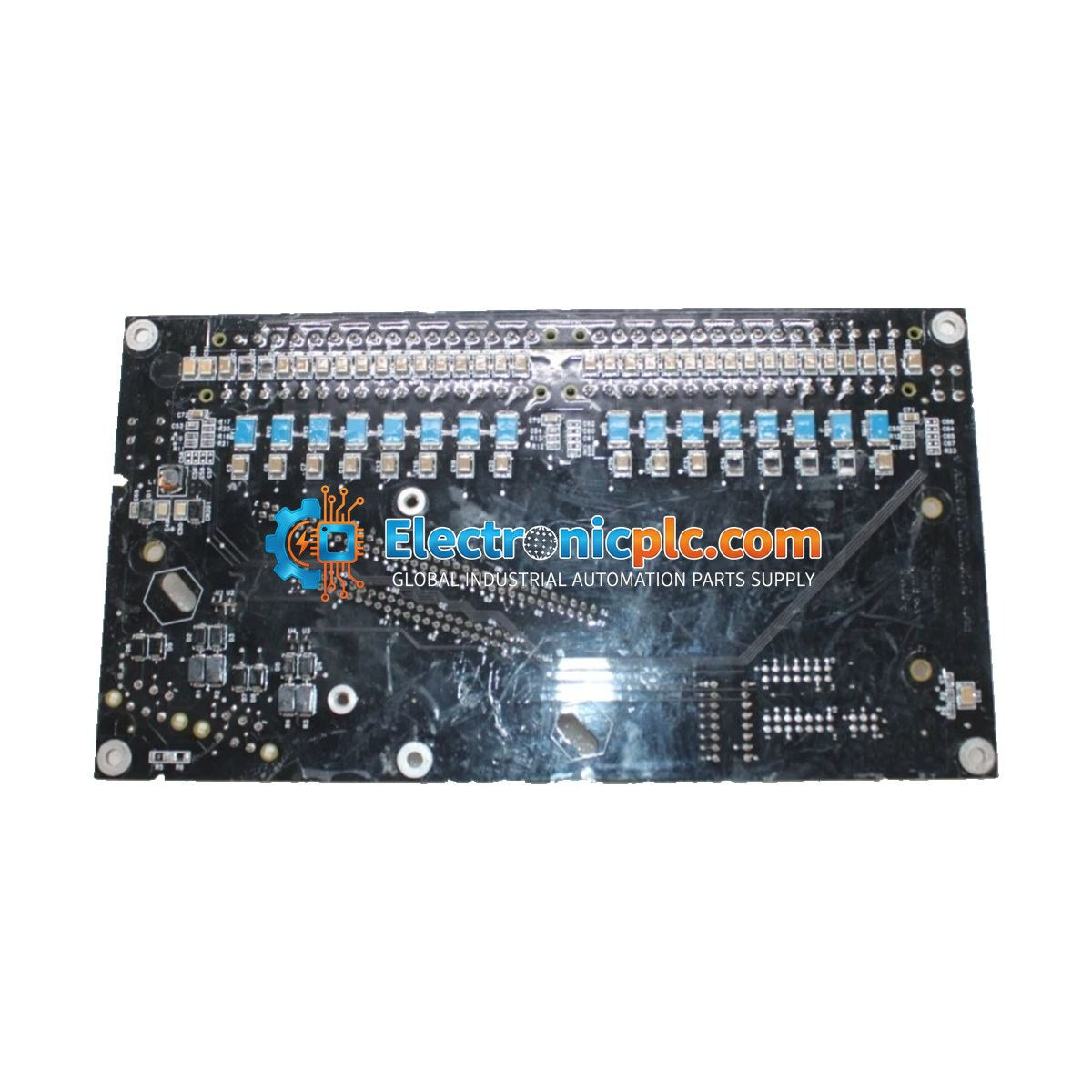

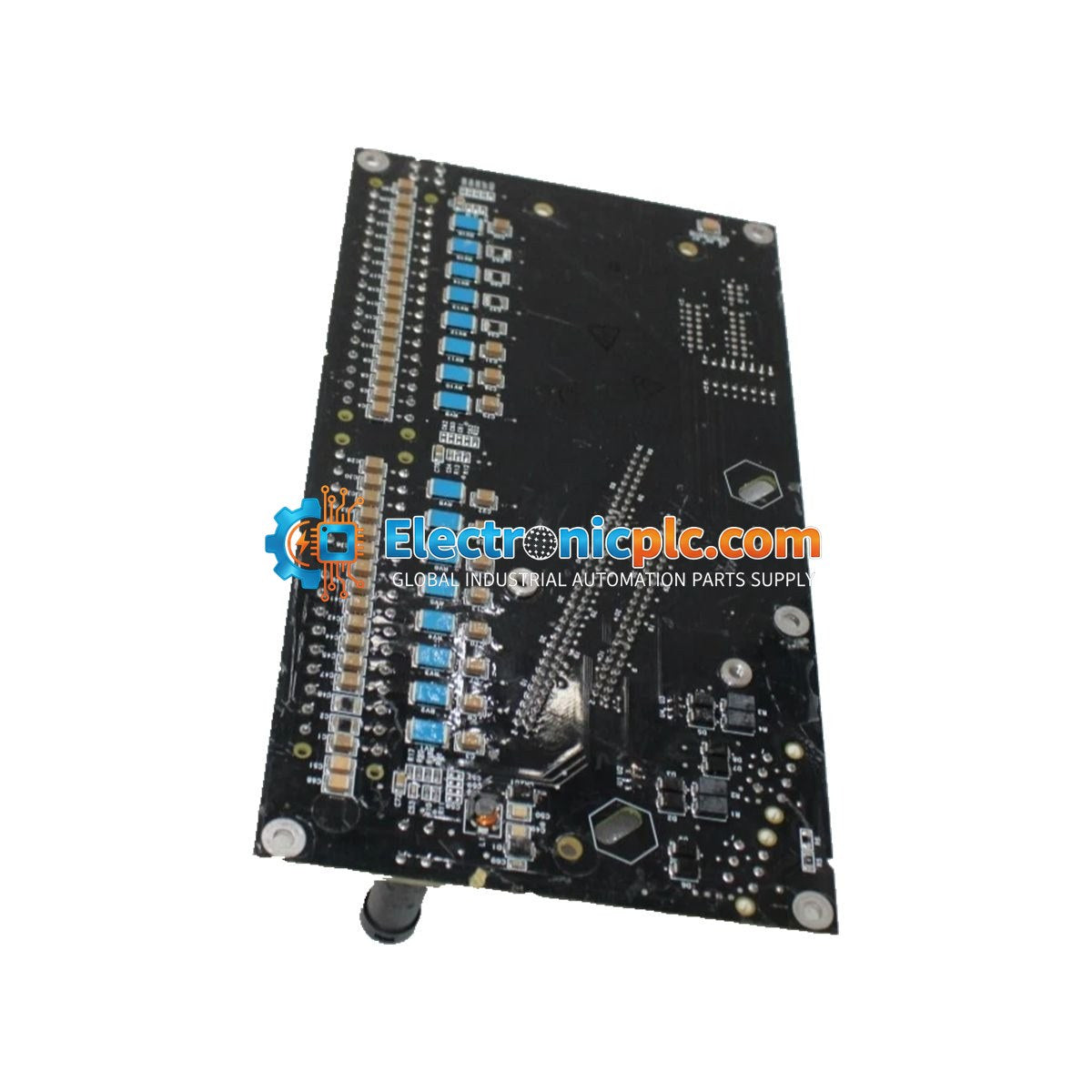

Honeywell 8C-TAIMA1 51307171-175 Low Level Analog Temperature Input Module

Honeywell 8C-TAIMA1 51307171-175 Low Level Analog Temperature Input Module

Description

The Honeywell 8C-TAIMA1 (51307171-175) is a low-level analog input IOTA module designed for the Experion LX distributed control system. This module is engineered for high-precision temperature measurement, supporting both Thermocouple...

21 people are viewing this right now

Availability: In stock

SKU: 8C-TAIMA1
Vendor: Honeywell
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell 8C-TAIMA1 (51307171-175) is a low-level analog input IOTA module designed for the Experion LX distributed control system. This module is engineered for high-precision temperature measurement, supporting both Thermocouple (TC) and Resistance Temperature Detector (RTD) inputs. It provides reliable signal processing for industrial temperature monitoring applications, featuring remote cold junction compensation and configurable Open Thermocouple Detection (OTD) protection.

Features

  • Supports both TC and RTD sensor types for versatile temperature monitoring.
  • Remote Cold Junction compensation capability for improved measurement accuracy.
  • Configurable Open Thermocouple Detection (OTD) protection.
  • Second PV scanning functionality.
  • Scalable temperature point configuration in 16-point increments.
  • High Common Mode Rejection Ratio (CMRR) of 120 dB at 50/60 Hz.

Applications

This module is specifically designed for integration into Honeywell Experion LX systems, primarily used in process industries requiring precise temperature tracking, such as chemical processing, power generation, and refining operations where TC and RTD sensors are deployed for critical process control.

Technical Specifications

Product Model 8C-TAIMA1 (51307171-175)
Voltage Rating 24 VDC
Module Current Rating 120 mA
Channel Bandwidth 0 to 4.7 Hz (-3 dB)
TC Nominal Input Range -20 to +100 mV
Gain Error (-20 to +100 mV) 0.050% full scale max
Input Impedance (TC) Megohm at DC
CMRR (50/60 Hz) 120 dB min
Channel-to-Channel Isolation +/-33 VDC or VAC RMS
Channel-to-Shield Isolation +/-250 VDC or VAC RMS

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the IOTA module to prevent electrical damage.
  • Mount the module in a clean, dry environment within the specified temperature range to ensure longevity.
  • Use shielded cabling for all analog input signals to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the module shield terminals to the system common ground to maintain the integrity of low-level signals.
  • Verify that the input wiring matches the configuration for TC or RTD sensors to prevent measurement errors or hardware damage.
  • Handle with standard ESD precautions to protect sensitive internal circuitry.

FAQ

What type of sensors does the 8C-TAIMA1 support?

This module supports both Thermocouple (TC) and Resistance Temperature Detector (RTD) sensors, making it suitable for a wide range of industrial temperature sensing applications.

What is the primary function of the OTD protection?

The Open Thermocouple Detection (OTD) protection is a configurable feature that identifies if a thermocouple circuit has been broken, allowing the control system to react appropriately to a loss of signal.
