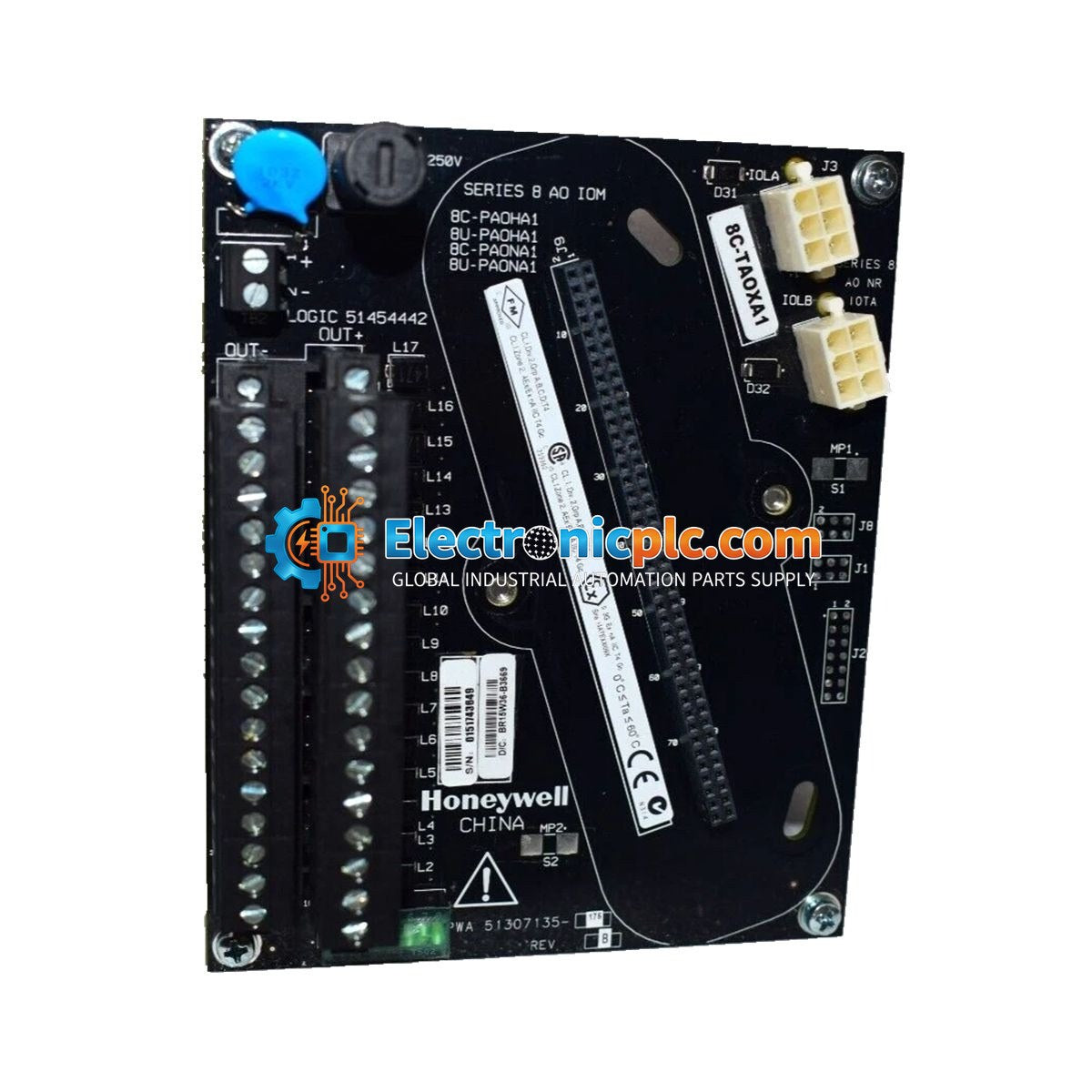

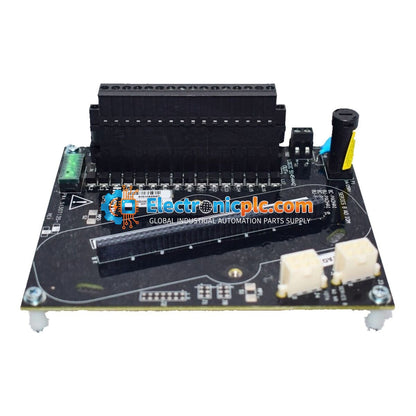

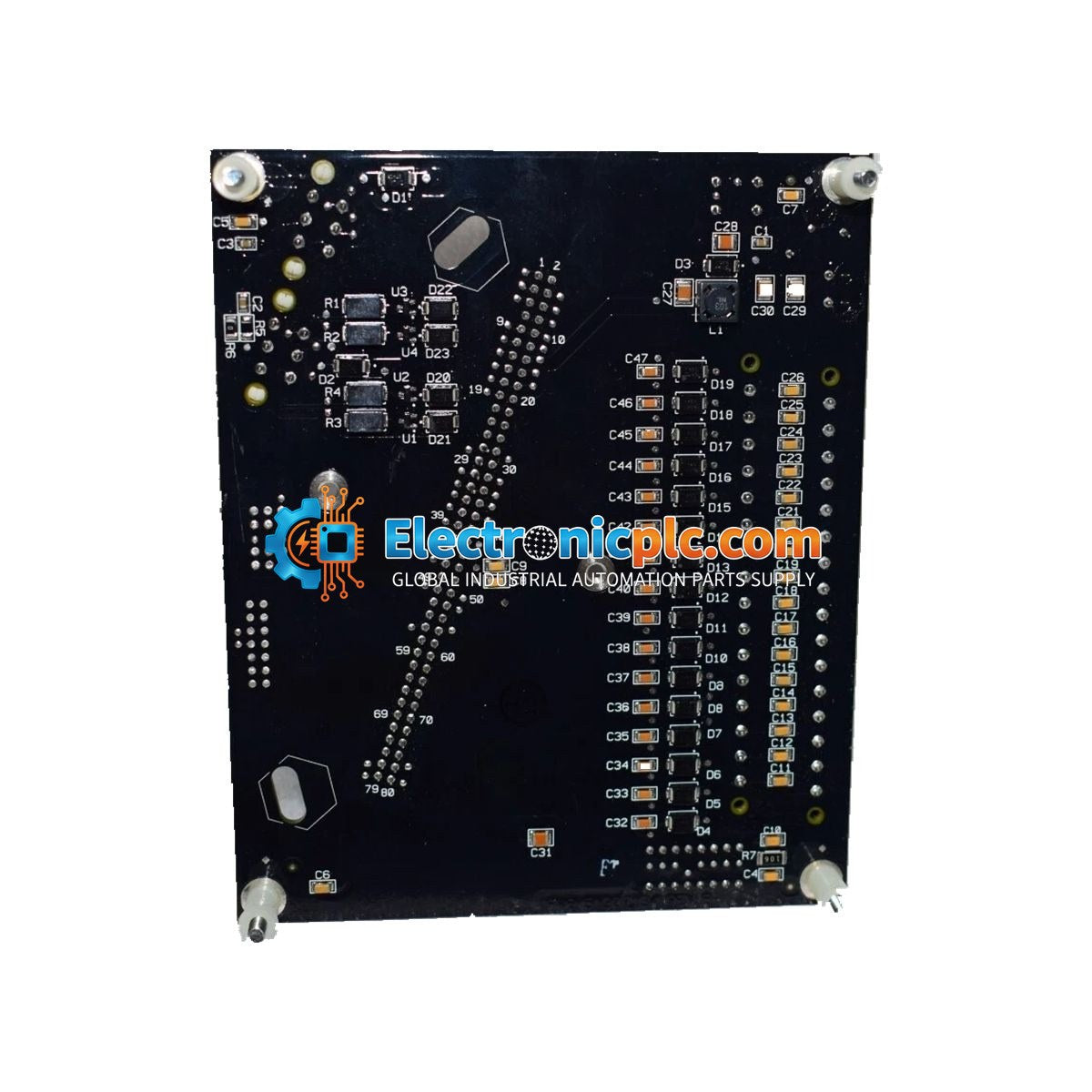

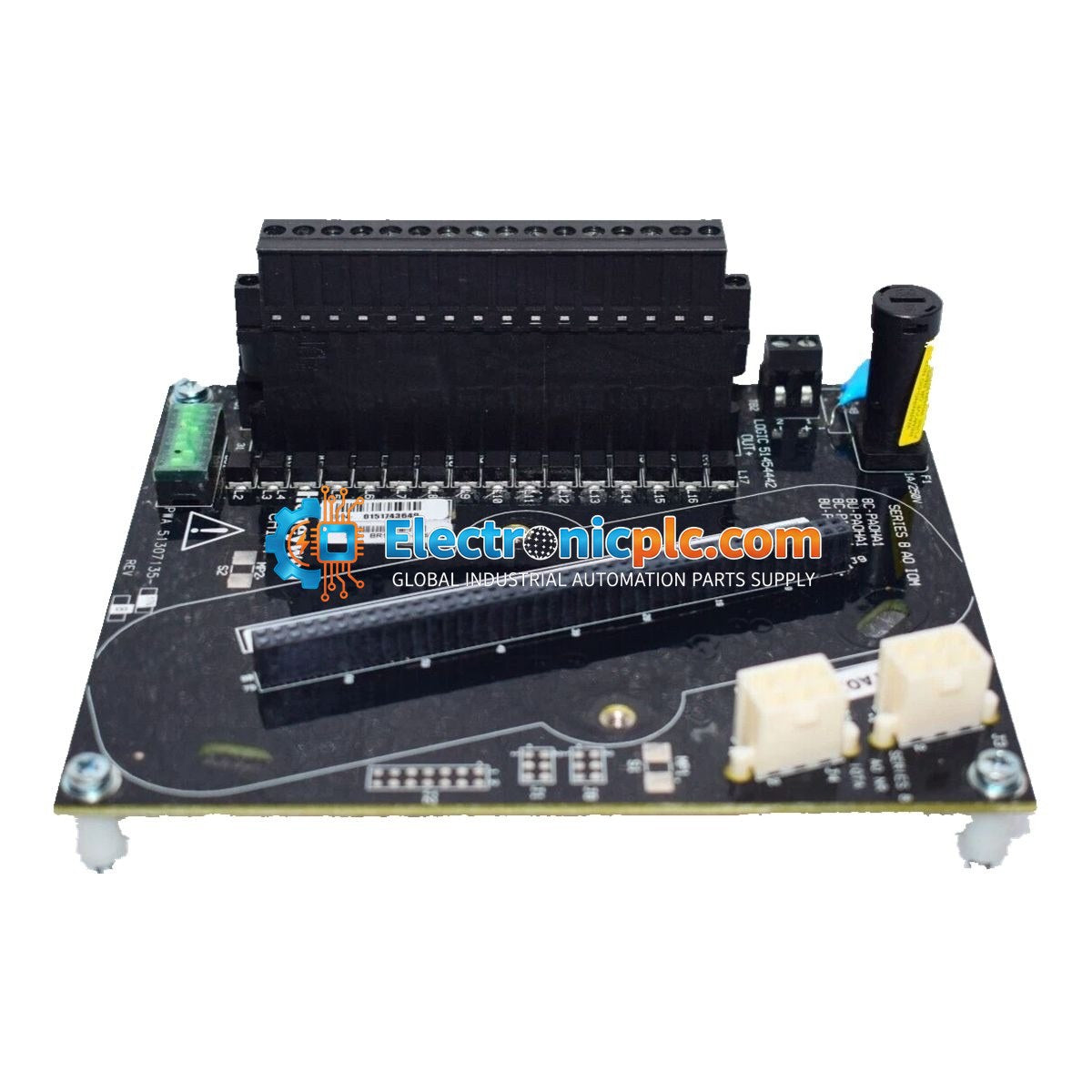

Honeywell 8C-TAOXA1 51307135-175 Series 8 Analog Output Module

Honeywell 8C-TAOXA1 51307135-175 Series 8 Analog Output Module

Description

The Honeywell 8C-TAOXA1 (51307135-175) is a high-performance Analog Output (AO) module designed for the Experion LX control system. This Series 8 module provides 16 channels of 4-20 mA output, enabling...

19 people are viewing this right now

Availability: Low stock: 1 left

SKU: 8C-TAOXA1
Vendor: Honeywell
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell 8C-TAOXA1 (51307135-175) is a high-performance Analog Output (AO) module designed for the Experion LX control system. This Series 8 module provides 16 channels of 4-20 mA output, enabling precise control of field devices such as actuators, positioners, and variable frequency drives. Engineered for industrial reliability, the module features extensive self-diagnostics and supports optional redundancy to ensure high availability in critical process automation applications.

Features

  • 16-channel analog output module supporting 4-20 mA signals.
  • Extensive onboard self-diagnostics for proactive health monitoring.
  • Supports optional redundancy configurations for enhanced system reliability.
  • Directly settable output current range from 2.9 mA to 21.1 mA.
  • High resolution of ± 0.05% of full scale for accurate process control.
  • Designed for integration within the Honeywell Series 8 I/O architecture.

Applications

This module is typically utilized in process control environments such as oil and gas, chemical processing, power generation, and water treatment facilities. It is specifically designed to interface with field instruments requiring standard 4-20 mA control signals within the Experion LX distributed control system.

Technical Specifications

Model Number 8C-TAOXA1 / 51307135-175
Output Channels 16
Output Type 4-20 mA
Output Current Range 2.9 mA to 21.1 mA
Resolution ± 0.05% of Full Scale
Load Resistance 50-800 Ohm
Voltage Rating 24 VDC
Module Current Rating 190 mA
Max Open Circuit Voltage 22 V
Operating Temperature 0 to 60 degC
Storage Temperature -40 to 85 degC

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the module from the I/O carrier.
  • Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
  • Verify that the module is fully seated in the Series 8 I/O carrier to ensure proper electrical contact.
  • Route signal cabling away from high-EMI sources, such as high-voltage power lines or heavy motor starters, to maintain signal integrity.
  • Ensure proper grounding of the I/O carrier according to Honeywell installation documentation to minimize noise interference.

FAQ

Does this module support redundancy?

Yes, the 8C-TAOXA1 is designed to support optional redundancy, allowing for high-availability configurations in critical control loops.

What is the primary output signal range?

The module is designed for standard 4-20 mA output, with a configurable range of 2.9 mA to 21.1 mA for specific control requirements.
