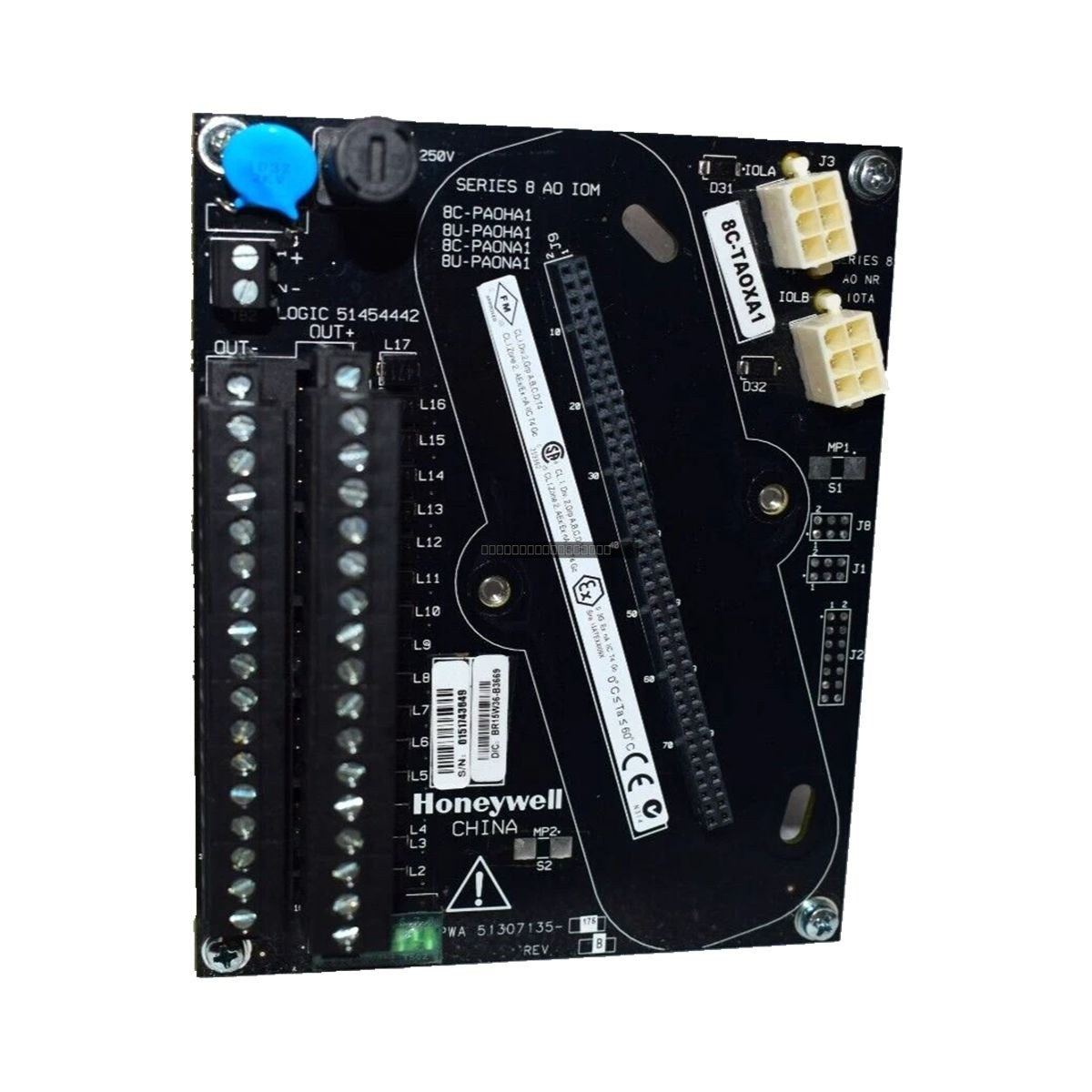

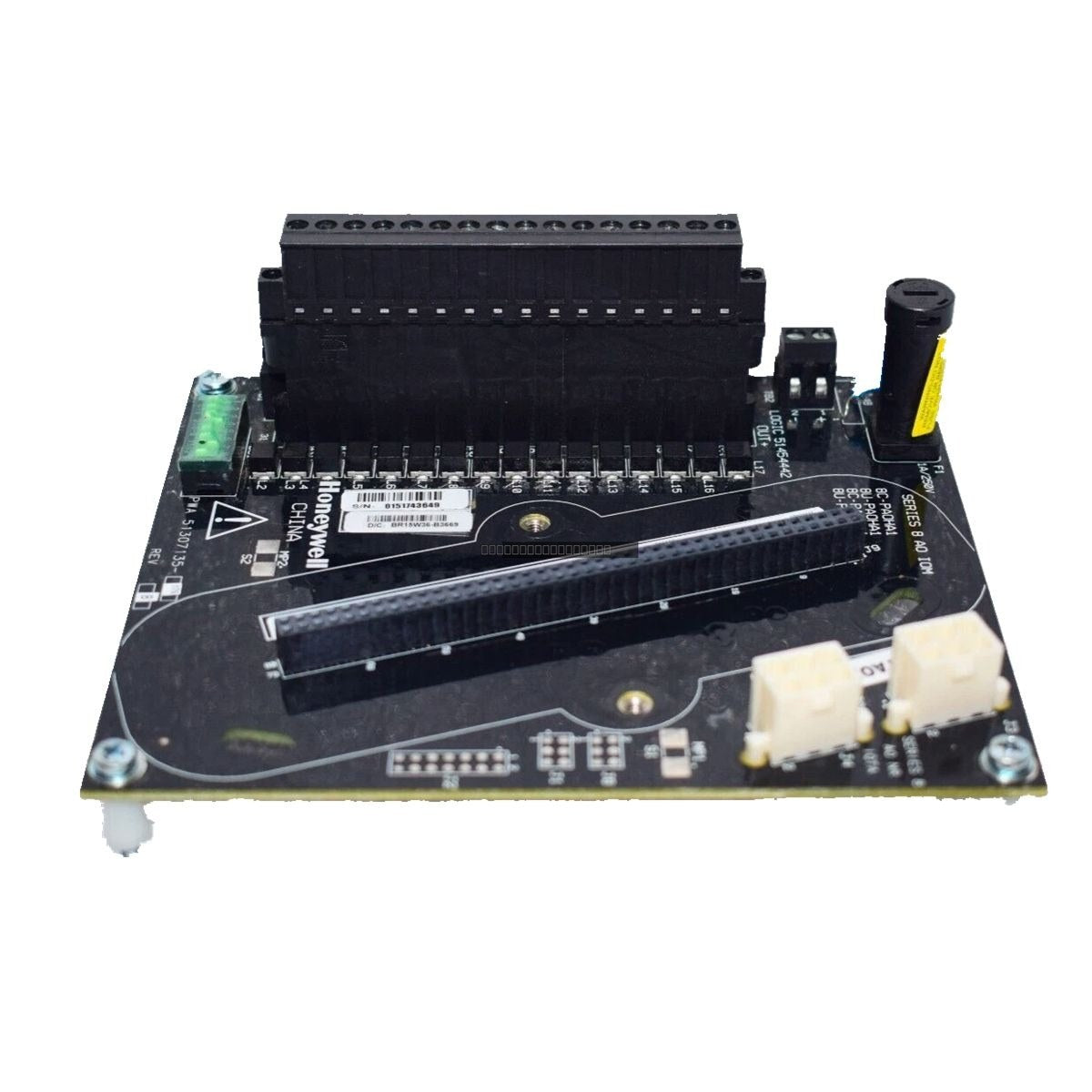

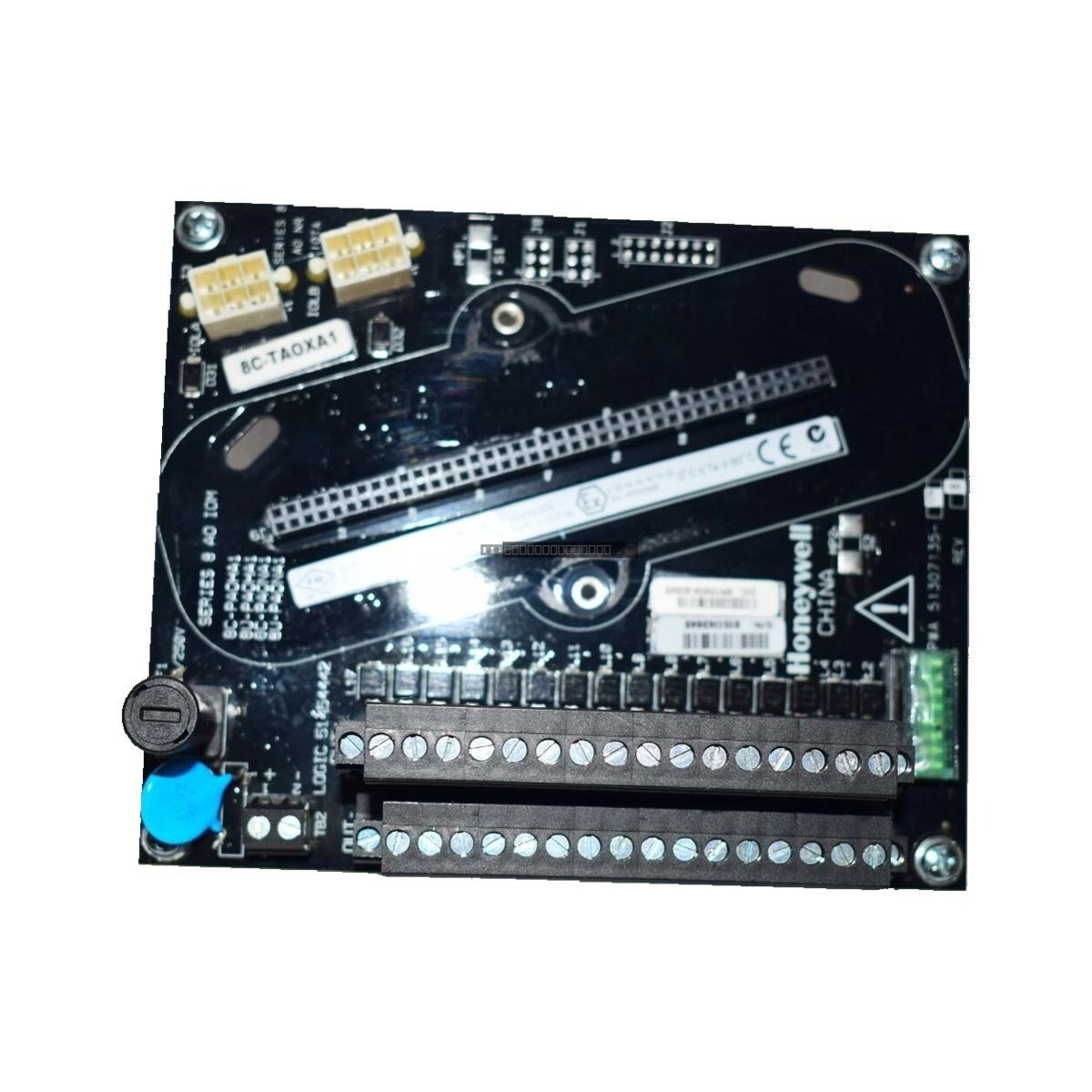

Honeywell 8C-TAOXB1 51307137-175 Analog Output Module

Honeywell 8C-TAOXB1 51307137-175 Analog Output Module

The Honeywell 8C-TAOXB1 (51307137-175) is a high-performance Analog Output module designed for the Experion LX control system. This module provides 16 channels of isolated analog output, facilitating precise control over...

20 people are viewing this right now

Availability: Low stock: 9 left

SKU: 8C-TAOXB1
Vendor: Honeywell
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Honeywell 8C-TAOXB1 (51307137-175) is a high-performance Analog Output module designed for the Experion LX control system. This module provides 16 channels of isolated analog output, facilitating precise control over field devices in demanding industrial environments. Engineered for reliability, the unit includes extensive self-diagnostics to monitor channel health and supports optional redundancy configurations to ensure maximum system availability.

Features

  • 16-channel analog output capability
  • Integrated self-diagnostics for proactive maintenance and fault detection
  • Supports redundant operation for critical process control applications
  • Designed for integration within the Honeywell Series 8 I/O architecture
  • High resolution output for precise process regulation

Technical Specifications

Model Number 8C-TAOXB1
Part Number 51307137-175
Number of Channels 16
Output Current Range 2.9 mA to 21.1 mA
Load Resistance 50 to 800 Ohm
Voltage Rating 24 VDC
Maximum Open Circuit Voltage 22 V
Resolution +/- 0.05% of Full Scale
Module Current Rating 190 mA
Operating Temperature 0 to 60 degC
Storage Temperature -40 to 85 degC

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the module from the I/O carrier.
  • Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) in high-noise industrial settings.
  • Maintain proper ventilation in the cabinet to stay within the specified operating temperature range of 0 to 60 degC.
  • Follow standard ESD (Electrostatic Discharge) procedures when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the 8C-TAOXB1?
This is an Analog Output module used to convert digital control signals from the PLC/DCS into analog current signals (typically 4-20 mA) to drive field actuators, valves, or positioners.

Does this module support redundancy?
Yes, the 8C-TAOXB1 is designed to support optional redundancy, allowing for seamless failover if configured within a supported Experion LX architecture.

What is the resolution of the output?
The module offers a resolution of +/- 0.05% of the full-scale range, providing high accuracy for process control loops.
