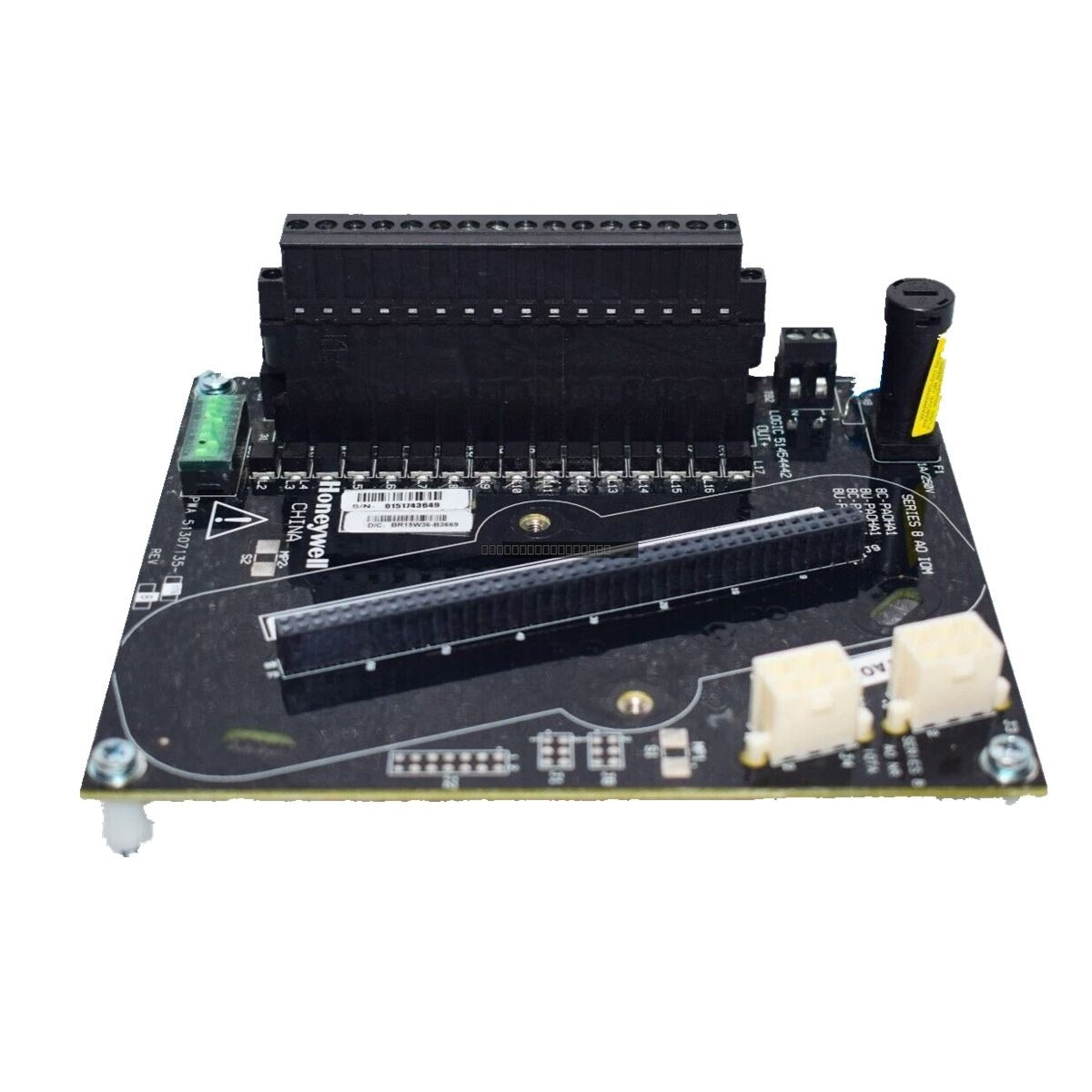

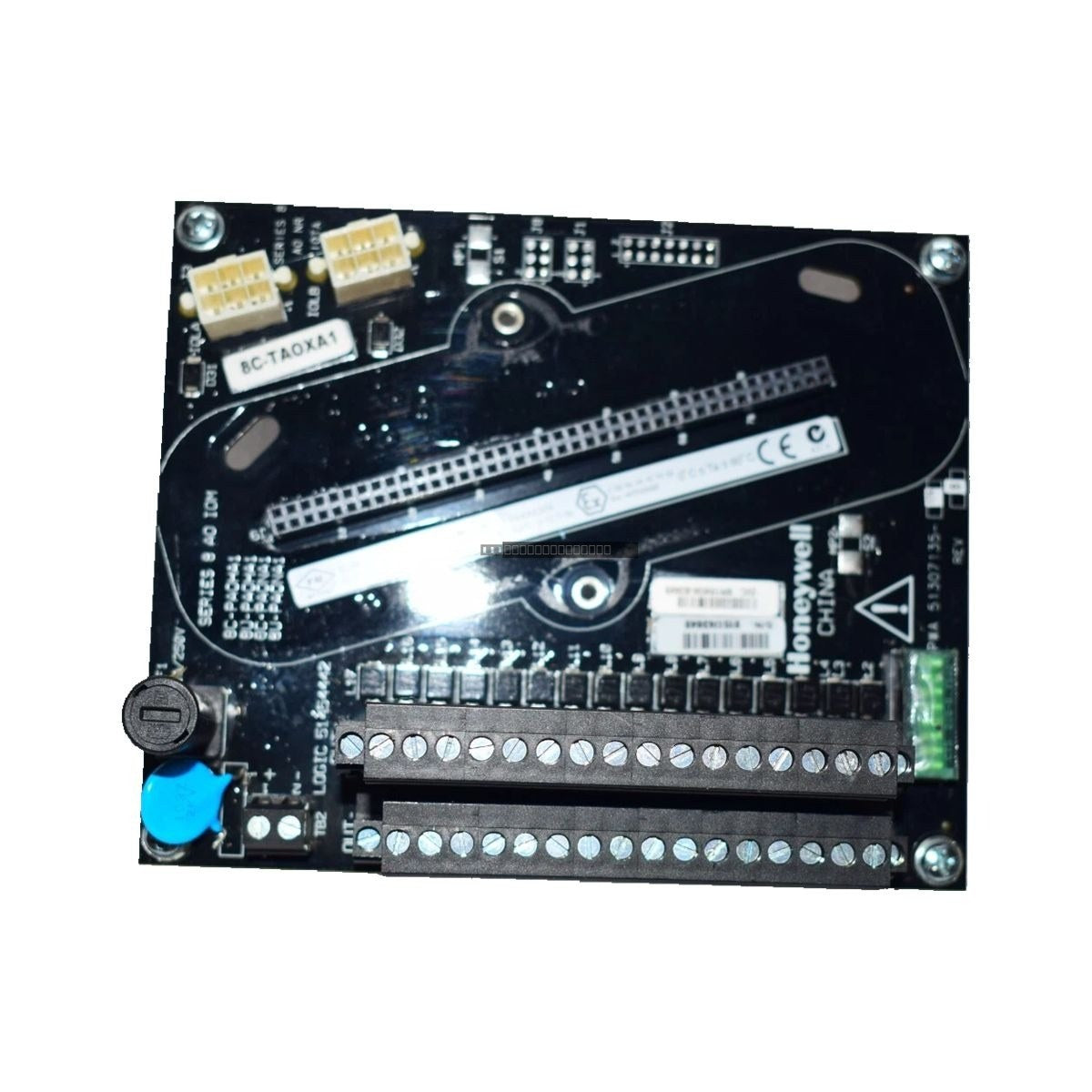

Honeywell 8U-TAOXB1 Analog Output IOTA

Honeywell 8U-TAOXB1 Analog Output IOTA

Description

The Honeywell 8U-TAOXB1 is a 16-channel analog output IOTA (Input/Output Termination Assembly) designed for integration into the Experion PKS Series C process control architecture. This red, uncoated module provides...

16 people are viewing this right now

Availability: Low stock: 8 left

SKU: 8U-TAOXB1
Vendor: Honeywell
Category: Analog Output IOTA Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell 8U-TAOXB1 is a 16-channel analog output IOTA (Input/Output Termination Assembly) designed for integration into the Experion PKS Series C process control architecture. This red, uncoated module provides reliable 4-20 mA current output for a range of field devices, including control valves and actuators. Engineered for high-availability industrial environments, it supports online replacement, allowing for module insertion and removal without interrupting the control process.

Features

  • 16 isolated analog output channels supporting 4-20 mA signals.
  • Extended output range capability from 2.9 mA to 21.1 mA.
  • Redundancy-ready architecture with a maximum switchover gap of 10 ms.
  • Supports hot-swapping for enhanced system uptime and maintenance efficiency.
  • Optimized for low ripple and high-accuracy signal transmission in demanding process loops.

Applications

This module is frequently deployed in critical control applications such as chemical processing plants, thermal power stations, pharmaceutical manufacturing, refinery units, and offshore oil and gas platforms. It is specifically suited for distributed control systems (DCS) requiring precise actuator positioning and stable control loop performance.

Technical Specifications

Model 8U-TAOXB1
Series Experion PKS Series C
Output Channels 16
Signal Range 4-20 mA (2.9-21.1 mA adjustable)
Load Resistance 50-800 Ohm
Calibrated Accuracy +/- 0.2% of full scale at 25 deg C
Resolution +/- 0.05% of full scale
Operating Temperature 0-60 deg C
Power Consumption 4.6 W
Voltage Rating 24 VDC

Installation Guidelines

  • Ensure the module is mounted securely within the Series C cabinet/rack environment.
  • Verify that the power supply is stable at 24 VDC before energizing the IOTA.
  • Handle with standard ESD precautions to prevent damage to internal circuitry.
  • The module supports online insertion/removal; however, ensure all field wiring is properly terminated and verified before initiating control loops.
  • Maintain proper airflow within the cabinet to ensure operating temperatures remain between 0-60 deg C.

FAQ

Is the 8U-TAOXB1 hot-swappable?
Yes, the hardware architecture is designed to support module insertion and removal under power, which minimizes process downtime during maintenance.

What is the typical redundancy switchover time?
The module is designed for a maximum output interruption gap of 10 ms during redundancy switchover events.
