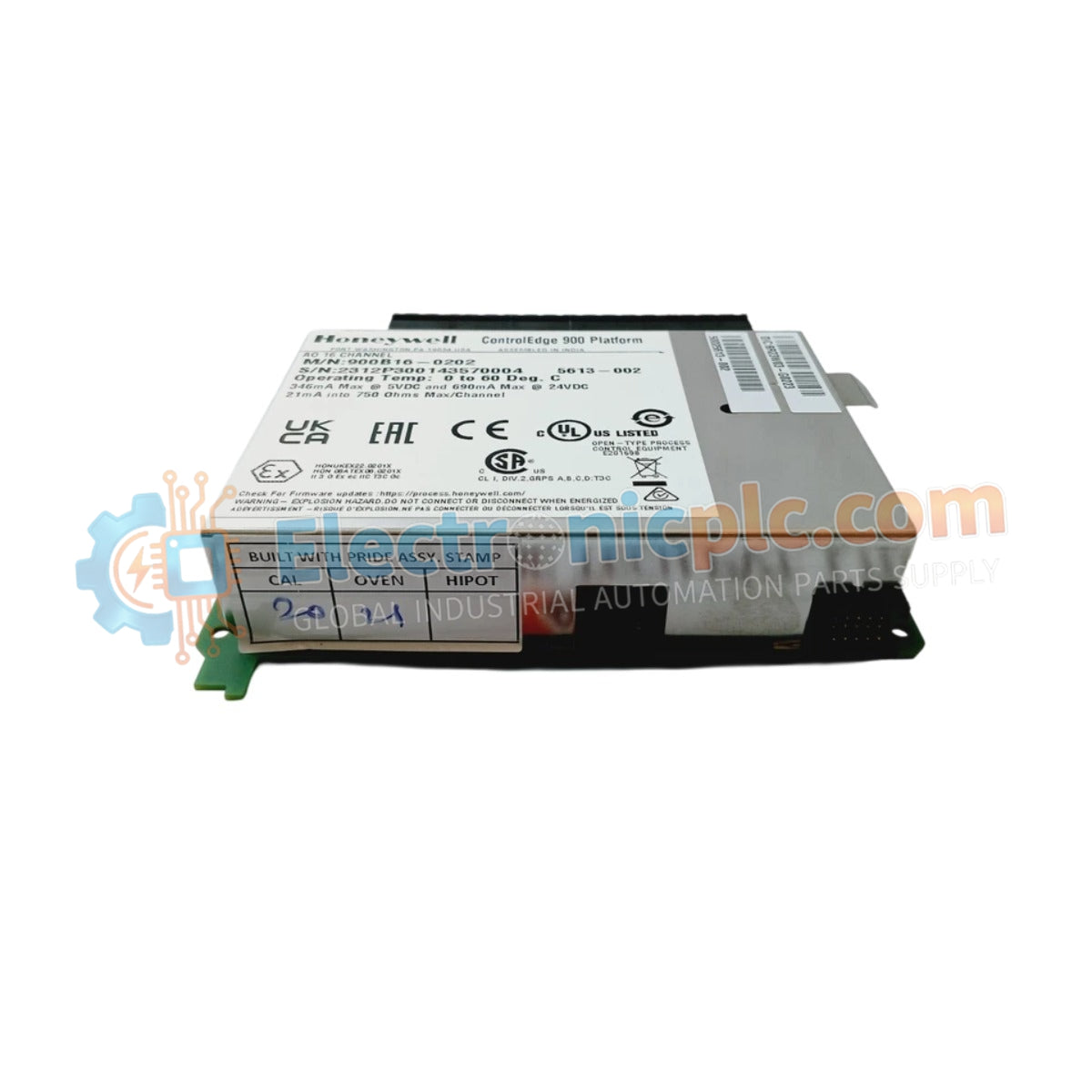

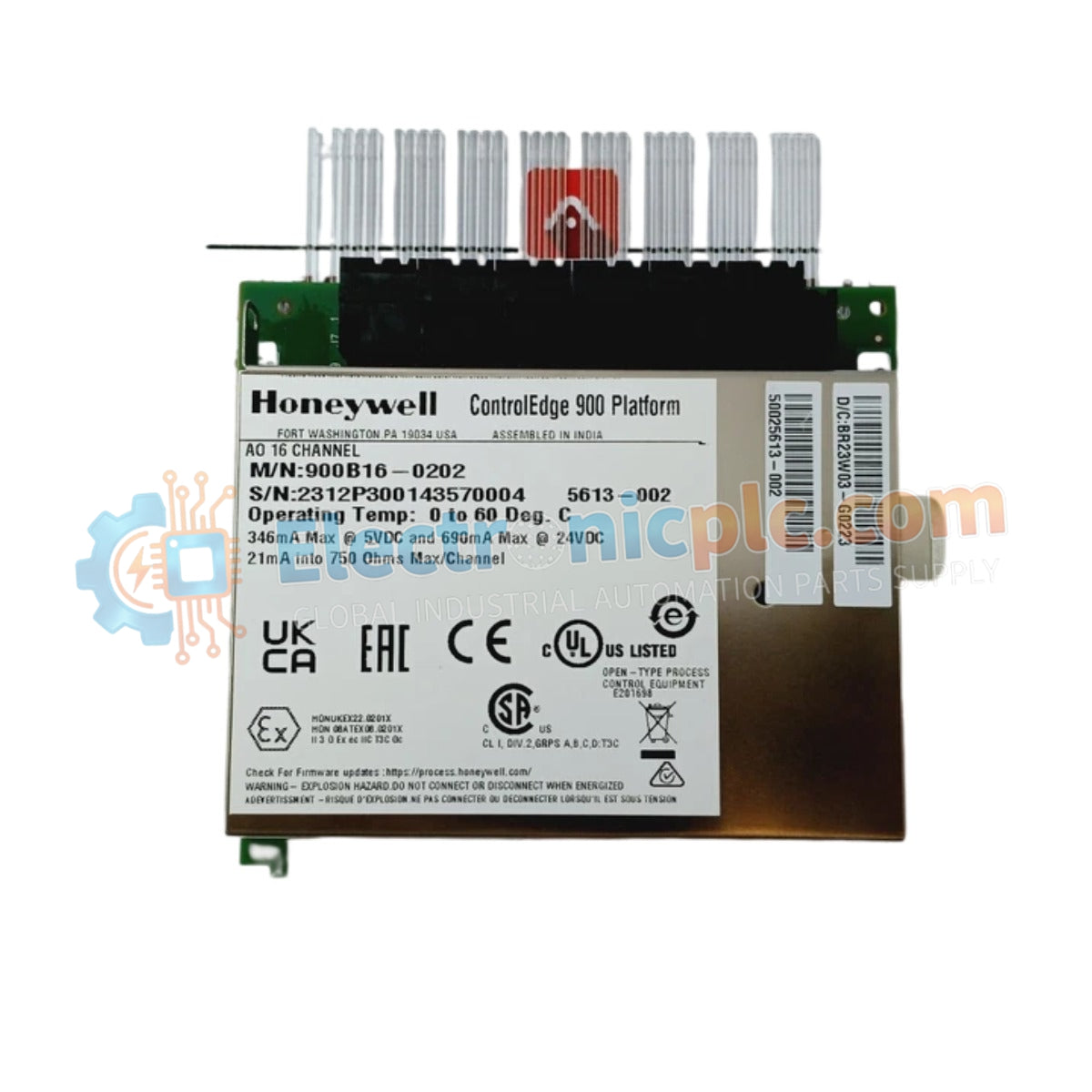

Honeywell 900B16-0202 Analog Output Module

Honeywell 900B16-0202 Analog Output Module

Product Overview

The Honeywell 900B16-0202 is a high-density 16-channel Analog Output (AO) module for the ControlEdge HC900 system. It converts CPU commands into standard 4–20 mA signals to drive field...

21 people are viewing this right now

Availability: Low stock: 50 left

SKU: 900B16-0202
Vendor: Honeywell
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell 900B16-0202 is a high-density 16-channel Analog Output (AO) module for the ControlEdge HC900 system. It converts CPU commands into standard 4–20 mA signals to drive field devices such as valves, dampers, and variable speed drives, supporting compact and efficient process control.

Technical Specifications

Parameter Specification
Channels 16 isolated outputs
Output Signal 4–20 mA DC
Resolution 12-bit minimum
Accuracy ±0.1% full scale
Isolation 500 VDC channel-to-case
Weight 0.8 kg
Dimensions 12.7 × 12.7 × 12.7 cm
Operating Temperature 0°C to 60°C

Engineering Advantages

High-Density Control
Supports 16 output channels in a single slot, reducing rack space and system cost.

Electrical Isolation
Protects backplane and CPU from field-side surges and electrical noise.

Configurable Fail-Safe Modes
Each channel can be set to a defined safe output state during communication loss.

Thermal Efficiency
Compact cubic design ensures stable operation and heat dissipation under load.

FAQs

Does it support voltage outputs?
No. It is designed for 4–20 mA current loop applications only.

What termination is required?
A 36-pin terminal block or compatible Remote Termination Panel (RTP) is required.

Can it be hot-swapped?
Yes, the HC900 platform supports hot-swapping with proper safety procedures.

Is this product 100% brand new?
Yes. The Honeywell 900B16-0202 is supplied as a 100% brand new, original factory unit in sealed packaging.
