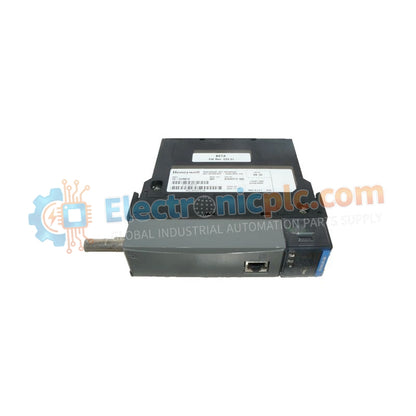

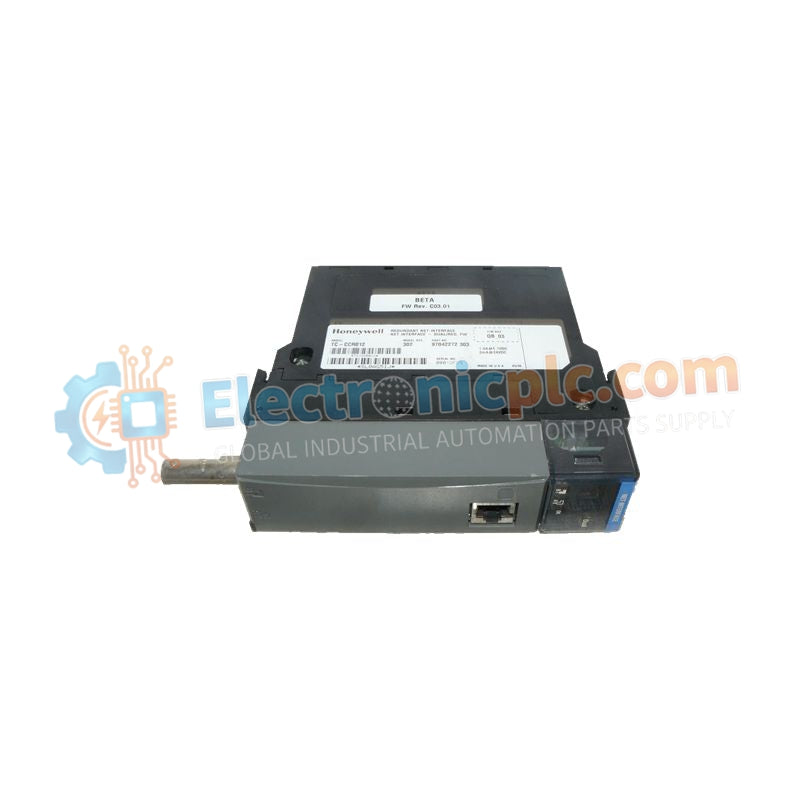

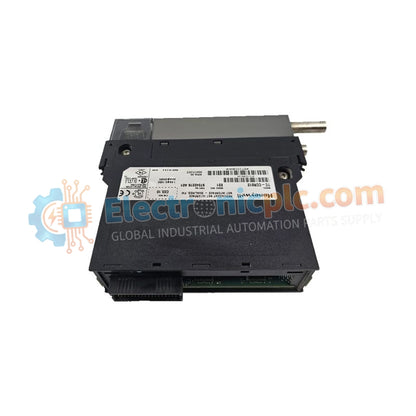

The TC-CCR012 is a high-reliability ControlNet bridge module designed for Honeywell C300 Controller architectures within the Experion PKS environment. It provides dual-media redundancy using two independent physical network ports to ensure uninterrupted...
Availability: Low stock: 99 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The TC-CCR012 is a high-reliability ControlNet bridge module designed for Honeywell C300 Controller architectures within the Experion PKS environment. It provides dual-media redundancy using two independent physical network ports to ensure uninterrupted communication in mission-critical industrial applications.
Unlike single-port interfaces, the TC-CCR012 features dual DB9 connectors (Port A / Port B), enabling automatic switchover if one communication path fails. This ensures continuous data transmission without interruption to control logic or process variables.
The module is optimized for twisted-pair ControlNet networks, with a hardware design focused on signal integrity, thermal stability, and operation in remote I/O cabinets under demanding environmental conditions. Integrated diagnostics continuously monitor network health and report port-level faults directly to the controller for rapid troubleshooting.
| Parameter | Specification |
|---|---|
| Model | TC-CCR012 |
| Protocol | ControlNet (Redundant) |
| Physical Media | Twisted Pair (TP) |
| Data Rate | 5 Mbps |
| Network Ports | Dual DB9 Male Connectors (Port A / Port B) |
| Input Voltage | 24V DC nominal (21.6–26.4V DC) |
| Current Consumption | < 210 mA @ 24V DC |
| Power Consumption | < 5 W |
| Operating Temperature | -40°C to +70°C |
| Dimensions (H×W×D) | 100 × 160 × 25 mm |
| Weight | 0.5 kg |
Redundant C300 Architectures – Enables fault-tolerant ControlNet communication between C300 controllers and remote I/O.
Oil & Gas / Petrochemical – Ensures high-availability network performance in hazardous process environments.
Power Generation – Maintains deterministic communication for turbine and boiler control systems.
Distributed Control Systems (DCS) – Seamless integration into Honeywell Experion PKS ControlNet infrastructures.
Does TC-CCR012 support fiber optic media?
No. This module supports twisted-pair ControlNet only. Fiber applications require a separate media converter or alternate interface module.
Is the module hot-swappable?
Yes. When installed in a properly configured redundant C300 chassis, it supports hot replacement following approved safety procedures.
Why are dual DB9 connectors used?
They provide ControlNet “A” and “B” channel redundancy, ensuring high-availability network architecture.
