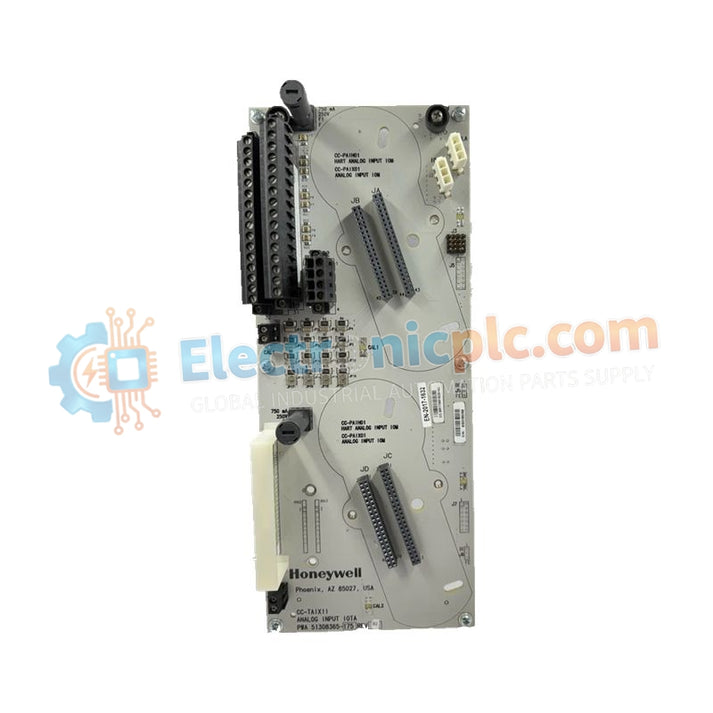

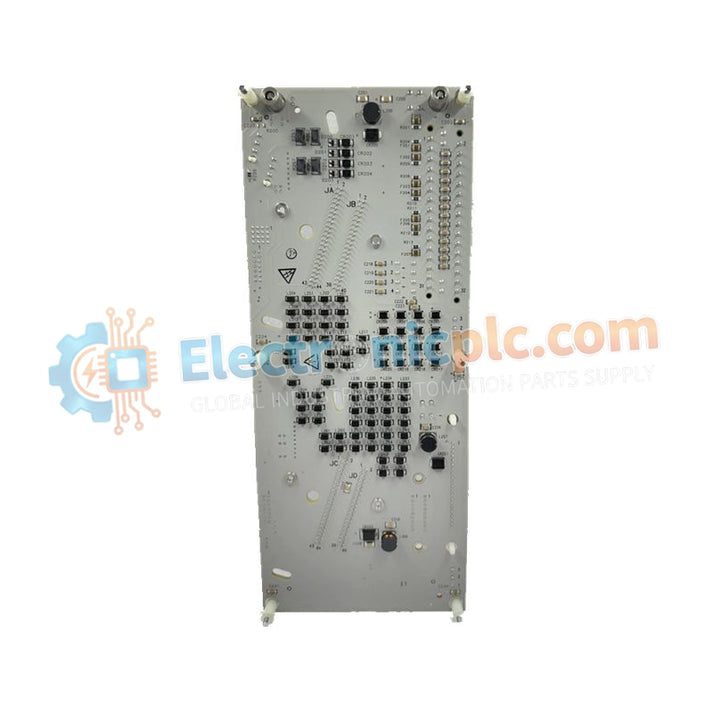

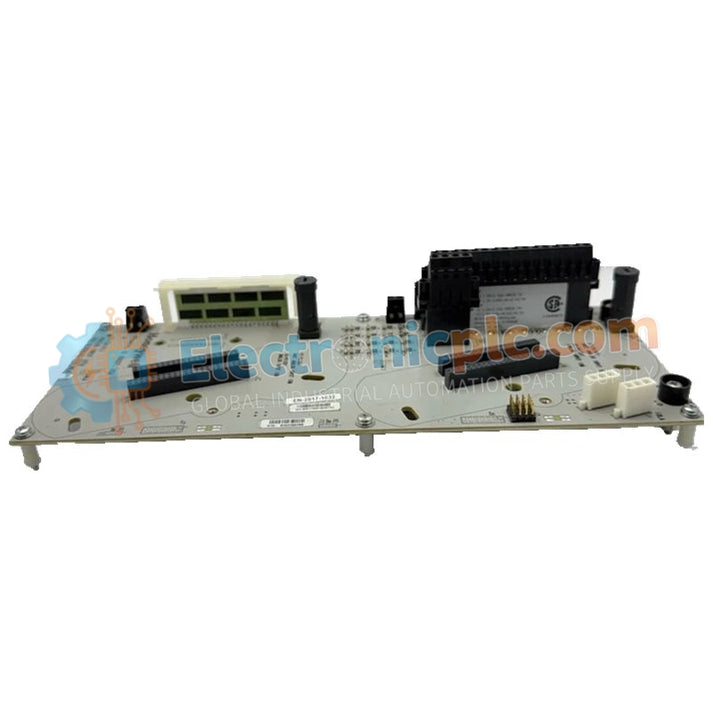

The Honeywell CC-TAIX11 (Part Number 51308365-175) is a high-availability Redundant Analog Input Module (RAIM) designed for the Experion PKS Series C platform. This module captures 4-20 mA or 1-5 VDC process signals from field transmitters, ensuring continuous data flow to the C300...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Honeywell CC-TAIX11 (Part Number 51308365-175) is a high-availability Redundant Analog Input Module (RAIM) designed for the Experion PKS Series C platform. This module captures 4-20 mA or 1-5 VDC process signals from field transmitters, ensuring continuous data flow to the C300 controller even during hardware failures. Operating in a redundant pair, the CC-TAIX11 eliminates single points of failure, making it essential for mission-critical loops in oil, gas, and chemical processing. We supply this unit as 100% Brand New and Original factory hardware.
| Specification | Details |
|---|---|
| Model Number | CC-TAIX11 / 51308365-175 |
| Module Type | Redundant Analog Input (RAI) |
| Dimensions | 29.4 cm x 12.0 cm x 7.0 cm |
| Weight | 0.38 kg |
| Platform Compatibility | Experion PKS Series C |
| Input Range | 4-20 mA / 1-5 VDC |
| Mounting | Redundant Series C IOTA (Input Output Termination Assembly) |
Seamless Failover Performance: The CC-TAIX11 ensures perfect synchronization with its redundant partner. In case of a failure, the secondary unit immediately takes over, preventing data loss or disruption in control strategies.
High-Precision Signal Conditioning: Advanced A/D conversion circuitry delivers granular process data, allowing the C300 controller to execute precise PID calculations for sensitive pressure and temperature control.
Robust Electrical Isolation: Each channel is equipped with protective isolation, preventing field-side surges or ground loops from damaging the DCS backplane, ensuring the safety of the entire system.
Streamlined Thermal Design: With a 29.4 cm extended profile, the module supports natural convection cooling when mounted vertically, preventing overheating in high-density control environments.
Integrated Hardware Diagnostics: The module continuously monitors its health and reports any internal faults to the Experion HMI, enabling maintenance teams to replace a failed partner while the process remains live.
Yes, the CC-TAIX11 modules must be mounted on a Redundant Series C IOTA (typically a 12-inch base) to enable signal distribution to both modules for redundancy.
The CC-TAIX01 is a non-redundant module, whereas the CC-TAIX11 is specifically designed for redundant, fault-tolerant operations, with the necessary synchronization hardware for seamless failover.
Yes, the -175 version is compatible with the Series C architecture. However, for optimal performance, it is recommended to use matched revisions (-175 with -175) in redundant pairs.
Yes, the Series C architecture supports hot-swapping of the CC-TAIX11. In a redundant setup, the partner module maintains the process loops while the swap is performed, ensuring no process downtime.
