The Honeywell CC-TDI110 operates as a high-voltage digital input interface within the Experion PKS Series C hardware family. This module monitors the status of field devices such as limit switches,...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

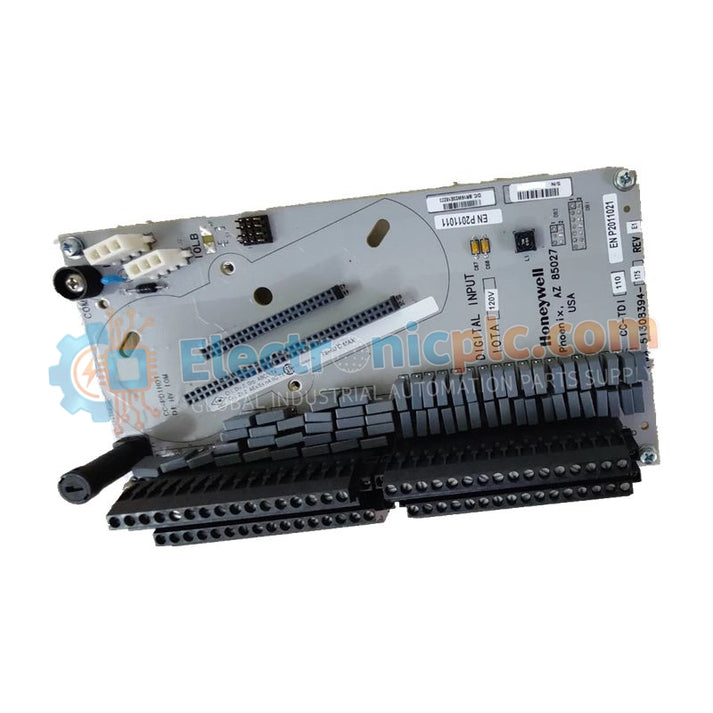

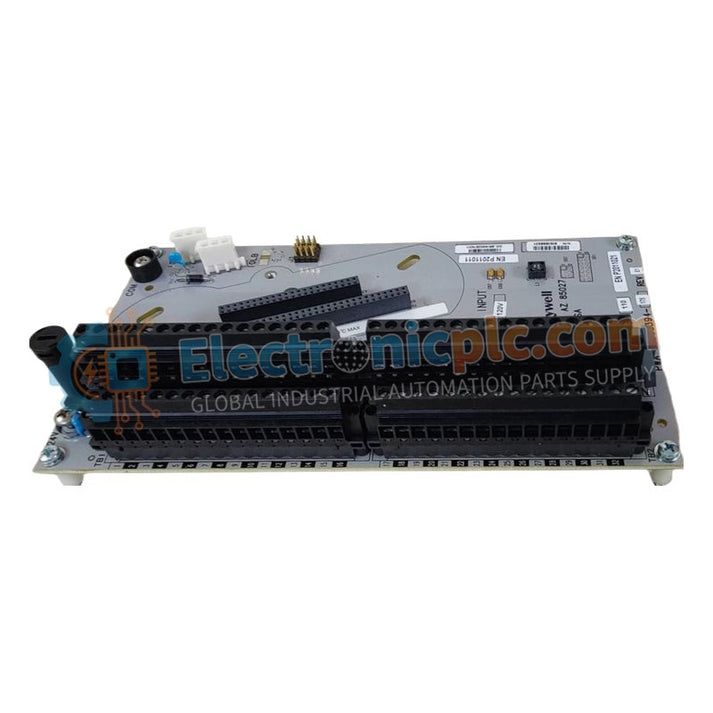

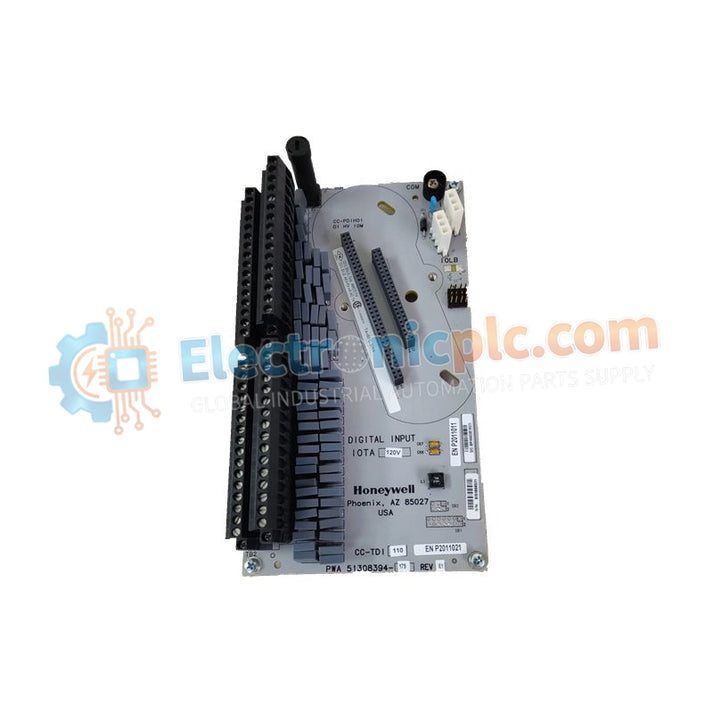

The Honeywell CC-TDI110 operates as a high-voltage digital input interface within the Experion PKS Series C hardware family. This module monitors the status of field devices such as limit switches, push buttons, and motor starter contacts that operate on 120V AC circuitry. It converts these high-voltage field signals into logic-level data for the C300 controller, enabling real-time monitoring of discrete process states. This component is supplied as 100% brand new and original equipment.
| Specification | Details |
|---|---|
| Model Number | CC-TDI110 |
| Product Type | Digital Input Module |
| Input Voltage | 120V AC |
| Input Current | 10 mA |
| Input Resistance | 10 kΩ |
| Dimensions | 109 mm x 23.5 mm x 115.5 mm |
| Weight | 0.38 kg |
| System Series | Series C I/O |
High-Voltage Field Compatibility: The CC-TDI110 interfaces directly with 120V AC field circuits, eliminating the need for interposing relays when monitoring standard industrial power circuits. This reduces wiring complexity and potential failure points.
Precision Signal Filtering: Built-in hardware debouncing and filtering minimize false triggering caused by contact bounce or electrical noise, ensuring reliable discrete signal acquisition.
Compact Vertical Profile: With a slim 23.5 mm width, the module maximizes I/O density per DIN rail, enabling more channels in limited cabinet space.
Advanced Optical Isolation: Optical isolation barriers separate field-side high-voltage inputs from low-voltage controller electronics, protecting the system from surges and ground faults.
No, the CC-TDI110 is designed specifically for 120V AC inputs. For DC applications, a DC-compatible module such as the CC-TDIL01 should be used.
The CC-TDI110 mounts onto a compatible Series C Input/Output Termination Assembly (IOTA), which is then installed on a standard 35 mm DIN rail or cabinet carrier plate.
The module includes front-panel LED indicators that display power status and the logic state of each input channel, enabling quick visual diagnostics and troubleshooting.
