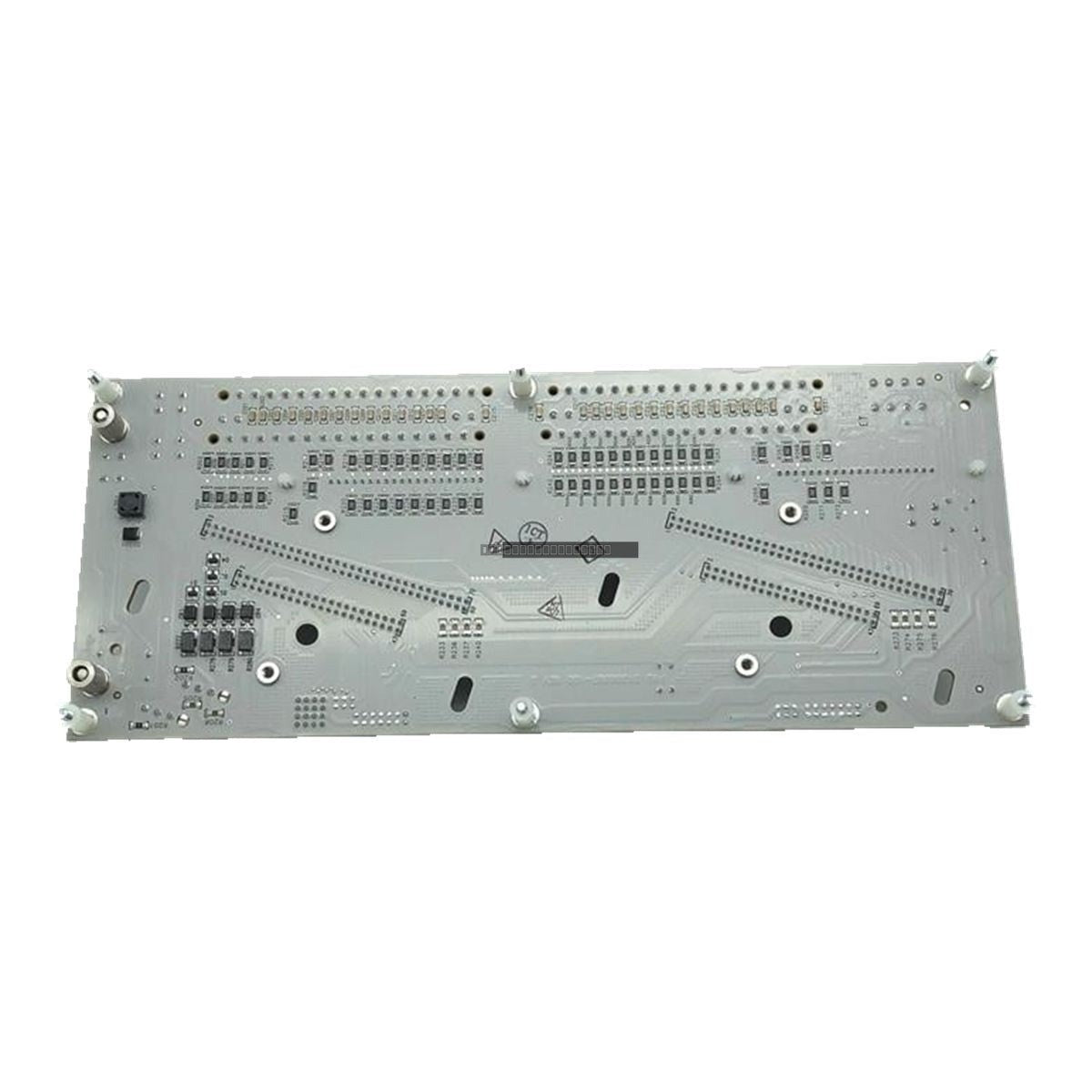

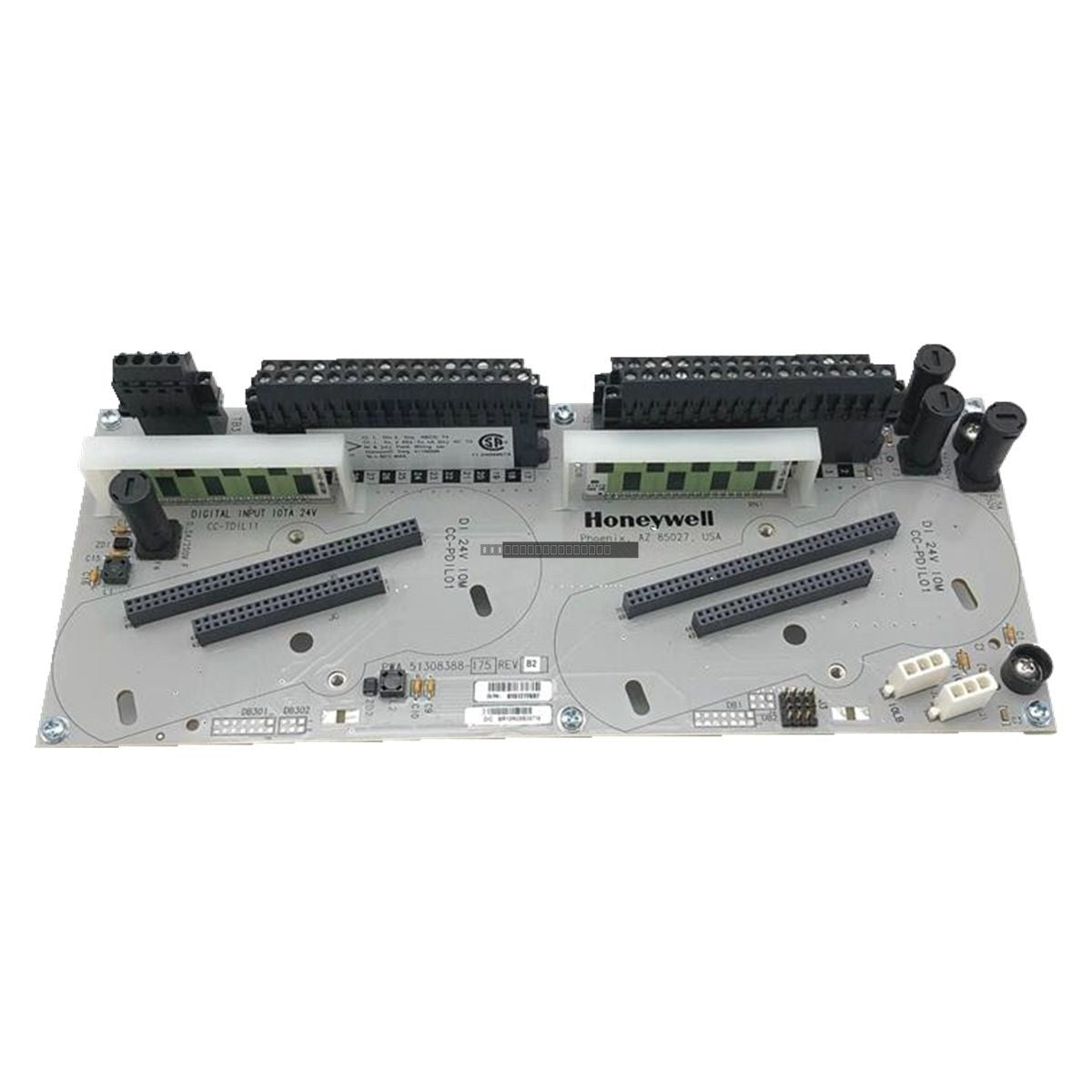

Honeywell CC-TDIL11 51308388-175 32-Channel Digital Input Module

Honeywell CC-TDIL11 51308388-175 32-Channel Digital Input Module

Description

The Honeywell CC-TDIL11 (51308388-175) is a high-density 32-channel digital input module designed for integration within the Honeywell Experion PKS distributed control system. This module provides reliable signal acquisition from field...

23 people are viewing this right now

Availability: Low stock: 1 left

SKU: CC-TDIL11
Vendor: Honeywell
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell CC-TDIL11 (51308388-175) is a high-density 32-channel digital input module designed for integration within the Honeywell Experion PKS distributed control system. This module provides reliable signal acquisition from field devices, featuring robust galvanic isolation and advanced diagnostic capabilities to ensure data integrity in demanding industrial environments.

Features

  • 32 discrete input channels for high-density signal processing.
  • Integrated galvanic isolation rated at 1500 VAC RMS or ±1500 VDC.
  • Advanced open wire detection to monitor field loop integrity.
  • Supports optional redundancy configurations for critical control applications.
  • Flexible field power selection, allowing for either internal or external power sources.
  • Provides non-incendive field power to support hazardous area requirements.
  • Direct and reverse input indication for simplified status monitoring.

Technical Specifications

Model CC-TDIL11 (51308388-175)
Input Channels 32
Isolation Technique Optical (in IOM)
Galvanic Isolation 1500 VAC RMS or ±1500 VDC
DI Power Voltage Range 18 to 30 VDC
ON Sense Voltage/Current 13 VDC (min) / 3 mA (min)
OFF Sense Voltage/Current 5 VDC (max) / 1.2 mA (max)

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the module from the I/O rack.
  • Verify that the module is correctly seated in the designated slot and that the locking mechanism is engaged.
  • Use shielded cabling for all field inputs to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the I/O rack to protect against surge and noise.
  • Ensure adequate ventilation in the cabinet to prevent thermal stress on the module components.
  • Handle with standard ESD precautions to prevent damage to sensitive internal circuitry.

FAQ

What is the primary function of the CC-TDIL11?

The CC-TDIL11 is a 32-channel digital input module used to interface field-mounted switches, sensors, and other discrete devices with the Honeywell Experion PKS control system.

Does this module support redundant configurations?

Yes, the CC-TDIL11 is designed to support optional redundancy, which is essential for high-availability control loops where downtime must be minimized.

Can this module provide power to field devices?

Yes, it is capable of supplying non-incendive field power, with the flexibility to choose between internal or external power sources based on your specific application requirements.
