Description

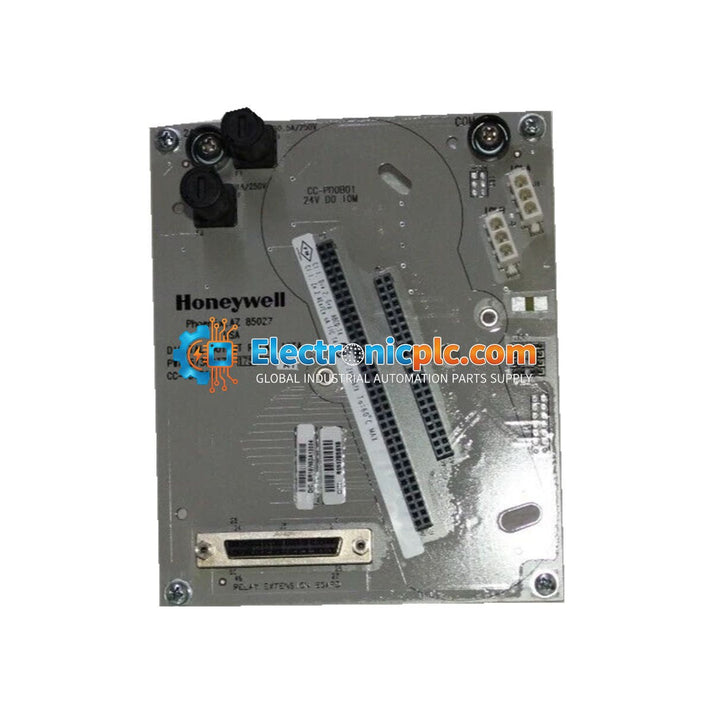

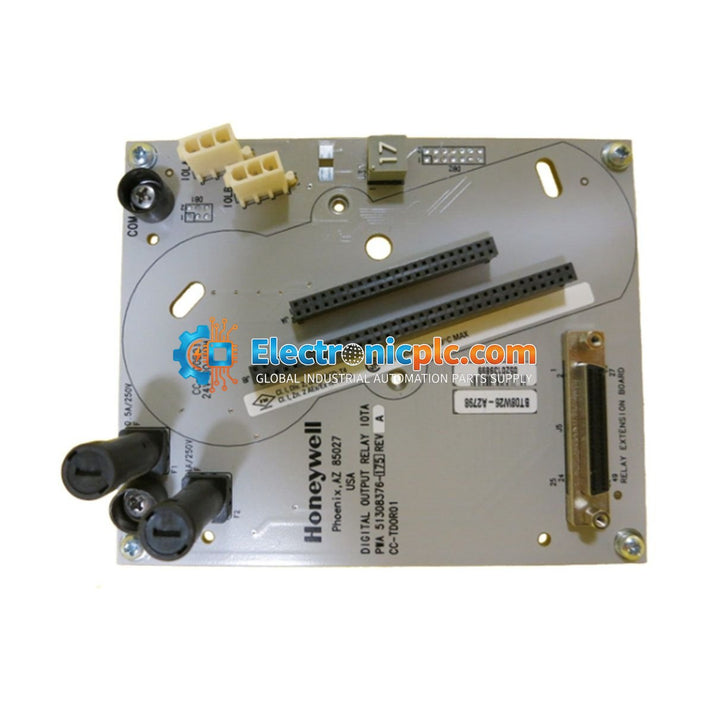

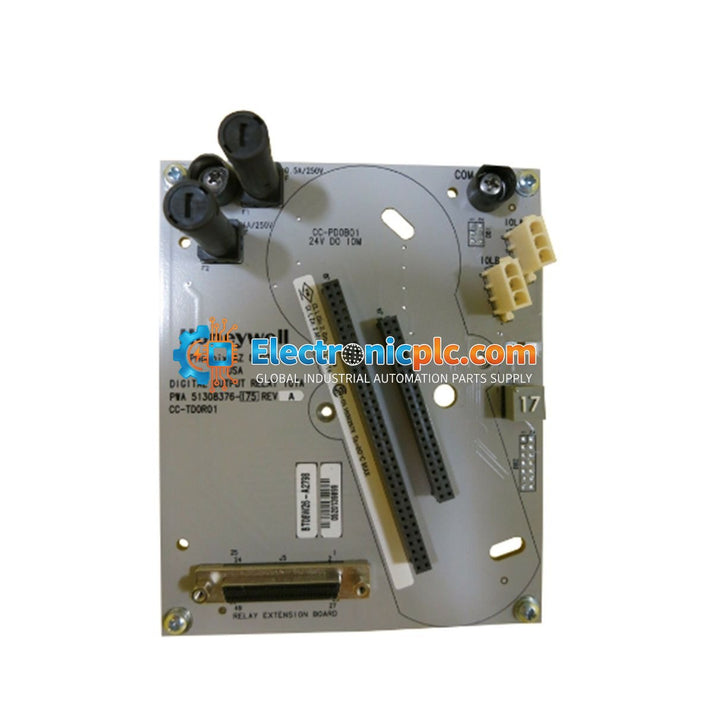

The Honeywell CC-TDOR01 (part number 51308376-175) is a high-performance Digital Output Relay Module designed for use within Honeywell Distributed Control Systems (DCS). This module provides reliable switching for field devices, utilizing electromechanical relays to provide physical isolation between the control system and the process equipment. The 'Coated' designation indicates that the module includes conformal coating, providing enhanced protection against environmental contaminants, moisture, and corrosive atmospheres in industrial settings.

Features

• Electromechanical relay outputs for robust signal switching.
• Conformal coated circuitry for improved durability in harsh industrial environments.
• Designed for integration with Honeywell Experion PKS and related DCS architectures.
• Supports a wide range of load voltages, accommodating both AC and DC field requirements.
• Integrated isolation to protect sensitive control electronics from field-side transients.

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the module from the I/O rack.
• Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to internal components.
• Verify that the module is fully seated in the designated slot and that the locking mechanism is engaged to ensure reliable backplane communication.
• Ensure field wiring is routed away from high-EMI sources, such as high-voltage power cables or large motor starters, to prevent signal interference.
• Check that field load requirements do not exceed the specified maximum current or voltage ratings of the relay contacts.

FAQ

What is the primary function of the CC-TDOR01 module?

The CC-TDOR01 is a digital output module that uses relay contacts to switch field devices. It acts as an interface between the DCS controller and external equipment, providing electrical isolation and the ability to drive higher-voltage or higher-current loads than standard solid-state outputs.

Does this module require special handling?

Yes, as an electronic module, it should be handled with care to avoid static discharge. Additionally, because it is conformal coated, it is designed for use in environments where dust or humidity might be present, but it should still be kept within the manufacturer's specified temperature and humidity operating ranges.
