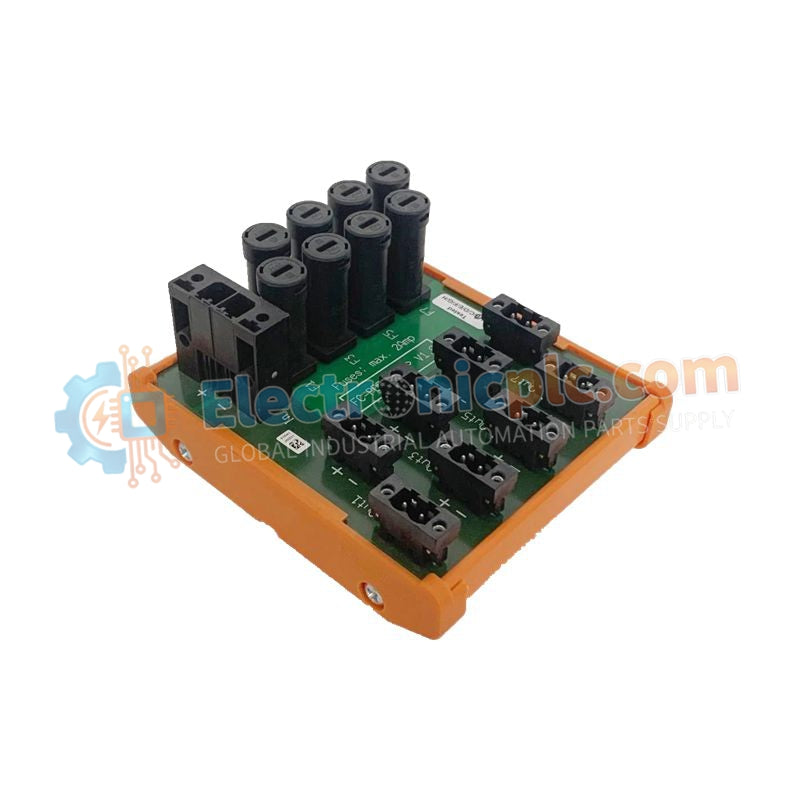

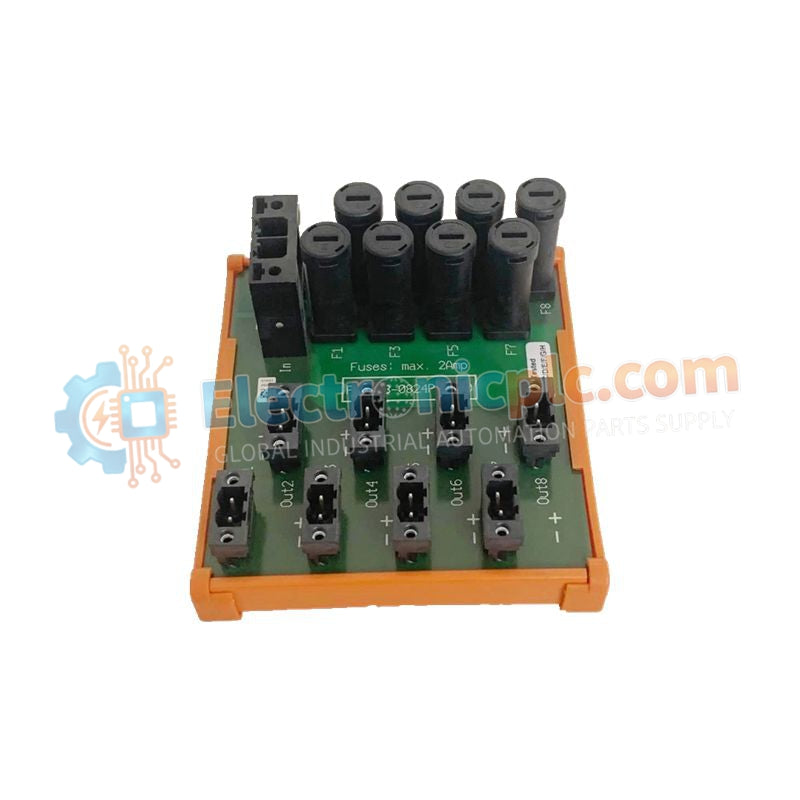

Honeywell FC-PDB-0824 Safety Manager Power Distribution Board

Honeywell FC-PDB-0824 Safety Manager Power Distribution Board

Product Overview

The Honeywell FC-PDB-0824 serves as a centralized power management hub designed to regulate and distribute 24V DC power across cabinet enclosures. This board acts as a critical interface between the...

18 people are viewing this right now

Availability: Low stock: 50 left

SKU: FC-PDB-0824
Vendor: Honeywell
Category: Power Distribution Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell FC-PDB-0824 serves as a centralized power management hub designed to regulate and distribute 24V DC power across cabinet enclosures. This board acts as a critical interface between the primary power supply and multiple industrial components, ensuring that each connected device receives a stable and protected electrical feed. It streamlines cabinet wiring and enhances the overall reliability of the Safety Manager control system.

Technical Specifications

Specification Details
Model Number FC-PDB-0824
Condition 100% Brand New and Original
Voltage Requirement 24V DC
Channel Count 8 Independent Channels
Current Capacity 2 Amps per channel
Dimensions 25.9 cm x 19.1 cm x 5.6 cm
Weight 0.99 kg

Engineering Advantages

  • Optimized Power Routing: The 8-channel architecture eliminates cluttered "daisy-chain" wiring, allowing engineers to implement a clean star-topology for power distribution that simplifies future maintenance.

  • Per-Channel Protection: By providing 2 Amps of dedicated capacity per channel, the board prevents a single component failure from cascading into a total system power loss.

  • Efficient Cabinet Footprint: The low-profile 5.6 cm height allows for stacking or mounting in shallow enclosures, maximizing the internal volume for logic controllers and I/O modules.

  • Ruggedized Connectivity: Heavy-duty terminal blocks secure large-gauge wiring against vibration and thermal expansion, maintaining constant electrical contact in high-vibration industrial settings.

FAQs

Can I use this board for 12V DC applications?
No, the FC-PDB-0824 specifically handles 24V DC power distribution. Using lower or higher voltages will compromise the internal regulation circuitry and may damage connected hardware.

How does the board handle overcurrent situations?
Each channel features dedicated protection to manage the 2 Amp load limit. This design ensures that a short circuit in one field device does not interrupt the 24V DC supply to the remaining seven channels.

Does the unit come with a factory warranty?
We supply this product as 100% brand new original Honeywell equipment, packaged in factory-sealed boxes with all relevant serial numbers for authenticity and warranty support.

Is special mounting hardware required?
The FC-PDB-0824 fits standard Honeywell cabinet mounting profiles. The 25.9 cm length aligns with standard industrial spacing for quick integration into existing Safety Manager racks.
