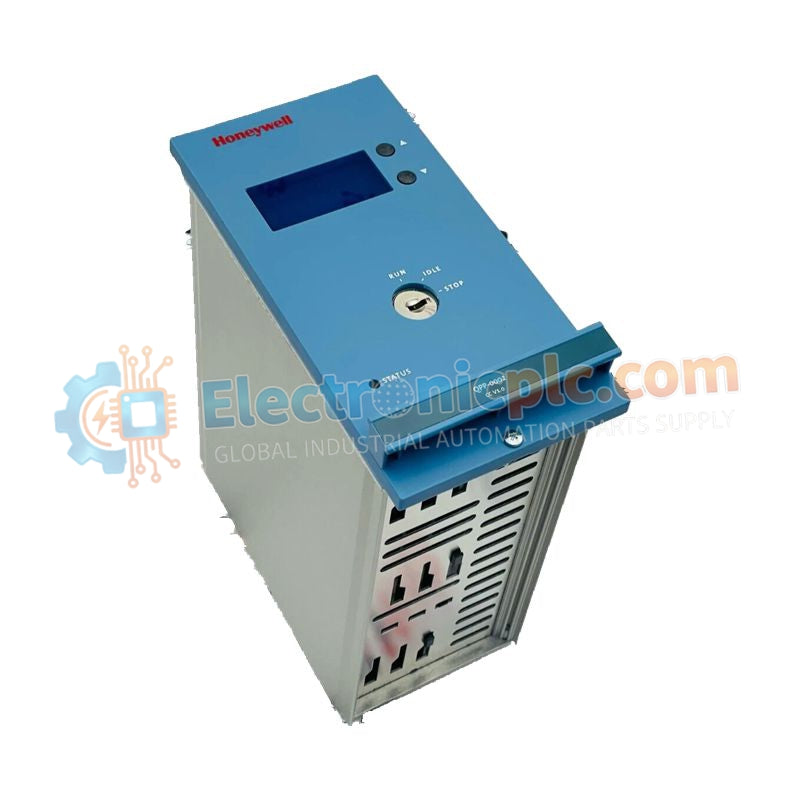

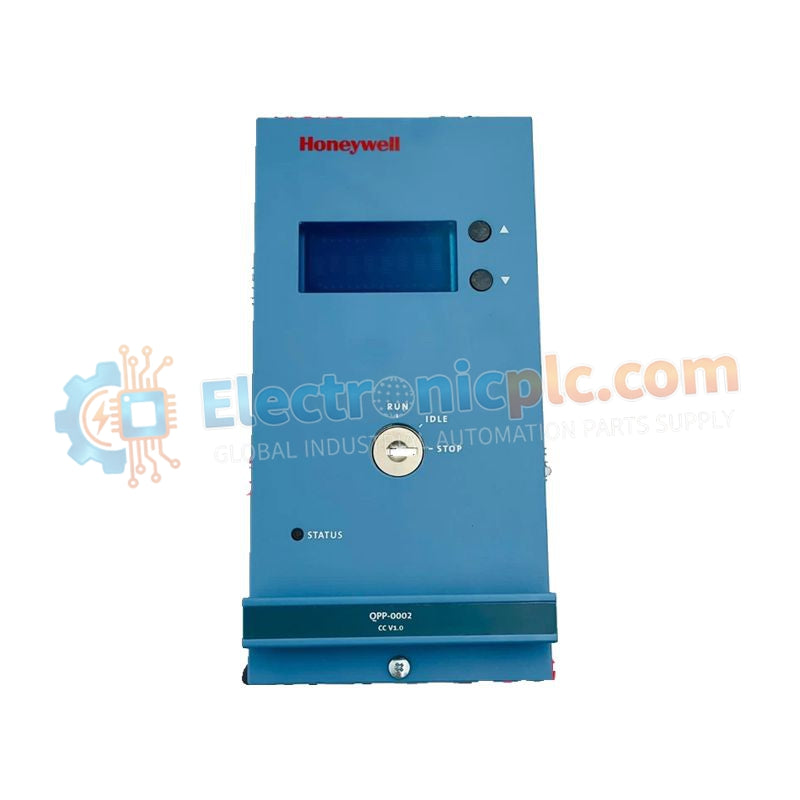

The FC-QPP-0002 is a high-availability central processing unit designed for the Honeywell Safety Manager system. As a Quad Processor, it employs a redundant internal architecture to execute safety-critical logic, ensuring industrial processes remain protected against hardware failures.
...Availability: Low stock: 99 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The FC-QPP-0002 is a high-availability central processing unit designed for the Honeywell Safety Manager system. As a Quad Processor, it employs a redundant internal architecture to execute safety-critical logic, ensuring industrial processes remain protected against hardware failures.
This module is foundational for Safety Instrumented Systems (SIS), delivering the deterministic performance required for Emergency Shutdown (ESD) and Fire & Gas (F&G) applications.
| Specification | Details |
|---|---|
| Model Number | FC-QPP-0002 |
| Equipment Type | Quad Processor Module |
| Primary Supply Voltage | 24 Vdc (–15% to +30%) |
| Power Consumption (24V) | 25 mA maximum |
| Logic Supply Voltage | 5 Vdc (±5%) |
| Logic Supply Current | 1.2 A maximum |
| Output Characteristics | 750 mA per output channel |
| Input Signal Logic | High: 15–32 Vdc / Low: < 4 Vdc |
| Input Impedance | 8 mA load at 24 Vdc |
| Short Circuit Protection | Continuous, reverse-polarity protected |
| Operating Temperature | –5°C to +70°C (+23°F to +158°F) |
| Physical Dimensions | 176 mm × 88.5 mm × 212 mm |
| Net Weight | 1.3 kg |
The FC-QPP-0002 incorporates advanced diagnostics and self-checking mechanisms to maintain a high Safety Integrity Level (SIL). Its quad-core logic structure executes and cross-checks safety instructions concurrently, allowing detection of internal faults before they impact process safety.
The module’s robust design supports:
Reliable operation in dense cabinet environments
Ambient temperatures up to 70°C
High-availability SIS deployment
This ensures continuous protection for critical industrial processes.
Q: What is the primary role of the FC-QPP-0002 in a Safety Manager rack?
A: It serves as the main controller, evaluating field inputs from I/O modules and executing safety logic to control final elements such as valves or breakers.
Q: Does the FC-QPP-0002 support SIL 3 certifications?
A: Yes, when implemented within the Honeywell Safety Manager framework and following proper safety loop design, this module is TUV certified for SIL 3 applications.
