The Honeywell FC-RO-1024 (Safety Manager line) is a relay output module designed for industrial automation systems requiring reliable discrete switching. It provides 10 independent potential-free (dry contact) relay channels, enabling safe...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

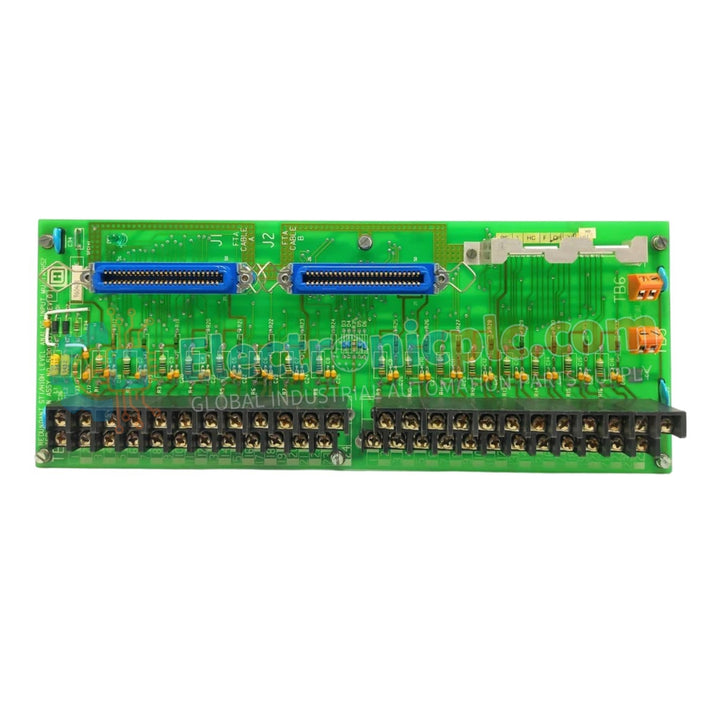

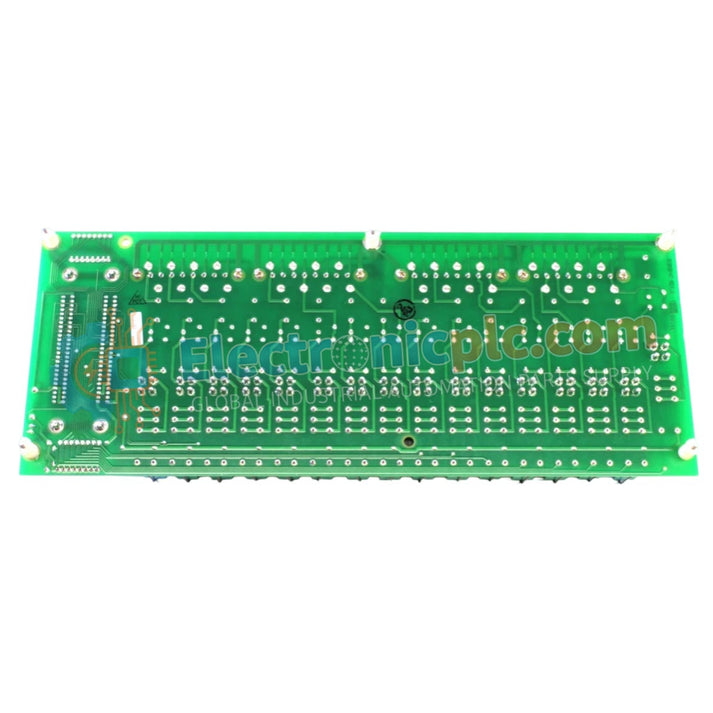

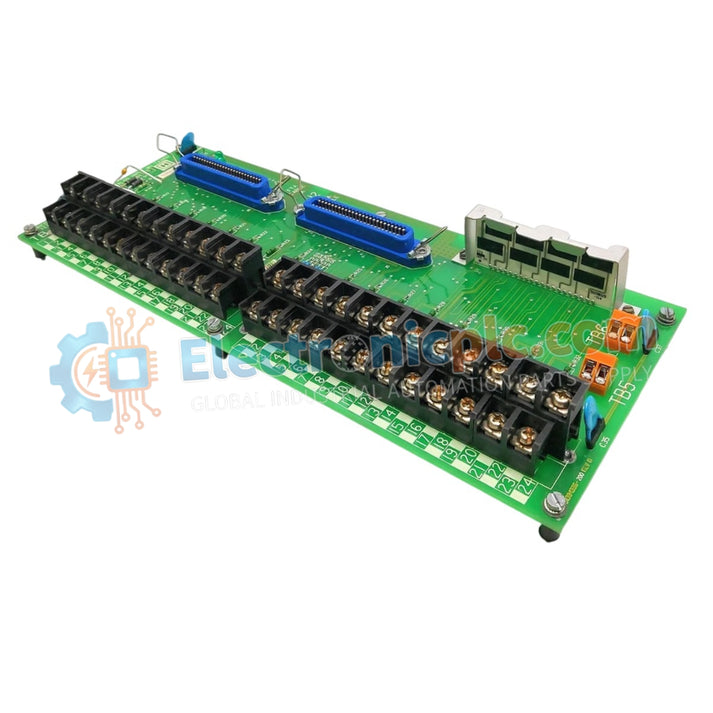

The Honeywell FC-RO-1024 (Safety Manager line) is a relay output module designed for industrial automation systems requiring reliable discrete switching. It provides 10 independent potential-free (dry contact) relay channels, enabling safe control of external loads without direct electrical connection to the system’s internal logic.
This module is commonly used in Honeywell Safety Manager and Process Manager architectures for controlling auxiliary devices such as indicator lamps, small solenoids, and interposing relays. We supply this unit in 100% Brand New, original condition, ensuring consistent switching performance and factory-level reliability.
| Parameter | Specification |
|---|---|
| Model Number | FC-RO-1024 |
| Module Type | Relay Output (Non-Safety Critical) |
| Output Channels | 10 Independent Channels |
| Contact Type | Potential-free (Dry Contact) |
| Max Switching Voltage | 30 V AC / 36 V DC |
| Max Switching Current | 2 A per channel |
| Max Switched Power | 100 W (DC) / 1000 VA (AC) |
| Max Load Capacitance | 100 nF |
| Weight | 0.3 kg |
Galvanic Isolation
Dry-contact relay design provides complete electrical separation between field circuits and system logic, protecting sensitive electronics from voltage spikes and electrical noise.
Versatile Load Handling
Supports a wide range of AC and DC loads, including inductive devices such as small solenoids and contactor coils, with reliable switching performance.
Compact System Integration
Lightweight design (0.3 kg) enables efficient use of rack space and flexible I/O configuration within Safety Manager chassis systems.
High Operational Reliability
Mechanical relay construction ensures stable switching performance over extended operational cycles, suitable for continuous industrial environments.
Is this FC-RO-1024 a genuine Honeywell module?
Yes, we supply 100% Brand New original Honeywell hardware, complete with factory serial numbers and original packaging.
Can this module be used for safety-instrumented functions (SIF)?
It is generally intended for non-safety-critical outputs. For SIL-rated applications, refer to Honeywell Safety Manager documentation for approved safety output modules.
What does “potential-free contact” mean?
It means the relay provides only a switching point—external power must be supplied to the field circuit, allowing flexibility in switching different voltages.
Does this module require maintenance?
Yes, as a mechanical relay-based module, periodic monitoring of switching cycles is recommended to ensure long-term contact performance and reliability.
