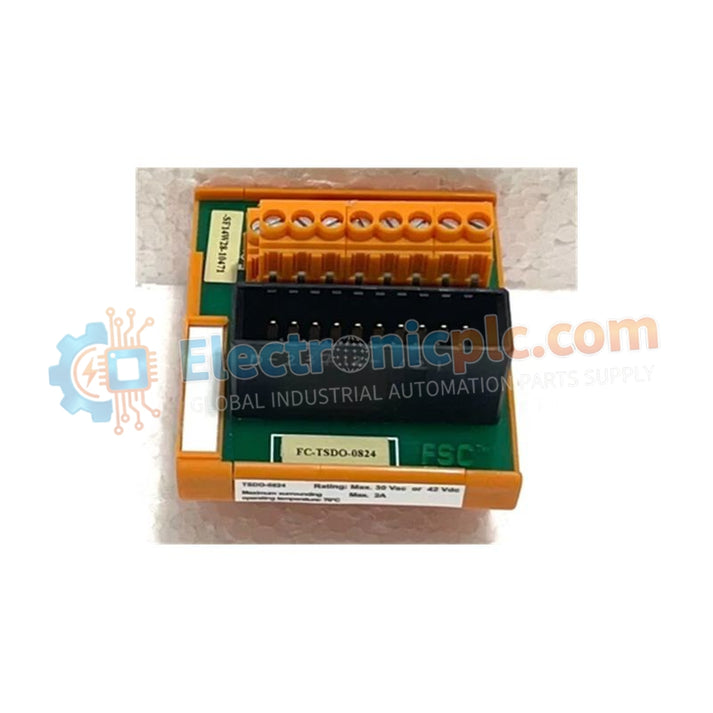

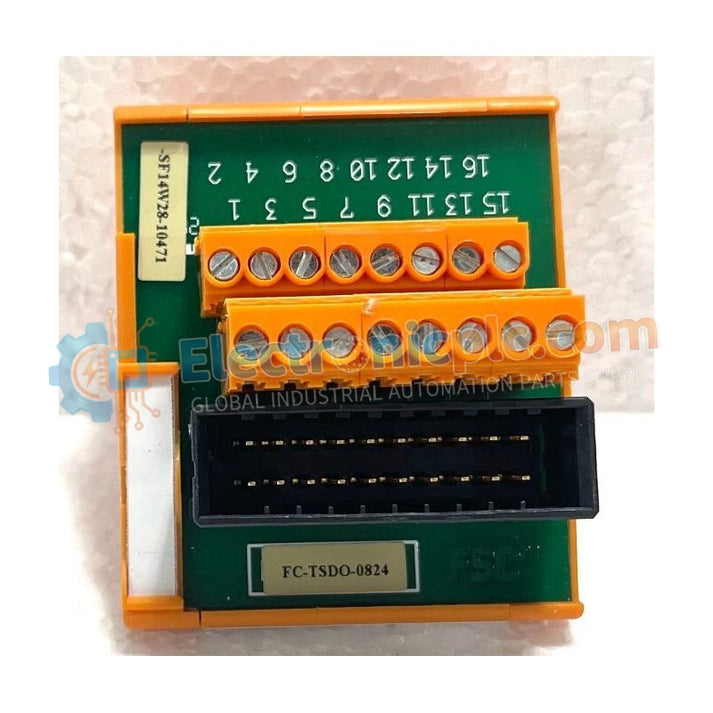

The Honeywell FC-TSDO-0824 functions as a high-integrity Safe Digital Output module engineered for the Safety Manager and Fail Safe Control (FSC) platforms. This module provides 8 independent, supervised channels designed to drive critical safety field devices such as solenoid...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Honeywell FC-TSDO-0824 functions as a high-integrity Safe Digital Output module engineered for the Safety Manager and Fail Safe Control (FSC) platforms. This module provides 8 independent, supervised channels designed to drive critical safety field devices such as solenoid valves, emergency sirens, and interposing relays. By integrating advanced diagnostic circuitry, the FC-TSDO-0824 ensures that safety-instrumented functions (SIF) are executed reliably while continuously monitoring the health of the output loop.
| Specification | Details |
|---|---|
| Model Number | FC-TSDO-0824 |
| Condition | 100% Brand New and Original |
| Output Type | Safe Digital Output (24V DC) |
| Number of Channels | 8 Independent Channels |
| Dimensions | 12.7 cm x 12.7 cm x 12.7 cm |
| Weight | 0.12 kg |
| System Compatibility | Honeywell Safety Manager / FSC |
Advanced Loop Supervision: The module performs continuous "pulse testing" on each output channel to detect open circuits and short circuits in the field wiring without de-energizing the connected load, ensuring full diagnostic coverage.
Redundant Logic Capability: When installed in a redundant chassis, the FC-TSDO-0824 operates in a 1-out-of-2 (1oo2) configuration, allowing for the hot-swap replacement of a module without interrupting the safety function or the process.
Galvanic Signal Isolation: Robust electrical isolation between the internal system bus and the 24V DC field outputs protects the central processor from electrical noise, surges, and ground faults occurring in the field.
Uniform Cubic Profile: The 12.7 cm dimensions follow the standardized Honeywell Safety Manager form factor, allowing for consistent airflow and simplified mechanical installation within industrial control racks.
What is the maximum current rating for each channel?
Each channel is typically rated to handle standard industrial safety actuators. You should consult the specific Honeywell Safety Manager hardware manual for the current derating curves based on your cabinet's ambient operating temperature.
Does this module support SIL 3 safety loops?
Yes, the FC-TSDO-0824 is a SIL-rated component. In a redundant Safety Manager configuration, it is suitable for use in safety-instrumented functions up to SIL 3.
Is this a genuine, brand new Honeywell product?
We supply the FC-TSDO-0824 in 100% brand new, original condition. Every unit arrives in factory-sealed packaging with a unique, traceable serial number to guarantee authenticity and performance.
Can technicians test the outputs manually?
Output testing is generally managed through the Safety Builder software environment. The module’s internal diagnostics provide real-time status updates, which are visible through the controller's diagnostic logs and LEDs.
