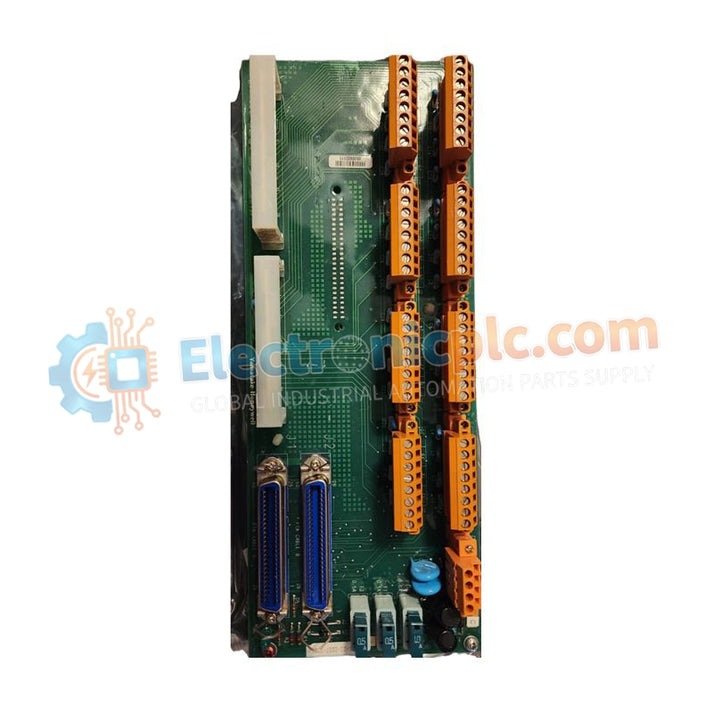

Honeywell MC-TDIY22 80366180-175 Digital Input FTA

Honeywell MC-TDIY22 80366180-175 Digital Input FTA

Product Overview

The Honeywell MC-TDIY22 (Part Number: 80366180-175) functions as a high-density Digital Input Field Termination Assembly (FTA) within the TDC 3000 and Experion control environments. It provides 32 discrete...

19 people are viewing this right now

Availability: Low stock: 50 left

SKU: MC-TDIY22 80366180-175
Vendor: Honeywell
Category: Digital Input FTA
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell MC-TDIY22 (Part Number: 80366180-175) functions as a high-density Digital Input Field Termination Assembly (FTA) within the TDC 3000 and Experion control environments. It provides 32 discrete input channels for interfacing 24 VDC field signals from switches, sensors, and relays with system control processors.

We supply this unit as 100% brand new and original equipment, featuring factory-applied conformal coating to enhance reliability in humid, corrosive, and harsh industrial environments.

Technical Specifications

Parameter Specification
Model Number MC-TDIY22
Part Number 80366180-175
Input Count 32 Digital Input Channels
Input Voltage 24 VDC
Input Impedance 10 kΩ
Input Current 1 mA
Polarity Configurable (Active High / Active Low)
Connector Type Compression Terminals
Operating Temperature -40°C to +70°C
Dimensions 10.8 cm × 12.1 cm × 5.5 cm
Weight 0.55 kg
Environmental Protection Conformal Coated (CC)

Engineering Advantages

High-Density Signal Management
Supports 32 input channels in a compact footprint, enabling efficient use of cabinet space while accommodating a large number of field devices.

Redundancy Support
Compatible with redundant I/O architectures, helping maintain system availability for critical process monitoring applications.

Enhanced Environmental Resilience
Conformal coating protects internal circuitry from moisture, dust, and chemical exposure, improving reliability in offshore, refinery, and chemical plant environments.

Field-Serviceable Design
Field-replaceable terminal design allows maintenance teams to replace connectors without changing the entire board, reducing downtime and lifecycle cost.

Flexible Logic Configuration
Supports both active high and active low configurations, allowing integration with a wide range of NPN and PNP sensors without additional signal conditioning hardware.

FAQs

Does this FTA ship with DIN rail mounting hardware?
Yes, it is compatible with Honeywell carrier files and DIN rail mounting systems for straightforward installation.

Is this a refurbished or used component?
No. The unit is 100% brand new, original, and shipped in factory-sealed anti-static packaging with OEM quality assurance.

Can the MC-TDIY22 handle voltages higher than 24 VDC?
No. It is designed specifically for 24 VDC inputs. Applying higher voltages may damage the module and affect system safety.

How do compression terminals improve reliability?
Compression terminals maintain consistent pressure on wiring, providing vibration-resistant connections that reduce the risk of intermittent contact or signal loss in harsh industrial environments.
