Description

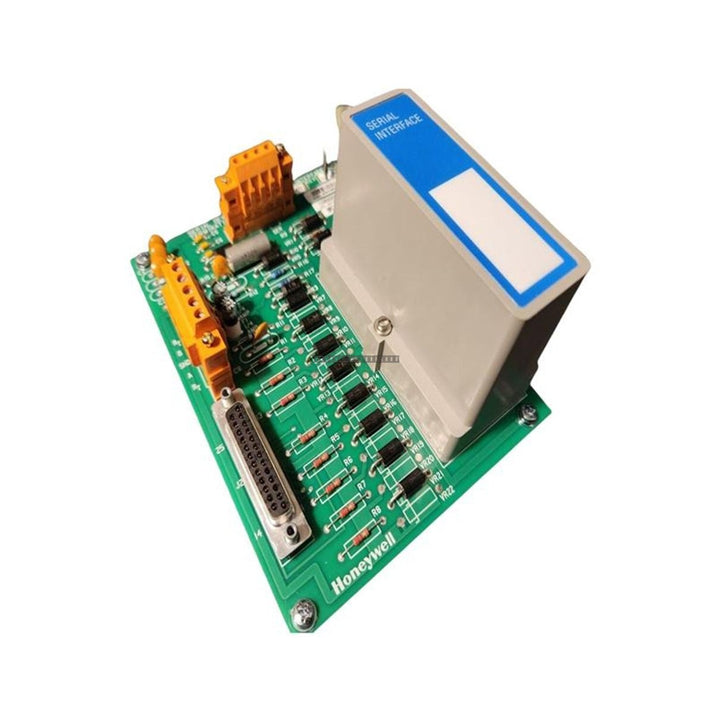

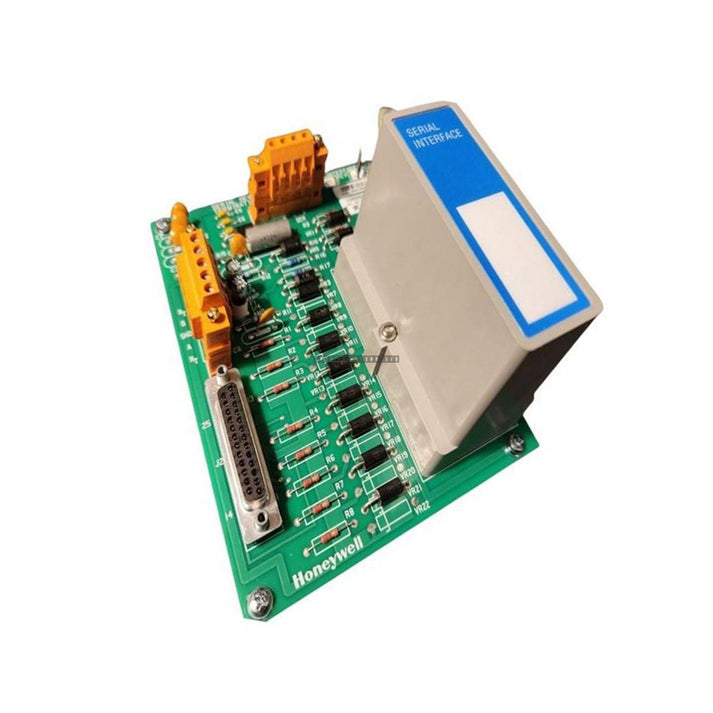

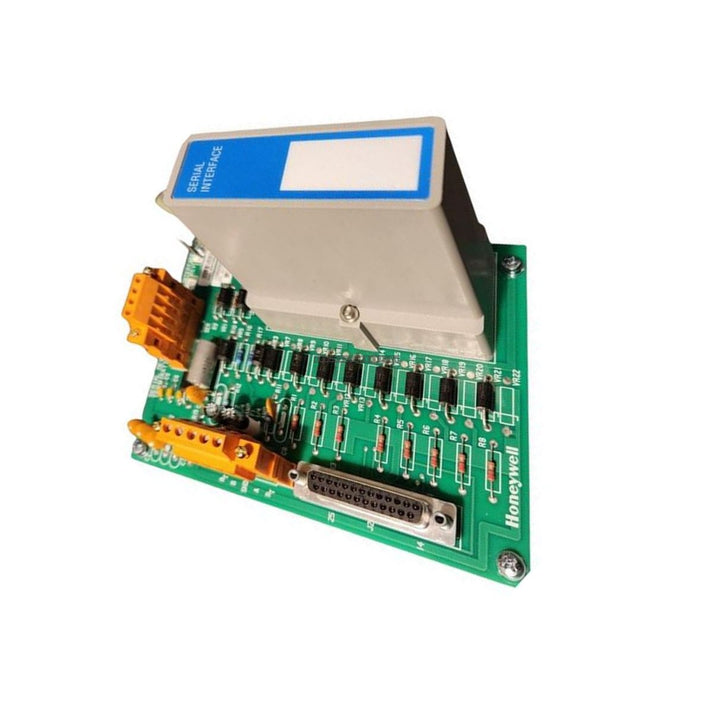

The Honeywell MC-TSIM12 (51303932-476) is a specialized serial interface module engineered for seamless integration within Honeywell Distributed Control Systems (DCS). This PCB-based component serves as a critical communication bridge, facilitating reliable data exchange between legacy field instrumentation and the central control architecture. By providing stable serial connectivity, the module ensures deterministic data flow, which is essential for maintaining process stability in demanding industrial environments such as chemical processing, power generation, and refining facilities.

Features

• Designed for robust serial data communication in industrial control networks.
• Provides essential electrical isolation and signal conditioning between field devices and the system backplane.
• Optimized PCB layout to maintain signal integrity over extended cable runs.
• Integrated protection circuitry to mitigate the effects of transient voltage spikes and electromagnetic noise.
• Transparent operation, serving as a reliable interface for serial I/O devices without requiring complex onboard processing.

Applications

This module is primarily utilized in industrial automation environments requiring the integration of serial-based field devices into a unified DCS framework. It is commonly deployed in critical control loops where consistent, error-free communication is necessary to prevent unplanned downtime and ensure operational continuity.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the rack.
• Handle the PCB using ESD-safe practices to prevent damage to sensitive internal components.
• Verify that all serial connections are properly seated and secured to the module terminals to prevent intermittent signal loss.
• Route communication cables away from high-voltage power lines or heavy machinery to minimize EMI interference.
• Confirm proper grounding of the control chassis to ensure effective noise suppression and electrical safety.

FAQ

What is the primary function of the MC-TSIM12?
The MC-TSIM12 acts as a serial interface, allowing serial-based field instruments to communicate reliably with Honeywell DCS controller hardware.

Is this module compatible with all Honeywell systems?
The MC-TSIM12 is designed for specific Honeywell DCS architectures. Please verify your system's hardware compatibility with the 51303932-476 part number before installation.

Does the module require external power?
No, the module receives its operating power directly through the system backplane once installed in the I/O rack.
