Description

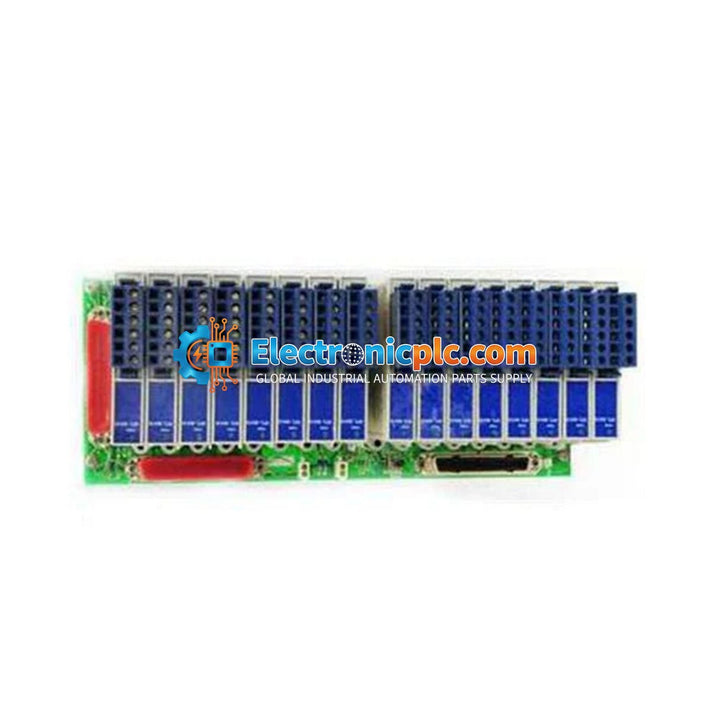

The Honeywell MU-GAIH14 is a 16-channel analog input Field Termination Assembly (FTA) engineered for industrial process control and safety systems. This module serves as a critical interface between field-mounted transmitters and the distributed control system (DCS), facilitating reliable signal acquisition and galvanic isolation. It is designed to handle standard 4-20 mA process signals, ensuring high signal integrity in both hazardous and non-hazardous industrial environments.

Features

• 16-channel analog signal acquisition capacity.
• Galvanic isolation to prevent ground loop interference and protect control system electronics.
• Supports 2-wire and 3-wire transmitters with floating DC excitation.
• Compatible with smart transmitters, allowing for HART digital communication signals superimposed on the analog loop.
• Provides a 1 to 5 VDC output signal to the associated high-level analog input modules.
• Robust design suitable for continuous operation in demanding process environments.

Applications

The MU-GAIH14 is widely utilized in process automation sectors, including:

• Refinery and petrochemical control loops.
• Power generation monitoring and instrumentation.
• Chemical process control systems.
• Any application requiring high-density, isolated analog signal conditioning.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the rack before inserting or removing the FTA module.
• Verify that the module is securely seated in the B-format rack slot to ensure proper backplane connection.
• Use shielded cabling for field inputs to minimize EMI/RFI interference.
• Ensure proper grounding of the FTA chassis to the system common ground to maintain galvanic isolation integrity.
• Follow standard ESD handling procedures when touching internal components or connector pins.
• Maintain adequate ventilation around the rack to ensure the operating temperature remains within the specified -20 to 60 deg C range.

FAQ

Does this module support HART communication?
Yes, the MU-GAIH14 is designed to pass through HART digital communication signals superimposed on the 4-20 mA analog loop, allowing for remote configuration and diagnostics.

What is the primary function of the 1 to 5 VDC output?
The 1 to 5 VDC signal is the standard output provided to the system's high-level analog input cards, ensuring electrical separation between the field devices and the control system electronics.
