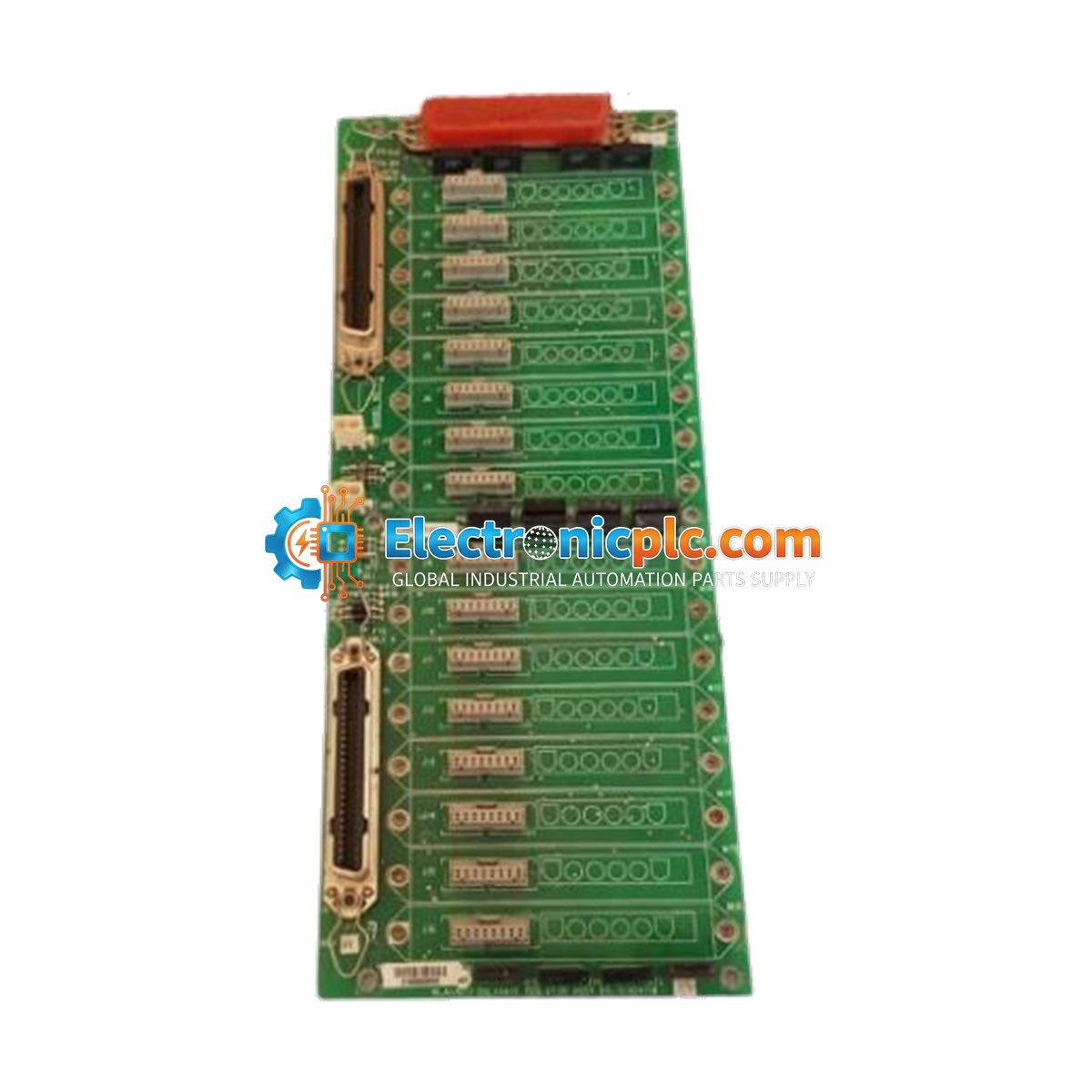

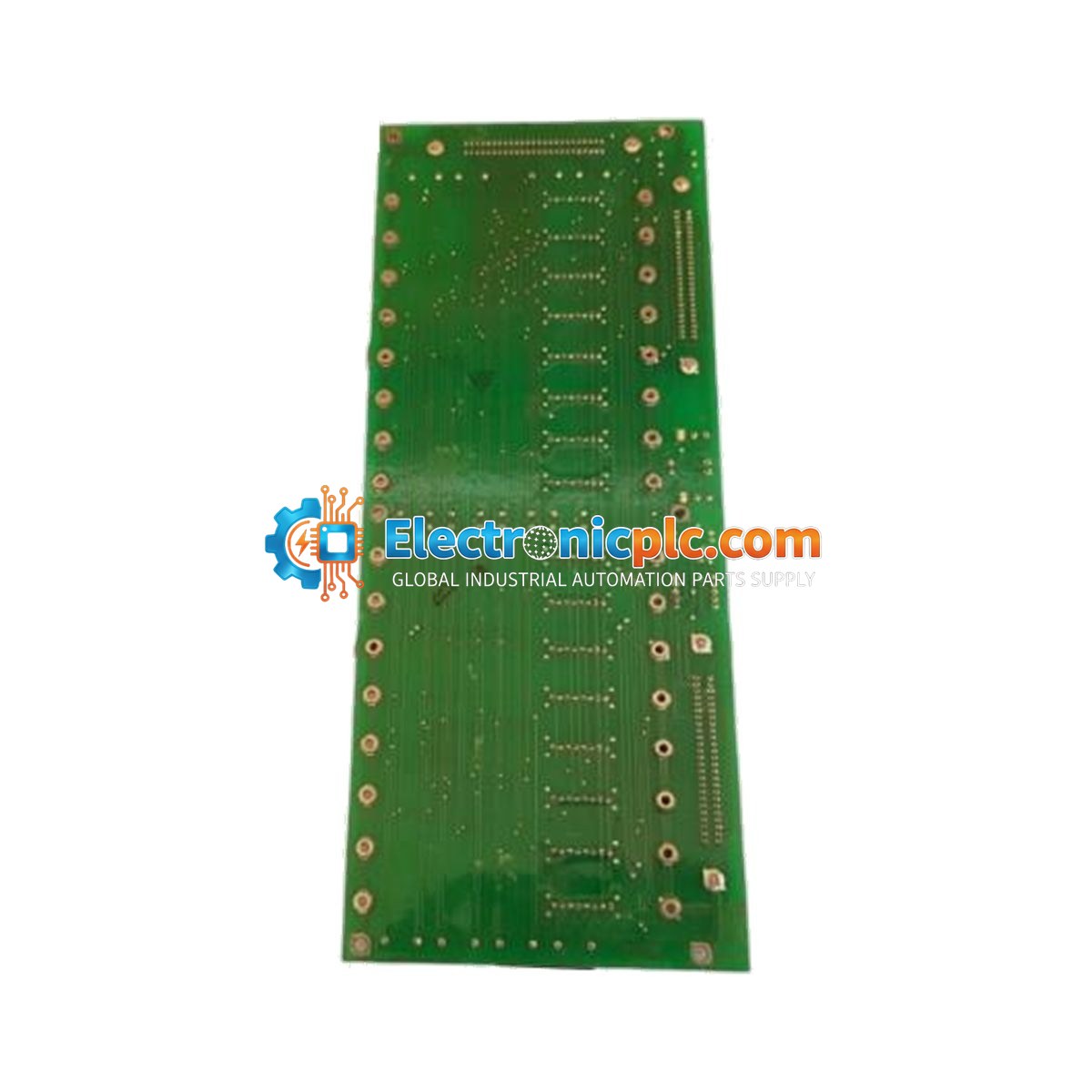

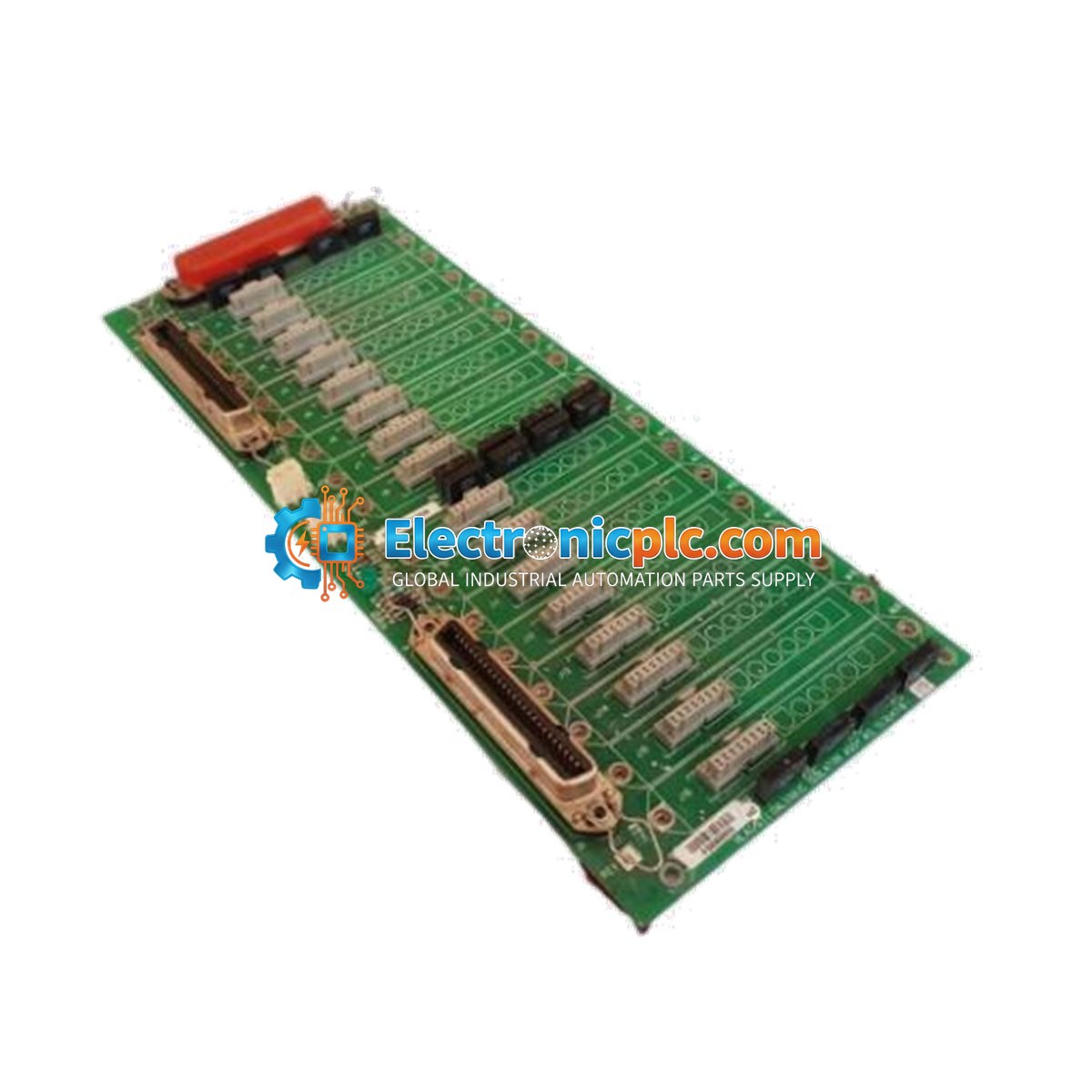

Honeywell MU-TAIH13 High Level Analog Input FTA (51309138-125)

Honeywell MU-TAIH13 High Level Analog Input FTA (51309138-125)

Description

The Honeywell MU-TAIH13 (part number 51309138-125) is a High Level Analog Input Field Termination Assembly (FTA) designed for integration with Honeywell TPS and Experion PKS distributed control systems. This...

28 people are viewing this right now

Availability: Low stock: 9 left

SKU: MU-TAIH13
Vendor: Honeywell
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell MU-TAIH13 (part number 51309138-125) is a High Level Analog Input Field Termination Assembly (FTA) designed for integration with Honeywell TPS and Experion PKS distributed control systems. This module serves as a critical interface between field instrumentation and the control system, facilitating the conversion of standard industrial analog signals into digital values for process monitoring and control.

Features

  • 16 independent analog input channels supporting 4-20 mA and 0-10 V signals.
  • High-resolution signal conversion with accuracy better than 0.1 percent of full scale.
  • Supports redundant I/O configurations for high-availability applications, allowing seamless failover.
  • Integrated signal conditioning, filtering, and channel-to-channel isolation to mitigate noise and cross-channel interference.
  • Equipped with Type C compression terminals for secure, vibration-resistant field wiring.

Applications

The MU-TAIH13 is engineered for mission-critical industrial environments, including oil and gas refining, power generation, and chemical processing. It is specifically designed to reduce marshalling complexity by providing direct field wiring termination for high-density analog signal acquisition.

Technical Specifications

Model MU-TAIH13
Part Number 51309138-125
Channels 16 Analog Inputs
Input Signals 4-20 mA, 0-10 V
Accuracy Better than 0.1% of full scale
Isolation Channel-to-channel and system isolation
Terminal Type Compression Type C
Power Consumption Approx. 8 W
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the FTA from the cabinet.
  • Use shielded twisted-pair cabling for all analog inputs to minimize EMI/RFI interference.
  • Ensure proper grounding of the FTA chassis to the cabinet ground bus to maintain signal integrity.
  • Verify that the compression terminals are tightened to the specified torque to prevent loose connections in high-vibration environments.
  • Maintain adequate clearance around the module to ensure proper airflow and cooling within the cabinet.

FAQ

Q: Is this FTA compatible with redundant I/O setups?
A: Yes, the MU-TAIH13 is designed to support redundant I/O configurations, allowing for primary and secondary FTA operation to ensure continuous signal availability.

Q: What type of field wiring does this module accept?
A: This module utilizes Type C compression terminals, which are designed for secure, direct connection of field instrumentation wiring.
