Description

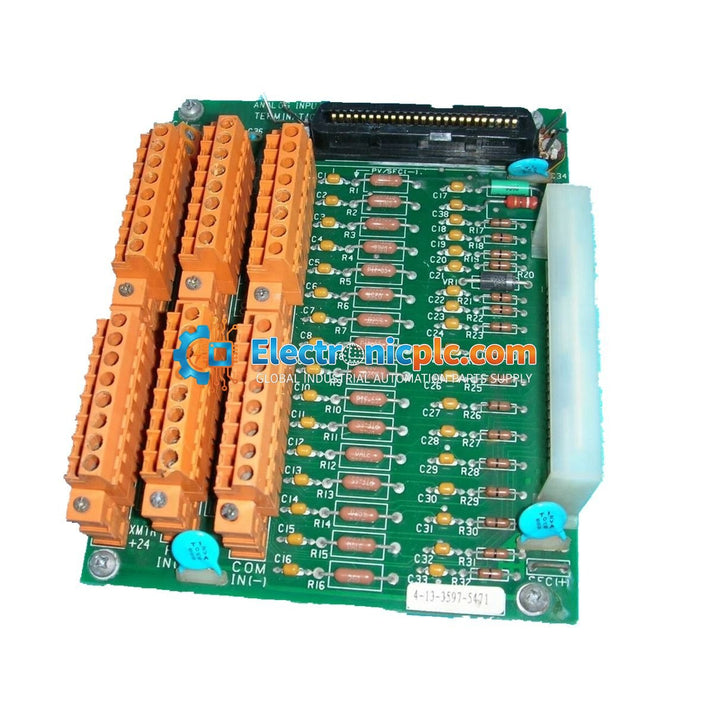

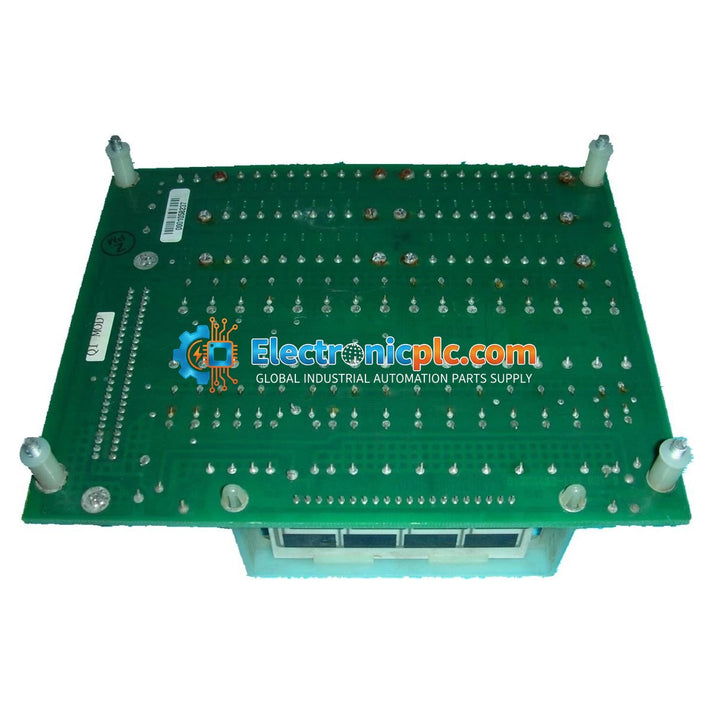

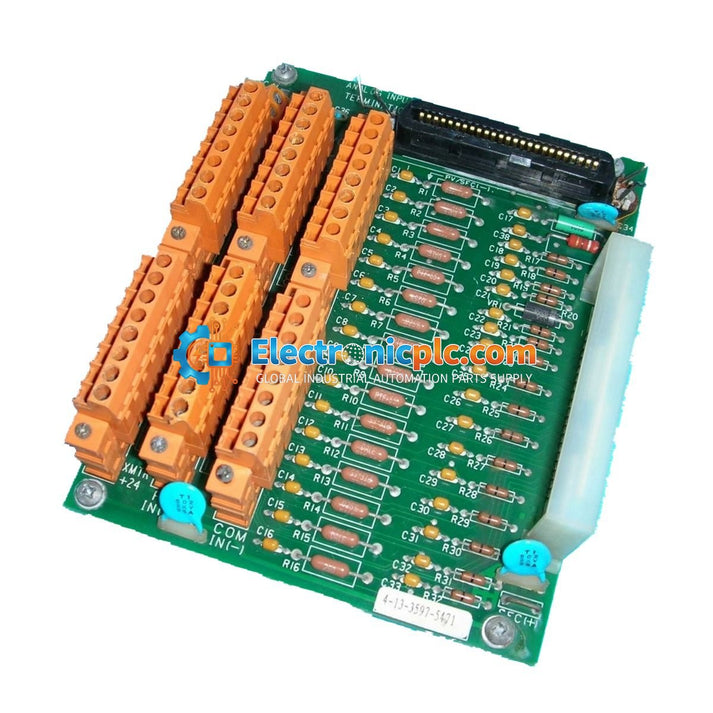

The Honeywell MU-TAIH53 (51309138-225) is a high-level analog input module engineered for integration within Honeywell Experion PKS and UCN control systems. This module serves as a critical interface for field instrumentation, providing 16 differential input channels capable of processing standard industrial voltage and current signals. Designed for reliability in demanding industrial environments, it ensures high-precision data acquisition for pressure, flow, level, and temperature monitoring applications.

Features

• 16 isolated differential input channels for robust signal acquisition.
• Supports standard 0-10 V and 4-20 mA signal ranges.
• High measurement accuracy of plus/minus 0.1 percent of full scale.
• 1500 V electrical isolation between field inputs and system electronics to mitigate ground loops and transients.
• Supports redundant module configurations for high-availability process control.
• Integrated signal conditioning and A/D conversion for stable performance.
• Type S screw terminal assembly for simplified field wiring.

Applications

The MU-TAIH53 is widely utilized in process automation environments, including oil and gas refineries, power generation facilities, and chemical processing plants. It is ideal for interfacing with field transmitters that require high-integrity signal transmission over long distances.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module.
• Mount the module in a clean, dry environment within the specified operating temperature range.
• Use shielded twisted-pair cabling for field inputs to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the module chassis to the system common to maintain isolation integrity.
• Verify terminal connections are secure and tightened to prevent intermittent signal loss.
• Handle with standard ESD precautions to prevent damage to internal sensitive electronics.

FAQ

What is the primary function of the MU-TAIH53?

The MU-TAIH53 acts as a high-level analog input module for Honeywell Experion PKS and UCN systems, converting field-level analog signals (voltage/current) into digital data for process control.

Does this module support redundancy?

Yes, the MU-TAIH53 is designed to support redundant configurations where two modules operate in parallel to ensure continuous signal acquisition in critical applications.

What type of wiring does this module use?

This module is configured as a Field Termination Assembly (FTA) using Type S screw terminals, which allows for direct connection of field device wiring.
