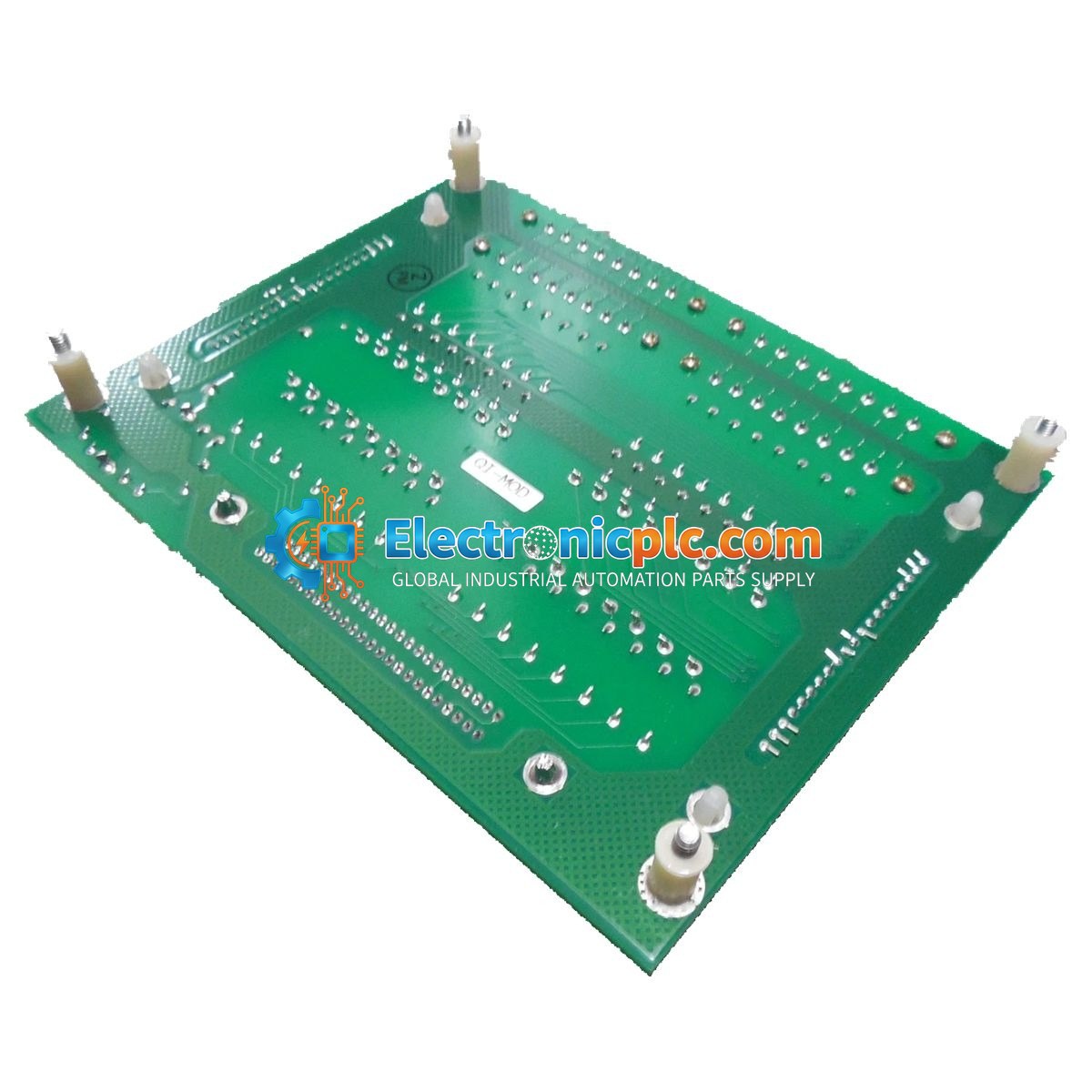

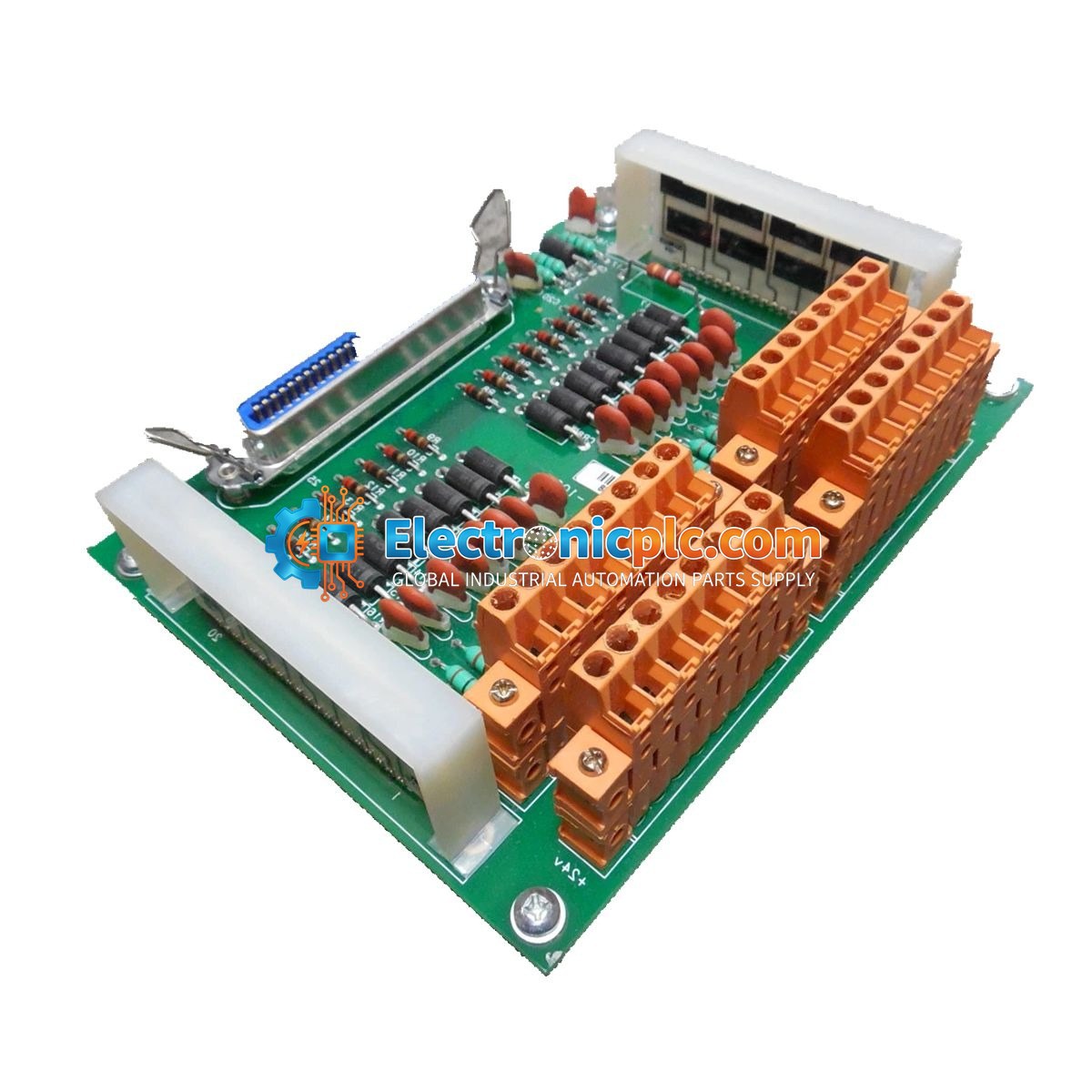

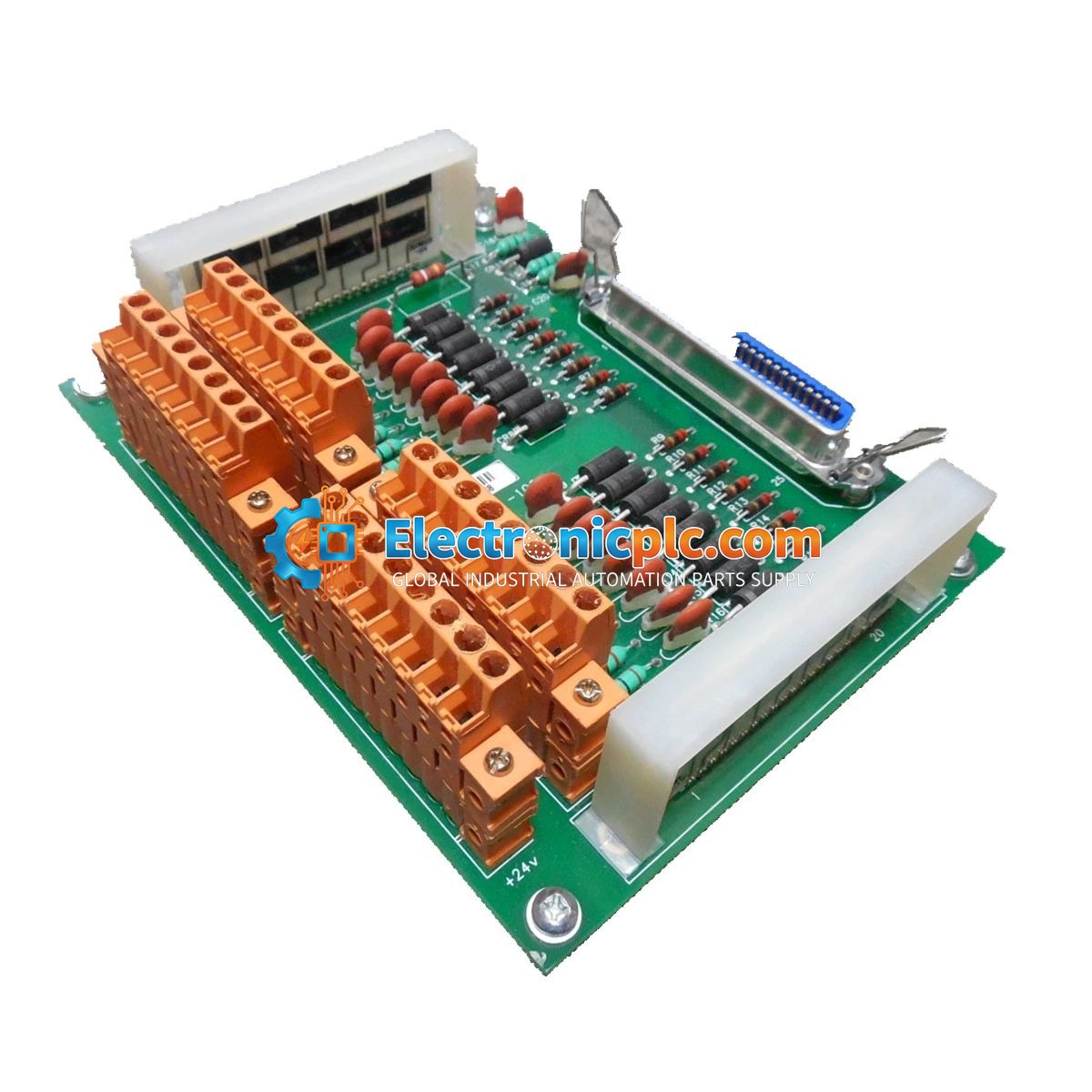

Honeywell MU-TSTX03 Smart Transmitter Interface FTA

Honeywell MU-TSTX03 Smart Transmitter Interface FTA

Description

The Honeywell MU-TSTX03 is a Smart Transmitter Interface Field Termination Assembly (FTA) engineered to facilitate robust communication between smart field transmitters and industrial control systems. This module serves as a...

20 people are viewing this right now

Availability: In stock

SKU: MU-TSTX03
Vendor: Honeywell
Category: Smart Transmitter Interface FTA
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell MU-TSTX03 is a Smart Transmitter Interface Field Termination Assembly (FTA) engineered to facilitate robust communication between smart field transmitters and industrial control systems. This module serves as a critical bridge in process automation, ensuring reliable signal conversion and transmission for process variables and diagnostic data.

Features

  • Supports RS-485 serial communication for high noise immunity and long-distance signal transmission.
  • High-speed data exchange capabilities reaching up to 1 Mbps.
  • Designed for high reliability in demanding industrial environments, including oil, gas, and power generation facilities.
  • Low power consumption design, operating efficiently at 5 VDC.
  • Wide operating temperature range for deployment in diverse field conditions.

Applications

The MU-TSTX03 is typically utilized in distributed control system (DCS) architectures where smart field instruments must communicate with host controllers. It is suitable for applications requiring high-integrity data acquisition, such as flow, pressure, and temperature monitoring in complex process loops.

Technical Specifications

Model MU-TSTX03
Brand Honeywell
Product Type Smart Transmitter Interface FTA
Communication Protocol RS-485
Data Transfer Rate Up to 1 Mbps
Operating Temperature -40 to 85 deg C
Power Supply 5 VDC
Power Consumption Less than 0.5 W

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the FTA module to prevent electrical damage.
  • Mount the module in a clean, dry environment, preferably within a NEMA-rated enclosure to protect against dust and moisture.
  • Use shielded twisted-pair cabling for RS-485 connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the cable shields at the control cabinet end to maintain signal integrity.
  • Verify that all terminal connections are secure and free from oxidation before applying power.
  • Maintain adequate spacing around the module to allow for proper heat dissipation during operation.

FAQ

What is the primary function of the MU-TSTX03?
The MU-TSTX03 acts as a field termination assembly that interfaces smart transmitters with a control system via RS-485, ensuring stable and high-speed data transmission.

Can this module be used in outdoor environments?
Yes, the module is designed with a wide operating temperature range of -40 to 85 deg C, making it suitable for harsh industrial conditions, provided it is housed in an appropriate protective enclosure.
