Description

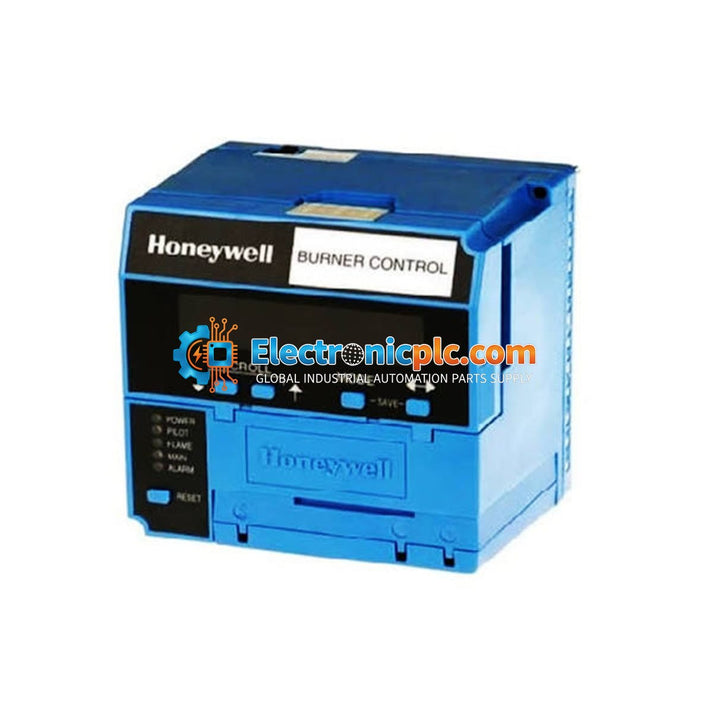

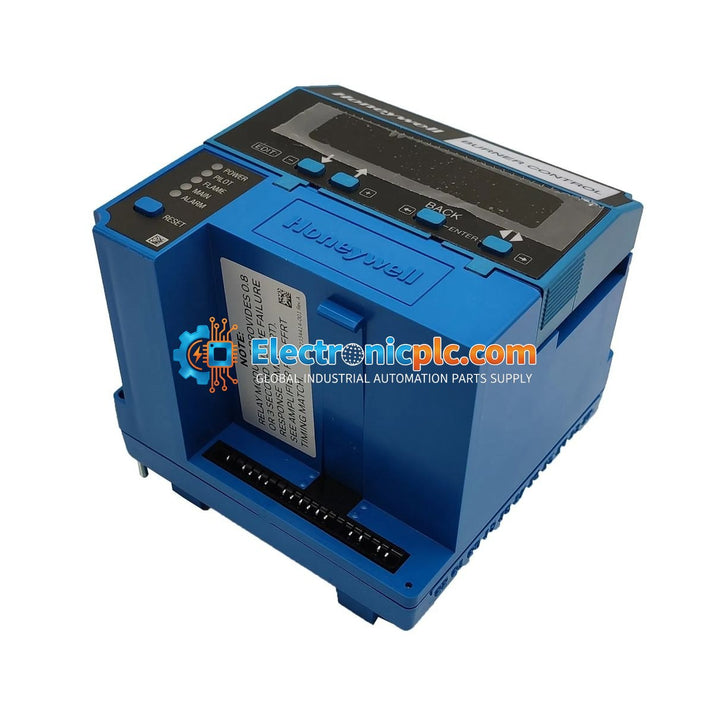

The Honeywell RM7800L1079 is a microprocessor-based burner control relay module designed for industrial combustion safety and sequencing applications. As a core component of the 7800 SERIES architecture, this module provides reliable flame supervision, safe start-up/shutdown logic, and automated burner management. It is engineered for use in boiler systems, process heaters, and power generation burner management systems, ensuring deterministic control of ignition, purge, and run cycles.

Features

• Microprocessor-based logic for precise burner sequencing and safety interlock management.
• Integrated flame supervision capabilities for enhanced operational safety.
• Modular plug-in design for rapid replacement and reduced system downtime.
• Compatible with standard 7800 SERIES keyboard display modules for real-time status monitoring and configuration.
• Supports automated programming sequences including pre-purge, ignition, and post-purge cycles.
• Designed for 120 VAC control supply environments.

Applications

The RM7800L1079 is widely utilized in heavy industrial thermal systems, including:

• Industrial boiler control systems.
• Process heater management.
• Power generation burner management systems.
• Refinery and petrochemical combustion safety applications.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before inserting or removing the module from the chassis.
• The module is designed for plug-in installation within a standard 7800 SERIES burner control chassis.
• Verify that the chassis wiring matches the required configuration for the RM7800L1079 model.
• Ensure proper grounding of the burner management cabinet to prevent electrical noise interference.
• Handle the module with care to avoid damage to the connector pins on the rear of the unit.
• After installation, perform a full system test to verify that all safety interlocks and sequencing logic are functioning as intended.

FAQ

What is the primary function of the RM7800L1079?

The RM7800L1079 serves as a burner control relay module that manages the safe sequencing of burner start-up, operation, and shutdown, while providing integrated flame supervision.

Is this module compatible with other 7800 SERIES components?

Yes, the RM7800L1079 is designed to integrate with standard 7800 SERIES keyboard display modules and auxiliary interface units for configuration and monitoring.

What power supply is required for this module?

This module is designed to operate on a 120 VAC, 60 Hz power supply.
