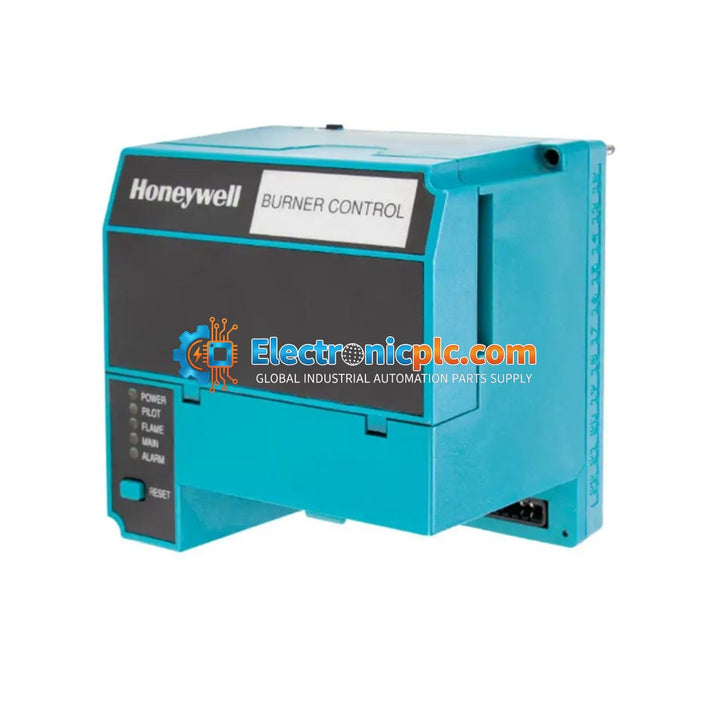

Honeywell RM7824A1006 Primary Control Module

Honeywell RM7824A1006 Primary Control Module

Description

The Honeywell RM7824A1006 is a microprocessor-based primary burner control module designed for 24 VDC combustion management systems within the Honeywell 7800 Series architecture. This controller provides automatic burner sequencing,...

29 people are viewing this right now

Availability: In stock

SKU: RM7824A1006
Vendor: Honeywell
Category: Burner Control Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell RM7824A1006 is a microprocessor-based primary burner control module designed for 24 VDC combustion management systems within the Honeywell 7800 Series architecture. This controller provides automatic burner sequencing, flame supervision, fault diagnostics, and safety shutdown functions for industrial burners, boilers, furnaces, and thermal processing equipment. It features integrated nonvolatile memory to preserve lockout history and operational records during power interruptions, facilitating efficient troubleshooting and maintenance.

Features

  • Microprocessor-based burner management for reliable sequencing and safety.
  • Five front-panel LED indicators for continuous sequence and status monitoring.
  • User-selectable recycle or lockout functionality for operational flexibility.
  • Nonvolatile memory for secure retention of fault and operational history.
  • Integrated shutter drive output to support dynamic self-check flame detection systems.
  • External voltage test access points for simplified commissioning.

Applications

The RM7824A1006 is engineered for critical combustion environments, including refineries, power generation facilities, petrochemical plants, and large-scale industrial heating systems where precise flame safeguard performance is required to minimize downtime and ensure safe operation.

Technical Specifications

Model RM7824A1006
Supply Voltage 24 VDC (+10%, -15%)
Pilot Type Intermittent
Pilot Flame Establishing Period 4 seconds or 10 seconds
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 60 deg C
Vibration Rating 0.5 G
Compatible Subbases Q7800A, Q7800B

Installation Guidelines

  • Ensure power is disconnected from the subbase before inserting or removing the module.
  • Mount the module onto a compatible Q7800A or Q7800B universal wiring subbase.
  • Verify that all wiring connections are secure and follow local electrical codes and the specific burner manufacturer's wiring diagrams.
  • Maintain proper grounding practices to minimize EMI interference.
  • Ensure the installation environment is within the specified temperature range (0 to 60 deg C) and free from excessive vibration beyond the 0.5 G rating.
  • Handle with standard ESD precautions to protect internal electronic components.

FAQ

What flame detectors are compatible with this module?

The RM7824A1006 supports several flame amplifiers and detectors, including R7824C (for C7024E/F), R7848A/B (for C7015A), R7851B (for C7927/C7962), and R7852A/B (for C7915).

Can the lockout history be retrieved after a power loss?

Yes, the module features nonvolatile memory that retains lockout history and operational records even during power interruptions.
