Description

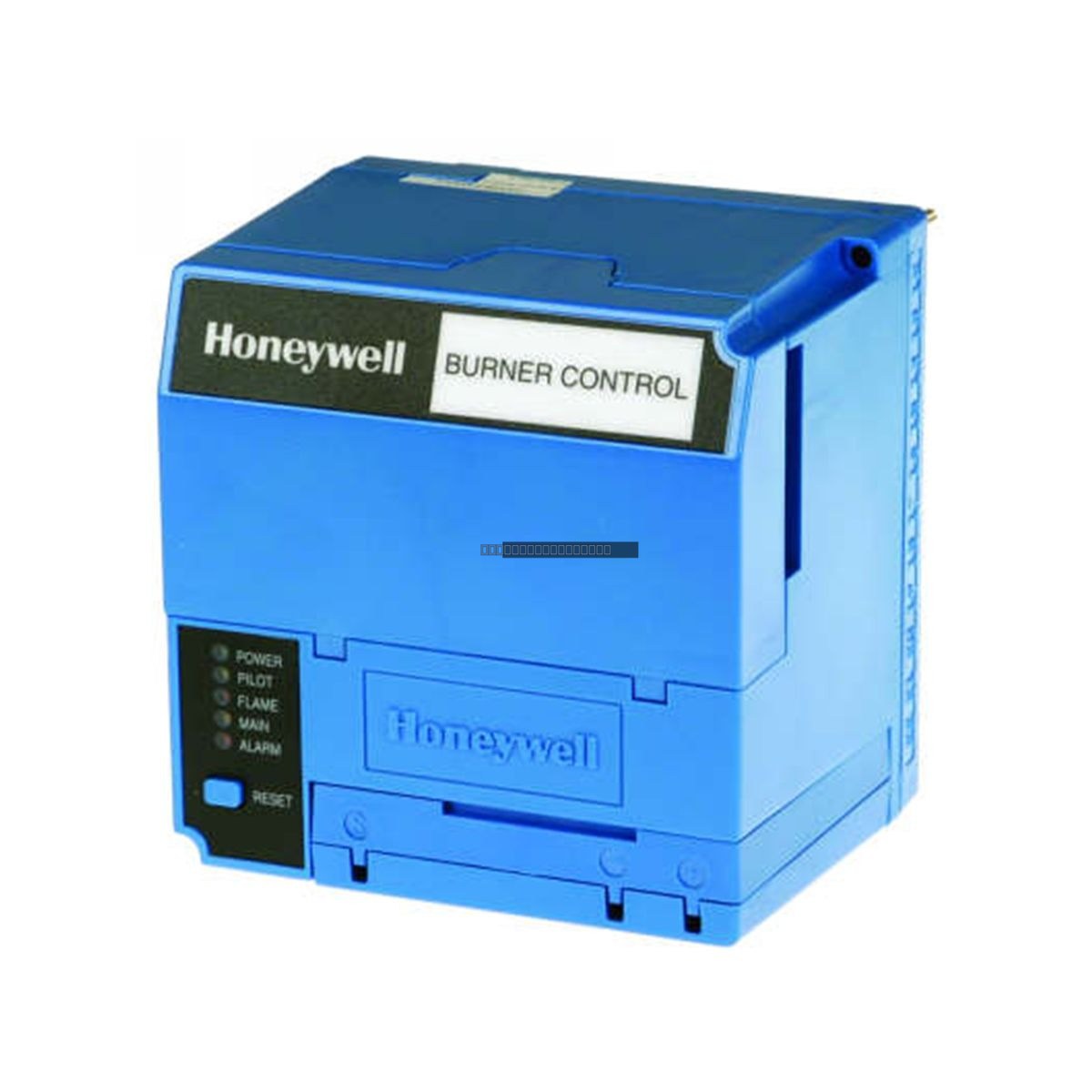

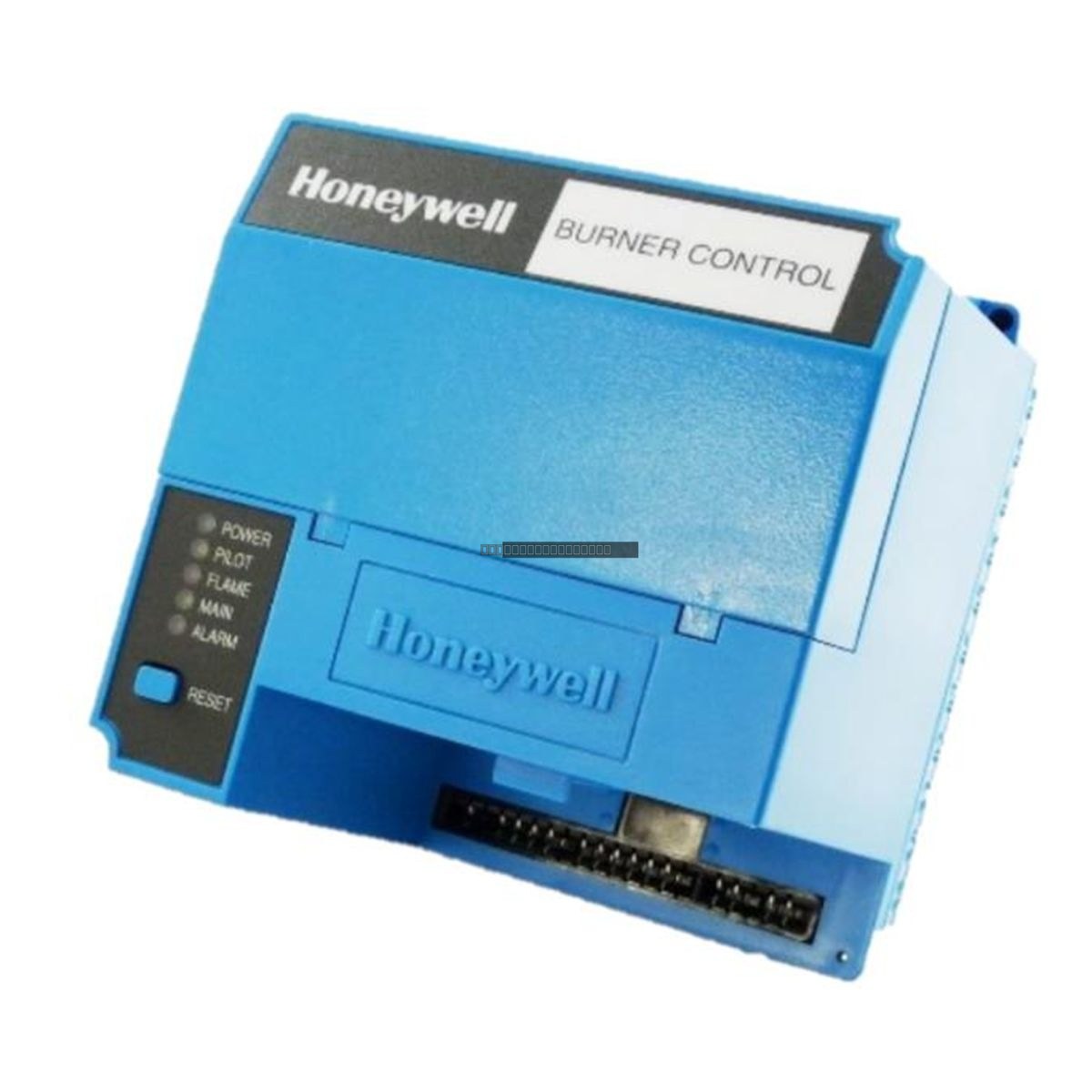

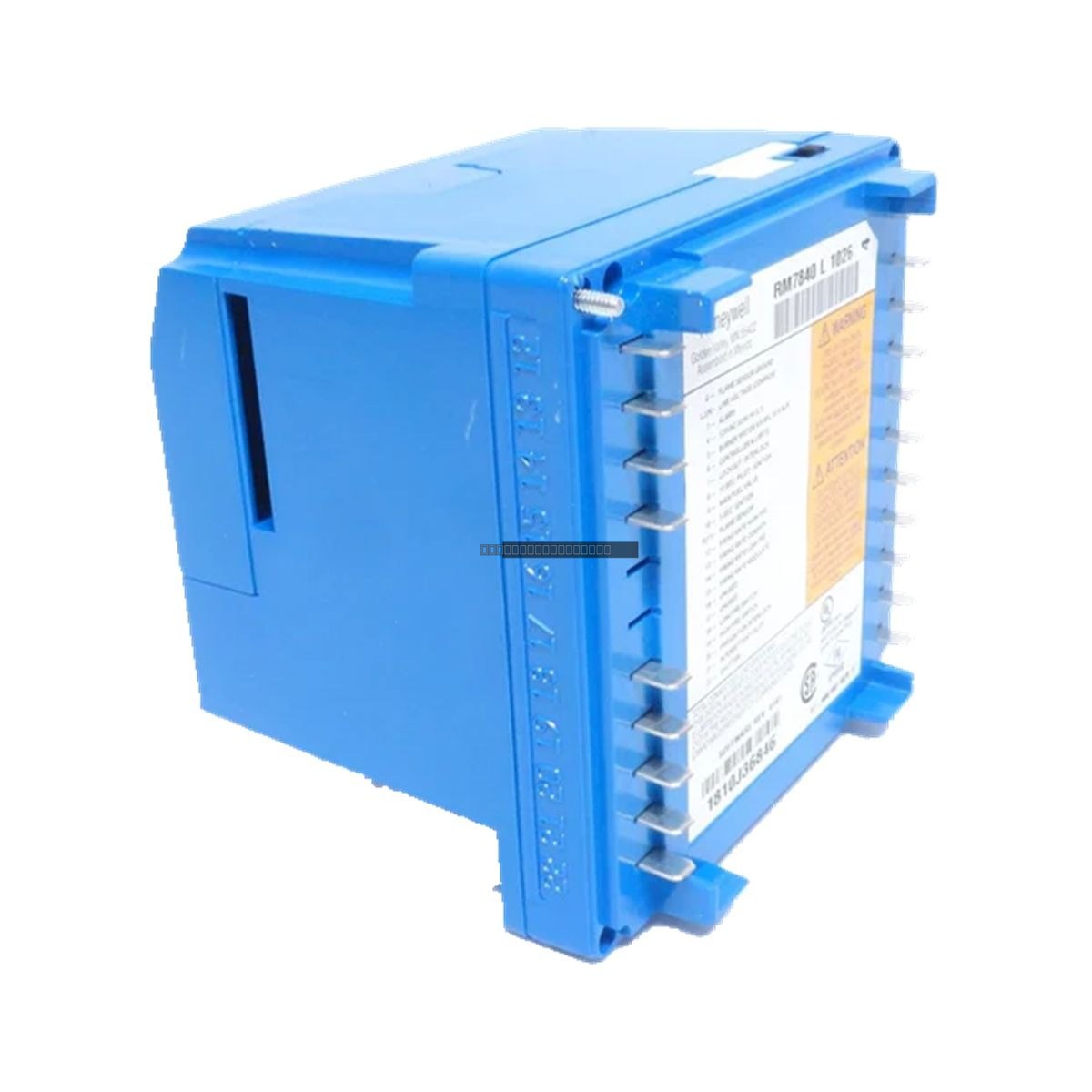

The Honeywell RM7840L1026 is a microprocessor-based integrated burner control relay module from the 7800 Series, specifically engineered for industrial combustion management. This module provides reliable ignition sequencing, flame supervision, and safety interlock management for applications including industrial boilers, process furnaces, and utility burner trains. By automating the startup, operation, and shutdown sequences, the RM7840L1026 ensures consistent combustion performance while maintaining strict safety protocols.

Features

• Programmable burner sequencing logic for precise combustion control.
• Configured for interrupted pilot ignition and intermittent second-stage pilot valve operation.
• Integrated 15-second post-purge cycle and 5-second early spark termination.
• Pre-ignition safety verification and user-selectable airflow proving logic.
• Advanced fault lockout and reset diagnostics to minimize system downtime.
• Robust construction designed for continuous duty in industrial environments.

Applications

This burner control module is suitable for a wide range of industrial heating applications, including:

• Industrial boiler management systems.
• Process heaters and refinery furnace burner control.
• Utility-scale burner train sequencing.
• Systems requiring deterministic safety interlocks and flame supervision.

Technical Specifications

Installation Guidelines

• Ensure the system is fully powered down before inserting or removing the module from the subbase.
• Mount the module on a compatible Honeywell 7800 Series subbase to ensure proper electrical contact and mechanical alignment.
• Verify that all field wiring is routed away from high-EMI sources to prevent signal interference with the flame amplifier.
• Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the specified 0 to 60 deg C range.
• Follow all local safety codes and manufacturer documentation regarding grounding and terminal connections.

FAQ

Is the RM7840L1026 compatible with all 7800 Series subbases?
Yes, it is designed to mount on standard Honeywell 7800 Series subbases, but always verify the specific subbase wiring configuration against the module's terminal requirements.

What is the primary function of the post-purge cycle?
The 15-second post-purge cycle ensures that any residual combustible gases are cleared from the combustion chamber after the burner shuts down, enhancing operational safety.
