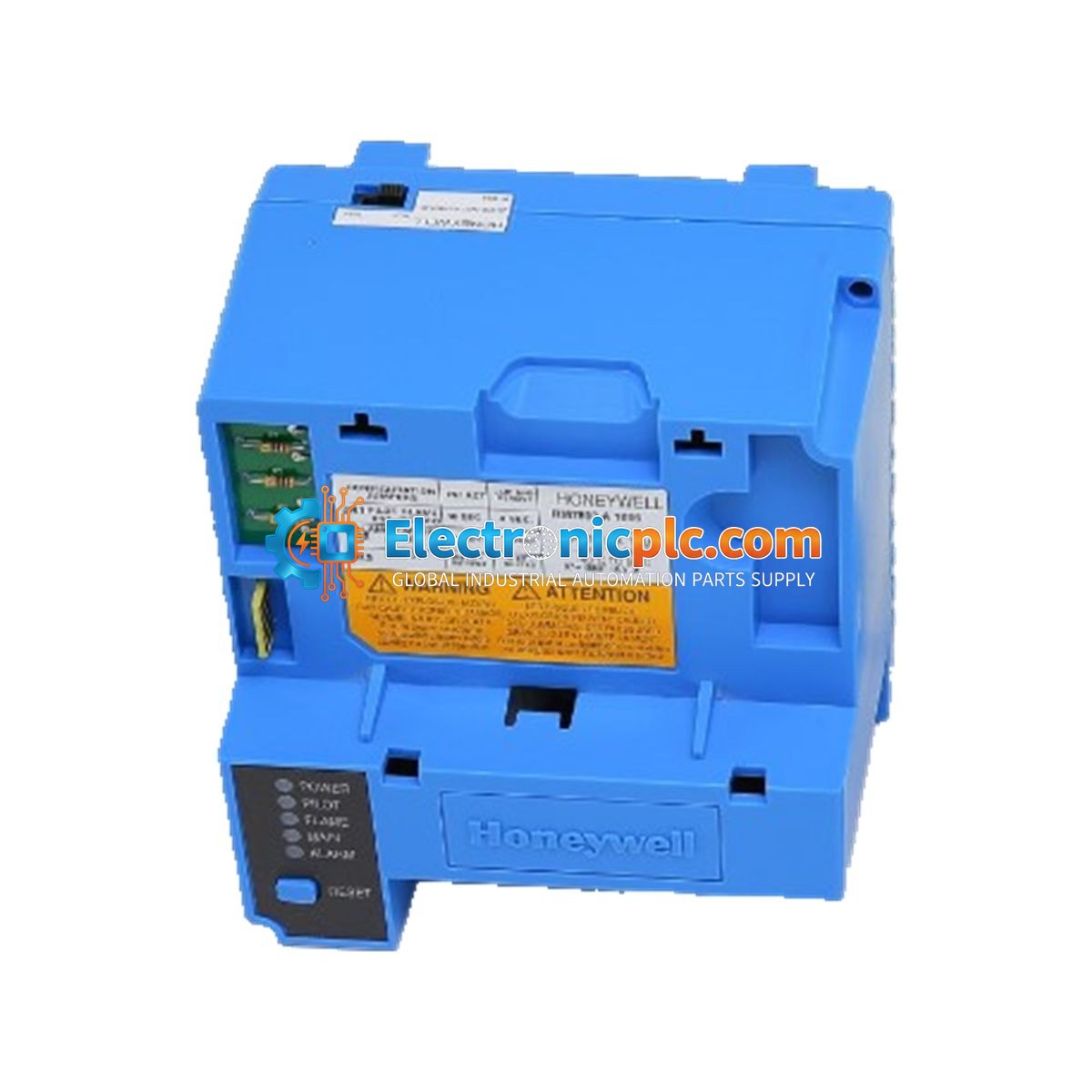

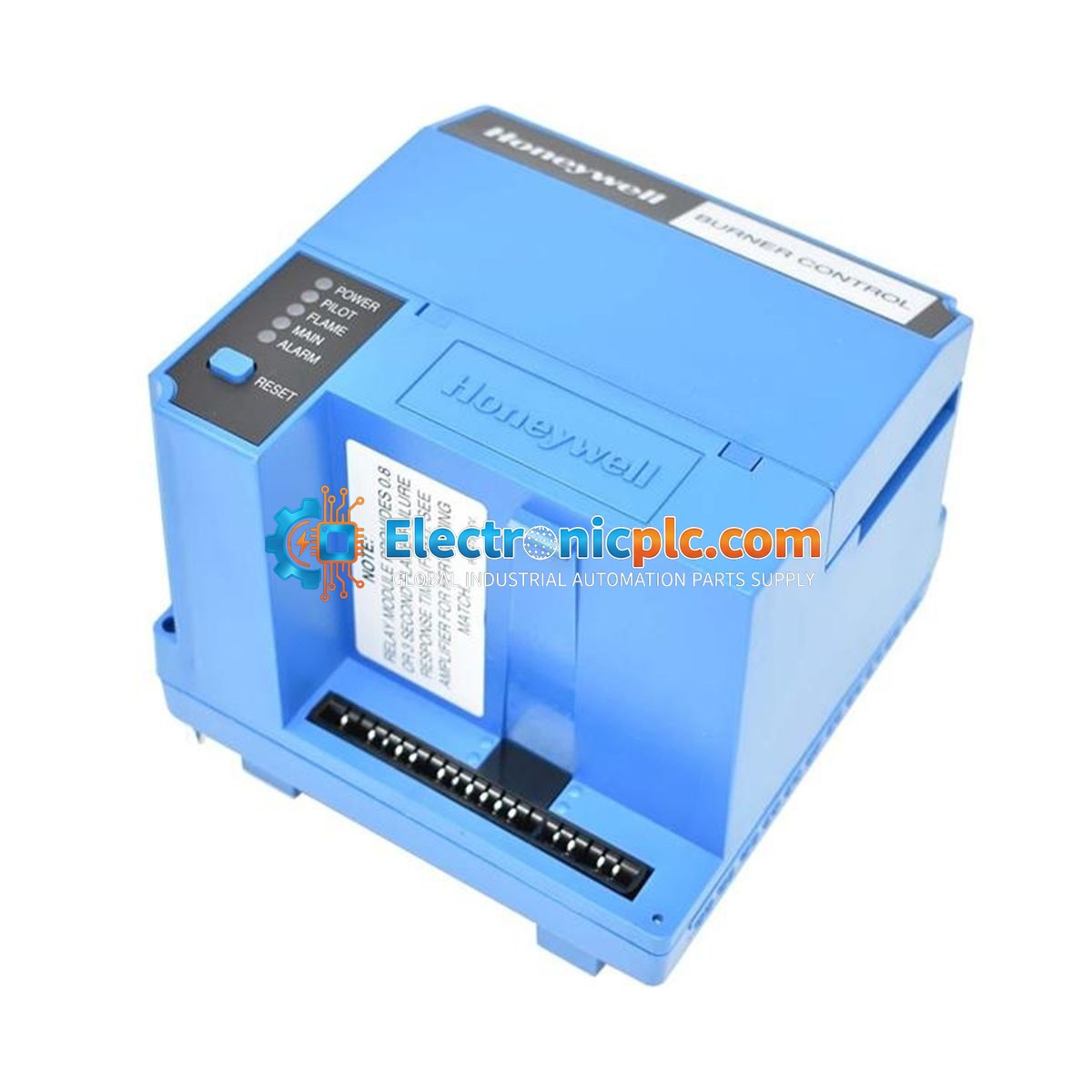

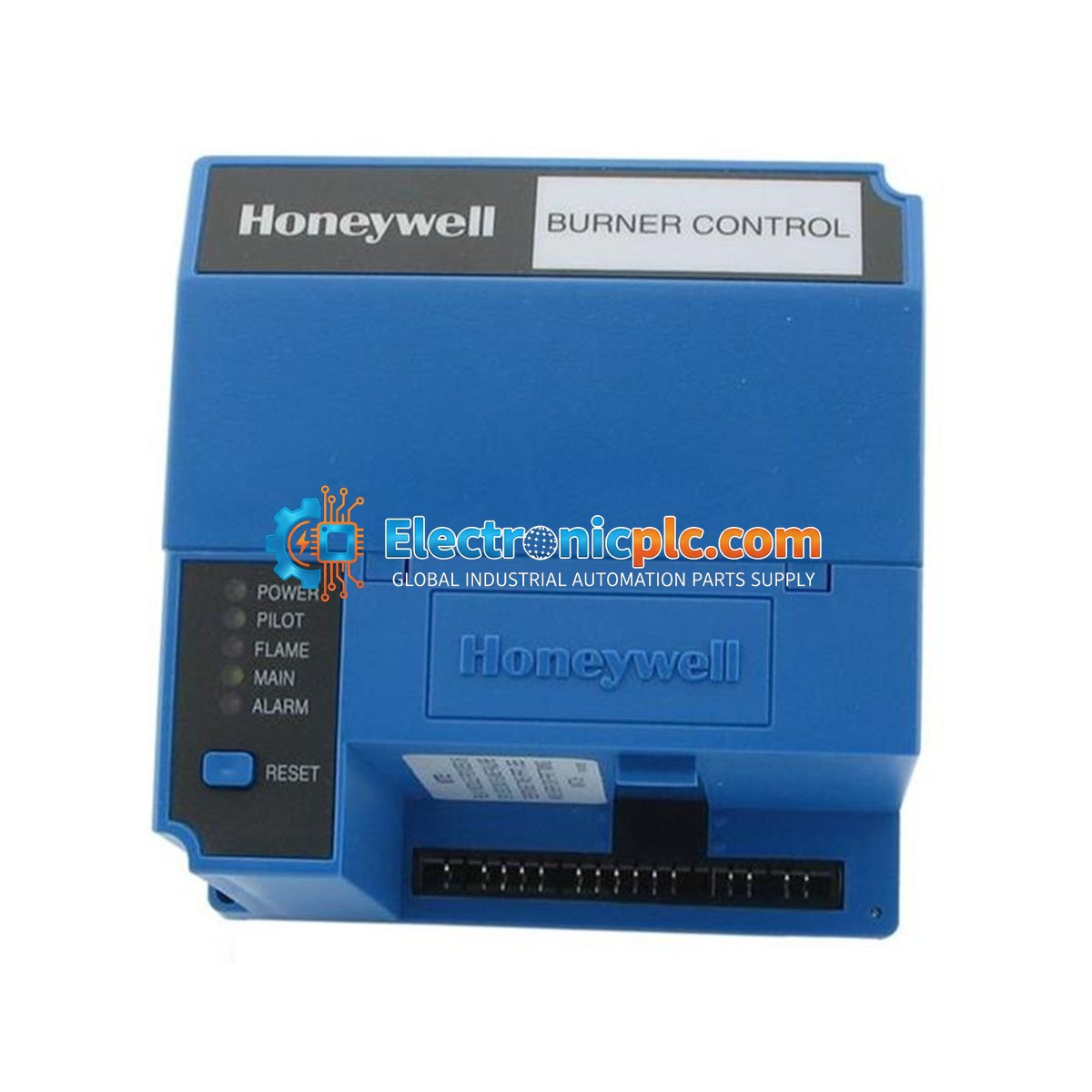

Honeywell RM7890A1056 7800 SERIES Relay Module

Honeywell RM7890A1056 7800 SERIES Relay Module

Description

The Honeywell RM7890A1056 is a microprocessor-based integrated burner control for automatically fired gas, oil, or combination fuel single-burner applications. As part of the 7800 SERIES, this relay module provides reliable...

19 people are viewing this right now

Availability: Low stock: 8 left

SKU: RM7890A1056
Vendor: Honeywell
Category: Burner Control Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell RM7890A1056 is a microprocessor-based integrated burner control for automatically fired gas, oil, or combination fuel single-burner applications. As part of the 7800 SERIES, this relay module provides reliable flame supervision, system status indication, and safety sequencing. It is engineered for industrial environments where precise burner management, interlock monitoring, and deterministic startup cycles are essential for operational safety.

Features

  • Microprocessor-based design for consistent, repeatable burner sequencing.
  • Integrated flame supervision for gas, oil, or combination fuel burners.
  • Supports intermittent pilot configurations with selectable flame establishing periods (4 or 10 seconds).
  • Enforces strict interlock logic to prevent hazardous startup conditions.
  • Designed for high-reliability operation in electrically noisy industrial settings.
  • Compatible with the broader Honeywell 7800 SERIES ecosystem, including display modules and purge timers.

Applications

The RM7890A1056 is widely utilized in industrial combustion systems, including:

  • Industrial boilers and steam generators.
  • Refinery process heaters.
  • Utility power plant burners.
  • Commercial and industrial heating systems requiring primary burner control.

Technical Specifications

Model RM7890A1056
Series 7800 SERIES
Control Type On-off primary burner control
Supply Voltage 120 VAC
Power Consumption Less than 10 W
Operating Temperature 0 to 60 deg C
Fuel Compatibility Gas, oil, coal, or combination
Pilot Type Intermittent
Flame Establishing Period 4 or 10 seconds (configurable)

Installation Guidelines

  • Ensure power is disconnected before installing or removing the module from the subbase.
  • Mount the module in a location protected from excessive vibration, moisture, and corrosive atmospheres.
  • Verify that all field wiring complies with local electrical codes and the specific burner system wiring diagram.
  • Ensure the chassis is properly grounded to the control cabinet to minimize EMI/RFI interference.
  • Handle with care to avoid damage to the connector pins on the rear of the module.
  • Always perform a complete functional test of the burner safety sequence after installation or maintenance.

FAQ

Is this module compatible with all 7800 SERIES components?

The RM7890A1056 is designed for the 7800 SERIES architecture; however, compatibility with specific display modules or communication interfaces should be verified against the system wiring diagram and the specific revision of your existing 7800 SERIES hardware.

What is the primary function of the intermittent pilot configuration?

The intermittent pilot configuration ensures that the pilot flame is ignited and monitored during the startup sequence, providing a reliable ignition source for the main burner before transitioning to the main flame supervision mode.
