Description

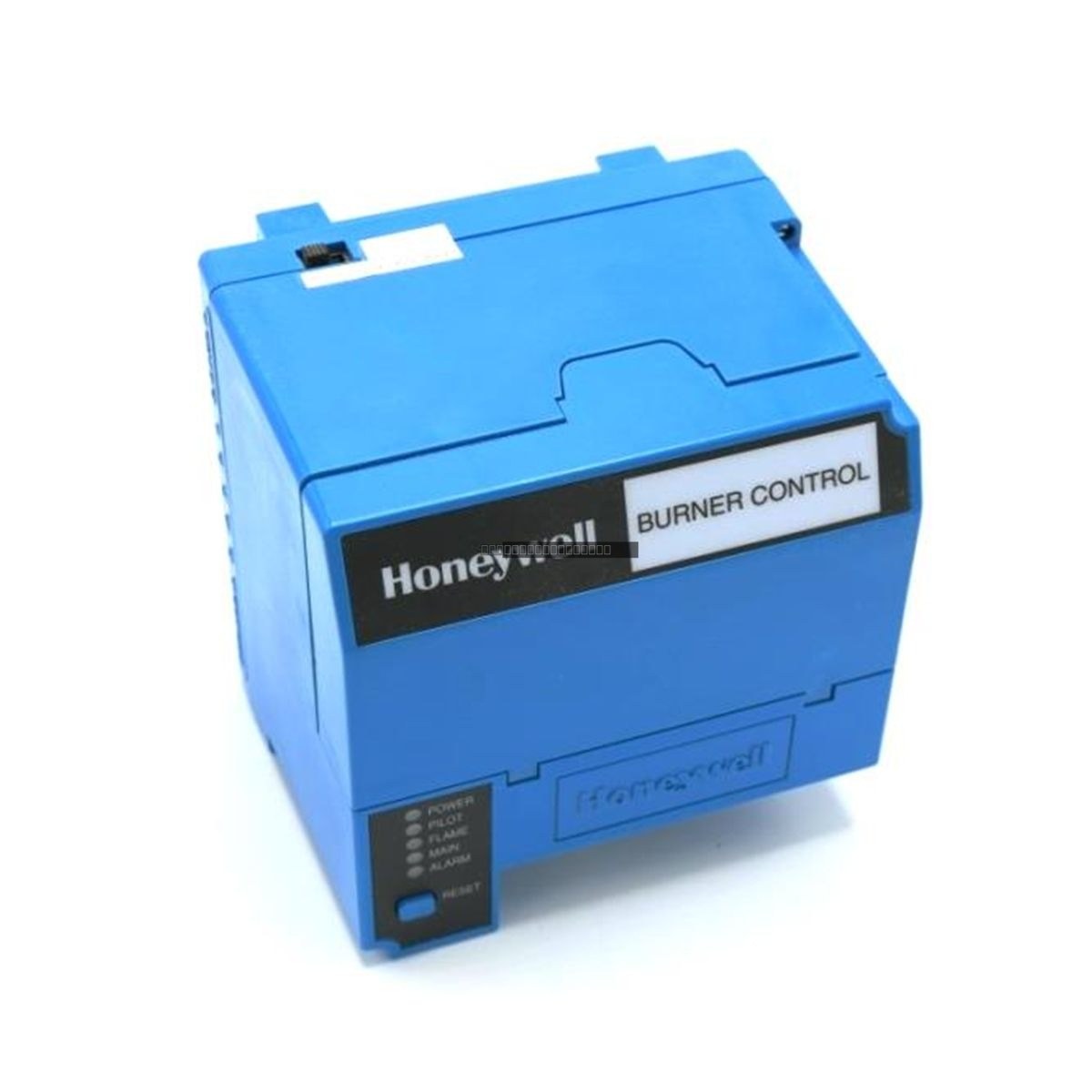

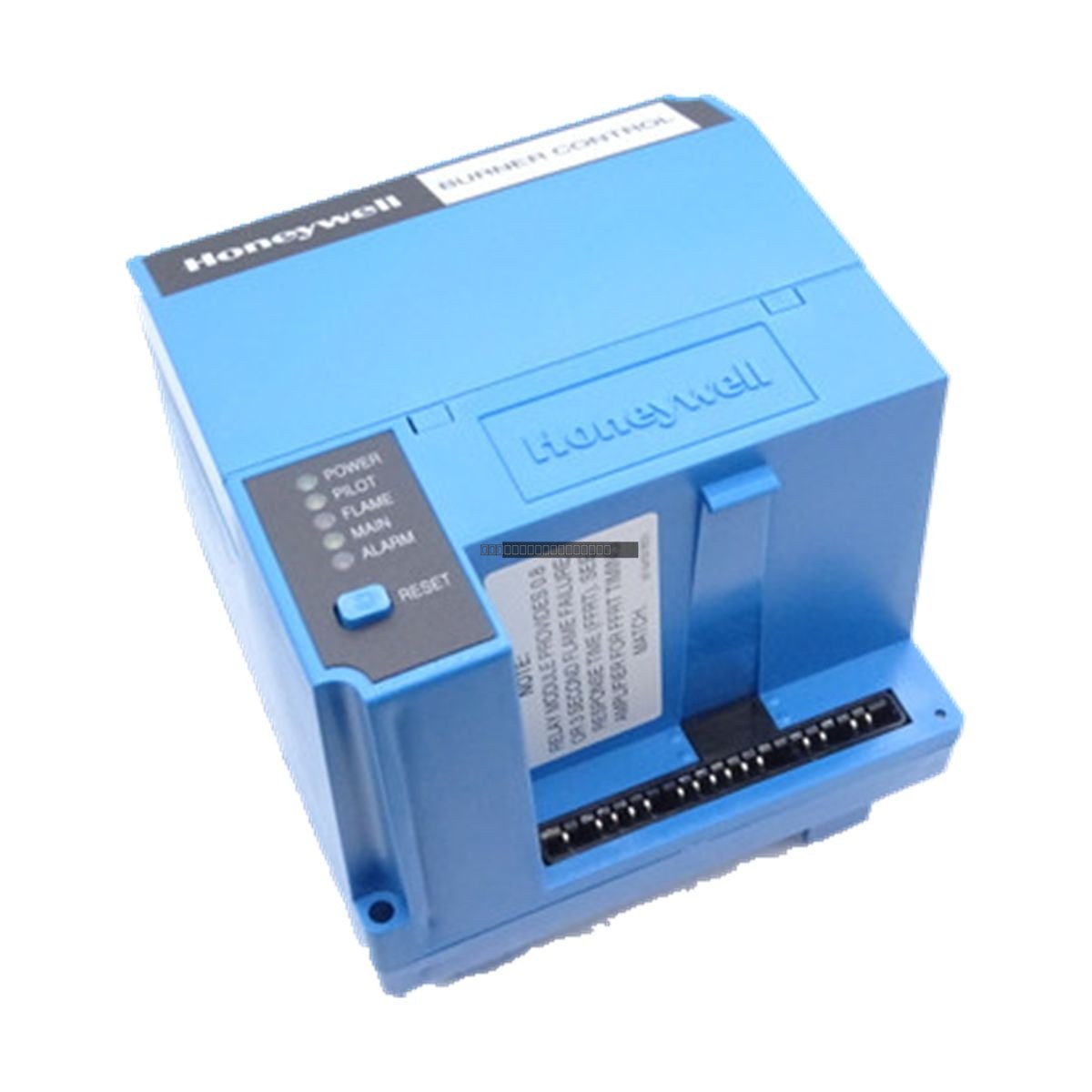

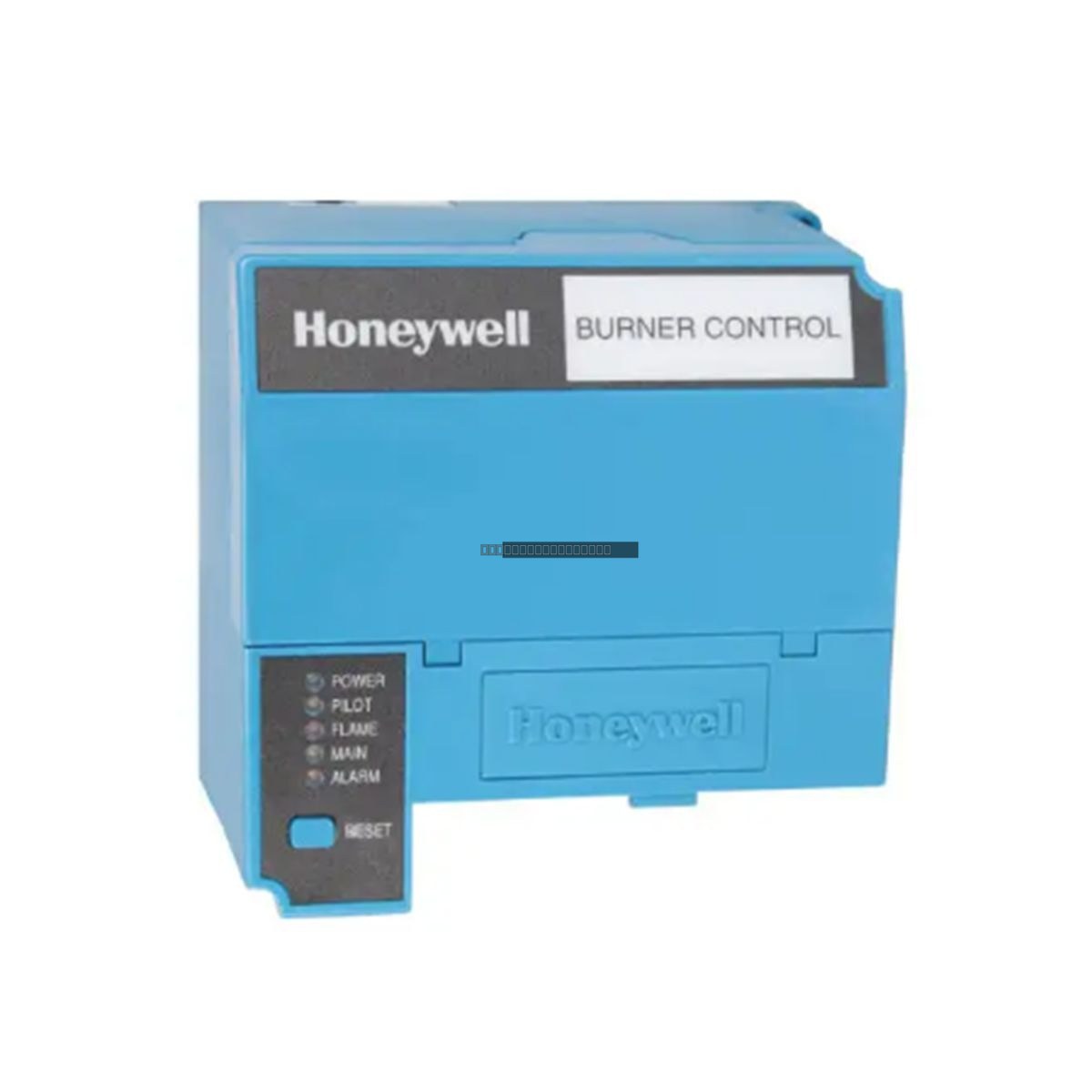

The Honeywell RM7897A1002 is a sophisticated, microprocessor-based integrated burner control designed to manage fuel ignition, flame supervision, and safety interlock sequences in industrial combustion systems. As a core component of the 7800 Series, this unit provides precise timing and logic control for burners in boilers, industrial furnaces, and process heaters. It is engineered to maintain operational safety by continuously monitoring flame status and system interlocks, effectively mitigating risks associated with fuel delivery and ignition failure.

Features

• Microprocessor-based logic for reliable burner sequencing and timing.
• Configurable flame establishing periods (4 or 10 seconds) to accommodate various pilot configurations.
• Integrated safety interlock management for comprehensive burner protection.
• Continuous diagnostic monitoring of flame integrity and relay output status.
• Standard 120 VAC, 50/60 Hz power compatibility for seamless integration into existing control panels.

Applications

This control unit is widely utilized in heavy industrial environments, including:

• Steam generation and power plant boilers.
• Petrochemical and chemical processing furnaces.
• Industrial process heaters and thermal oxidizers.
• Commercial and industrial heating systems requiring automated safety protocols.

Technical Specifications

Installation Guidelines

• Ensure the control unit is installed in a clean, dry, and vibration-free environment within an industrial enclosure.
• Verify that all power is disconnected before installing or removing the module to prevent electrical damage.
• Ensure proper grounding of the control panel to minimize electromagnetic interference (EMI).
• Follow all local and national electrical codes regarding wiring for flame safeguard equipment.
• Confirm that the pilot flame and interlock sensors are correctly wired and calibrated according to the specific burner application requirements.

FAQ

What is the primary function of the RM7897A1002? It serves as a burner management system that automates ignition, monitors the flame, and manages safety interlocks to ensure safe operation of industrial burners.

Can the flame establishing period be adjusted? Yes, the unit supports selectable flame establishing periods of either 4 or 10 seconds to meet specific application requirements.

Is this unit compatible with 240 VAC systems? No, the RM7897A1002 is designed for 120 VAC, 50/60 Hz operation. Ensure your supply voltage matches these specifications before installation.
