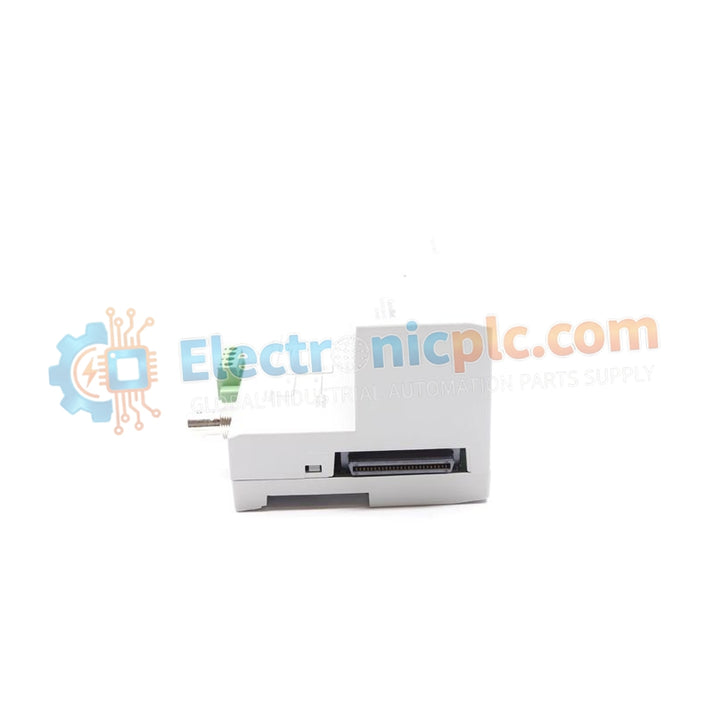

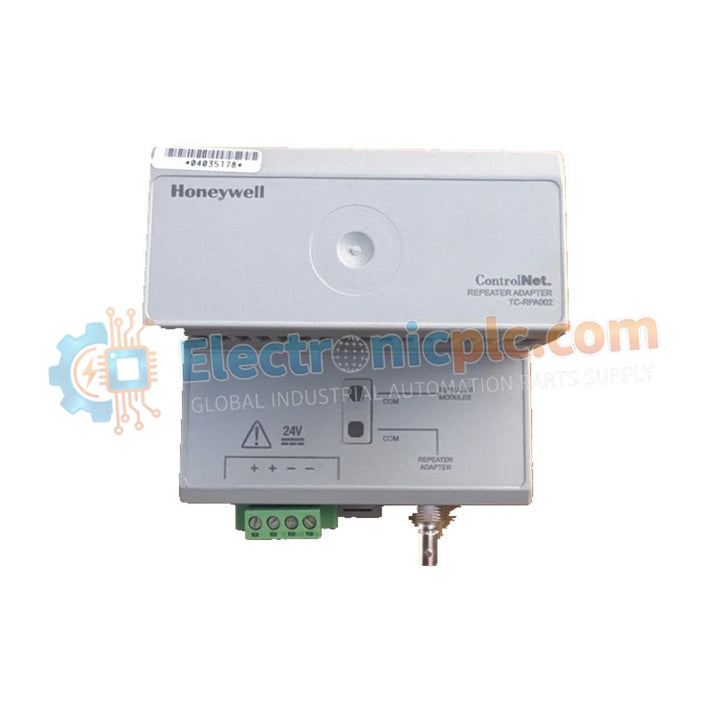

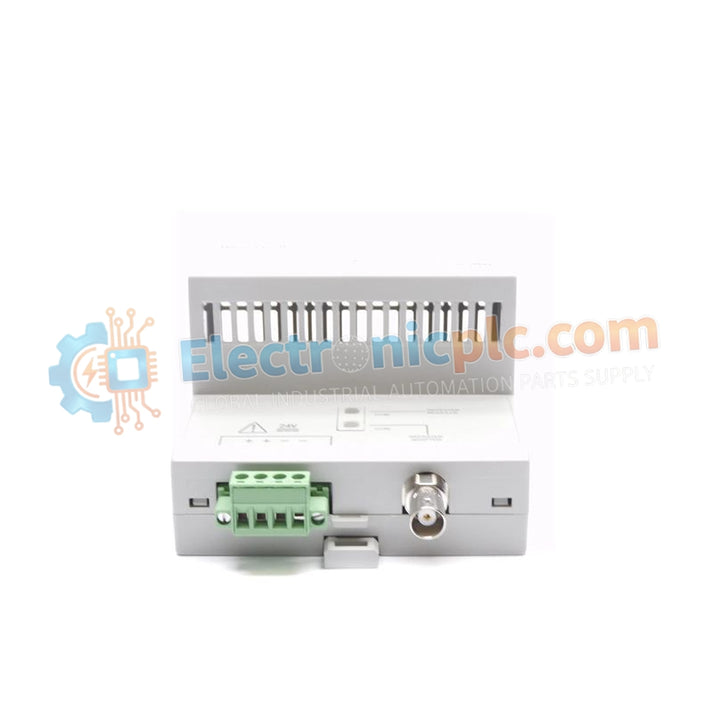

The Honeywell TC-RPAO02 is a fiber optic adapter module designed for ControlNet communication networks. It converts electrical ControlNet signals into optical signals, enabling high-speed, long-distance data transmission while...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Honeywell TC-RPAO02 is a fiber optic adapter module designed for ControlNet communication networks. It converts electrical ControlNet signals into optical signals, enabling high-speed, long-distance data transmission while maintaining signal integrity. By introducing optical isolation between network segments, the module enhances system reliability in environments exposed to electromagnetic interference, electrical noise, and ground potential differences.
| Parameter | Details |
|---|---|
| Model Number | TC-RPAO02 |
| Condition | 100% Brand New Original |
| Network Type | ControlNet |
| Communication Speed | 5 Mbps |
| Power Supply | 24 VDC (±10%) |
| Power Consumption | < 10 W |
| Operating Temperature | -40°C to +70°C |
| Weight | 1.0 kg |
| Dimensions | 160 mm × 200 mm × 40 mm |
Complete Galvanic Isolation
Fiber optic transmission eliminates electrical conduction between network segments, protecting equipment from surges, ground loops, and lightning-induced transients.
Extended Communication Distance
Supports long-distance data transmission, enabling remote I/O installations far beyond the limitations of copper-based ControlNet cabling while maintaining 5 Mbps throughput.
High Environmental Tolerance
Designed for harsh industrial conditions with wide temperature range and strong resistance to vibration and shock, suitable for offshore and heavy industrial applications.
Low Power Consumption
Operates at less than 10 W, reducing thermal load and easing power supply requirements in dense control cabinet configurations.
Compact Modular Design
Slim 40 mm form factor allows efficient rack utilization and flexible deployment in fiber distribution architectures.
Is this TC-RPAO02 a brand new original part?
Yes, it is supplied as 100% brand new, original Honeywell hardware in factory-sealed packaging.
Does the module support redundant network configurations?
Yes, it can be deployed in redundant setups where dual fiber paths are implemented to ensure continuous communication in case of a link failure.
What type of fiber optic cable is required?
The required fiber type (single-mode or multi-mode) depends on the specific hardware variant and installation distance. It must match the system design and network infrastructure.
Can it be mounted on a DIN rail?
The TC-RPAO02 is installed via a compatible ControlNet chassis or baseplate, which may support DIN rail or panel mounting depending on the configuration.
