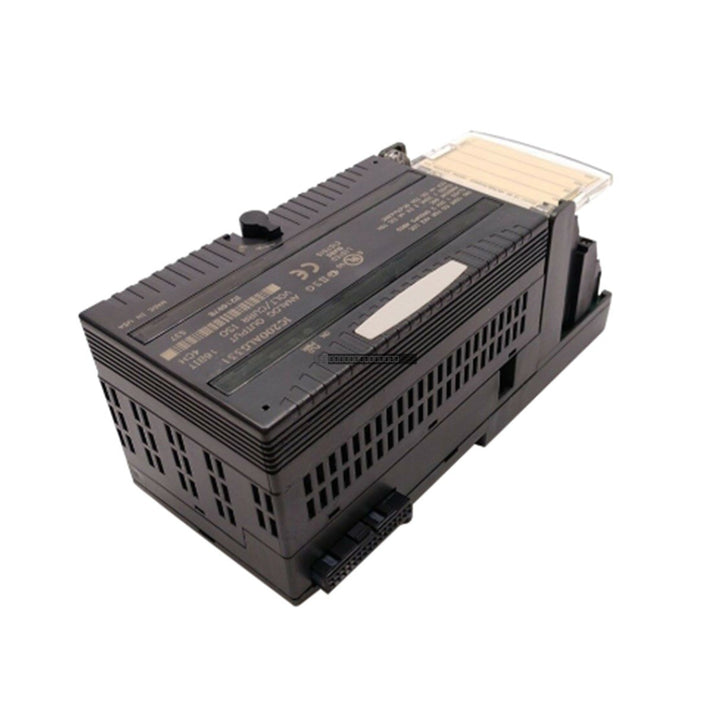

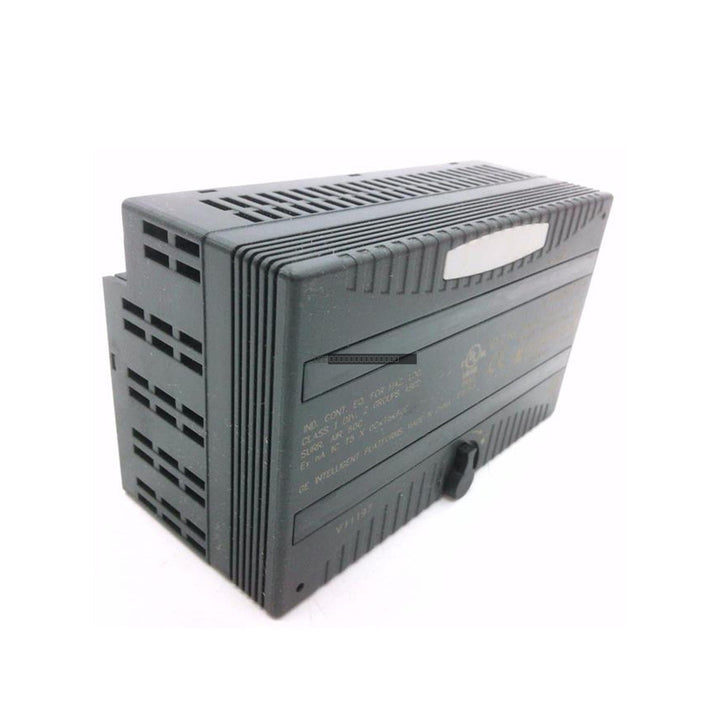

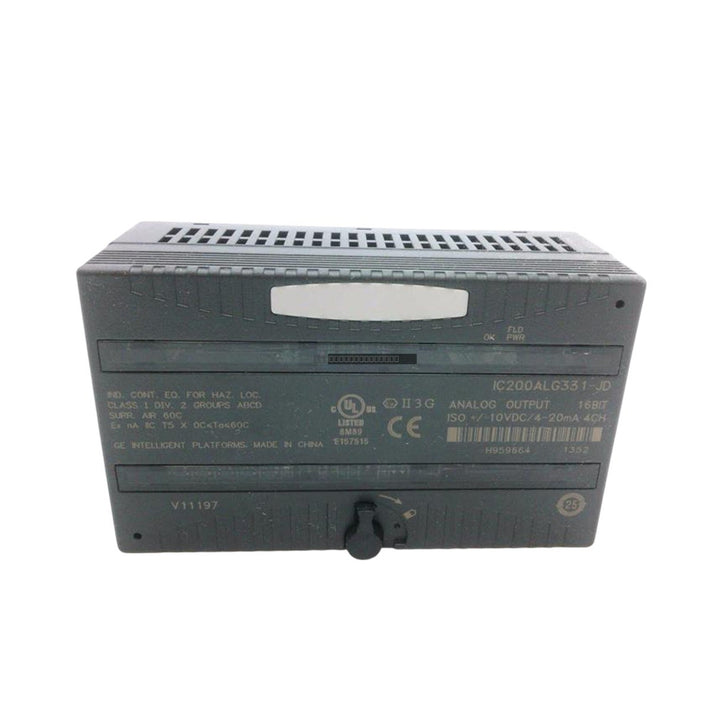

General Electric IC200ALG331-AA VersaMax 4-Channel Analog Output Module

General Electric IC200ALG331-AA VersaMax 4-Channel Analog Output Module

Description

The General Electric IC200ALG331-AA is a 4-channel analog output module designed for the VersaMax PLC system. This module provides high-precision signal conversion, supporting both voltage and current output modes to...

22 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC200ALG331
Vendor: General Electric
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC200ALG331-AA is a 4-channel analog output module designed for the VersaMax PLC system. This module provides high-precision signal conversion, supporting both voltage and current output modes to interface with a wide range of industrial actuators, valves, and instrumentation. It features 16-bit digital resolution and a rapid update time of 7 milliseconds, ensuring responsive control in automated processes.

Features

  • Four independent analog output channels.
  • Selectable output ranges: -10 to +10 VDC and 4-20 mA (1 to 20 mA).
  • High-resolution 16-bit digital-to-analog conversion.
  • Integrated LED status indicators for Field Power (FLD PWR) and Module Health (OK).
  • Robust isolation: 250 VAC continuous input-to-logic isolation and 1500 VAC for 60 seconds input-to-ground isolation.
  • Compact single-slot module design for efficient rack utilization.

Technical Specifications

Model IC200ALG331-AA
Channels 4
Resolution 16-bit
Voltage Output +/- 10 VDC
Current Output 1 to 20 mA
Update Time 7 ms
Accuracy (at 25 degC) +/- 0.1% of full scale
External Power Supply 18 to 30 VDC
Current Consumption 100 mA maximum (plus load)
Isolation 250 VAC (Input to Logic)

Installation Guidelines

  • Ensure the PLC system is powered down before installing or removing the module from the I/O rack.
  • The module is designed for single-slot mounting; ensure it is fully seated and the locking mechanism is engaged.
  • Use shielded twisted-pair cabling for analog signals to minimize EMI interference.
  • Maintain proper grounding practices to protect against noise and potential surges.
  • Verify that the external power supply is within the 18-30 VDC range before applying power to the field terminals.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the difference between IC200ALG331 and IC200ALG331-AA?

The IC200ALG331-AA is a revision of the base IC200ALG331 model. In most VersaMax applications, they are functionally interchangeable, but it is recommended to check your system's hardware configuration software to ensure the specific firmware revision is supported.

Does this module require external power?

Yes, the module requires an external power supply of 18-30 VDC to drive the analog output signals.
