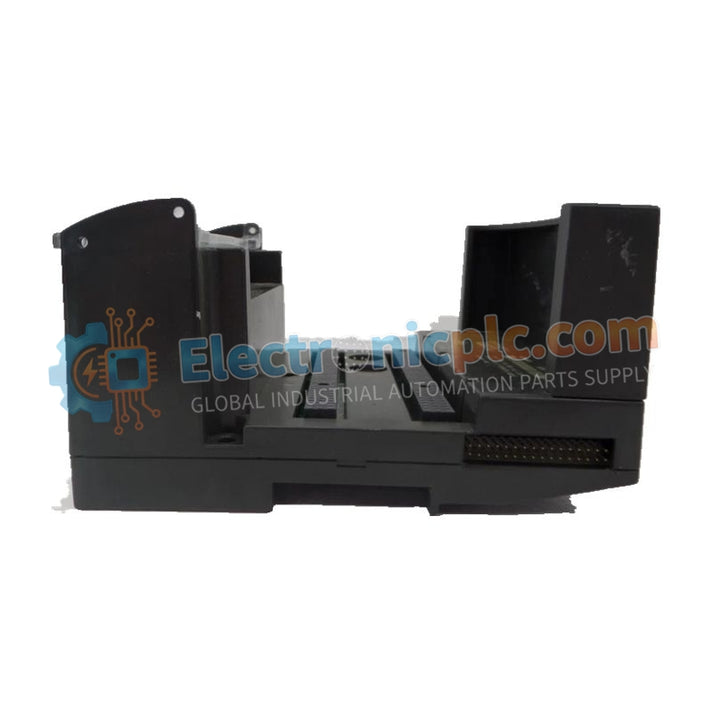

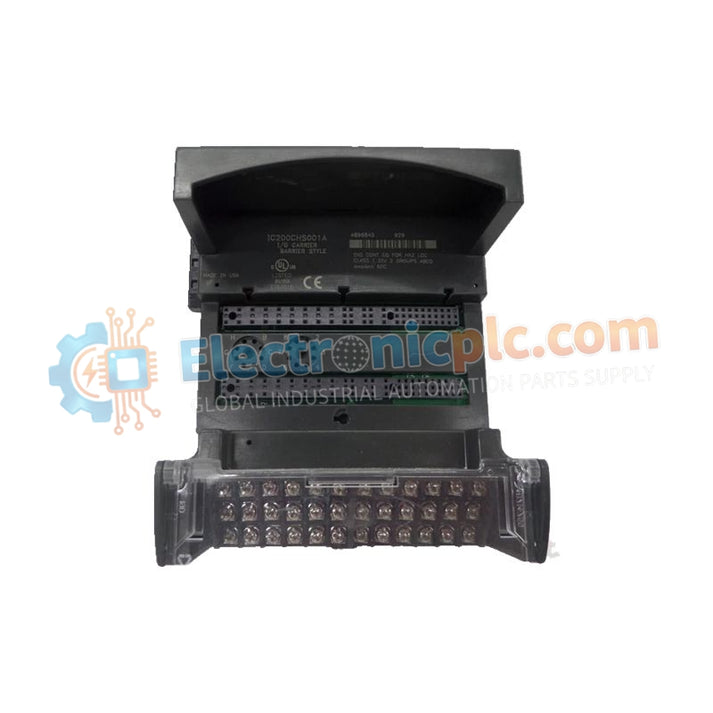

IC200CHS001 GE Fanuc VersaMax Barrier-Style I/O Carrier

IC200CHS001 GE Fanuc VersaMax Barrier-Style I/O Carrier

Product Description

The IC200CHS001 (IC200-CHS-001) is a barrier-style wiring base for the GE Fanuc VersaMax I/O platform. It provides a rugged mechanical and electrical interface between field devices and I/O modules, featuring an open barrier-strip design for...

29 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC200CHS001
Vendor: GE Fanuc
Category: I/O Module Carriers
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The IC200CHS001 (IC200-CHS-001) is a barrier-style wiring base for the GE Fanuc VersaMax I/O platform. It provides a rugged mechanical and electrical interface between field devices and I/O modules, featuring an open barrier-strip design for easy access to termination points. The carrier supports hot-swapping of modules, integrated mechanical keying to prevent incorrect installation, and accommodates both AC and DC signals, making it suitable for demanding industrial environments with high vibration or heavy-duty wiring requirements.

Technical Specifications

Parameter Specification
Model Number IC200CHS001

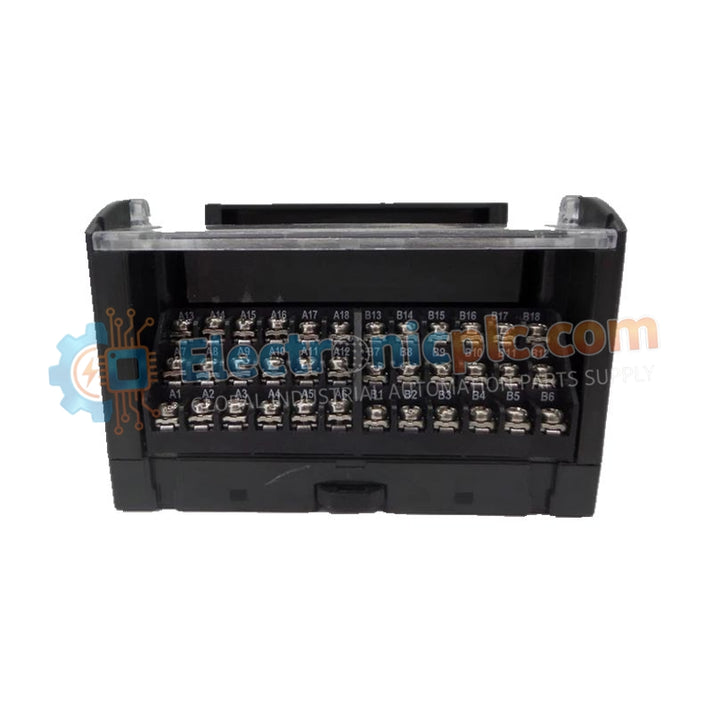

Terminal Type Barrier-Style Screw Terminal
Voltage Range 0–264 VAC (Operational)
Transient Protection Up to 300 VAC
Current Rating 2 A per signal point / 8 A per power/ground terminal
Wire Capacity 1–2 wires per terminal (must be same type/size)
Wire Requirement Copper, rated ≥ 90°C
Termination Torque 0.37–0.50 ft-lbs (0.5–0.68 Nm)
Keying Mechanism Adjustable rotary dials for module-to-carrier matching
Mounting 35 mm DIN-rail or panel-mounted
Dimensions Standard VersaMax width

Wiring and Installation Notes

  • Use high-quality copper conductors; two wires in a terminal must be identical in type and size.

  • Barrier strips provide physical separation between terminals, reducing risk of shorts.

  • For panel mounting, ensure a proper ground path through the backplane and carrier frame for EMI and transient protection.

Technical FAQ

What is the difference between IC200CHS001 and IC200CHS002?
The IC200CHS001 uses a barrier-style exposed screw terminal suitable for ring or spade lugs and high-vibration environments. The IC200CHS002 is box-style, using cage terminals for wire insertion.

Can this carrier be mounted on a non-conductive surface?
Yes, it can be panel-mounted, but ensure proper grounding through the backplane and carrier frame to maintain EMI shielding and transient protection.
