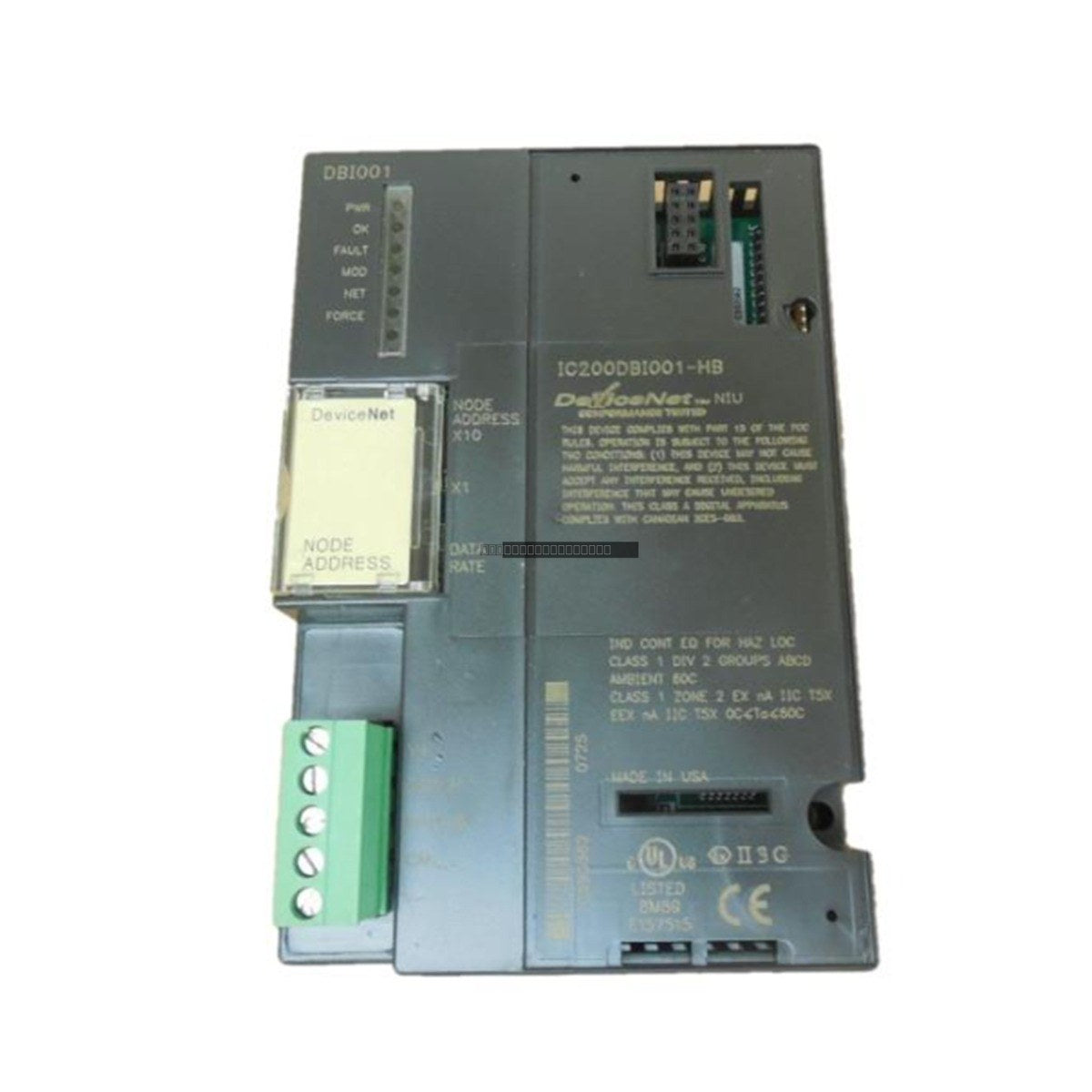

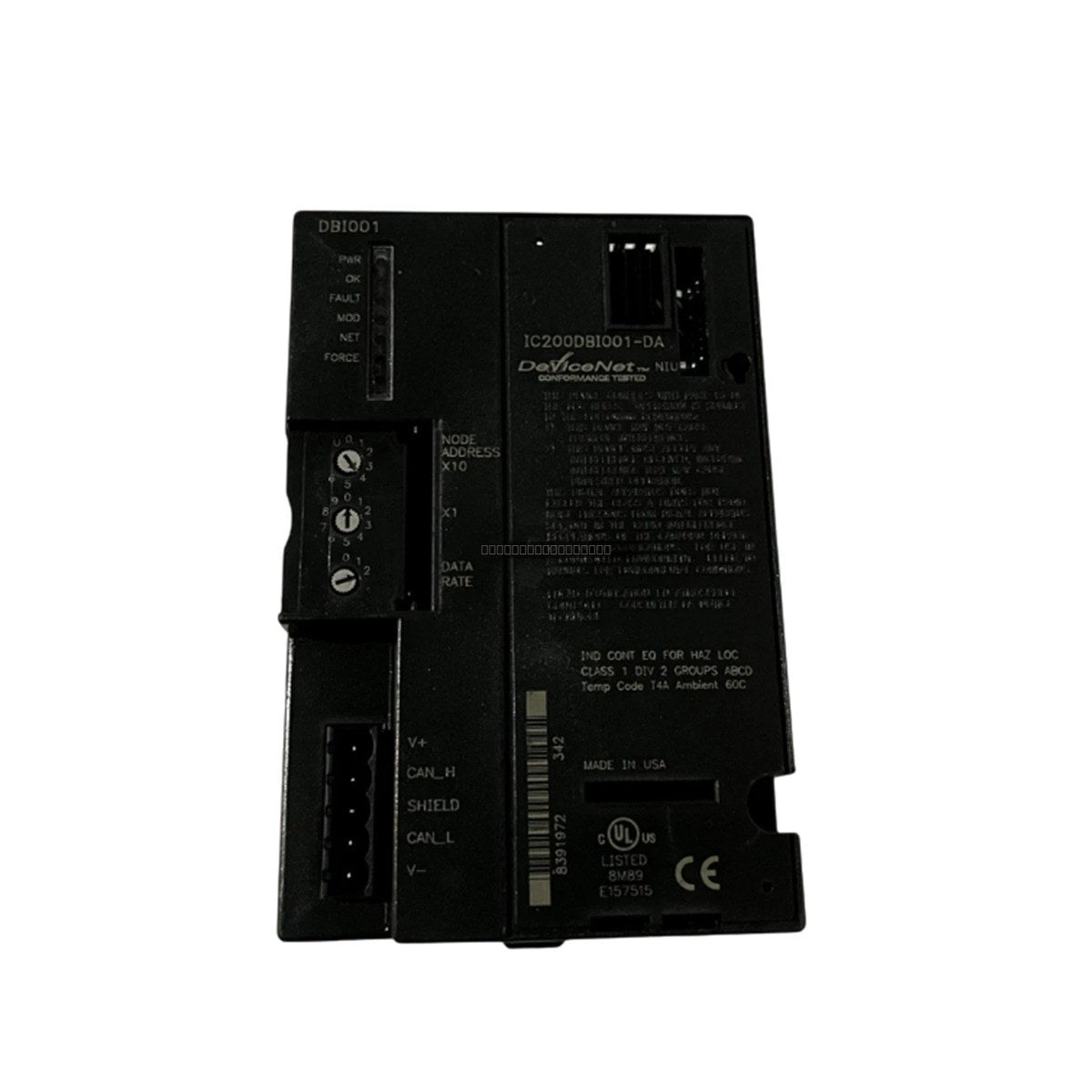

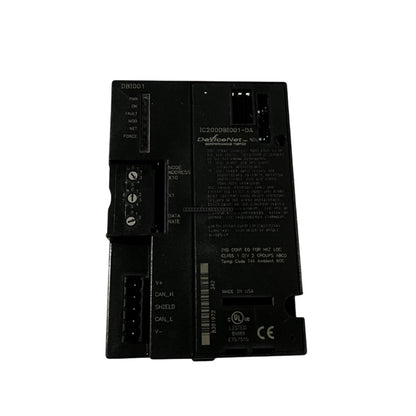

General Electric IC200DBI001 VersaMax DeviceNet Network Interface Unit

General Electric IC200DBI001 VersaMax DeviceNet Network Interface Unit

The General Electric IC200DBI001 is a dedicated Remote I/O Network Interface Unit (NIU) designed for the VersaMax distributed I/O system. This module functions as a DeviceNet slave, enabling seamless integration...

26 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC200DBI001
Vendor: General Electric
Category: Remote I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC200DBI001 is a dedicated Remote I/O Network Interface Unit (NIU) designed for the VersaMax distributed I/O system. This module functions as a DeviceNet slave, enabling seamless integration of VersaMax I/O stations into DeviceNet communication networks. It supports efficient data exchange between the host controller and the local I/O modules, providing a scalable solution for complex automation architectures.

Features

  • Supports DeviceNet slave communication protocol.
  • Handles up to 128 bytes of input and 128 bytes of output data.
  • Supports up to 8 VersaMax I/O modules per station.
  • Configurable data rates of 125 kbps, 250 kbps, and 500 kbps.
  • Integrated status indicators for Power, OK, Fault, Module, Network, and Force status.
  • 5-pin open-style connector for standard DeviceNet cabling.

Technical Specifications

Model IC200DBI001
Protocol DeviceNet Slave
Max Modules per Station 8
I/O Capacity 128 bytes input / 128 bytes output
Backplane Current (5V) 160 mA
Backplane Current (3.3V) 10 mA
Connector Type 5-pin open-style

Applications

  • Automotive manufacturing and vehicle assembly lines.
  • Heavy industry process optimization including steel and lime production.
  • Pharmaceutical production flow management.
  • Precision manufacturing and smart factory connectivity.
  • Machining center control and real-time data exchange for assembly equipment.

Installation Guidelines

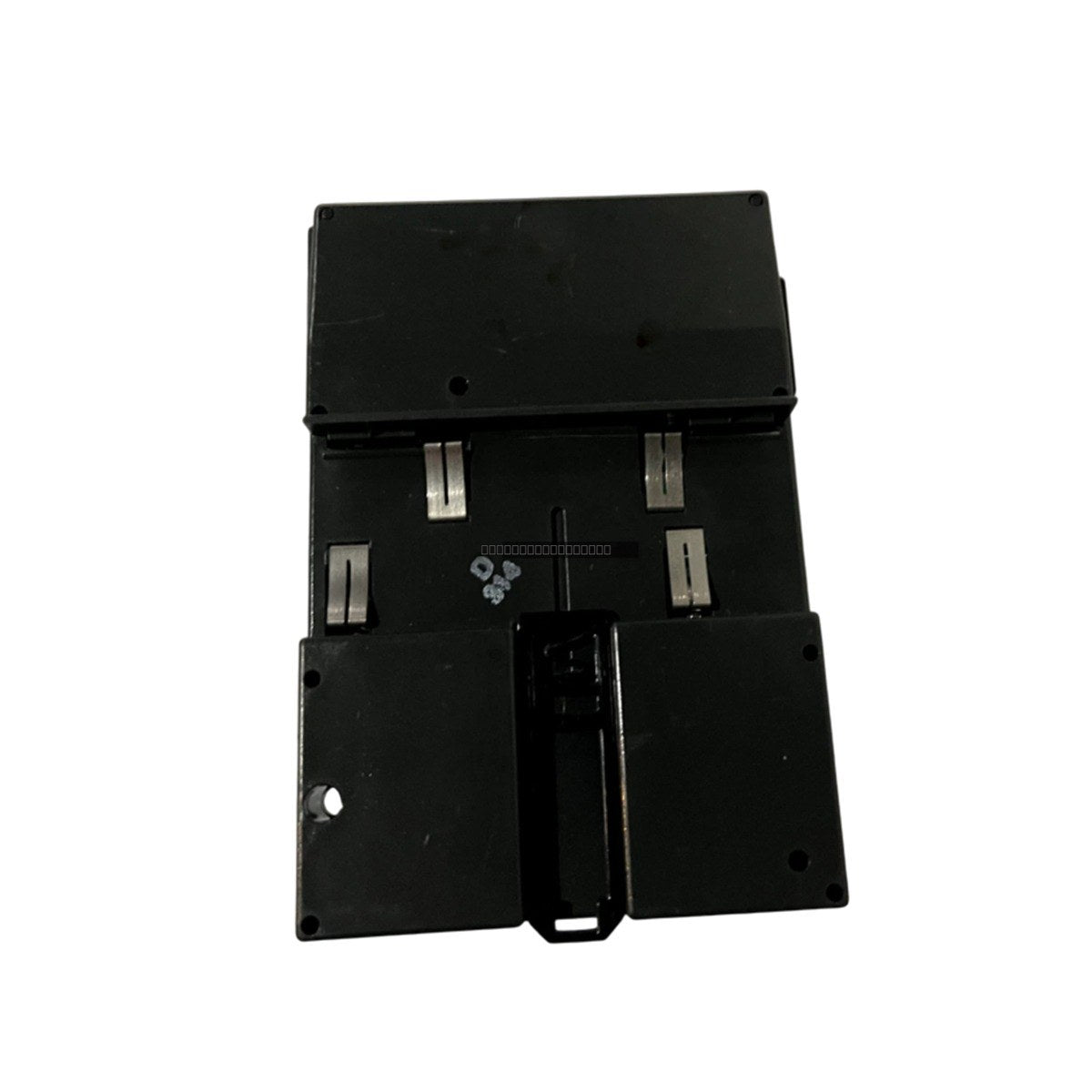

  • The module is designed for DIN-rail mounting; ensure the rail is securely grounded.
  • Connect the DeviceNet cable to the 5-pin open-style connector; ensure proper polarity.
  • Grounding: Connect the bare shield wire to Pin 3 of the connector.
  • Termination: If the NIU is located at either end of the network trunk, install a 121-ohm, 1%, 1/4W resistor across Pin 2 (CAN_L) and Pin 4 (CAN_H).
  • Always power down the system before installing or removing modules to prevent electrical damage.
  • Ensure adequate ventilation around the module to maintain operating temperature limits.

FAQ

What is the primary function of the GE IC200DBI001?

The IC200DBI001 is a DeviceNet Network Interface Unit that acts as a slave, allowing up to 8 VersaMax I/O modules to communicate with a DeviceNet master controller.

How much I/O data can this unit process?

The unit supports up to 128 bytes of input data and 128 bytes of output data, plus additional status and control words per bus scan.

What are the supported network speeds?

The module supports standard DeviceNet baud rates of 125 kbps, 250 kbps, and 500 kbps, depending on the bus length.
