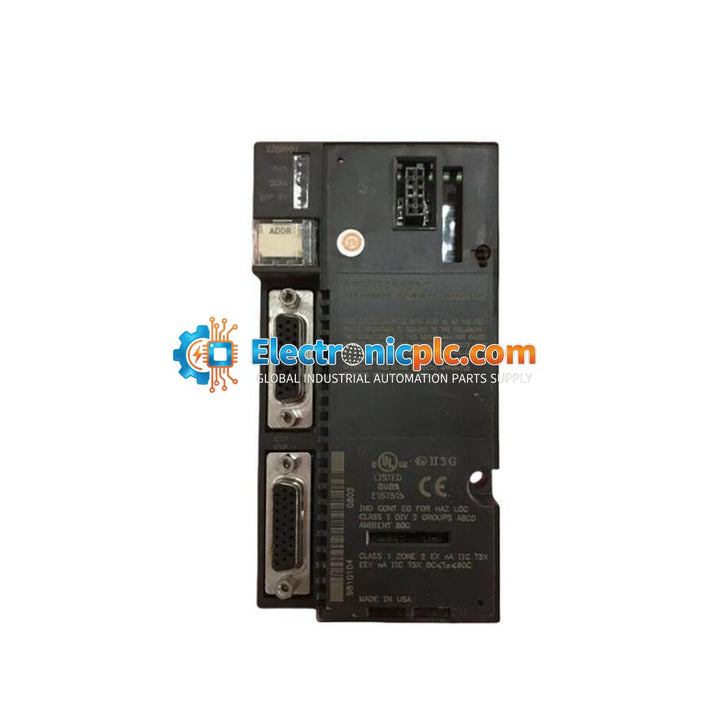

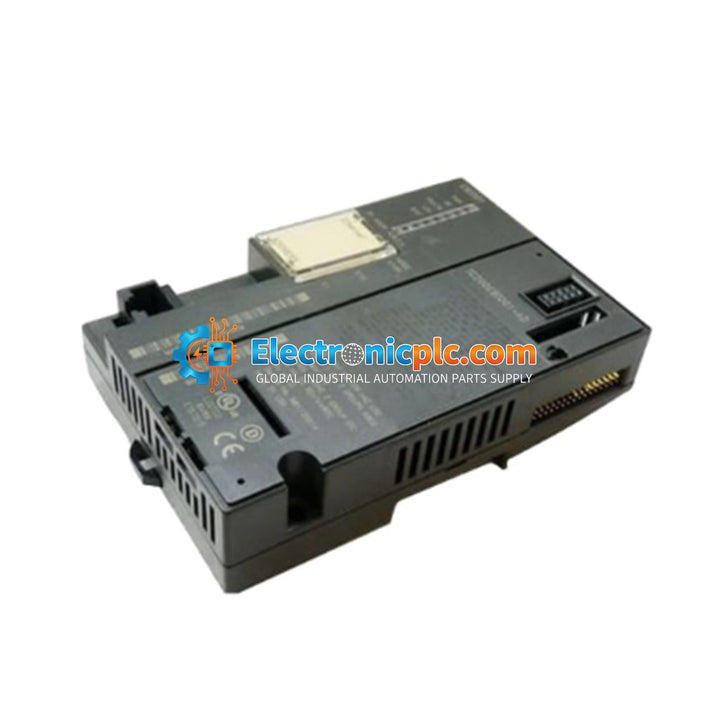

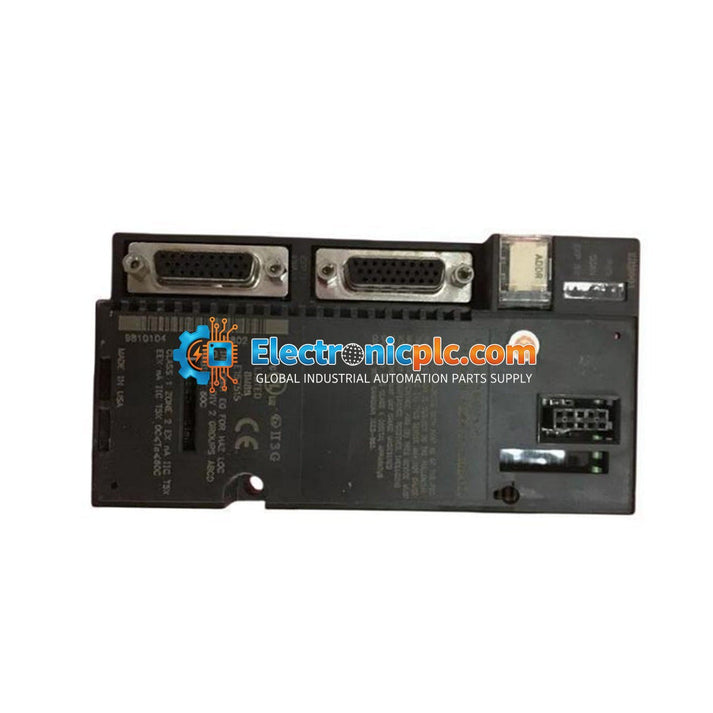

General Electric IC200ERM001 VersaMax Isolated Expansion Receiver Module

General Electric IC200ERM001 VersaMax Isolated Expansion Receiver Module

Description

The General Electric IC200ERM001 is an isolated Expansion Receiver Module designed for the VersaMax PLC and I/O station product line. This module is essential for extending the I/O bus, allowing...

29 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC200ERM001
Vendor: General Electric
Category: Expansion Receiver Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC200ERM001 is an isolated Expansion Receiver Module designed for the VersaMax PLC and I/O station product line. This module is essential for extending the I/O bus, allowing for the connection of remote expansion racks up to 2,460 feet (750 meters) away from the main controller. It provides 500VDC isolation, ensuring robust signal integrity in industrial environments. The module must be used in conjunction with an Expansion Transmitter Module (such as the IC200ETM001) located at the main PLC rack.

Features

  • Isolated expansion interface for VersaMax I/O systems.
  • Supports daisy-chaining of up to 7 expansion racks.
  • Equipped with two 26-pin female D-shell ports for upstream and downstream communication.
  • Integrated LED indicators for real-time power and expansion bus status monitoring.
  • Provides operating power to modules within the expansion rack via the backplane.
  • 500VDC isolation for enhanced noise immunity.

Applications

  • Factory Automation: Synchronizes multiple machines across extended production lines.
  • Material Handling: Facilitates control for large-scale conveyor systems and sorters.
  • Automotive Plants: Supports high-speed discrete I/O for robotic assembly and painting cells.
  • Process Control: Enables modular distributed control for water treatment and light chemical processing.

Technical Specifications

Parameter Specification
Model IC200ERM001
Product Type Isolated Expansion Receiver Module
Manufacturer General Electric (GE Fanuc)
Backplane Output Voltage 3.3V to 5V
Connectivity 2 x 26-pin Female D-Shell Ports
Isolation 500VDC
Mounting 35mm x 7.5mm DIN Rail
Weight 0.14 kg

Installation Guidelines

  • The module must be installed in the leftmost position (Slot 0) of the expansion rack.
  • Mount all modules and carriers on the same section of 35mm x 7.5mm DIN rail.
  • Ensure the DIN rail has a conductive (unpainted) finish to facilitate proper grounding.
  • For optimal stability, secure the DIN rail to the panel using screws spaced approximately 6 inches (15.24 cm) apart.
  • The module snaps onto the DIN rail without the need for specialized tools.
  • Always power down the system before installing or removing modules to prevent electrical damage.

FAQ

What is the IC200ERM001 used for?

The GE IC200ERM001 is an isolated Expansion Receiver Module used within the VersaMax PLC system to extend I/O capabilities to remote racks.

How many expansion racks can I connect?

The system supports up to 7 expansion racks per system, for a total of 8 racks including the main rack.

Does the IC200ERM001 require external power?

No, the module is powered directly through the backplane (3.3V-5V).

What is the maximum distance for expansion?

Expansion racks can be located up to 750 meters (approximately 2460 feet) from the main rack.

What do the LED indicators show?

The LEDs provide visual status updates for the internal power supply and the health of the expansion bus communication.
