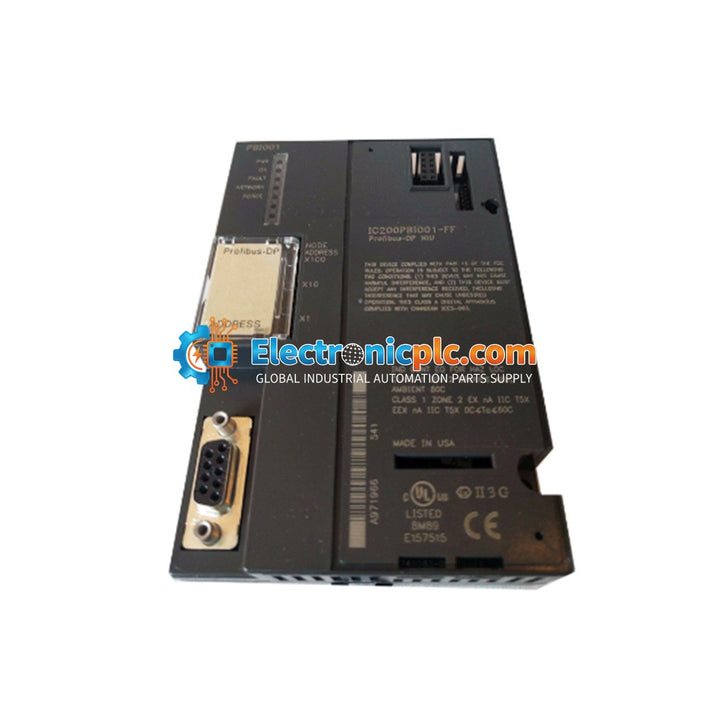

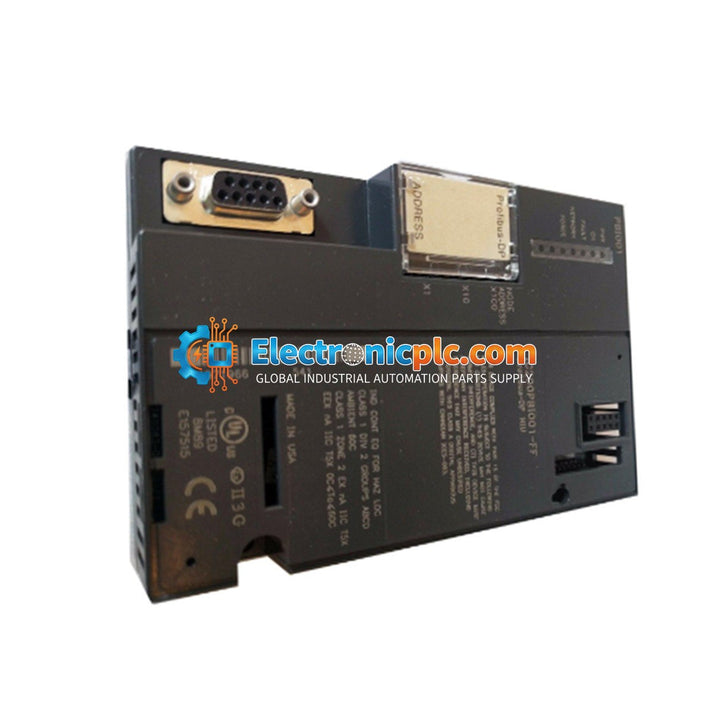

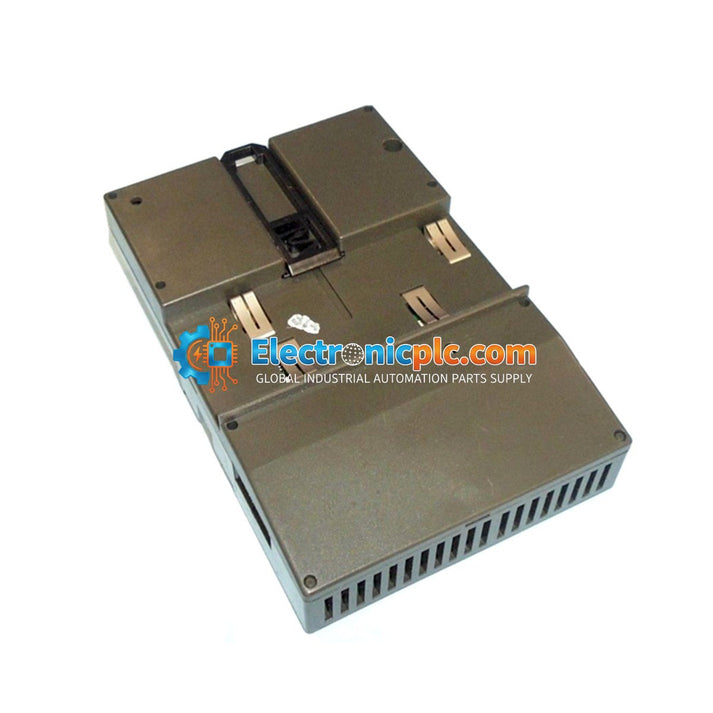

General Electric IC200PBI001 VersaMax Profibus-DP Network Interface Unit

General Electric IC200PBI001 VersaMax Profibus-DP Network Interface Unit

Description

The GE Fanuc/Emerson IC200PBI001 is a high-performance Network Interface Unit (NIU) designed for the VersaMax I/O system. It functions as a slave device on a Profibus-DP network, enabling seamless integration...

22 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC200PBI001
Vendor: General Electric
Category: Network Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc/Emerson IC200PBI001 is a high-performance Network Interface Unit (NIU) designed for the VersaMax I/O system. It functions as a slave device on a Profibus-DP network, enabling seamless integration between the network master and local VersaMax I/O modules. The module automatically detects network baud rates and manages data exchange, diagnostics, and module configuration for up to 64 I/O modules per station.

Features

  • Supports Profibus-DP network communication with automatic baud rate detection from 9.6 Kbaud to 12 Mbaud.
  • Total I/O data capacity of 375 bytes, with a maximum of 244 bytes for input or output.
  • Supports up to 64 I/O modules per NIU station.
  • Integrated self-diagnostics with an amber FAULT LED for status monitoring.
  • Autoconfiguration capability upon power-up to ensure correct system mapping.
  • Standard 9-pin D-sub connector for Profibus-DP interface.

Technical Specifications

Model IC200PBI001
Network Type Profibus-DP (Slave)
Data Rate 9.6 Kbaud to 12 Mbaud (Auto-detect)
I/O Data Capacity 375 bytes max
Max I/O Modules 64 per NIU
Power Consumption 250 mA at 5V DC; 10 mA at 3.3V DC
Network Address 1 to 125
Operating Temperature 0 degC to 60 degC (32 degF to 140 degF)

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the NIU from the backplane.
  • Mount the module securely on the VersaMax I/O rack; ensure proper seating to maintain backplane communication.
  • Use a standard shielded Profibus-DP cable connected to the 9-pin D-sub port to minimize EMI interference.
  • Maintain proper ventilation around the module to prevent overheating, adhering to the 0-60 degC operating range.
  • The module performs an autoconfiguration check upon power-up; ensure all modules are properly seated to avoid fault conditions.

FAQs

What is the IC200PBI001?

The GE Fanuc/Emerson IC200PBI001 is a Profibus-DP Network Interface Unit (NIU) for the VersaMax series, designed to act as a slave device on a Profibus network while managing local I/O modules.

What is the function of the IC200PBI001?

The IC200PBI001 acts as a slave on a Profibus-DP network, allowing a master device (like a PLC) to control a set of VersaMax input/output modules connected to it.

What is the maximum I/O data capacity of IC200PBI001?

This module supports a maximum of 375 bytes of I/O data, which can contain up to 244 bytes of input or 244 bytes of output.

What is the IC200PBI001 power requirement?

The NIU draws power through the backplane, requiring 250mA at 5V DC and 10mA at 3.3V DC.
