Description

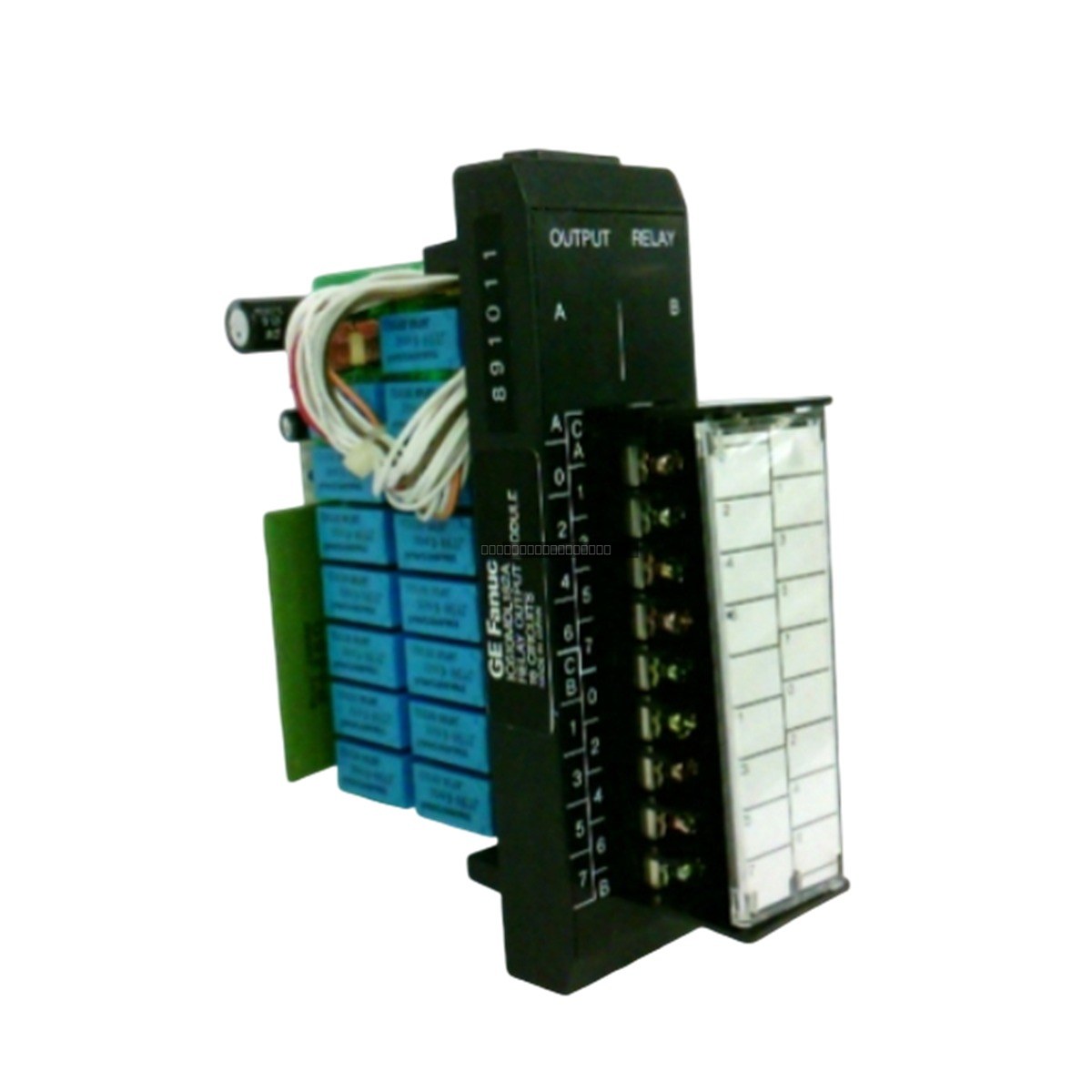

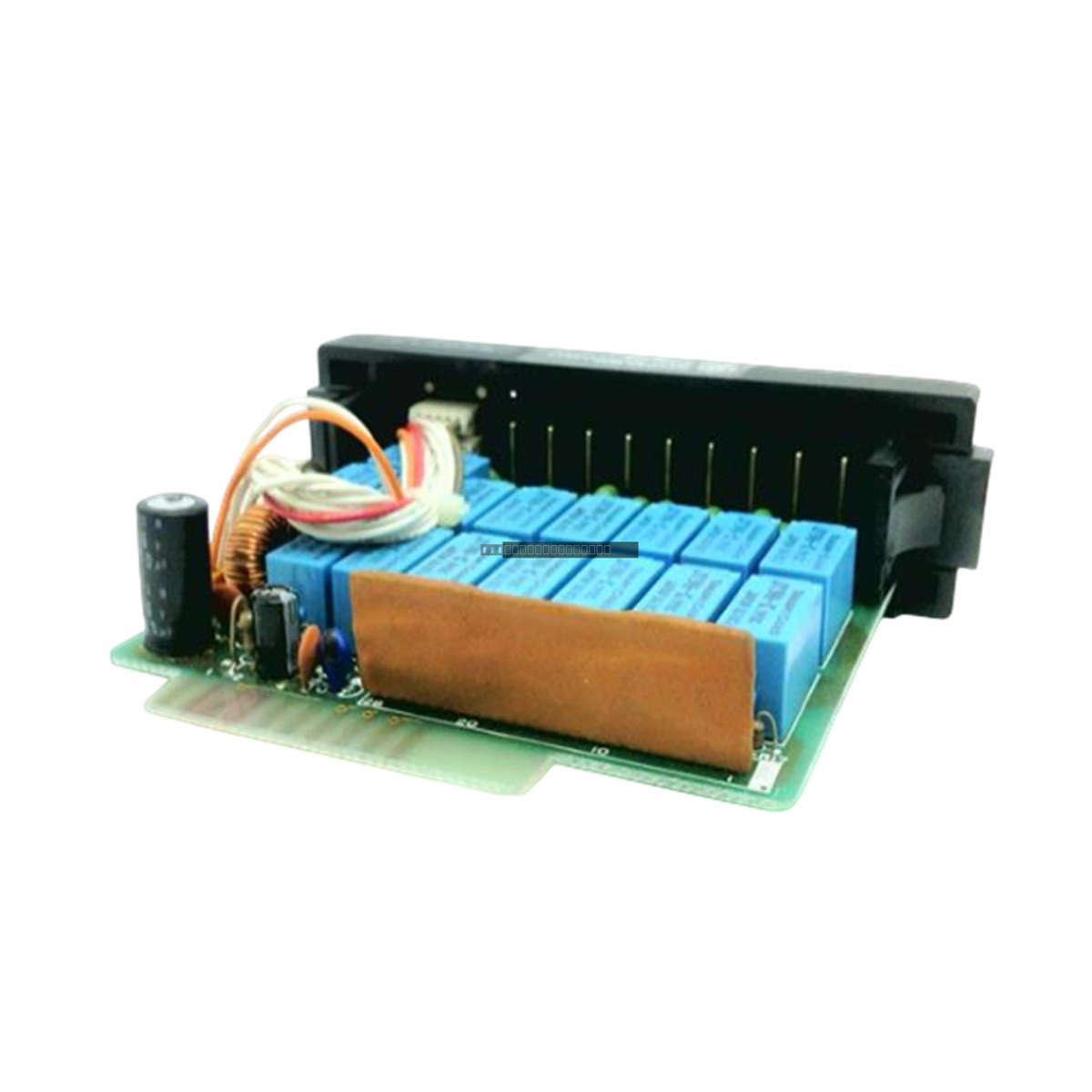

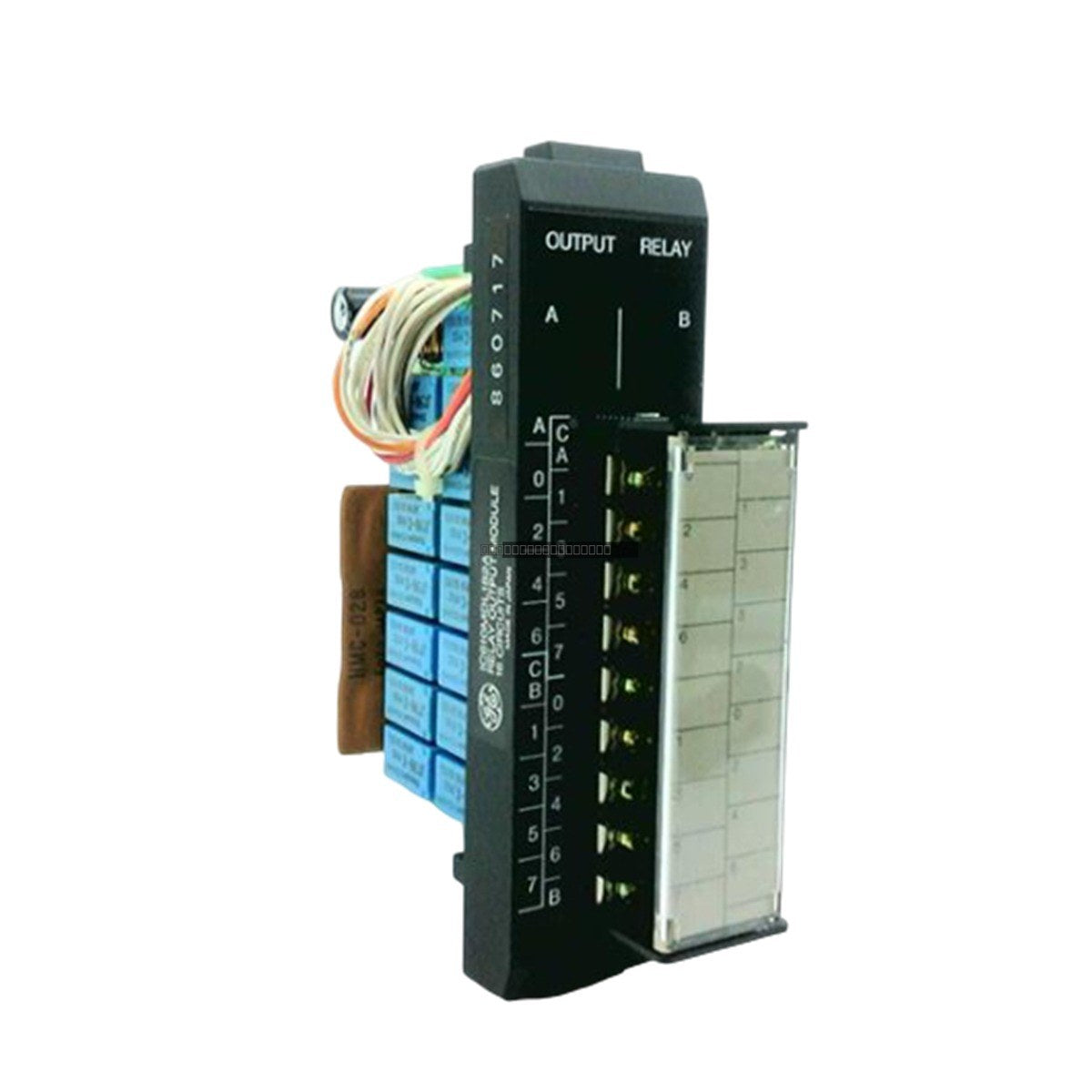

The IC610MDL182 is a 16-point relay output module designed specifically for the GE Fanuc Series One Programmable Logic Controller (PLC) platform. This module is engineered to provide reliable switching for industrial control signals, supporting both AC and DC load applications. Its robust relay-based design ensures electrical isolation between the PLC backplane and field-side devices, providing essential protection for the control system against voltage transients and surges.

Features

• 16 independent relay output channels for high-density control.
• Dual-compatibility for AC (5 to 220 VAC) and DC (5 to 30 VDC) voltage ranges.
• Removable terminal block design allows for module replacement without disconnecting field wiring.
• Integrated LED status indicators for immediate visual confirmation of output state.
• Compact, single-slot vertical mounting configuration optimized for Series One rack systems.
• Natural convection cooling eliminates the need for external fans or forced-air systems.

Applications

This module is suitable for a wide range of industrial automation tasks, including material handling systems, automated manufacturing lines, and general process control. Its relay outputs are ideal for interfacing with solenoids, contactors, and other field devices that require electrical isolation from the main controller.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the rack slot to ensure proper backplane communication.
• Use the removable terminal block for field wiring to maintain consistent signal termination; ensure wires are properly secured and stripped to the correct length.
• Maintain adequate clearance around the module to allow for natural convection cooling; avoid mounting near high-heat sources.
• Ensure all field wiring is routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
• Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.

FAQ

Q: Does this module require external power for the relay outputs?
A: The relay outputs act as dry contacts; you must provide the appropriate external power source for your specific AC or DC load within the rated voltage limits.

Q: Can I replace the IC610MDL182 without rewiring the system?
A: Yes, the module features a removable terminal block. You can disconnect the block from the module, replace the hardware, and reconnect the block to restore operation without disturbing the individual field wires.
