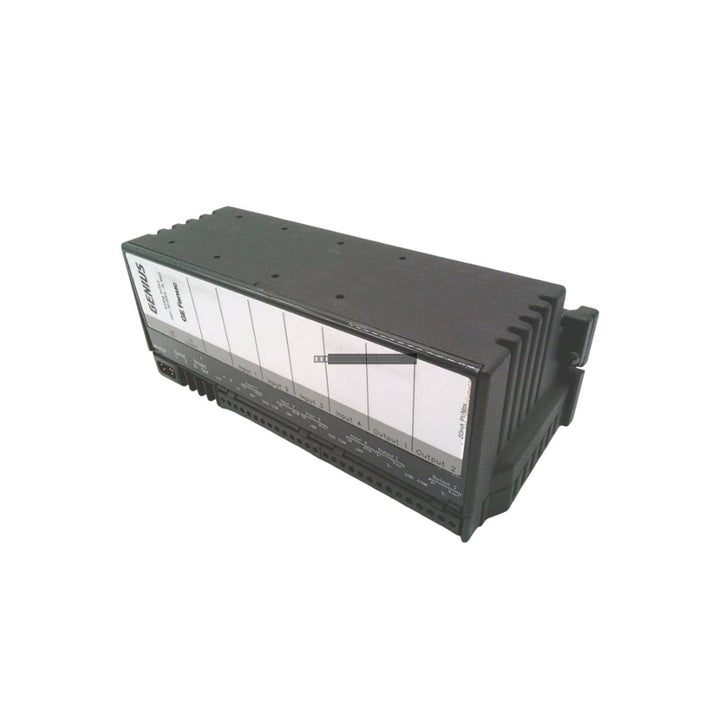

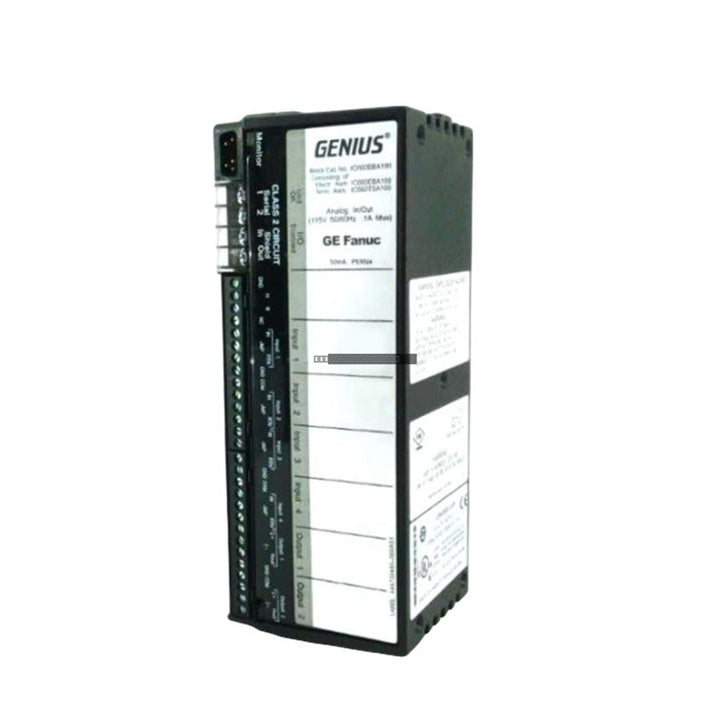

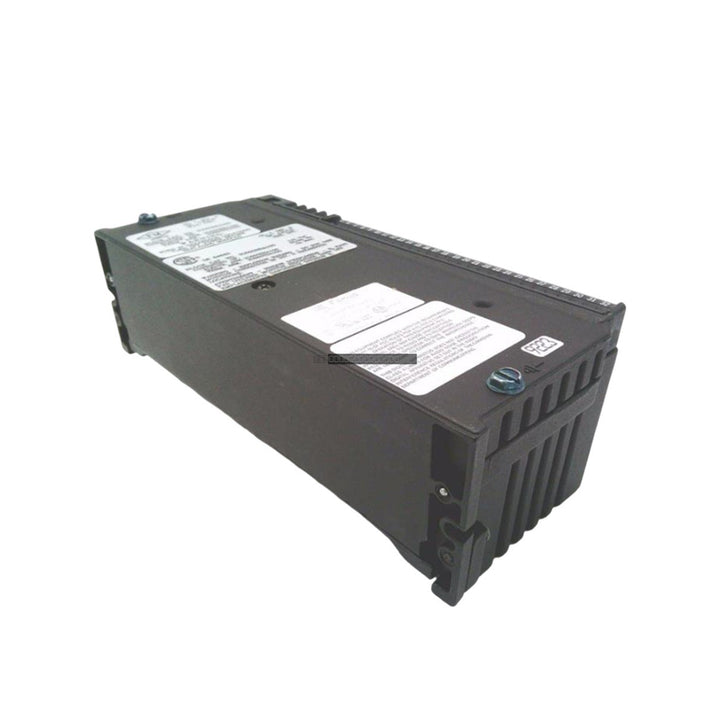

General Electric IC660BBA100 Genius I/O Analog Block

General Electric IC660BBA100 Genius I/O Analog Block

The General Electric IC660BBA100 is a component of the Genius I/O series, specifically designed as a versatile analog I/O block for industrial control environments. This module provides reliable signal processing...

28 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC660BBA100
Vendor: General Electric
Category: Analog I/O Block
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC660BBA100 is a component of the Genius I/O series, specifically designed as a versatile analog I/O block for industrial control environments. This module provides reliable signal processing capabilities, enabling the integration of various analog field devices into a broader automation system.

Features

  • Configurable I/O: Features 4 analog inputs and 2 analog outputs.
  • Precision Conversion: Offers 12-bit plus sign resolution for accurate data acquisition.
  • Flexible Circuit Ranges: Supports multiple signal types including 0-10 VDC, +/-10 VDC, +/-5 VDC, 0-5 VDC, and 4-20 mA.
  • Diagnostic Indicators: Integrated status LEDs for Unit OK and I/O Enabled status monitoring.
  • Isolation: Provides 1500 Volts of block-to-block isolation for enhanced signal integrity.

Applications

This analog block is commonly utilized in industrial automation systems where high-precision monitoring and control of process variables are required. It is suitable for interfacing with sensors, actuators, and transducers that output or require standard analog voltage or current signals.

Technical Specifications

Manufacturer General Electric
Series Genius I/O
Model IC660BBA100
Input Channels 4
Output Channels 2
Resolution 12 bit + sign
Power Requirements 115 VAC
Accuracy +/- 0.2% of full scale
Update Frequency 4 ms
Heat Dissipation 6 Watts

Installation Guidelines

  • Ensure the system power is completely disconnected before attempting to install or remove the I/O block.
  • Mount the unit in an environment compliant with the specified heat dissipation requirements to prevent overheating.
  • Use shielded cabling for all analog signals to minimize the impact of electromagnetic interference (EMI).
  • Verify that the power supply voltage matches the 115 VAC rating before energizing the block.
  • Practice standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the IC660BBA100?
It is an analog I/O block from the GE Genius I/O family used to bridge analog field signals to a digital control network.

Can the input/output ranges be adjusted?
Yes, the module supports multiple selectable ranges including voltage (0-10V, +/-10V, etc.) and current (4-20 mA) configurations.
