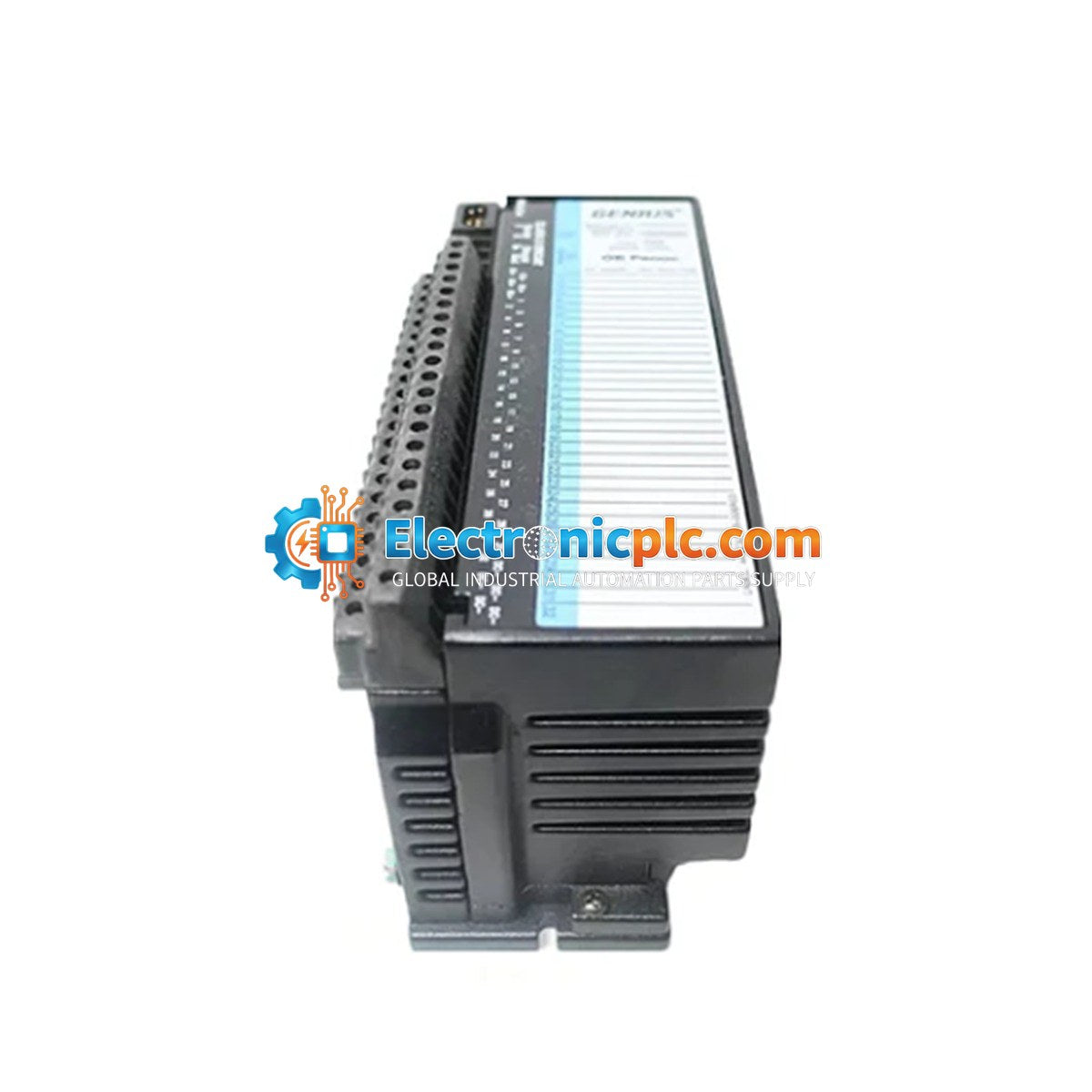

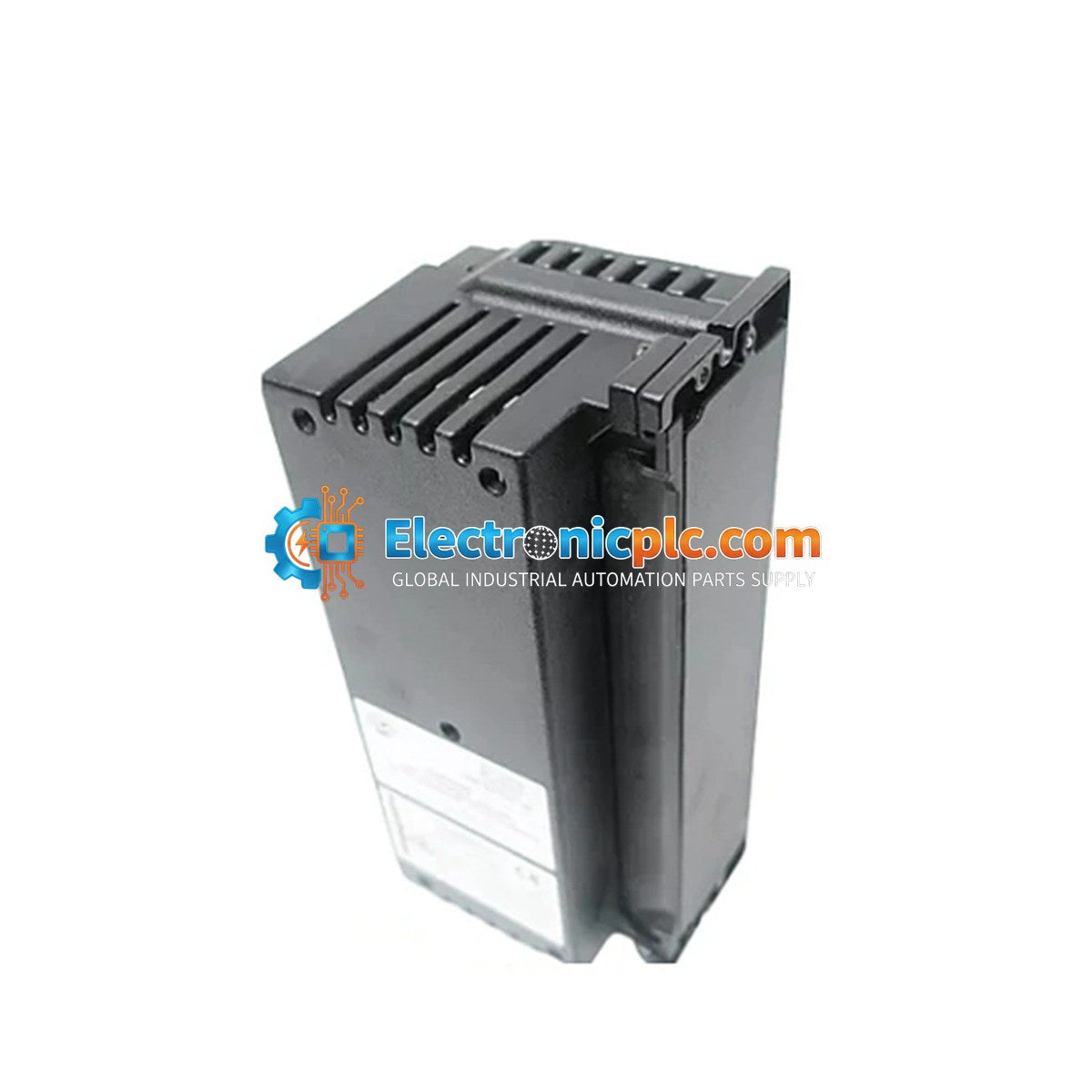

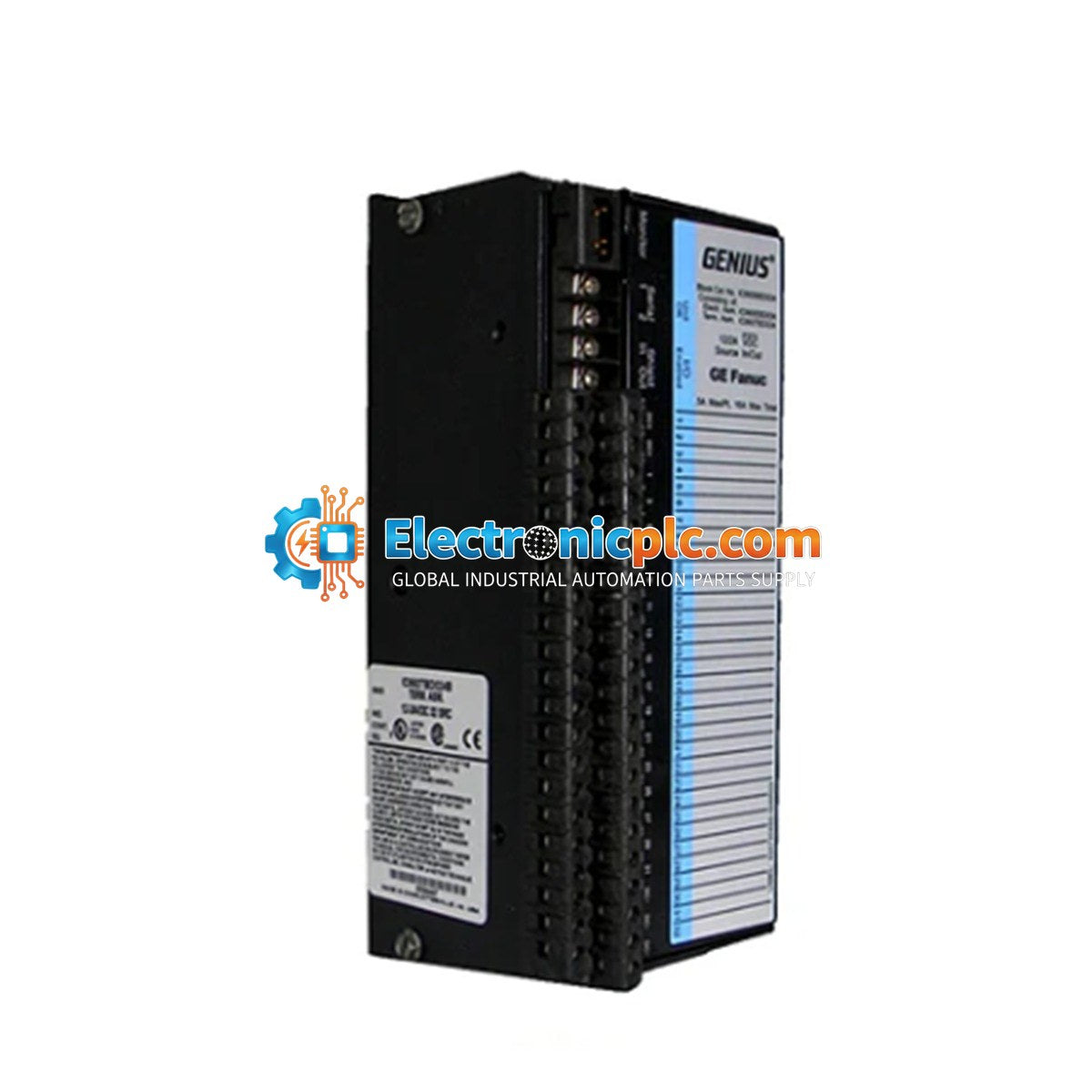

General Electric IC660BBD024 Genius I/O 32-Circuit Sourcing Block

General Electric IC660BBD024 Genius I/O 32-Circuit Sourcing Block

Description

The General Electric IC660BBD024 is an intelligent, high-density 32-point discrete sourcing I/O block from the Genius I/O product family. This versatile module is designed to interface controllers with field devices...

16 people are viewing this right now

Availability: Low stock: 8 left

SKU: IC660BBD024
Vendor: General Electric
Category: Digital I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660BBD024 is an intelligent, high-density 32-point discrete sourcing I/O block from the Genius I/O product family. This versatile module is designed to interface controllers with field devices such as relays, contactors, and proximity switches. Each of the 32 circuits is software-configurable to function as an input, an output, or an output with feedback, providing significant flexibility for complex control applications.

Features

  • 32 configurable I/O circuits for mixed input/output operations
  • Sourcing I/O block design
  • Resettable self-protecting circuits for output channels
  • Advanced diagnostic capabilities including switch fault detection
  • Software-configurable filtering and operation parameters
  • LED indicators for block status, CPU communication, and individual circuit voltage presence

Applications

  • Turbine Control: High-density discrete I/O for legacy turbine control systems
  • Power Generation: Supports Genius Modular Redundancy for critical plant systems
  • Oil & Gas: Remote I/O block architecture to minimize long-distance field wiring
  • Industrial Automation: Interface for CNC machines, robotics, and assembly lines
  • Marine Technology: Onboard control and monitoring for shipboard electronics

Technical Specifications

Model IC660BBD024
Channels 32 (Configurable)
Input Voltage 12/24 VDC
Output Current (per circuit) 0.5 A (steady state)
Total Block Current 16 A
Input Processing Time 1.4 ms (plus selectable filter)
Isolation 850 V
Input Impedance 3.3 kOhms
Output Turn-on Delay 0.5 ms (max)

Installation Guidelines

  • Wiring: Terminal connections should utilize #12 AWG wire or two #14 AWG wires.
  • Power Disconnect: Wire the block to ensure block power and input power are disconnected simultaneously to prevent unexpected power-up during maintenance.
  • Grounding: Ensure mounting screws are connected to a reliable, low-impedance grounding system to protect equipment and personnel.
  • Handling: Standard ESD precautions should be observed when handling the module. Always power down the system before inserting or removing the block from the bus.

FAQs

Does the IC660BBD024 operate as an input or output device?

The IC660BBD024 is a 32-point module that can be configured on a per-channel basis as an input, an output, or an output with feedback.

What is the current rating per point when configured as an output?

The module is capable of delivering 0.5 Amperes per point when configured as an output, with a total block capacity of 16 Amperes.

What is the primary function of this module?

The GE IC660BBD024 is a 32-circuit DC source I/O block used to interface controllers with binary field devices such as sensors, relays, and contactors.
