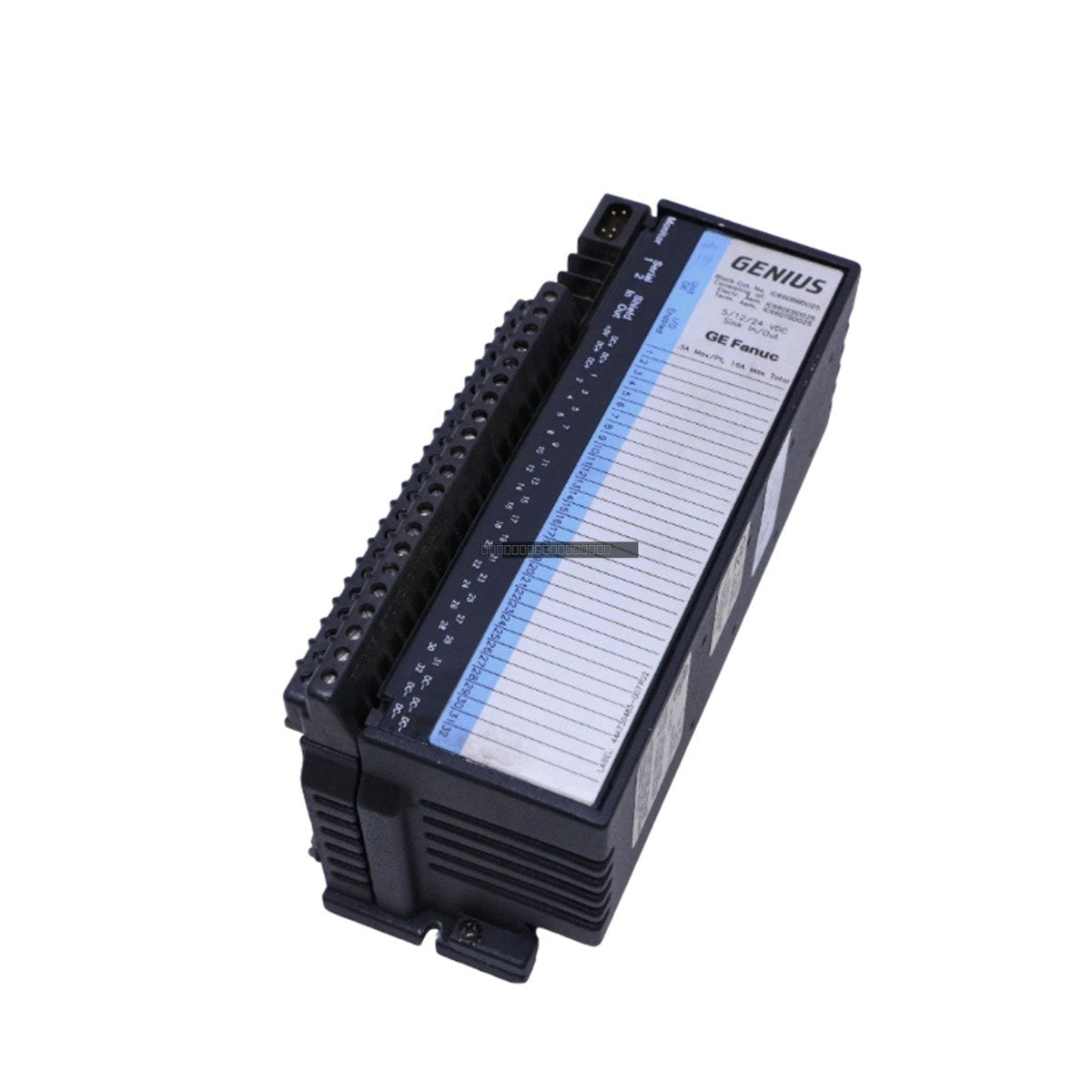

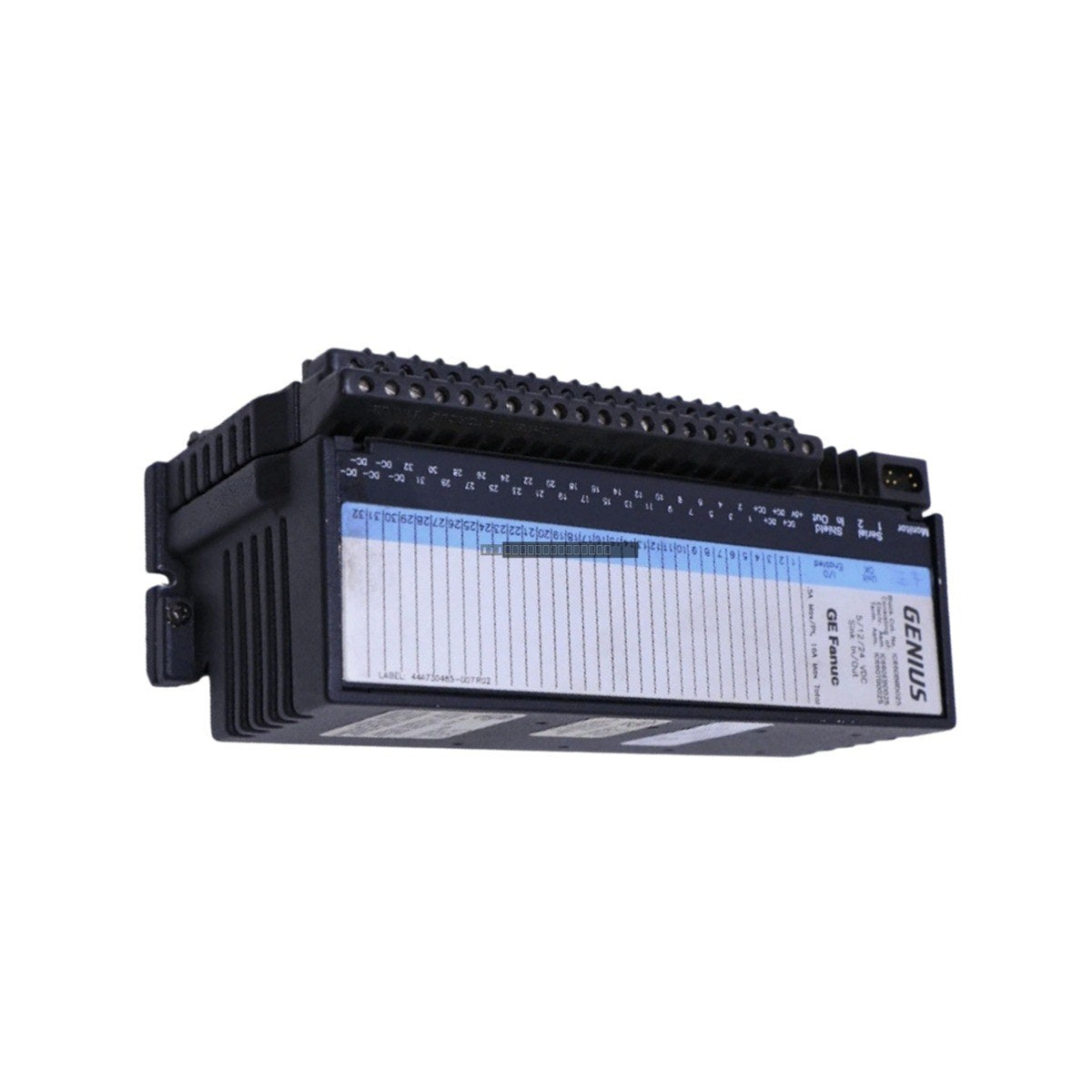

General Electric IC660BBD025 Genius Block I/O Module

General Electric IC660BBD025 Genius Block I/O Module

The General Electric IC660BBD025 is a 32-circuit Genius Block I/O module designed for flexible, high-density discrete signal processing. This sinking I/O block supports nominal voltage levels of 5V, 12V, and...

28 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC660BBD025
Vendor: General Electric
Category: Digital I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC660BBD025 is a 32-circuit Genius Block I/O module designed for flexible, high-density discrete signal processing. This sinking I/O block supports nominal voltage levels of 5V, 12V, and 24VDC, making it highly adaptable for various industrial sensing and actuation requirements. The module is fully configurable, allowing each of its 32 circuits to function independently as an input, an output, or an output with feedback.

Features

  • Configurable I/O: 32 discrete circuits, each capable of being set as an input or output.
  • Versatile Voltage Compatibility: Supports 12/24VDC nominal operation and is compatible with 5V TTL signals.
  • Advanced Diagnostics: Features built-in switch fault detection and individual circuit LED status indicators.
  • Robust Protection: Equipped with resettable, self-protecting circuits to prevent damage from shorted loads or surges.
  • Genius Bus Connectivity: Includes a dedicated Genius I/O bus terminal and a port for a Hand-Held Monitor (HHM).

Applications

The IC660BBD025 is engineered for distributed control environments, including:

  • Power generation and turbine control systems.
  • Remote field sensor and actuator interfacing in hydrocarbon processing.
  • High-density discrete I/O for industrial robotics and CNC assembly lines.
  • Marine onboard automation and monitoring systems.

Technical Specifications

Model IC660BBD025
I/O Type Sinking
Circuits 32
Voltage Compatibility 5/12/24 VDC
Input Impedance 3.3K Ohms (typical)
Max Output Current 0.5A per circuit (16A total block current)
Max Inrush Current 4A (up to 10ms)
Operating Temp 0 to 60 degC
Isolation 850V (Block to block)

Installation Guidelines

  • Environment: Must be installed within a clean, protective industrial enclosure with adequate cooling airflow.
  • Mounting: Secure the module using 8-32 hardware; use star washers to ensure proper ground integrity.
  • Spacing: Maintain a minimum clearance of 2 inches between adjacent blocks for thermal management.
  • Handling: This module contains static-sensitive components. Always use a grounded ESD wrist strap and handle by the edges.
  • Power: Ensure the system is powered down before inserting or removing the module from the bus.

FAQ

What is the primary function of the IC660BBD025?

It is a 32-circuit sinking Genius I/O block that acts as an intelligent, software-configurable interface between a controller and field-level discrete devices.

Can the circuits be mixed?

Yes, each of the 32 circuits can be independently configured as an input, an output, or an output with feedback, allowing for maximum application flexibility.

What is the maximum communication distance?

The Genius I/O protocol utilized by this module supports communication distances of up to 7,500 feet.
