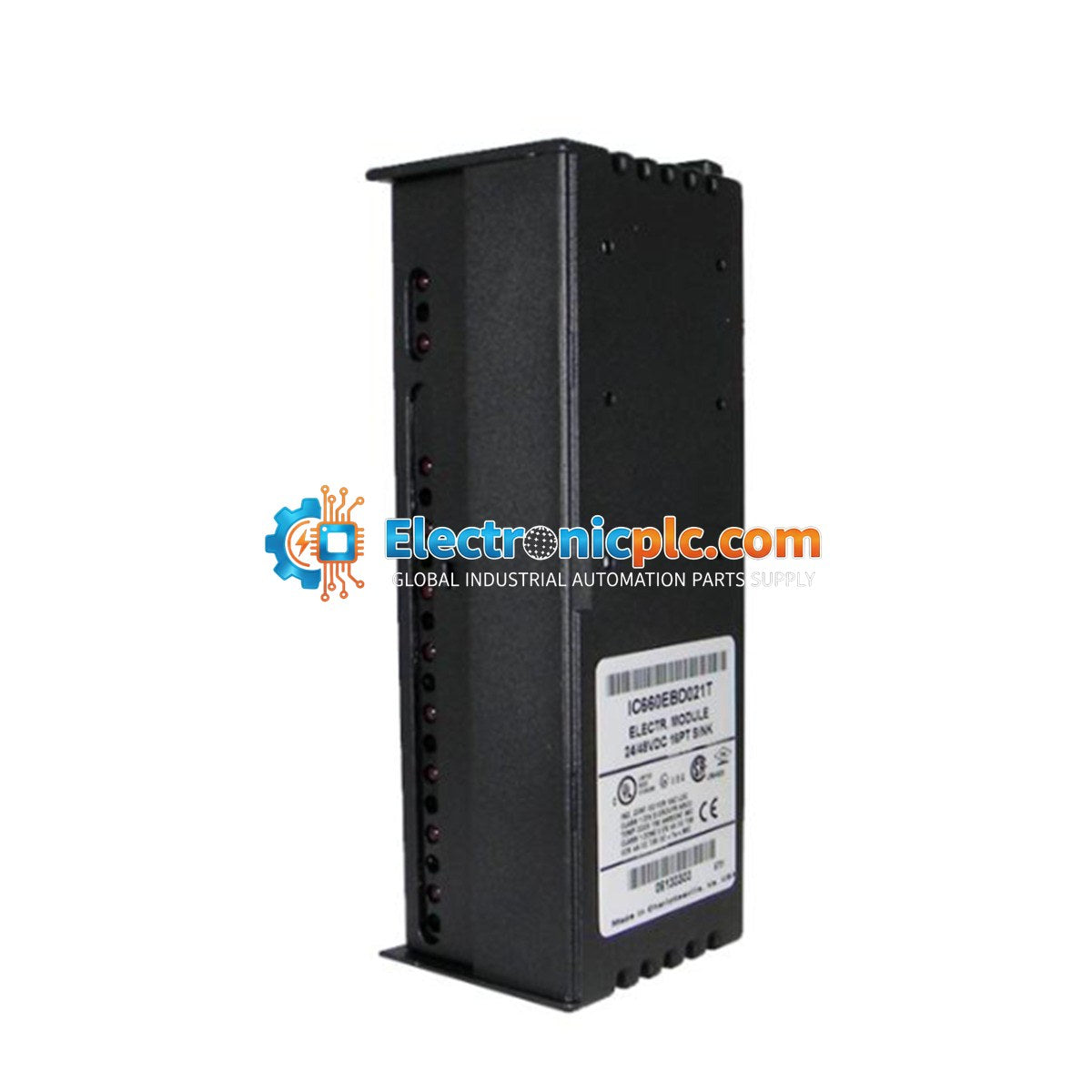

General Electric IC660EBD021 Genius Block I/O Module

General Electric IC660EBD021 Genius Block I/O Module

Description

The General Electric IC660EBD021 is a high-performance Genius Block I/O module designed for industrial automation control systems. As part of the GE Genius I/O series, this electronic assembly provides reliable...

23 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC660EBD021
Vendor: General Electric
Category: I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660EBD021 is a high-performance Genius Block I/O module designed for industrial automation control systems. As part of the GE Genius I/O series, this electronic assembly provides reliable signal processing and distributed control capabilities. It is engineered to support discrete input and output operations, facilitating seamless communication between field devices and the primary controller.

Features

  • Sixteen (16) configurable discrete inputs for versatile signal monitoring.
  • Supports a wide nominal input voltage range of 24 VDC to 48 VDC (18-56 VDC operating range).
  • Individual load-side circuit LEDs for real-time status monitoring and diagnostics.
  • Robust block-to-block isolation of 1500 V to protect sensitive control electronics.
  • High-efficiency power handling with a 10-microsecond power supply dropout time.

Applications

This module is widely utilized in industrial environments requiring distributed I/O, including manufacturing assembly lines, process control systems, and material handling equipment. Its ability to handle 2 Amps per circuit makes it suitable for driving various actuators, solenoid valves, and relay interfaces within a Genius I/O network.

Technical Specifications

Parameter Specification
Product Model IC660EBD021
Operating Voltage 18 to 56 VDC
Discrete Inputs 16 Configurable
Output Current (Steady State) 2 Amps per circuit
Block Output Current 15 Amps at 35 degC
Required DC Power 300 mA (Max)
Operating Temperature 0 to 60 degC
Storage Temperature -40 to 100 degC
Isolation 1500 V (Block to Block)

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the module from the I/O bus.
  • Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures within the 0 to 60 degC range.
  • Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Verify that all wiring connections are secure and follow local electrical codes for DC power distribution.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal components.

FAQ

What is the primary function of the IC660EBD021?

The IC660EBD021 is a Genius Block I/O module used to interface discrete field devices with a GE Genius I/O network, providing 16 configurable inputs and output switching capabilities.

What is the maximum output current for this module?

The module supports a steady-state output current of 2 Amps per circuit, with a total block output current capacity of 15 Amps at an ambient temperature of 35 degC.
