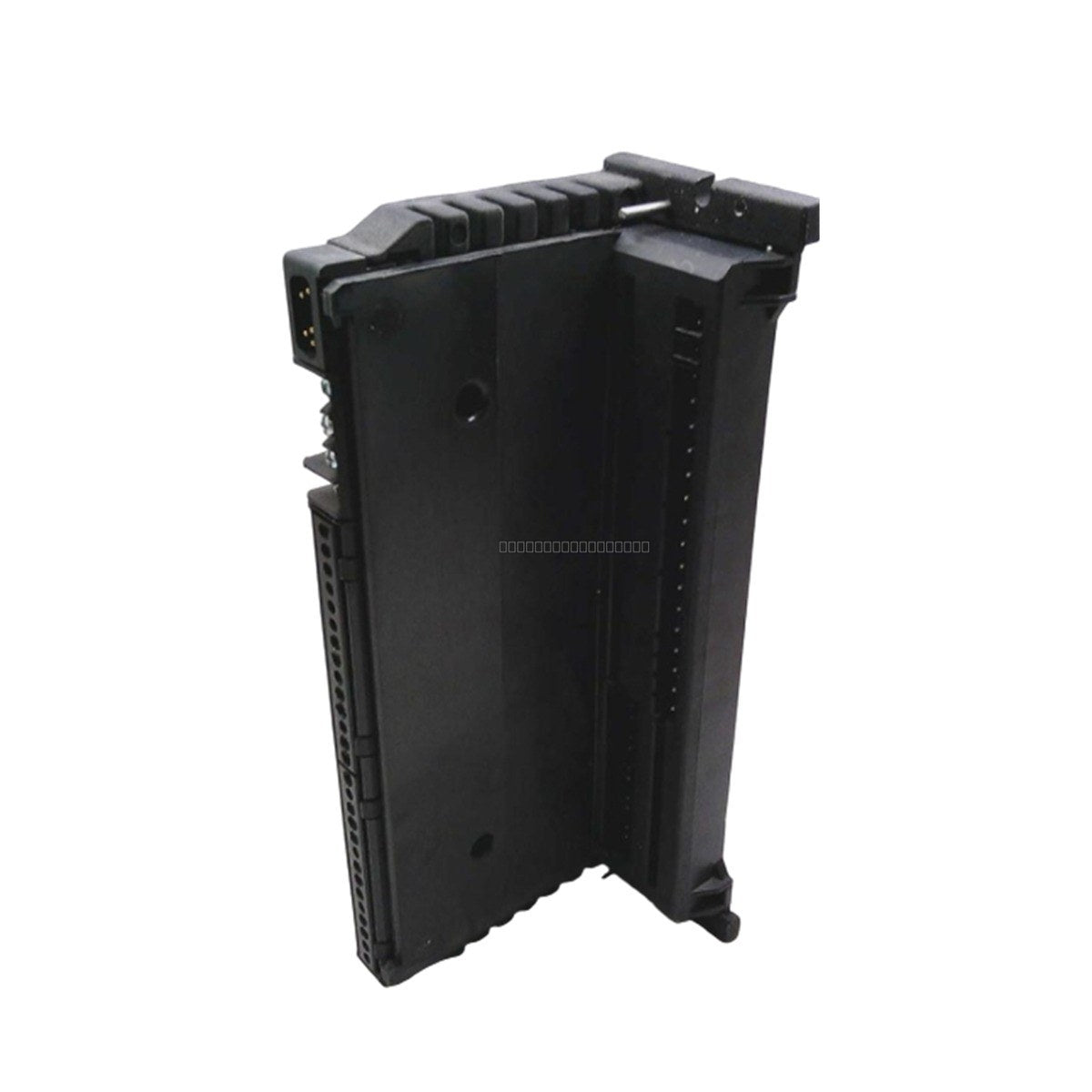

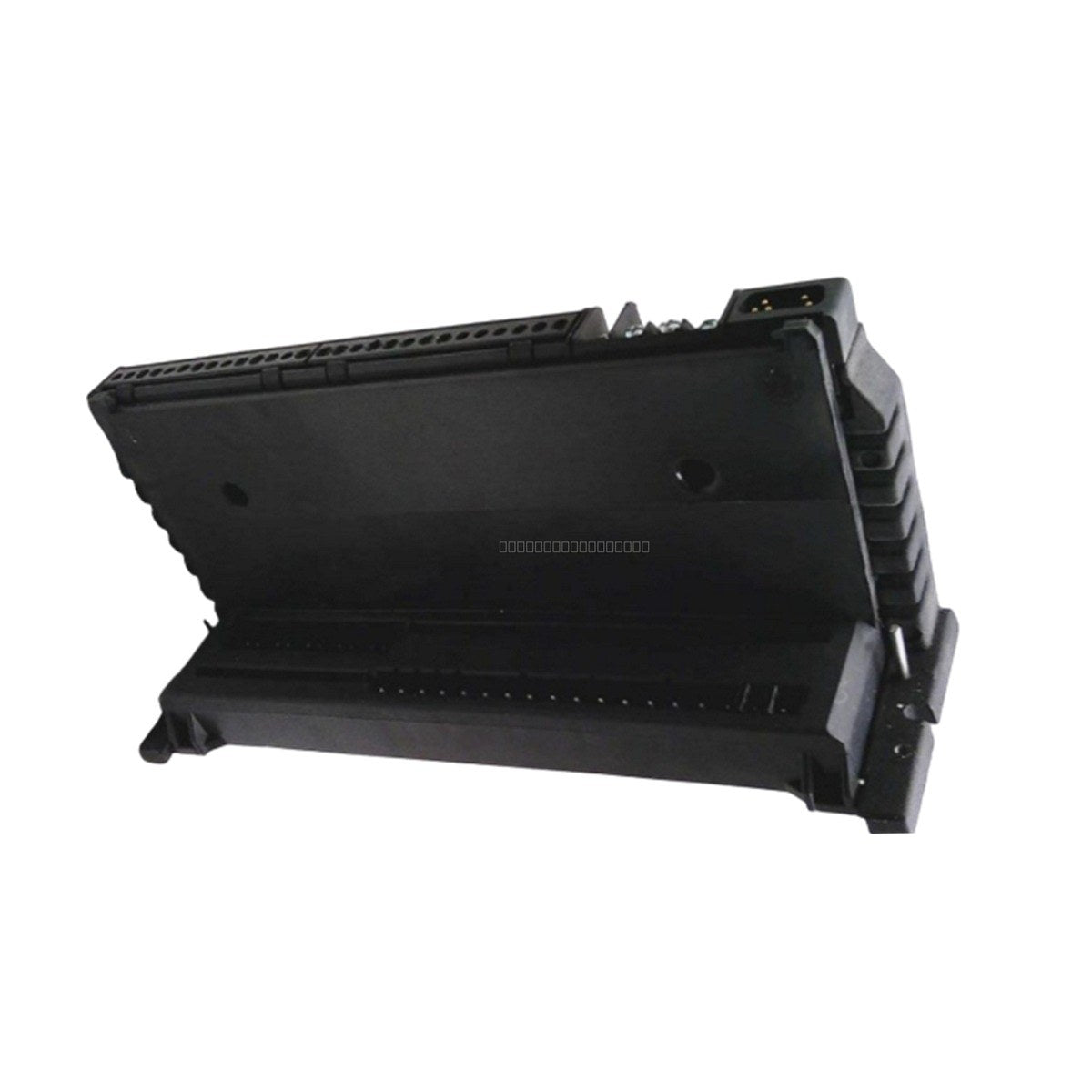

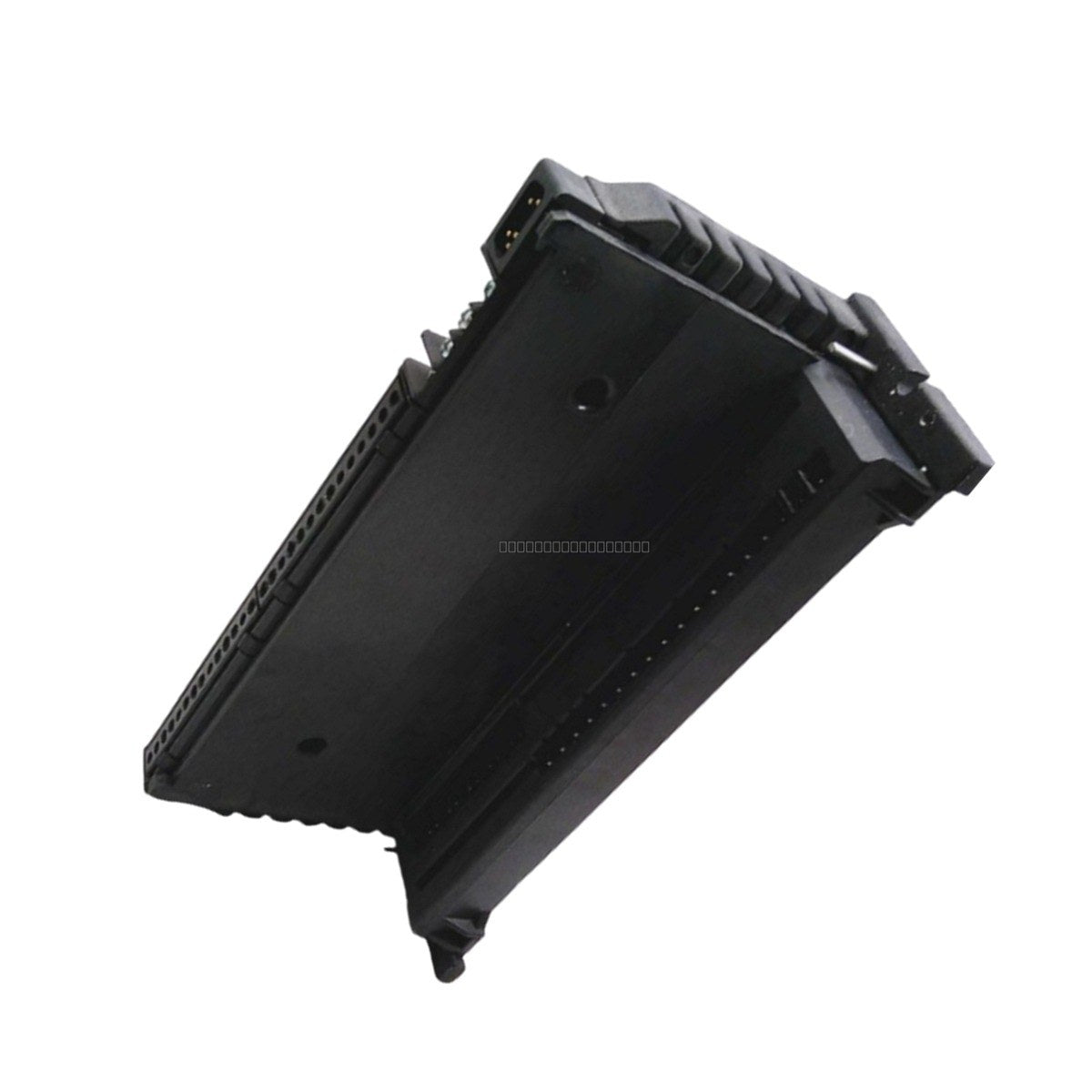

General Electric IC660TBA024 Genius I/O Terminal Assembly

General Electric IC660TBA024 Genius I/O Terminal Assembly

Description

The IC660TBA024 is a terminal assembly component designed for the General Electric Genius I/O system. This assembly provides the necessary physical connection points for field wiring in industrial control applications,...

29 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC660TBA024
Vendor: General Electric
Category: Terminal Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC660TBA024 is a terminal assembly component designed for the General Electric Genius I/O system. This assembly provides the necessary physical connection points for field wiring in industrial control applications, ensuring reliable signal distribution within the Genius I/O block architecture. It is engineered to support 24/48 VDC operations while maintaining high standards of electrical isolation between blocks and groups.

Features

  • Designed for integration with the GE Genius I/O series.
  • Supports 24/48 VDC power supply environments.
  • Robust terminal design for secure field wiring connections.
  • Provides 1500 V block-to-block electrical isolation.
  • Includes 300 V RMS group-to-group isolation for enhanced noise immunity.
  • Optimized for operation in standard industrial temperature ranges.

Technical Specifications

Part Number IC660TBA024
Manufacturer General Electric
Series Genius I/O
Voltage Rating 24/48 VDC
Max Current Rating 600 mA
Heat Dissipation 12 Watts
Max Ripple 10%
Operating Temperature 0 to 60 degC
Block-to-Block Isolation 1500 V
Group-to-Group Isolation 300 V RMS

Installation Guidelines

  • Ensure all power is disconnected from the I/O block before installing or removing the terminal assembly to prevent electrical shock or equipment damage.
  • Mount the terminal assembly in a clean, dry environment, ensuring adequate ventilation to accommodate the 12 W heat dissipation.
  • Verify that all field wiring is properly secured to the terminals to prevent intermittent connections caused by industrial vibration.
  • Maintain proper segregation between signal and power cabling to minimize electromagnetic interference (EMI).
  • Handle the module with ESD-safe practices to protect internal components during installation.

FAQ

What is the primary function of the IC660TBA024?

The IC660TBA024 is a terminal assembly used within the GE Genius I/O system to provide a reliable interface for connecting field devices to the I/O block.

What is the voltage rating for this assembly?

This terminal assembly is designed for use with 24/48 VDC systems.

What are the environmental requirements for this module?

The unit is rated for operation in temperatures ranging from 0 to 60 degC. It should be installed in an enclosure that provides protection against dust and moisture.
