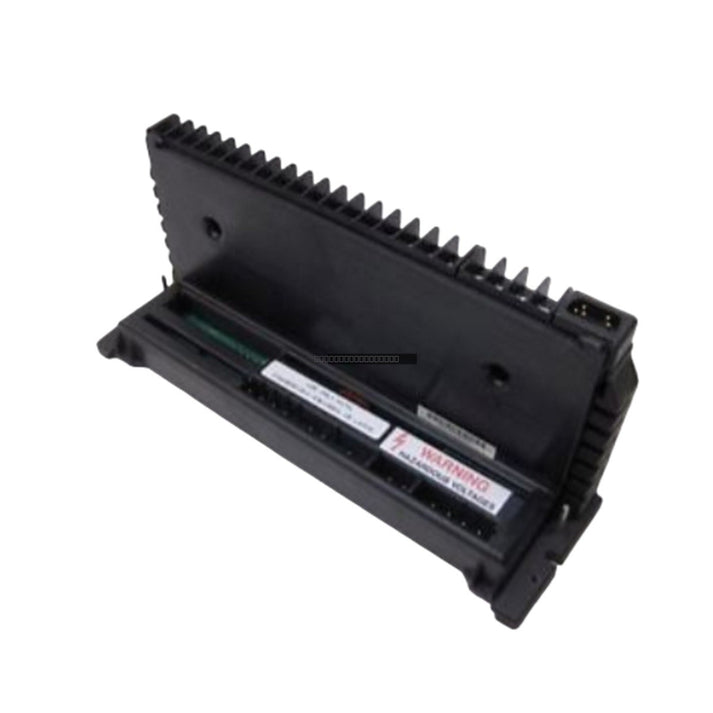

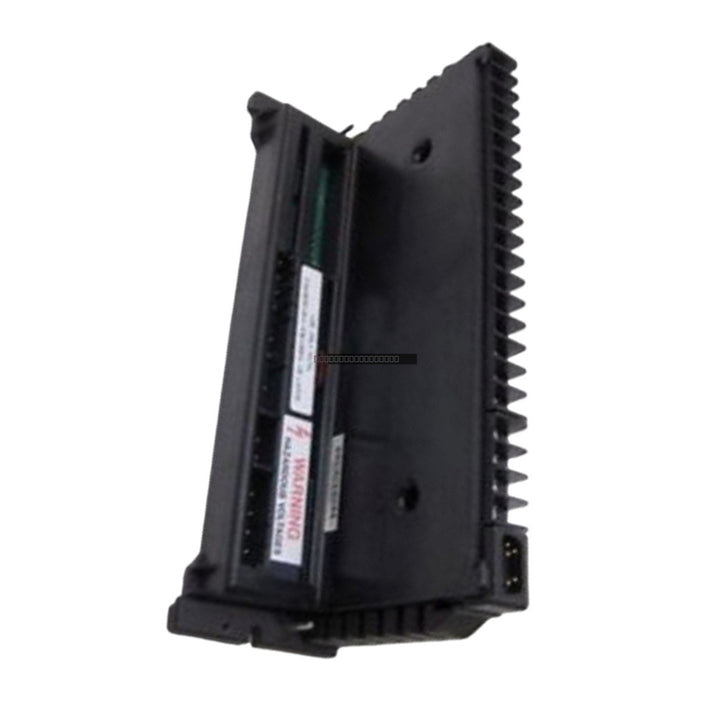

General Electric IC660TBA105 Genius I/O Terminal Assembly

General Electric IC660TBA105 Genius I/O Terminal Assembly

The General Electric IC660TBA105 is a terminal assembly designed for the Genius I/O system. This component provides the necessary physical interface for connecting field wiring to the Genius I/O block,...

20 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC660TBA105
Vendor: General Electric
Category: Terminal Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC660TBA105 is a terminal assembly designed for the Genius I/O system. This component provides the necessary physical interface for connecting field wiring to the Genius I/O block, ensuring reliable signal transmission and power distribution within the industrial control network.

Features

  • Designed specifically for compatibility with the GE Genius I/O product series.
  • Supports six current-source output configurations.
  • Robust construction for industrial environments with 1500 Volts block-to-block isolation.
  • Rated for 115 Volts AC or 125 Volts DC operation.
  • Maximum heat dissipation of 12 Watts under full load conditions.

Technical Specifications

Part Number IC660TBA105
Block Type Six current-source outputs
Rated Voltage 115 VAC / 125 VDC
Voltage Range 93-132 VAC / 105-145 VDC
Max Current (AC) 250 mA
Max Current (DC) 140 mA
Frequency/Ripple 47-63 Hz / 10% max ripple
Isolation 1500 Volts (1 minute)
Dropout Time 1 cycle (AC) / 10 ms (DC)
Heat Dissipation 12 Watts

Installation Guidelines

  • Ensure all power is disconnected from the I/O block before installing or removing the terminal assembly.
  • Verify that the terminal assembly is securely seated on the Genius I/O block to prevent intermittent contact or signal loss.
  • Route field wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Use appropriate wire gauges and torque settings as specified in the Genius I/O system manual to ensure secure connections.
  • Maintain adequate ventilation around the block to stay within the 12-Watt heat dissipation limits.

FAQ

What is the primary function of the IC660TBA105?
The IC660TBA105 serves as the terminal assembly for a Genius I/O block, facilitating the connection between field devices and the I/O module electronics.

Can this module be used with DC power?
Yes, it is rated for 125 Volts DC operation, with a specific voltage range of 105 to 145 Volts DC.

What is the isolation rating for this assembly?
The unit provides 1500 Volts of block-to-block isolation for a duration of 1 minute.
