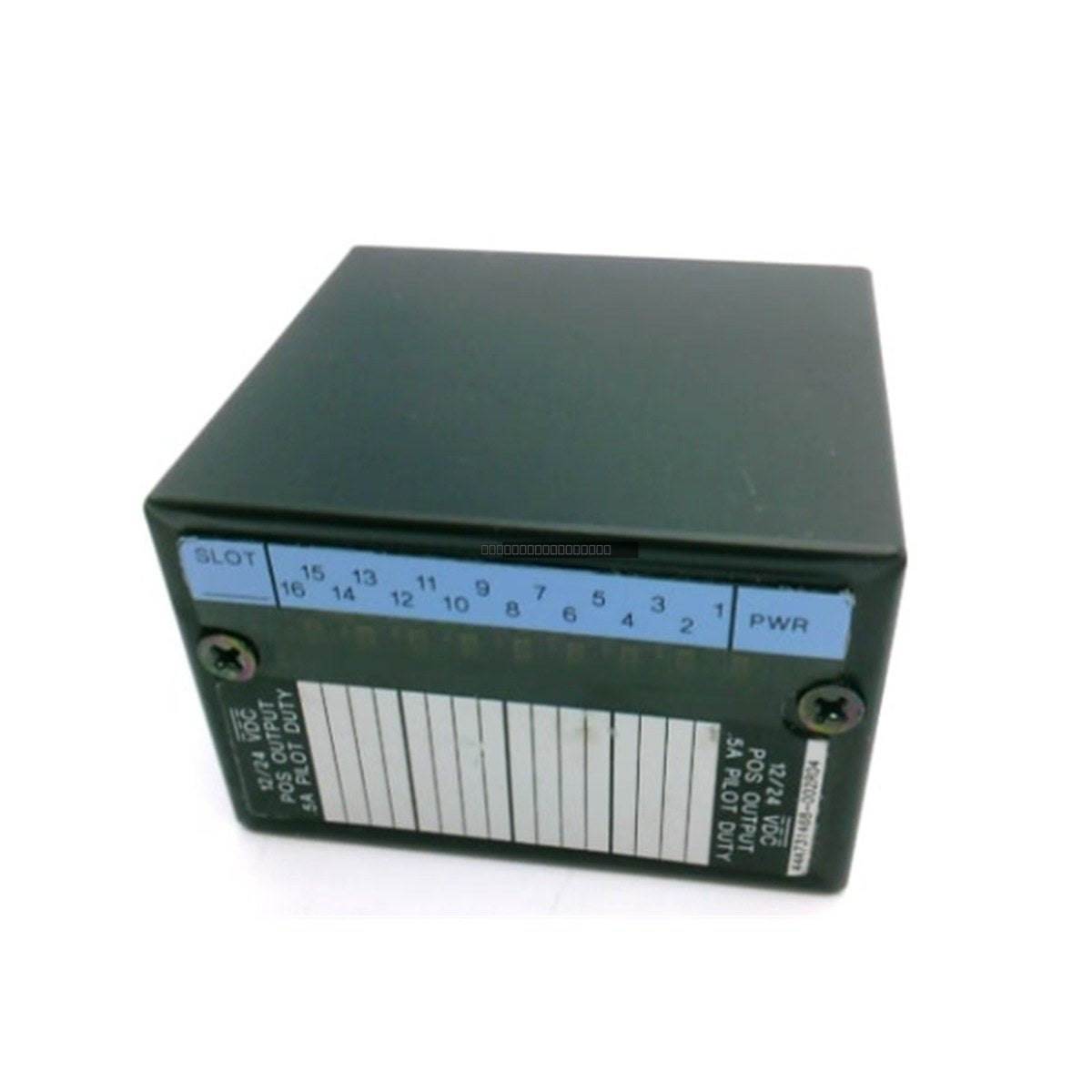

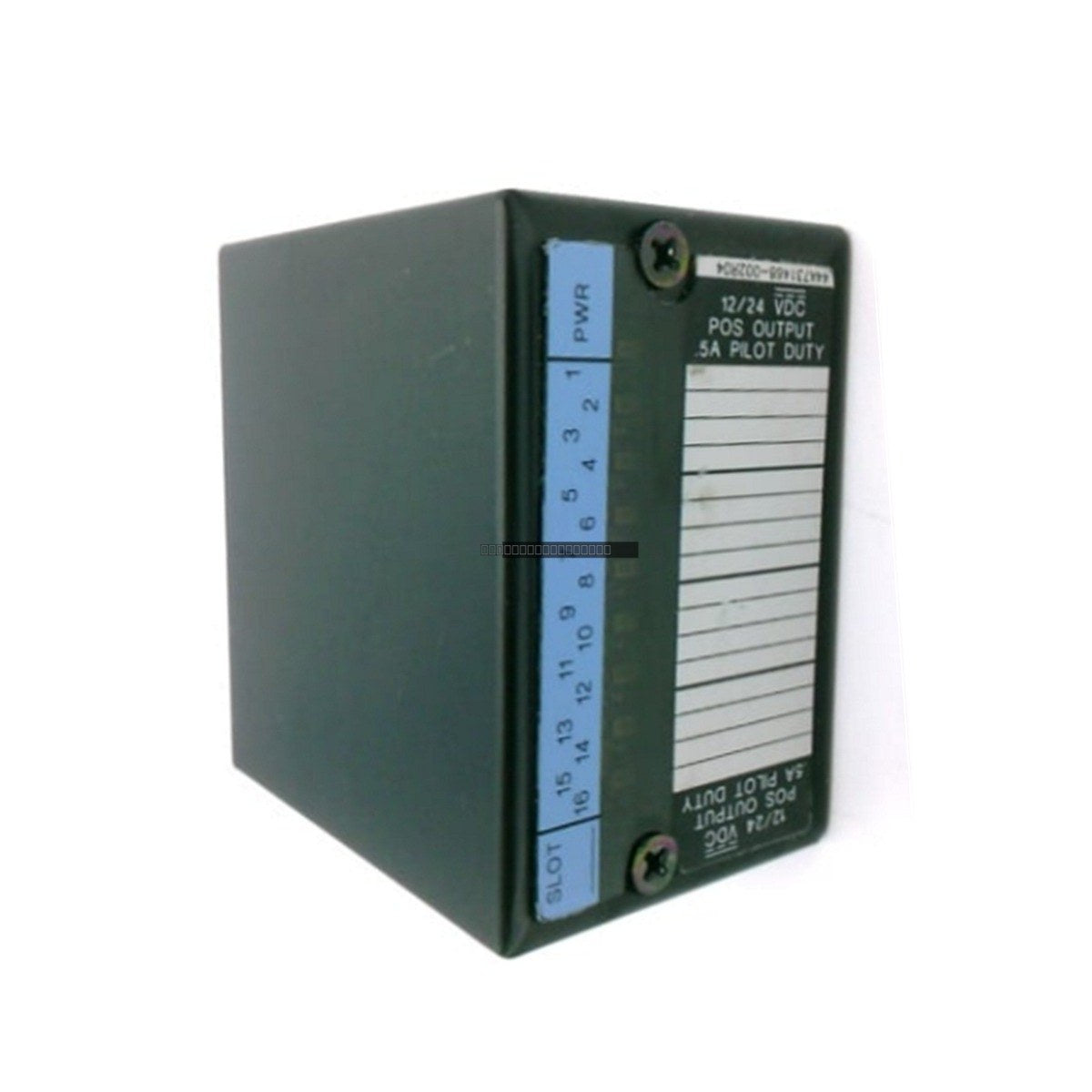

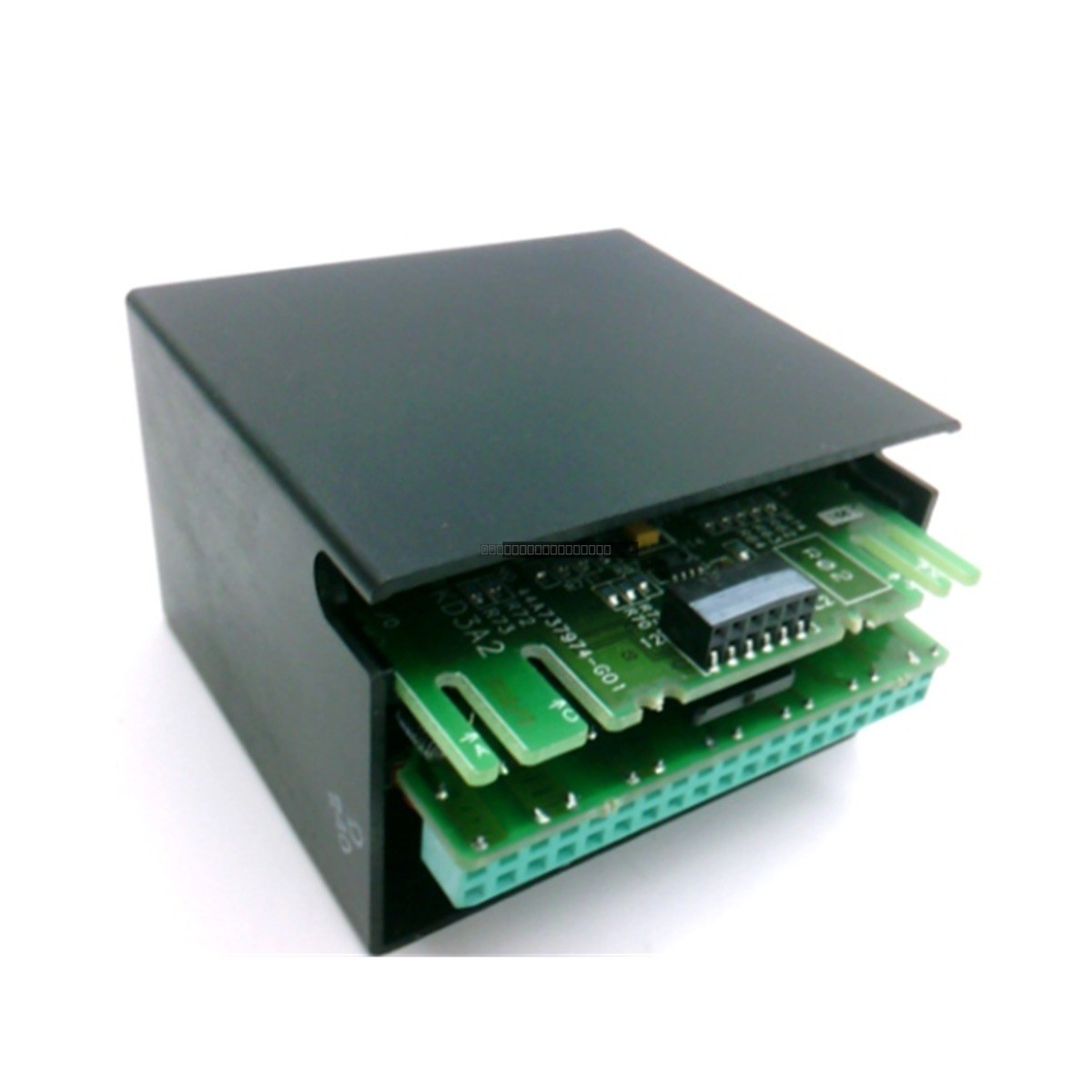

General Electric IC670MDL740 Field Control 16-Point Discrete Output Module

General Electric IC670MDL740 Field Control 16-Point Discrete Output Module

The General Electric IC670MDL740 is a 16-point discrete output module, engineered as part of the Field Control I/O series. This module provides 16 positive logic (sourcing) output channels, designed to...

23 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC670MDL740
Vendor: General Electric
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC670MDL740 is a 16-point discrete output module, engineered as part of the Field Control I/O series. This module provides 16 positive logic (sourcing) output channels, designed to interface with 24VDC control systems. It is optimized for distributed I/O applications, offering a compact footprint and reliable switching for industrial automation tasks.

Features

  • 16-point positive logic output configuration.
  • Operating voltage range: 10-30 VDC (24 VDC nominal).
  • Maximum load current capacity of 0.5 Amps per point.
  • Integrated status LED indicators for individual output channel monitoring.
  • Bus Interface Unit (BIU) compatible for modular expansion.
  • DIN-rail mountable design for efficient cabinet space utilization.
  • Integrated 25-terminal block supporting AWG #14 to #22 wire gauges.

Applications

  • Actuator and solenoid valve control in fluid or pneumatic systems.
  • Driving interposing relay coils for high-power load switching.
  • Powering pilot lamps and visual status indicators on control panels.
  • Integration into distributed I/O architectures for machine and process automation.

Technical Specifications

Model IC670MDL740
Output Type Discrete (Positive Logic)
Number of Points 16
Voltage Range 10-30 VDC
Current per Point 0.5 A Max
Total Module Current 4.0 A Max
Current Draw (from BIU) 111 mA
Response Time 200 microseconds (at 0.5 A resistive)
Isolation 1500 VAC (1 min) / 250 VAC (continuous)
Fuse Protection 5 A, 250 V (5x20mm) slow-acting

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the DIN-rail.
  • Verify that the BIU power supply matches the 111 mA current draw requirement.
  • Use appropriate wire gauges (AWG #14-22); ensure terminal screws are tightened to secure connections.
  • Maintain proper clearance for ventilation to prevent overheating in dense rack configurations.
  • Follow standard ESD (Electrostatic Discharge) mitigation practices when handling the module circuitry.
  • Confirm the positive logic configuration matches your field device requirements before energizing.

FAQ

Is the IC670MDL740 still supported?

While this unit may be designated as End-of-Life (EOL) by the manufacturer, it remains a functional component in many legacy GE Field Control systems. We continue to provide access to these modules for maintenance and system support.

Can I use this module for AC loads?

No, the IC670MDL740 is specifically a DC output module (10-30 VDC). For applications requiring AC load switching, consider the IC670MDL930 relay module.

What should I do if my load exceeds 0.5A?

If your specific application requires higher current, please refer to the IC670MDL742 (1.0A per point) or the IC670MDL730 (2.0A per point) modules for compatibility.
