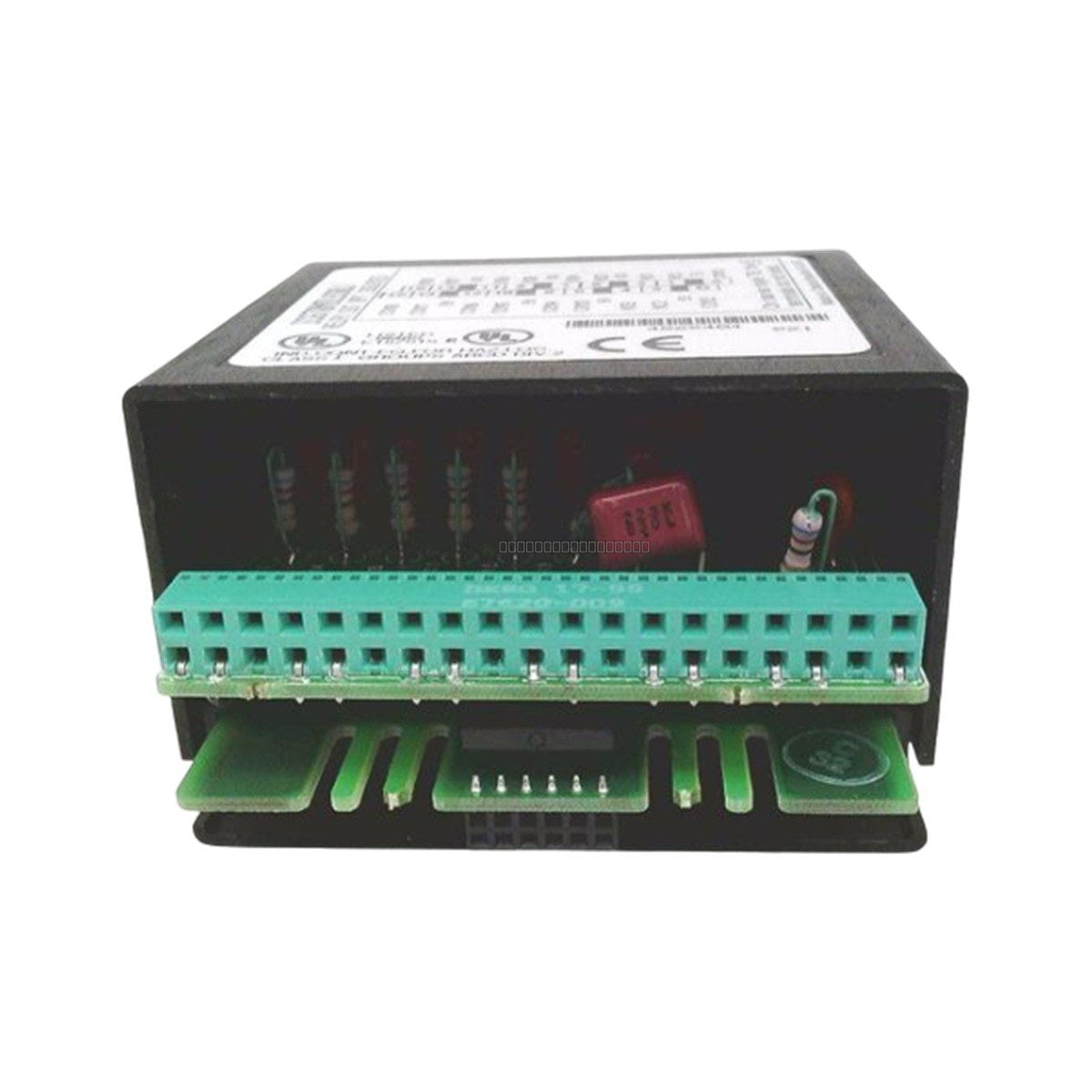

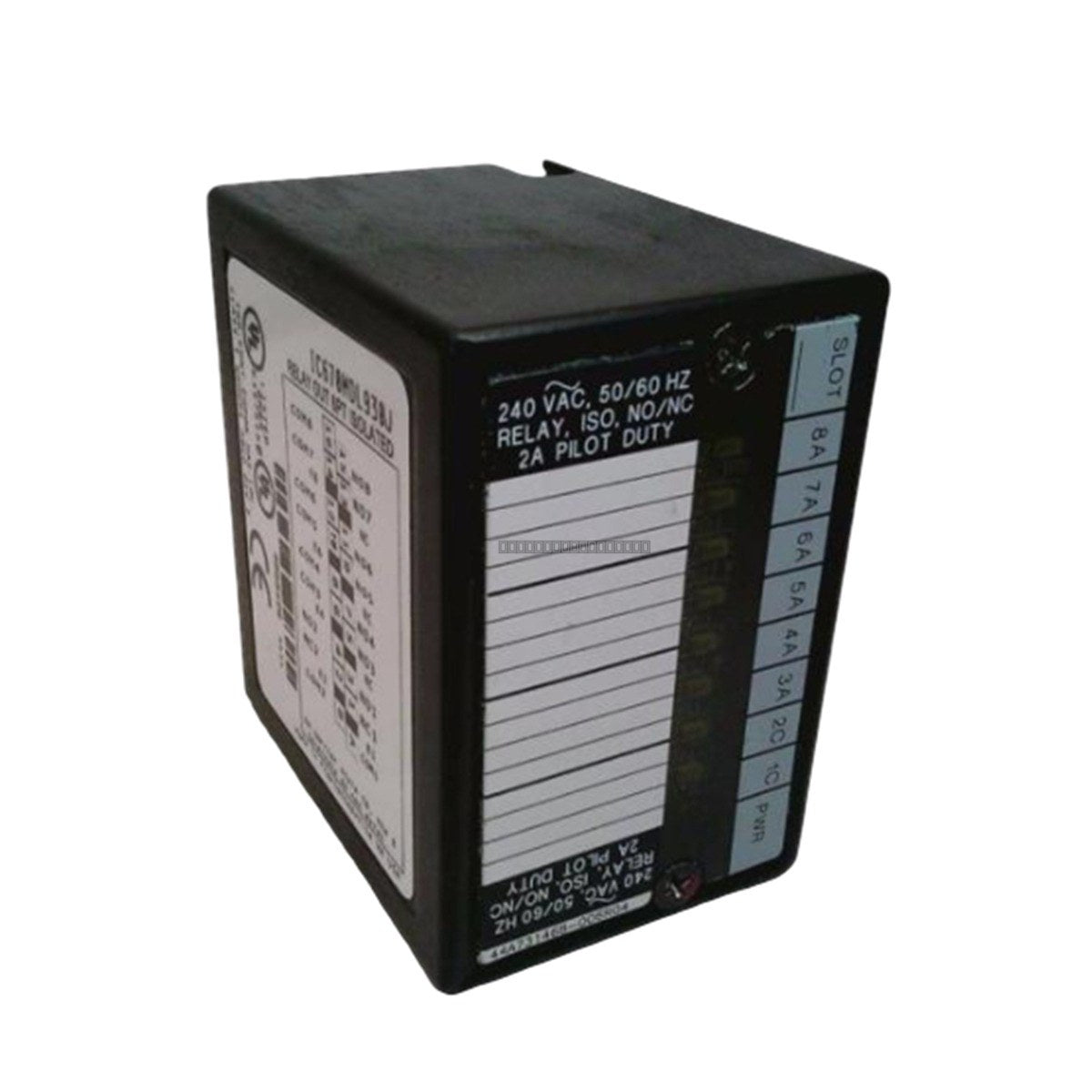

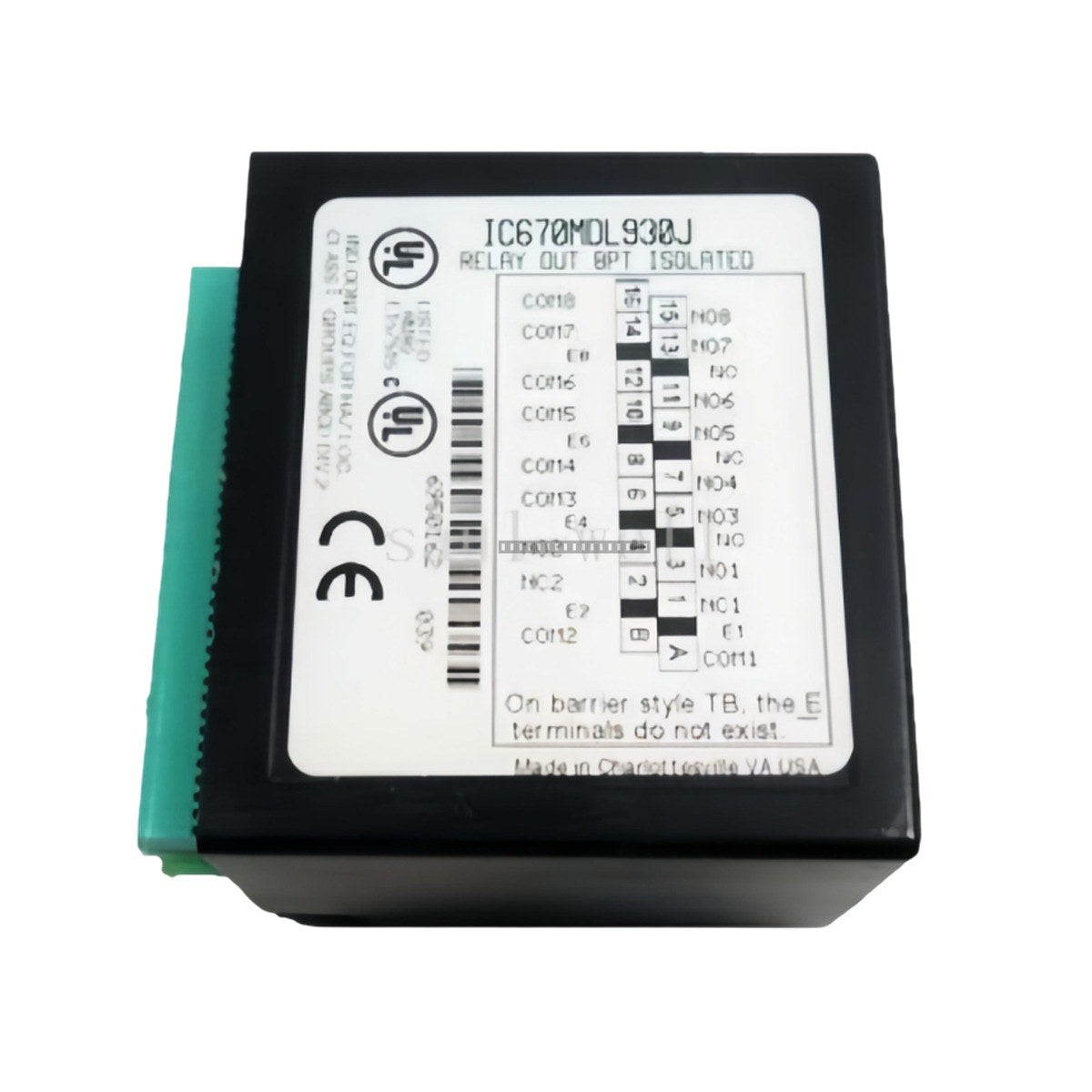

General Electric IC670MDL930 Field Control Discrete Output Module

General Electric IC670MDL930 Field Control Discrete Output Module

The IC670MDL930 is a Field Control discrete output module manufactured by General Electric (GE Fanuc). This module is designed to provide reliable relay-based output switching for industrial automation systems, featuring...

27 people are viewing this right now

Availability: Low stock: 2 left

SKU: IC670MDL930
Vendor: General Electric
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The IC670MDL930 is a Field Control discrete output module manufactured by General Electric (GE Fanuc). This module is designed to provide reliable relay-based output switching for industrial automation systems, featuring eight independent relay output channels.

Features

  • Eight (8) relay output channels with fixed coil, moving armature design.
  • Silver alloy contact material for consistent performance.
  • Integrated LED indicators for individual channel status and module power monitoring.
  • Supports a wide range of operating voltages including 5/24/125 VDC and 120/240 VAC.
  • Built-in snubber protection for relay contacts.

Technical Specifications

Model IC670MDL930
Number of Channels 8
Voltage Range 0-130 VDC, 0-265 VAC
Max Load Current (Resistive) 16 A per module
Switching Frequency 20 cycles/minute
Current Draw (from BIU) 313 mA
Max Inrush Current 5 A for 20 ms
Min Load Current 10 mA per point
Frequency Range 47-63 Hz

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the Field Control station.
  • The module should be seated firmly into the designated base unit to ensure proper backplane communication.
  • Verify that the load connected to each output does not exceed the specified current ratings for the respective voltage levels.
  • Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
  • Ensure all wiring is routed away from high-EMI sources to prevent signal interference.
  • Use appropriate shielded cabling where required by the specific application environment.

FAQ

What type of relay is used in the IC670MDL930?

This module utilizes a fixed coil, moving armature relay design with silver alloy contacts.

Does this module include integrated circuit protection?

The module features snubber protection for the relay contacts; however, it does not include internal fuses.

What is the maximum switching frequency for this module?

The IC670MDL930 is rated for a maximum switching frequency of 20 cycles per minute.
