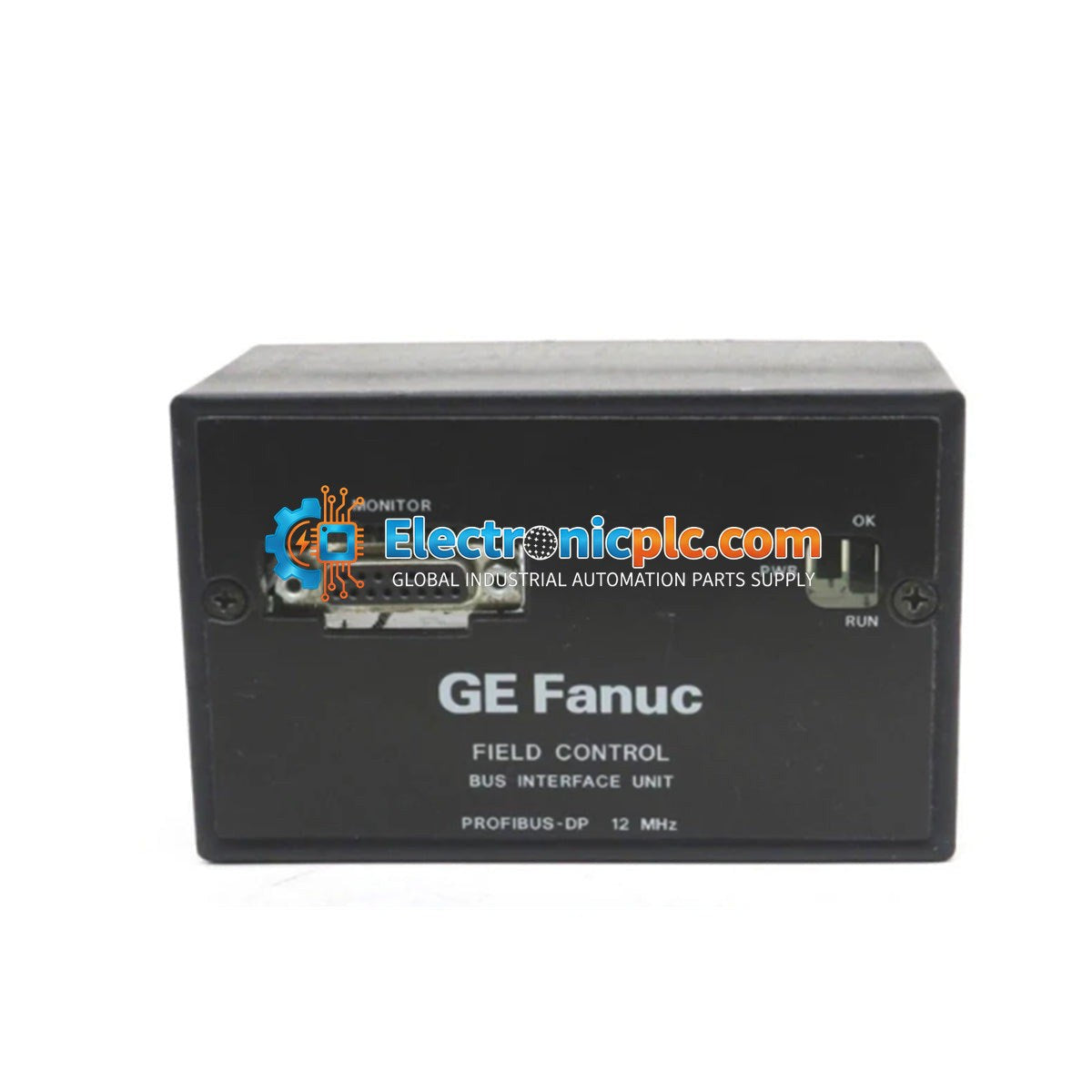

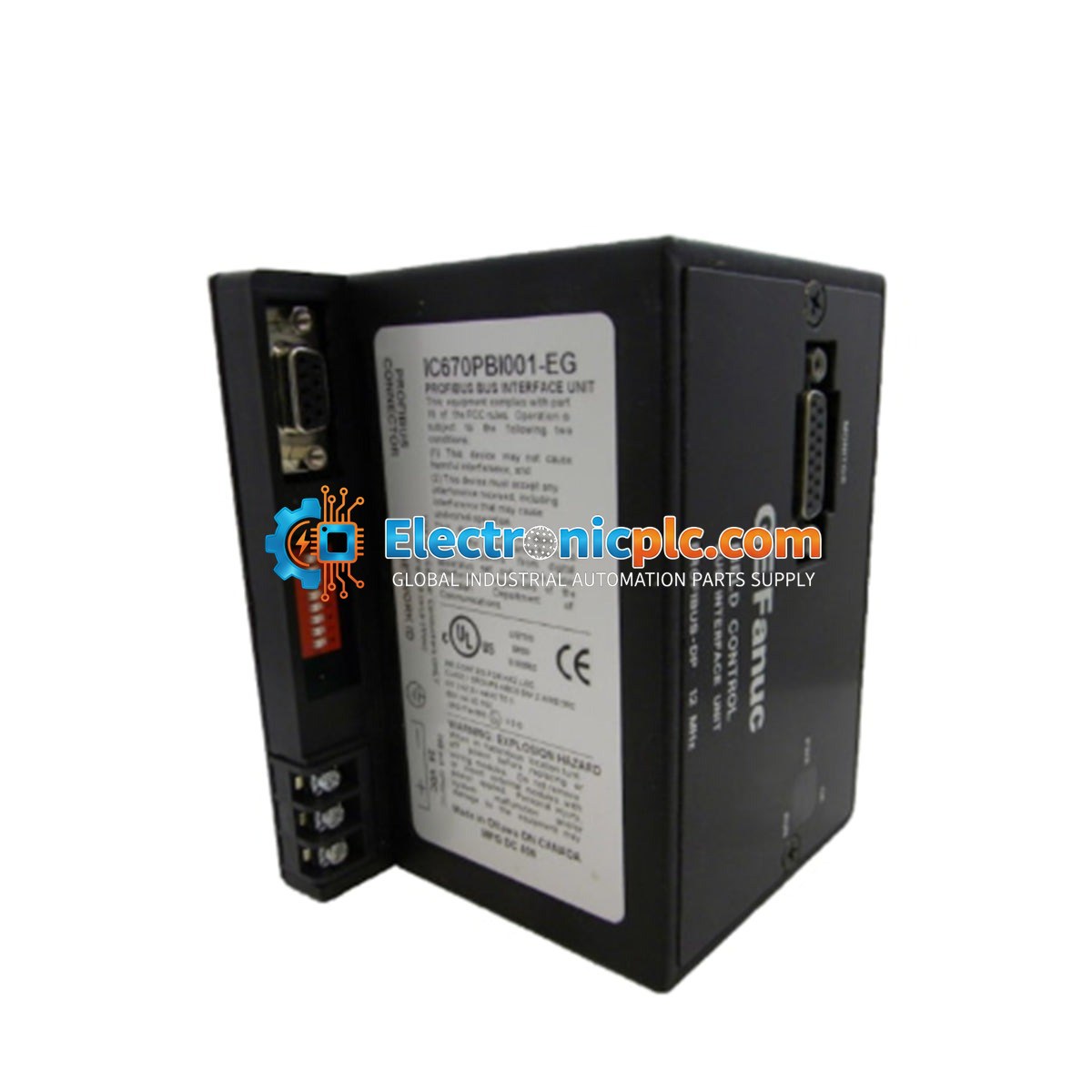

General Electric IC670PBI001 Field Control Profibus Bus Interface Unit

General Electric IC670PBI001 Field Control Profibus Bus Interface Unit

Description

The General Electric IC670PBI001 is a Profibus Bus Interface Unit (BIU) designed for the Field Control series. This module serves as the communication gateway between a Profibus-DP network and the...

15 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC670PBI001
Vendor: General Electric
Category: Profibus Bus Interface Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC670PBI001 is a Profibus Bus Interface Unit (BIU) designed for the Field Control series. This module serves as the communication gateway between a Profibus-DP network and the local Field Control I/O station. It manages data exchange, diagnostics, and configuration parameters for up to eight I/O modules connected within the same station.

Features

  • Supports standard Profibus-DP communication protocols.
  • Integrated support for up to eight (8) Field Control I/O modules.
  • Configurable addressing via embedded DIP switches.
  • Diagnostic status LEDs for Power (PWR), Run, and OK status.
  • Wide transmission speed range from 9.6 Kbits up to 12 Mbits.
  • Robust MTBF of 180,000 hours for industrial reliability.

Technical Specifications

Model IC670PBI001
Input Voltage 24 VDC (18-30 VDC range)
Power Consumption 7.7 W (Input), 4.45 W (Dissipation)
Profibus Ports 1 x 9-pin D-sub
Programmer Port 1 x 9-pin D-sub
Network Medium Shielded twisted pair
Operating Temperature 0 to 55 degC
Holdup Time 10 ms maximum

Installation Guidelines

  • Ensure the power supply is disconnected before mounting or removing the module from the DIN rail or panel.
  • The module supports DIN rail or panel mounting via the BIU terminal block.
  • Use shielded twisted pair cabling for Profibus connections to minimize EMI interference.
  • Maintain proper ventilation within the cabinet to ensure the ambient temperature remains within the 0-55 degC operating range.
  • Handle with standard ESD precautions to prevent damage to internal circuitry.

FAQ

What is the primary function of the IC670PBI001?

The IC670PBI001 acts as a communication interface that allows a Profibus master to control and monitor up to eight Field Control I/O modules.

How is the station address configured?

The station address is set manually using the embedded DIP switches located on the module.

What type of cable is required for the Profibus network?

The unit is designed for use with shielded twisted pair cabling to ensure signal integrity across the Profibus segment.
