Description

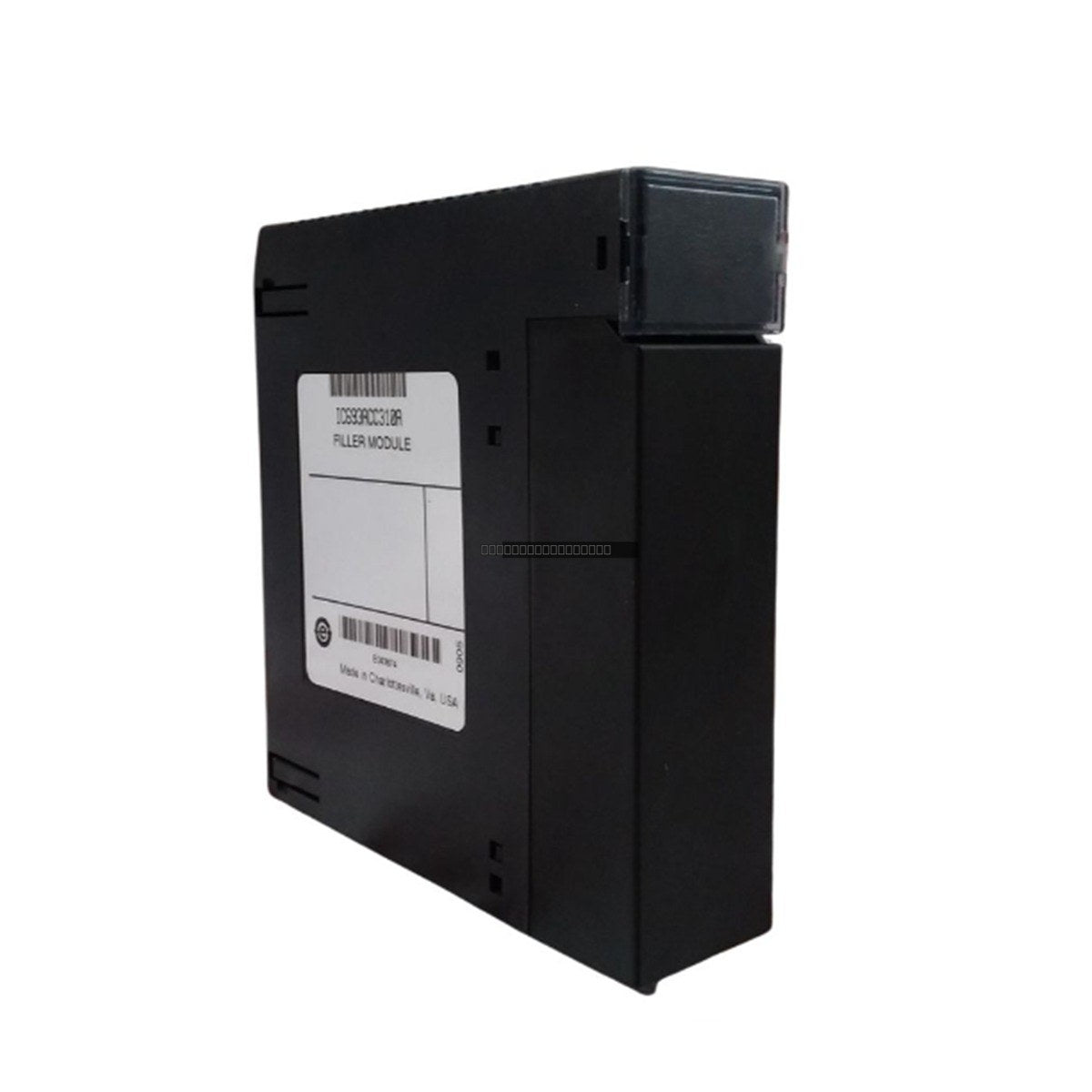

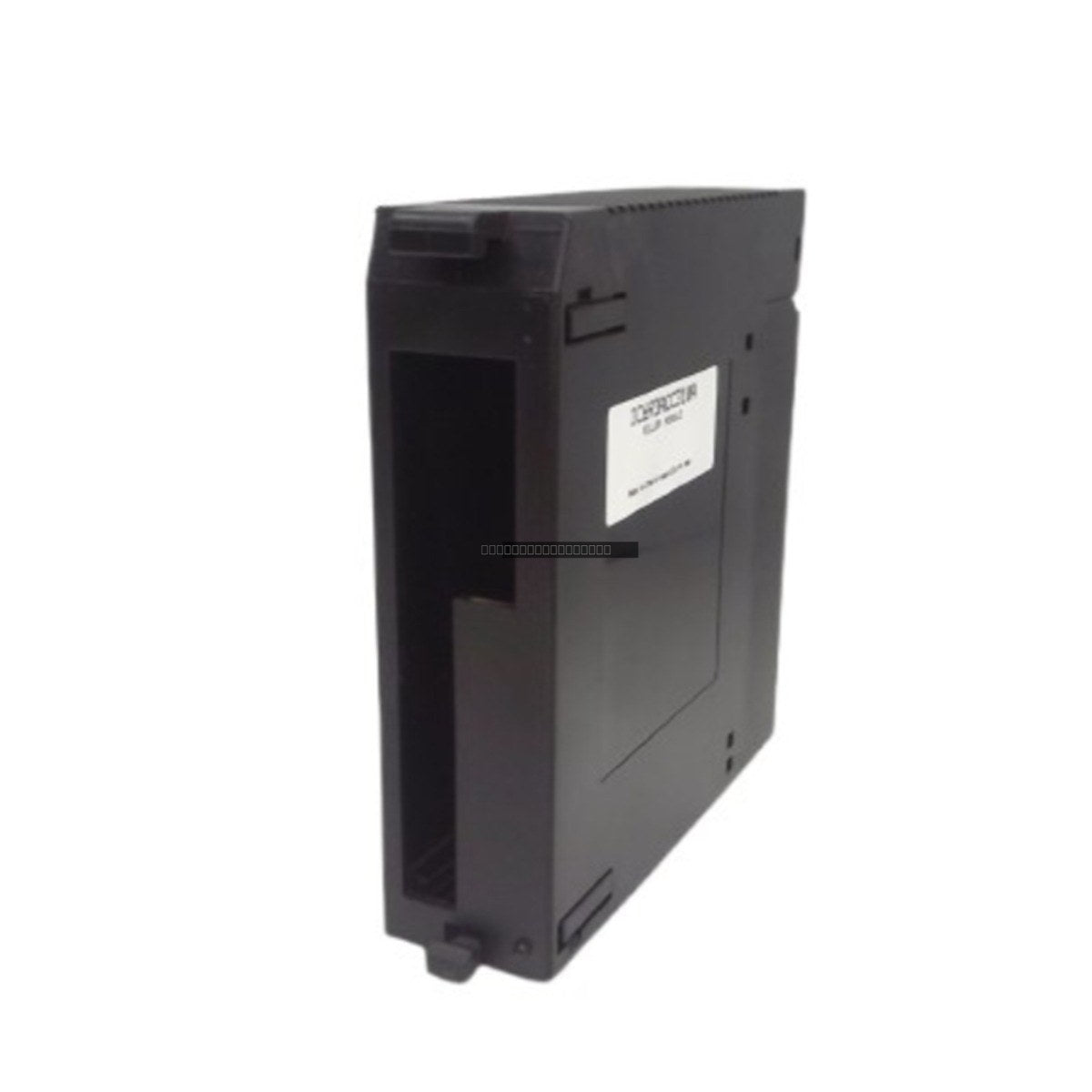

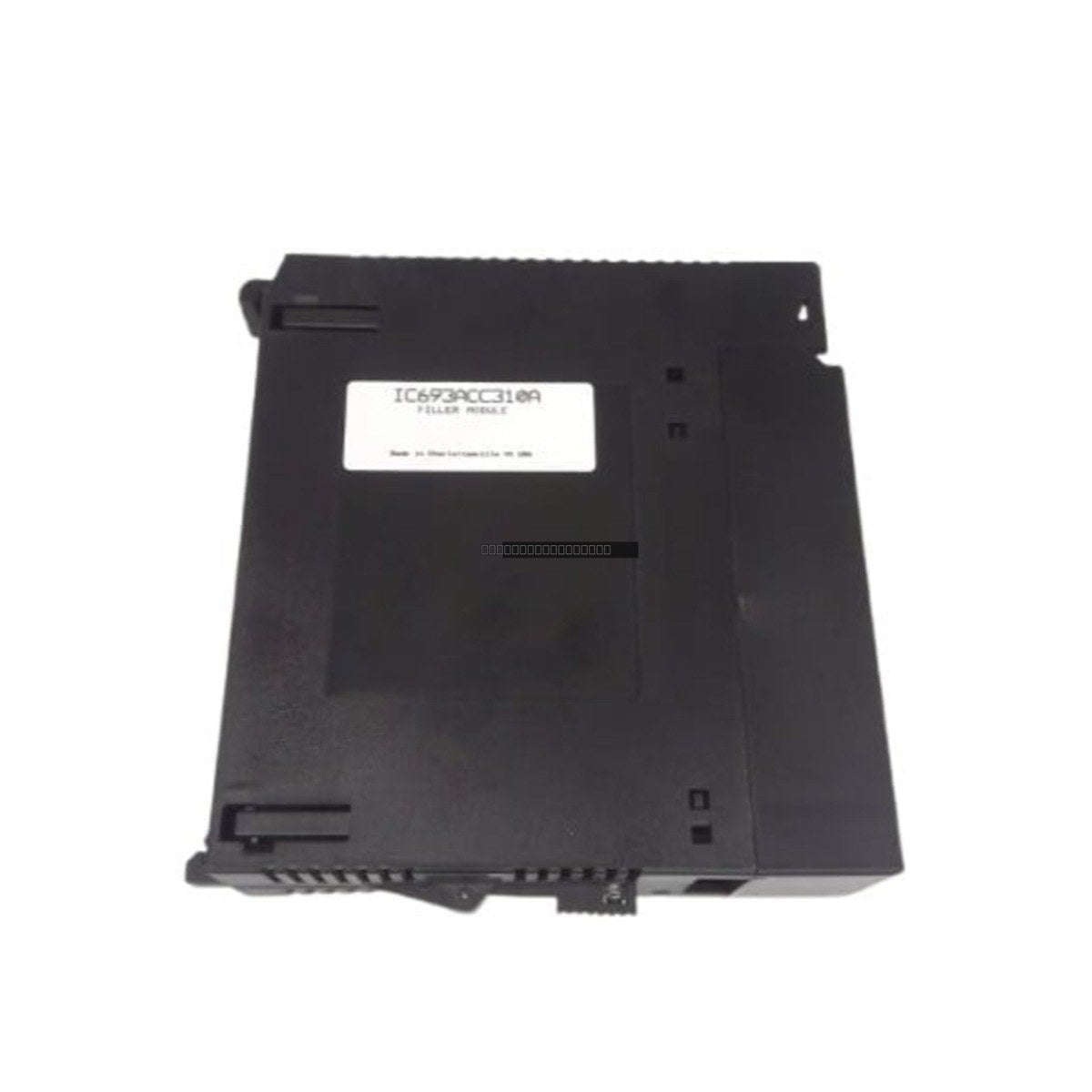

The GE Fanuc IC693ACC310 is a single-slot filler module designed for use within the Series 90-30 PLC system. This component serves as a protective slot cover to maintain the structural integrity and environmental protection of the PLC rack when a specific slot is not occupied by an active I/O or processor module. By filling empty slots, the module ensures proper airflow management and prevents the ingress of dust or debris into the backplane connectors.

Features

• Designed specifically for the GE Fanuc Series 90-30 PLC platform.
• Occupies a single slot width in any standard Series 90-30 rack.
• Compatible with local, expansion, remote, and distributed I/O racks.
• Provides essential protection for backplane pins and internal components.
• Facilitates organized rack layout and maintains system aesthetics.

Applications

This filler module is utilized in industrial automation environments where Series 90-30 controllers are deployed, including manufacturing lines, process control systems, and training simulators. It is required for any unused rack slots to ensure the rack assembly remains compliant with environmental and safety standards.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing any modules.
• Align the filler module with the desired empty slot guide rails on the Series 90-30 rack.
• Slide the module into the rack until it is fully seated against the backplane.
• Use the integrated locking mechanism or screws to secure the module to the rack frame to prevent accidental dislodgement.
• Maintain proper ventilation by ensuring all empty slots are covered to direct cooling air through the active modules.

FAQ

Is the IC693ACC310 an active communication module?

No, the IC693ACC310 is a passive filler module (slot cover). It does not provide Profibus or Ethernet communication capabilities; its primary function is to cover empty slots in the Series 90-30 rack system.

Can this module be used in any Series 90-30 rack?

Yes, this module is compatible with all Series 90-30 local, expansion, remote, and distributed I/O racks.
