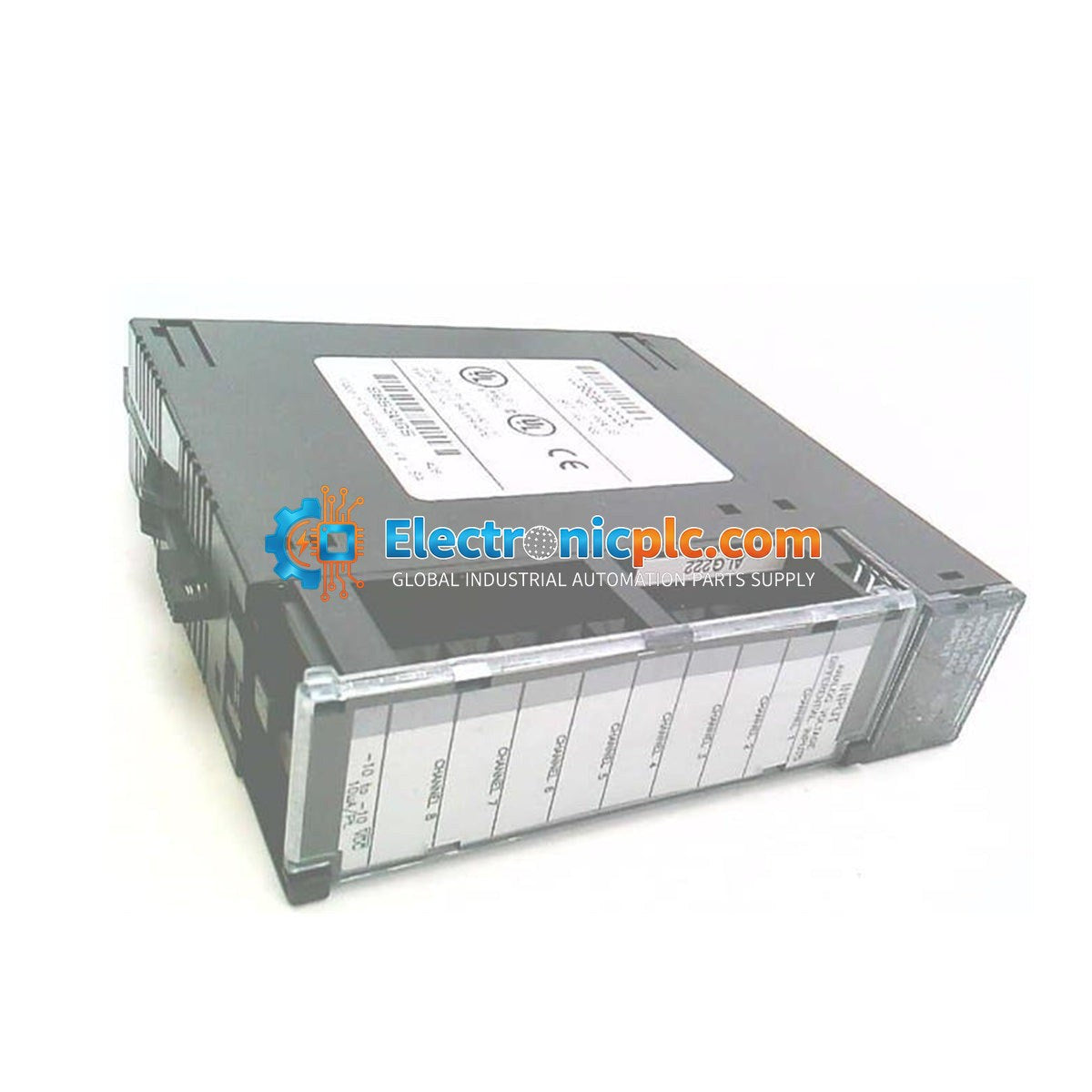

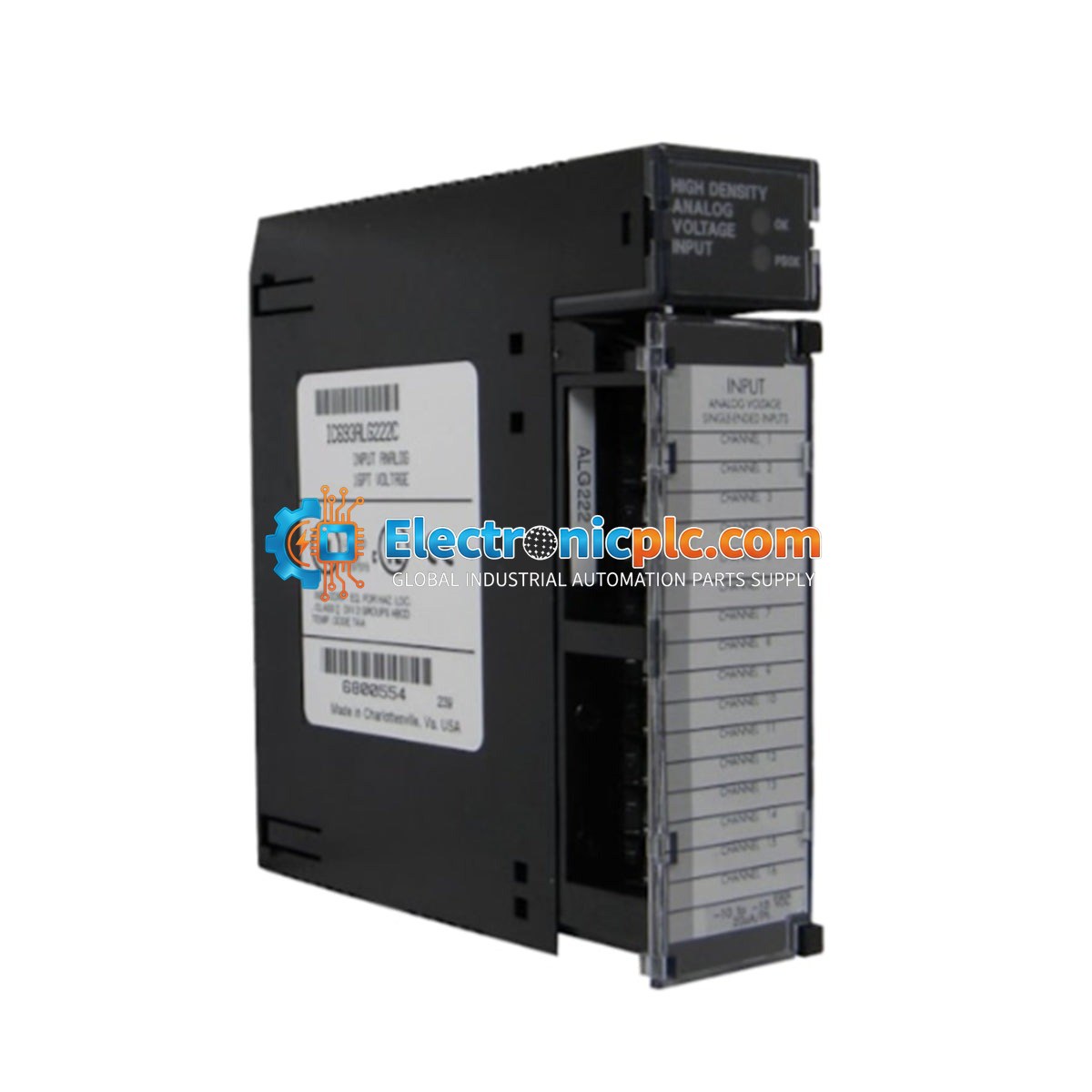

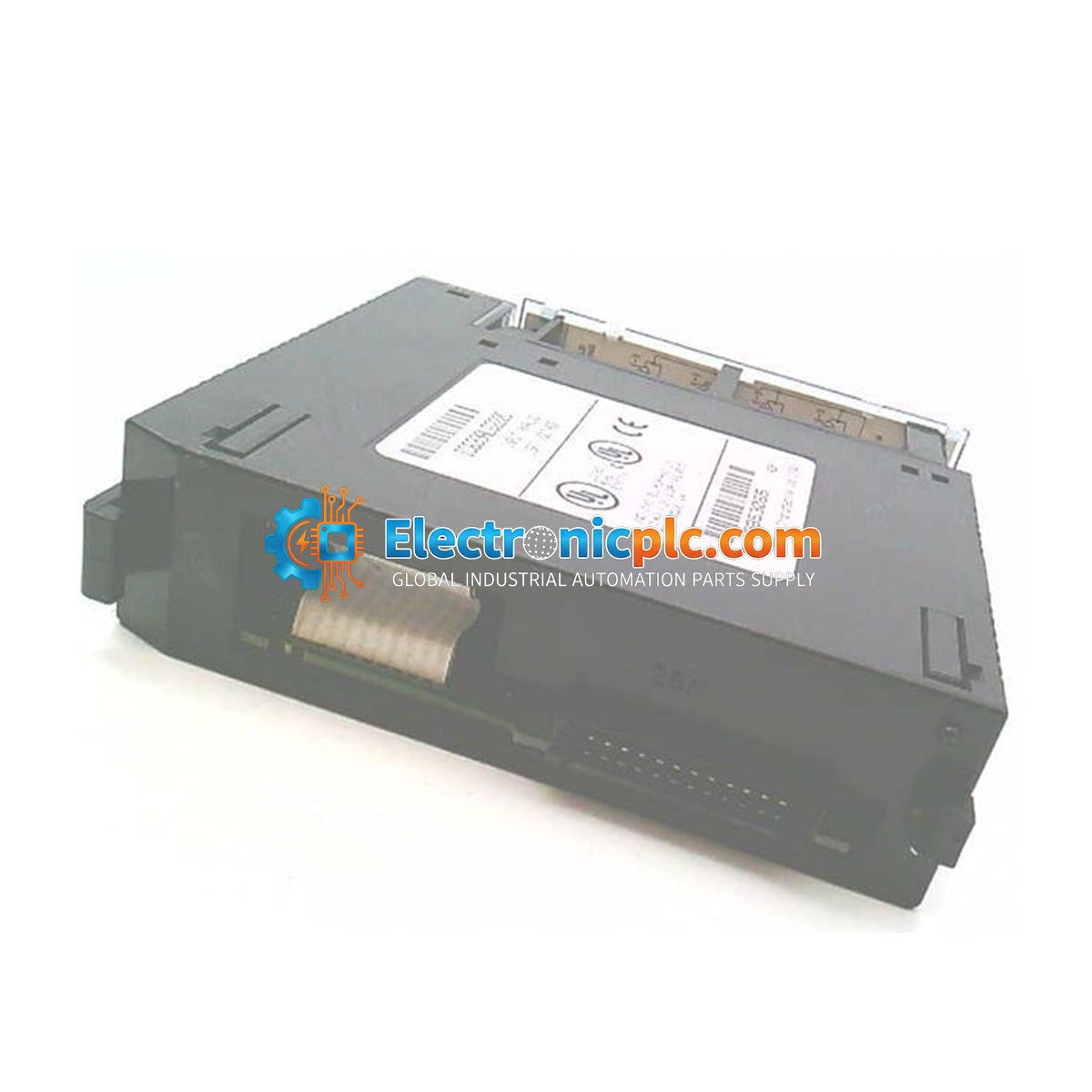

General Electric IC693ALG222 Series 90-30 Analog Voltage Input Module

General Electric IC693ALG222 Series 90-30 Analog Voltage Input Module

Description

The General Electric IC693ALG222 is a high-performance analog voltage input module designed for the Series 90-30 PLC system. This module provides 16 channels of analog-to-digital conversion, allowing for flexible integration...

21 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC693ALG222
Vendor: General Electric
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC693ALG222 is a high-performance analog voltage input module designed for the Series 90-30 PLC system. This module provides 16 channels of analog-to-digital conversion, allowing for flexible integration of voltage-based sensors and instrumentation into industrial control architectures. It supports both single-ended and differential input configurations, making it suitable for a wide range of process monitoring applications.

Features

  • 16-channel analog voltage input module for Series 90-30 PLC systems.
  • Configurable for 16 single-ended or 8 differential input channels.
  • Supports unipolar (0V to +10V) and bipolar (-10V to +10V) voltage ranges.
  • 12-bit A/D resolution with 4000-count scaling.
  • Optical isolation between field side and logic side for enhanced noise immunity.
  • Individual channel configuration via software (Proficy Machine Edition or LogicMaster).
  • Internal power conversion with diagnostic LED indicators for module and supply status.

Applications

  • Automotive: Robot position feedback and torque monitoring.
  • Food and Beverage: Tank level, flow, and conveyor speed monitoring.
  • Chemical/Pharmaceutical: Batch processing with precise temperature and pressure voltage inputs.
  • Water Treatment: Pressure, valve position, and level monitoring.
  • Power Generation: Turbine speed, fuel flow, and cooling temperature monitoring.

Technical Specifications

Model IC693ALG222
Channels 16 Single-ended or 8 Differential
Input Ranges 0V to +10V (Unipolar) / -10V to +10V (Bipolar)
Update Rate 6 ms (Single-ended) / 3 ms (Differential)
Resolution 2.5 mV (0-10V) / 5 mV (-10 to +10V)
Accuracy +/- 0.25% of full scale @ 25 degC
Isolation 1500V (Field to Logic)
Power Consumption 112 mA (+5V bus) / 41 mA (+24V isolated)

Installation Guidelines

  • The module is designed for installation in any standard I/O slot of a Series 90-30 baseplate.
  • Ensure the PLC system is powered down before inserting or removing the module to prevent electrical damage.
  • Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference.
  • Ground the cable shields at the source or the module end according to standard industrial grounding practices.
  • Configure channel parameters using Proficy Machine Edition or LogicMaster software after installation.
  • Verify the "MODULE OK" and "POWER SUPPLY OK" LEDs after power-up to confirm correct operation and field power status.

FAQ

What is the IC693ALG222?

The GE Fanuc IC693ALG222 is a 16-channel analog voltage input module for the Series 90-30 PLC system, designed to convert analog voltage signals into digital data for processing.

How are the channels configured?

Channels are configured on a per-channel basis using Proficy Machine Edition or LogicMaster software. You can select between single-ended or differential modes and define the voltage range (unipolar or bipolar) for each input.

Where is the data stored?

The module records converted signals in the %AI data table of the PLC memory.
