General Electric IC693ALG223 16-Channel Analog Current Input Module

General Electric IC693ALG223 16-Channel Analog Current Input Module

Description

The GE IC693ALG223 is a 16-channel analog current input module designed for the Series 90-30 PLC platform. This module serves as an interface between field instruments and the PLC, converting...

22 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC693ALG223
Vendor: General Electric
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

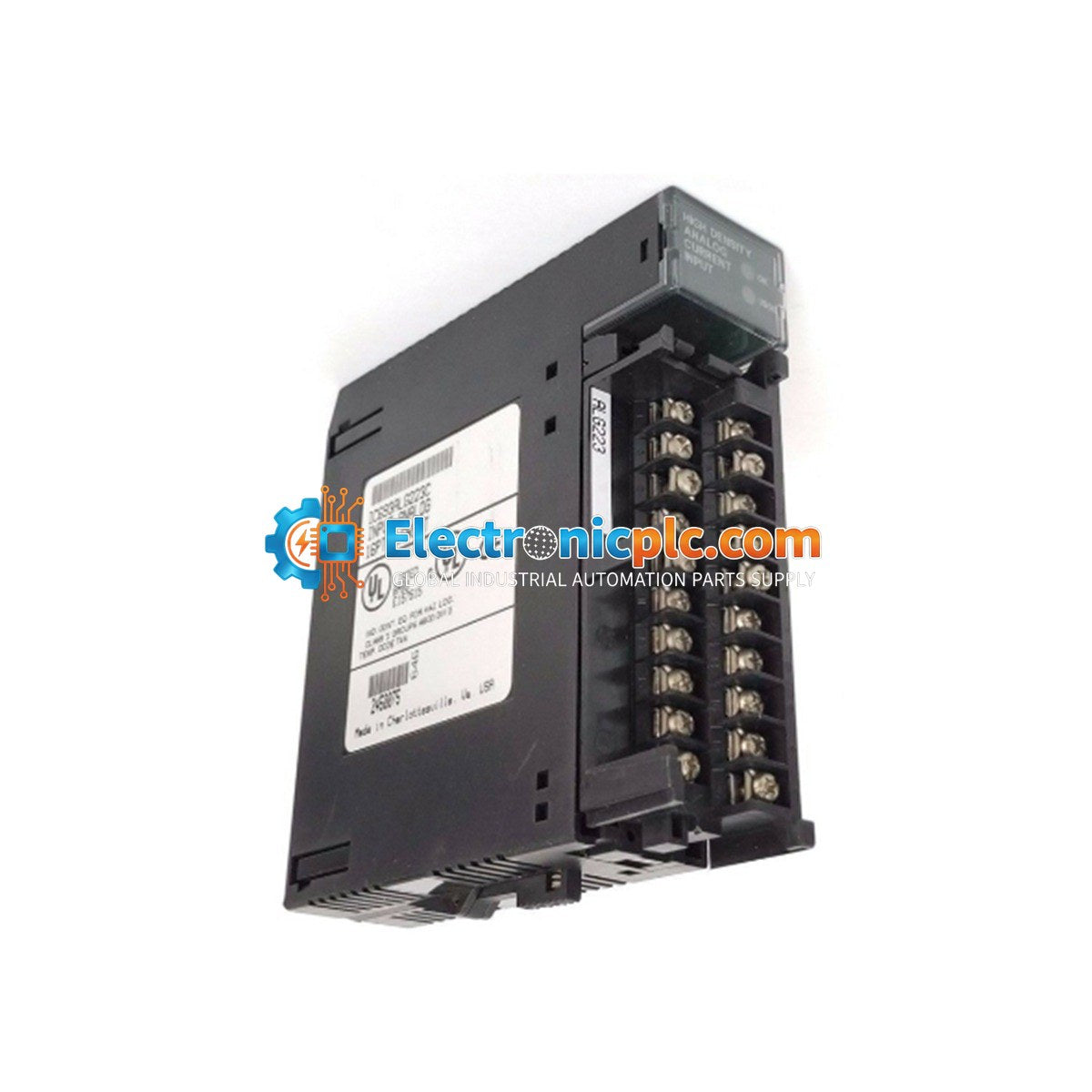

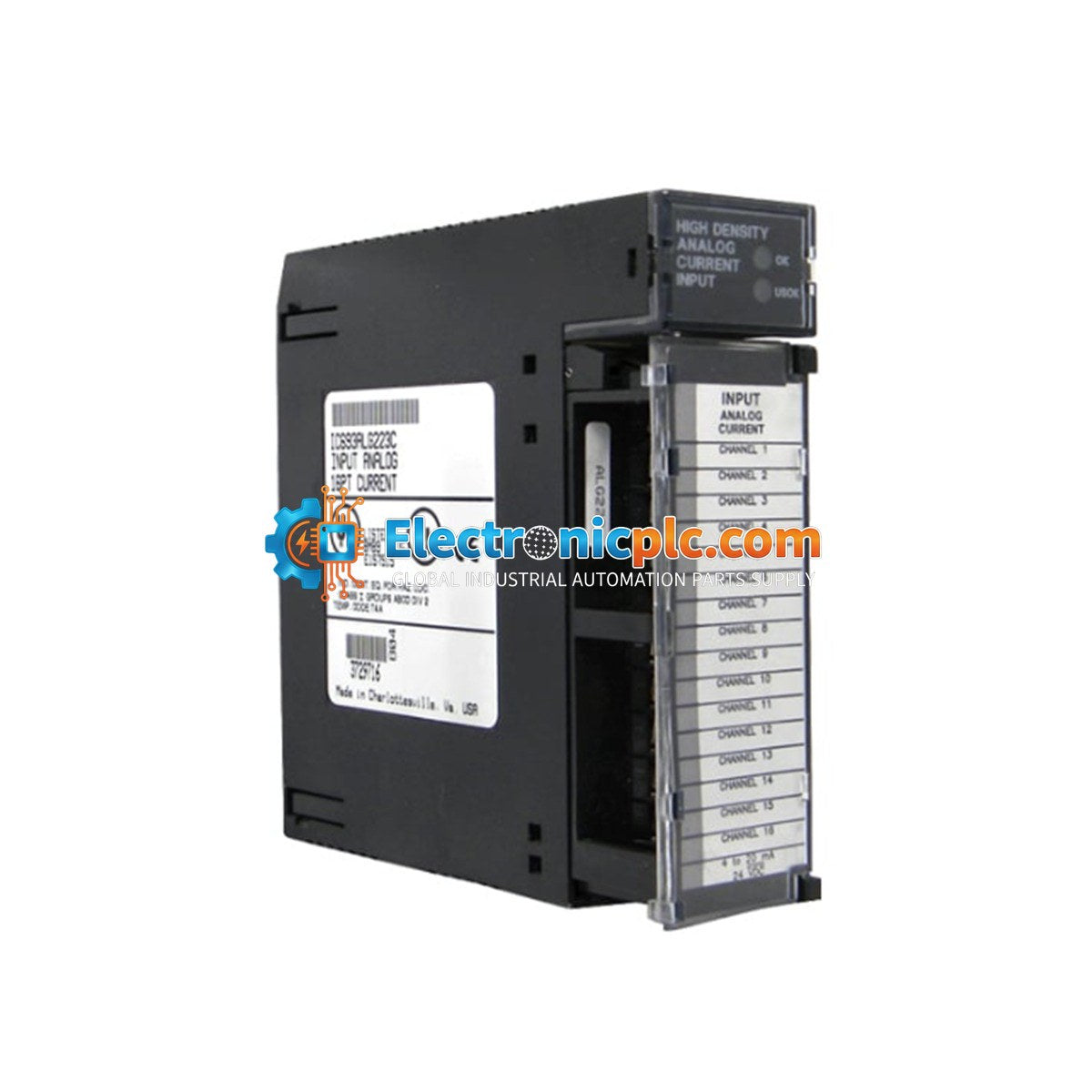

The GE IC693ALG223 is a 16-channel analog current input module designed for the Series 90-30 PLC platform. This module serves as an interface between field instruments and the PLC, converting analog current signals into digital values for processing. It supports 16 single-ended input channels, each independently configurable for 0–20 mA, 4–20 mA, or 4–20 mA Enhanced input ranges. It is widely utilized in process control, manufacturing, water treatment, and power generation applications.

Features

  • 16-channel single-ended analog current inputs
  • Configurable input ranges: 0–20 mA, 4–20 mA, and 4–20 mA Enhanced
  • 1500 VAC field-to-logic isolation for surge protection
  • Integrated 200 Hz low-pass input filtering
  • LED indicators for module status and external power monitoring
  • Compatible with Series 90-30 5-slot and 10-slot baseplates

Applications

  • Oil and gas: Monitoring pressure and temperature signals from pipelines
  • Water treatment: Monitoring water pressure and dissolved oxygen levels
  • New energy: Collection of environmental parameters for wind and solar systems
  • Building automation: Centralized sensor signal collection in HVAC systems

Technical Specifications

Product Model IC693ALG223
Number of Channels 16 (Single-ended)
Input Ranges 0-20 mA, 4-20 mA, 4-20 mA Enhanced
Resolution (4-20 mA) 4 microamps
Resolution (0-20 mA) 5 microamps
Input Impedance 250 ohms
Update Rate 13 ms (all channels)
Input Filter Response 200 Hz
External Power 24 VDC

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the module from the baseplate.
  • The module occupies a single slot in any Series 90-30 5-slot or 10-slot baseplate.
  • Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference.
  • Ensure proper grounding of the cable shields at the field instrument or the panel entry point.
  • Verify that the 24 VDC external power supply is correctly connected to the module terminals.
  • Handle with care using ESD-safe practices to prevent damage to internal circuitry.

FAQs

What is the difference between the IC693ALG223 and IC693ALG222?

The IC693ALG223 is designed specifically for current inputs (mA), whereas the IC693ALG222 is designed for voltage inputs (VDC).

What is the required external power for this module?

The module requires 120 mA from the +5 VDC backplane and 65 mA from a 24 VDC external user supply.

How many modules can be installed in a system?

The number of modules depends on the specific CPU model; for instance, Model 311/313/323 supports up to 4 modules, while larger systems like 351/352 support up to 51 modules.
