Description

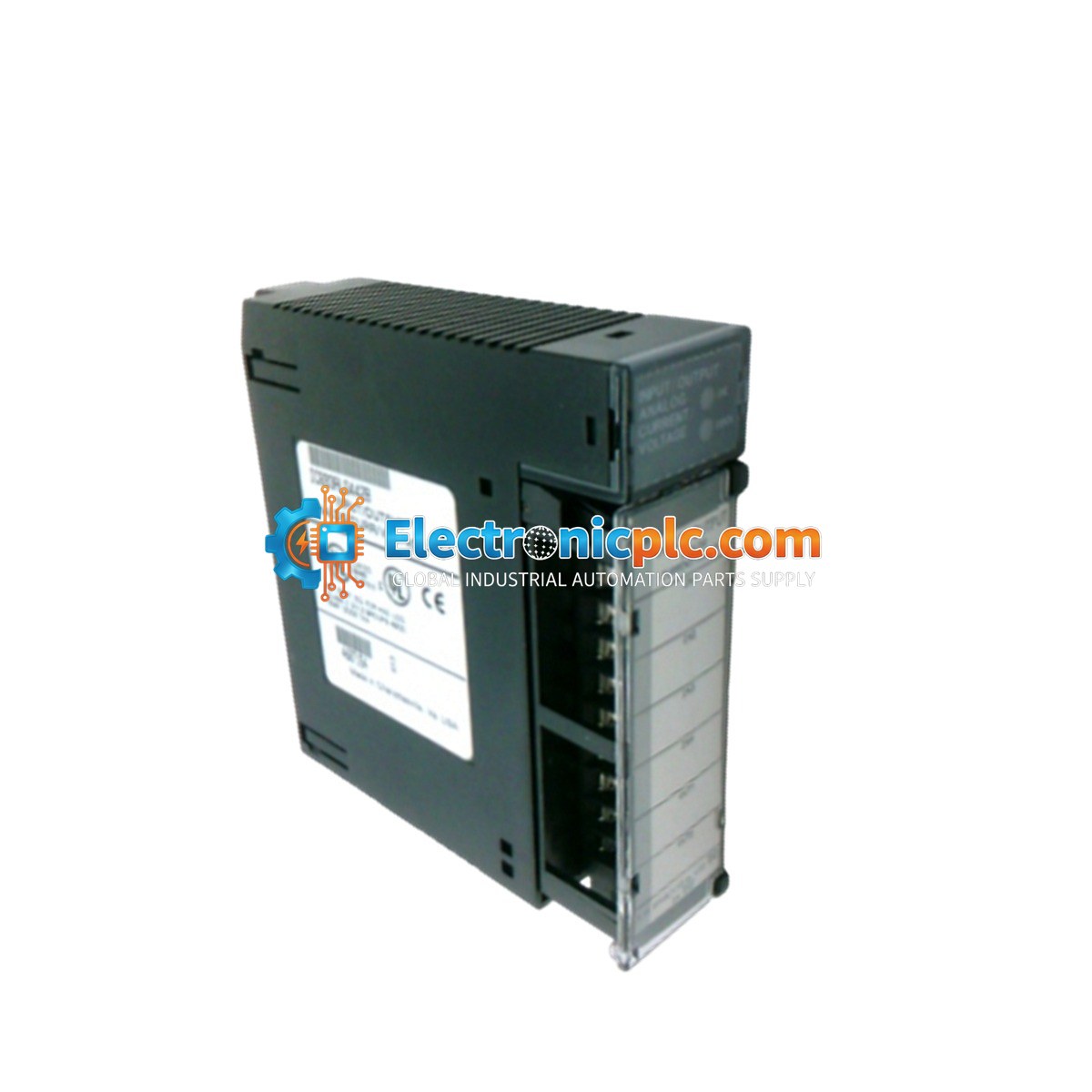

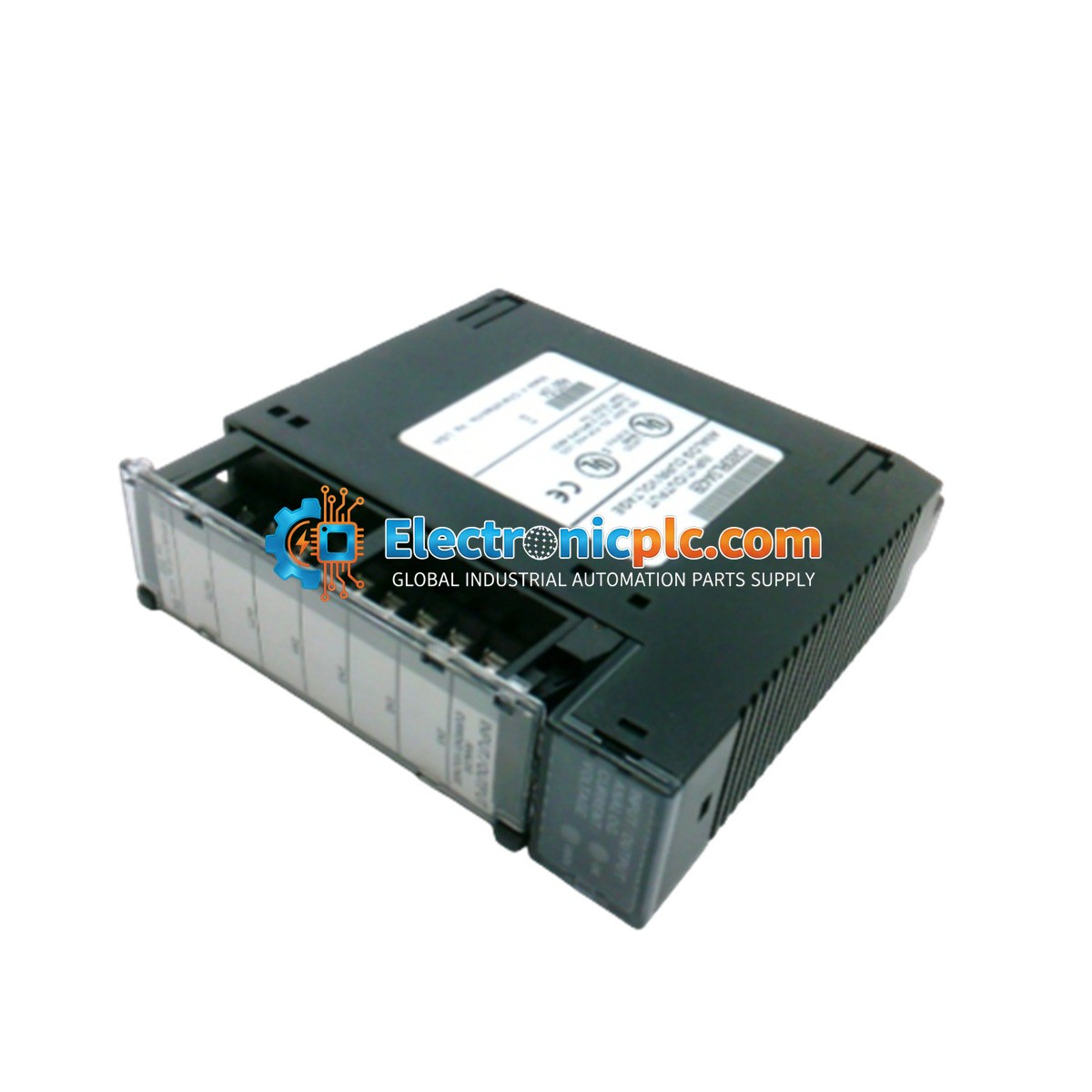

The General Electric IC693ALG442 is a high-performance analog combination module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This module provides versatile signal processing capabilities, featuring four differential input channels and two single-ended output channels. It is engineered to handle a wide variety of industrial process signals, including both voltage and current ranges, making it suitable for complex control loops and monitoring applications.

Features

• Four differential input channels with individual configuration.
• Two single-ended analog output channels.
• Supports unipolar (0 to +10V) and bipolar (-10 to +10V) voltage ranges.
• Supports 0-20mA and 4-20mA current ranges, including an enhanced 4-20mA mode for open-wire fault detection.
• 12-bit resolution for precise process control.
• Fast update rates: 8ms for inputs and 4ms for outputs.
• Configurable high and low alarm limits for all input channels.

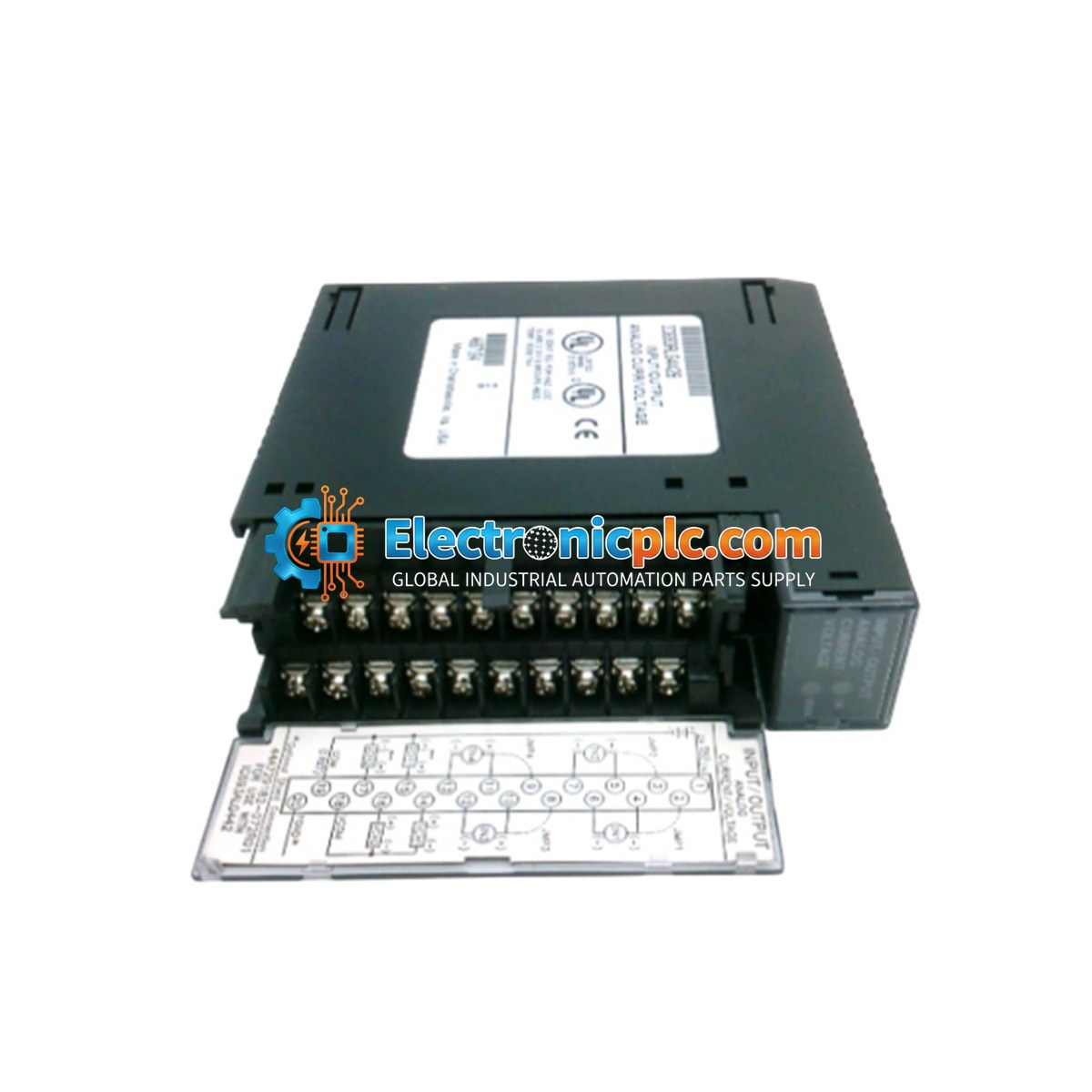

• Detachable 20-terminal block for efficient field wiring and module replacement.

Applications

• Boiler and chiller management, including flow rate monitoring and modulating valve control.
• Plastic injection molding, specifically for melt pressure monitoring and hydraulic proportional valve control.
• Storage and terminal automation for tank farm telemetry and fuel loading systems.
• Refining processes requiring precise pressure transducer monitoring and proportional valve actuation.

Technical Specifications

Installation Guidelines

• Power Down: Always disconnect power from the PLC backplane before inserting or removing the module to prevent electrical damage.
• Enclosure: The module must be installed within a grounded metal enclosure to ensure electromagnetic compatibility and protection.
• Wiring: Utilize the 20-terminal detachable block for field connections. Ensure all analog signal wiring is shielded and routed away from high-voltage AC lines to minimize noise interference.
• Power Requirements: Ensure a stable 24VDC external power supply is connected to the module, as it is required for analog circuitry operation in addition to the 5V backplane power.
• Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQs

What is the IC693ALG442?

The IC693ALG442 is a 12-bit resolution, combination analog input/output module for the GE Series 90-30 PLC system.

Does this module require an external power supply?

Yes. While it draws 95mA from the +5V PLC backplane, an external +24VDC power supply is required for the analog circuitry to function.

How are the inputs configured?

The module supports differential inputs, and each channel can be individually configured for voltage (±10V, 0-10V) or current (0-20mA, 4-20mA) signals.

What is the benefit of the Enhanced 4-20mA mode?

The enhanced mode allows 0mA to correspond to a count of -8000, which facilitates advanced open-wire fault detection in process loops.
