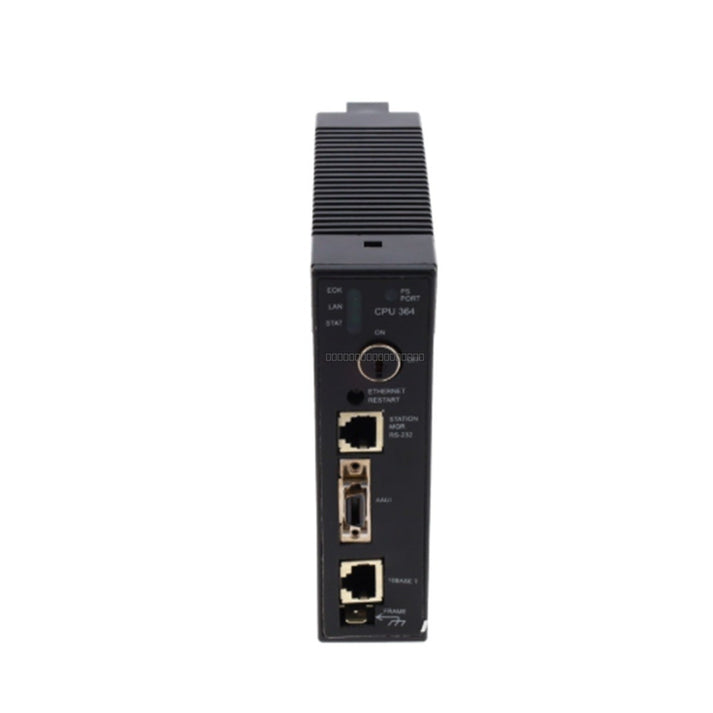

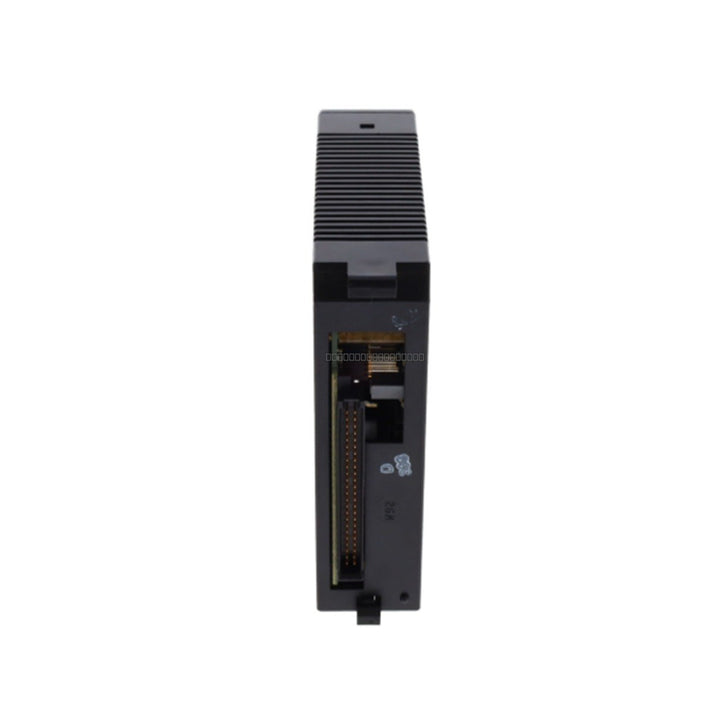

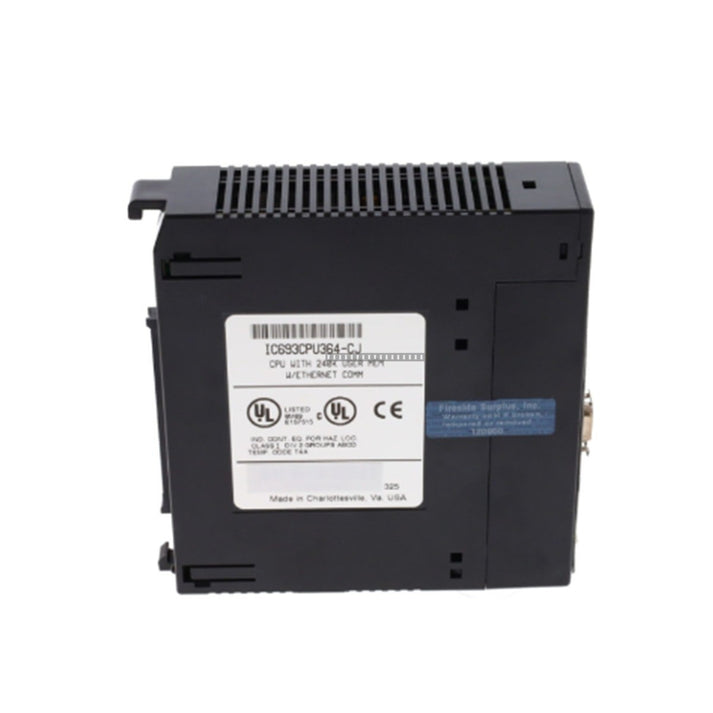

General Electric IC693CPU364 Series 90-30 Single-Slot CPU Module

General Electric IC693CPU364 Series 90-30 Single-Slot CPU Module

The General Electric IC693CPU364 is a high-performance, single-slot central processing unit (CPU) designed for the Series 90-30 PLC platform. This controller features an integrated 80386EX processor operating at 25 MHz,...

21 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC693CPU364
Vendor: General Electric
Category: PLC CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC693CPU364 is a high-performance, single-slot central processing unit (CPU) designed for the Series 90-30 PLC platform. This controller features an integrated 80386EX processor operating at 25 MHz, providing a typical scan rate of 0.22 ms per 1K of Boolean logic. With 240KB of configurable user memory and an embedded Ethernet interface, this module is engineered to handle complex automation tasks and network communications within a compact footprint.

Features

  • Series 90-30 processor module with single-slot design.
  • Embedded Ethernet interface supporting 10BASE-T or AAUI connections.
  • 240KB of configurable user memory (RAM and Flash).
  • Supports up to 2,048 discrete inputs and 2,048 discrete outputs.
  • Advanced memory management for configurable analog I/O blocks.
  • High-speed 25 MHz 80386EX processor architecture.

Applications

This CPU module is widely utilized in industrial automation environments requiring integrated Ethernet connectivity, such as manufacturing process control, machine automation, and distributed I/O management within the GE Fanuc Series 90-30 ecosystem.

Technical Specifications

Model IC693CPU364
Processor 80386EX (25 MHz)
User Memory 240 KB
Ethernet Interface 10BASE-T or AAUI
Power Requirements 1.51 Amps at +5 VDC
Scan Rate 0.22 ms per 1K Boolean contacts
Discrete I/O Capacity 2,048 Inputs / 2,048 Outputs
Operating Temperature 0 to 60 degC
Storage Temperature -40 to 85 degC

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage.
  • The module occupies a single slot in the Series 90-30 backplane; ensure proper alignment with the backplane connector.
  • Use shielded Ethernet cabling for the embedded port to minimize EMI interference in industrial environments.
  • Maintain adequate ventilation around the rack to ensure the ambient temperature remains within the 0 to 60 degC operating range.
  • Handle the module using proper ESD (electrostatic discharge) prevention practices to protect internal circuitry.

FAQ

What is the IC693CPU364?

The GE Fanuc IC693CPU364 is a single-slot central processing unit for the Series 90-30 PLC system, featuring an embedded Ethernet port, 240KB of user memory, and one built-in serial port. It is designed for high-speed, 25 MHz processing and supports up to eight backplates.

What should I check if the Ethernet port fails?

Verify the status of the Ethernet interface fuse, which is field-replaceable. Additionally, ensure that the 10BASE-T or AAUI connection is secure and not causing unexpected power supply loading.
